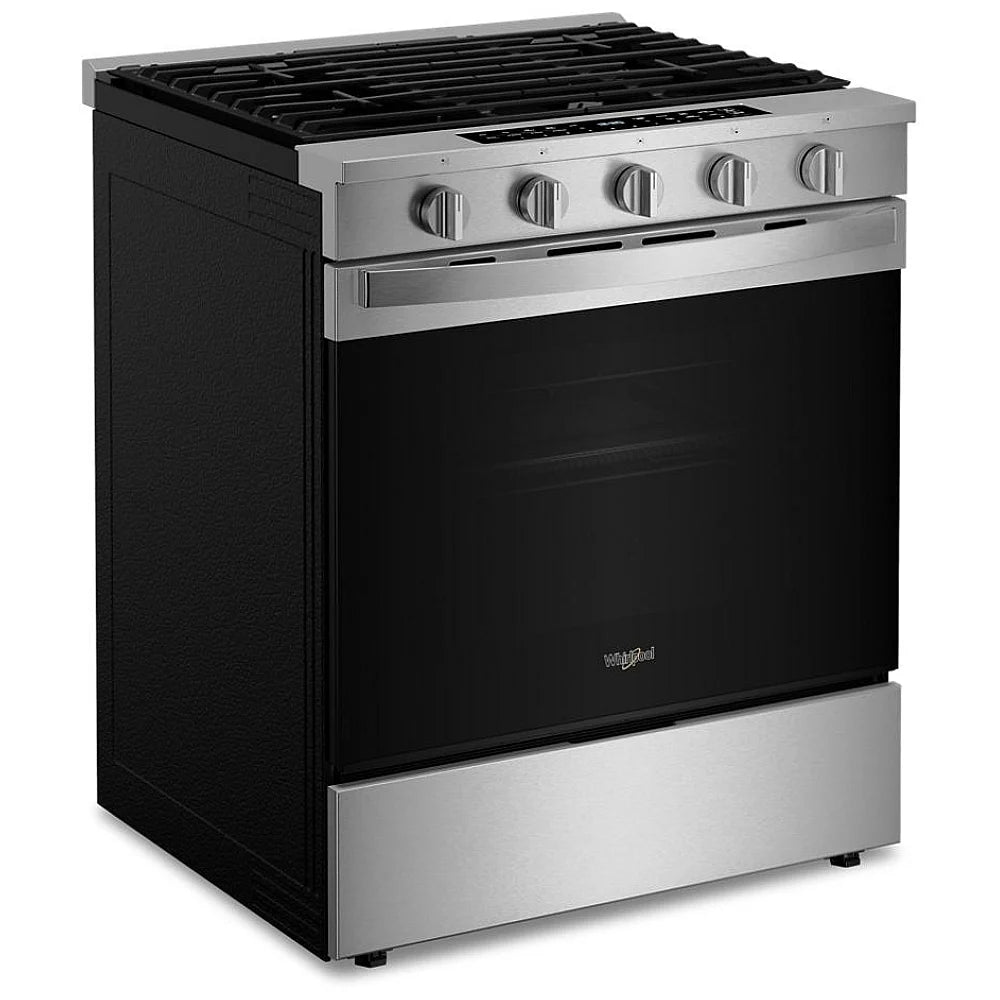

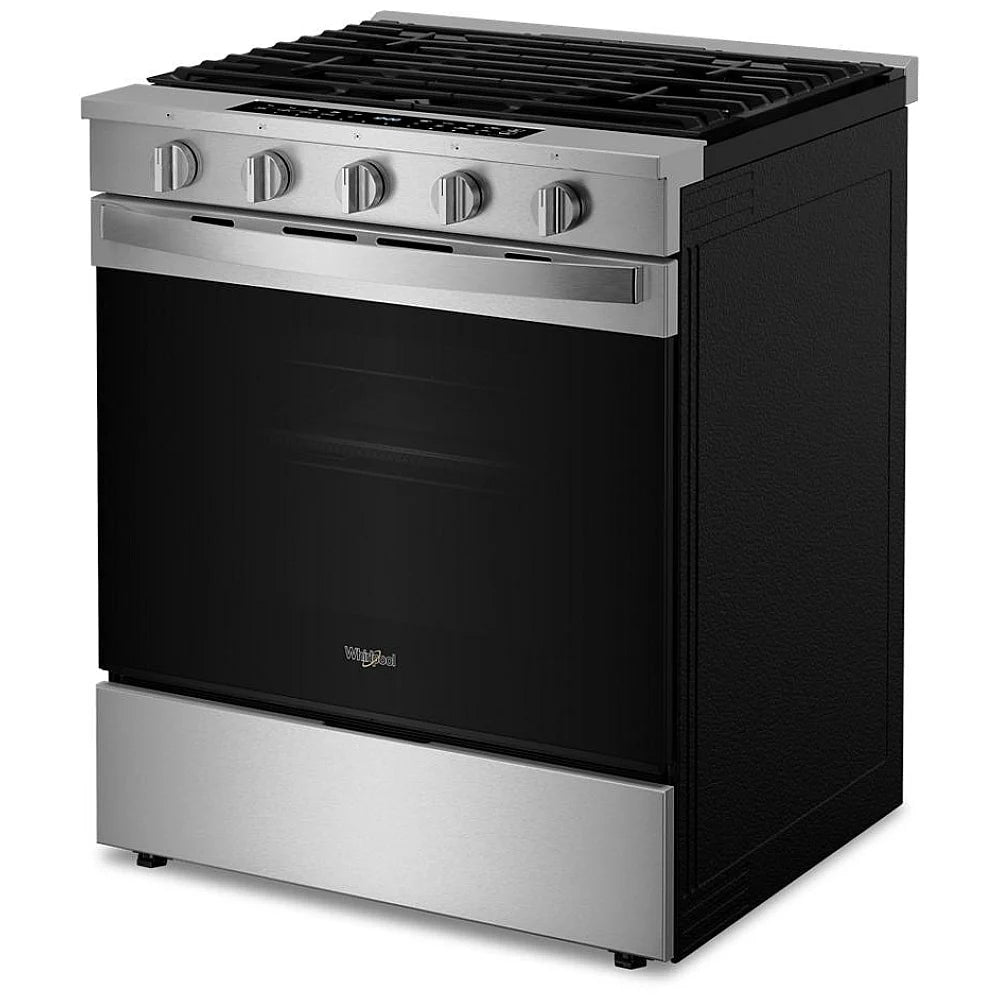

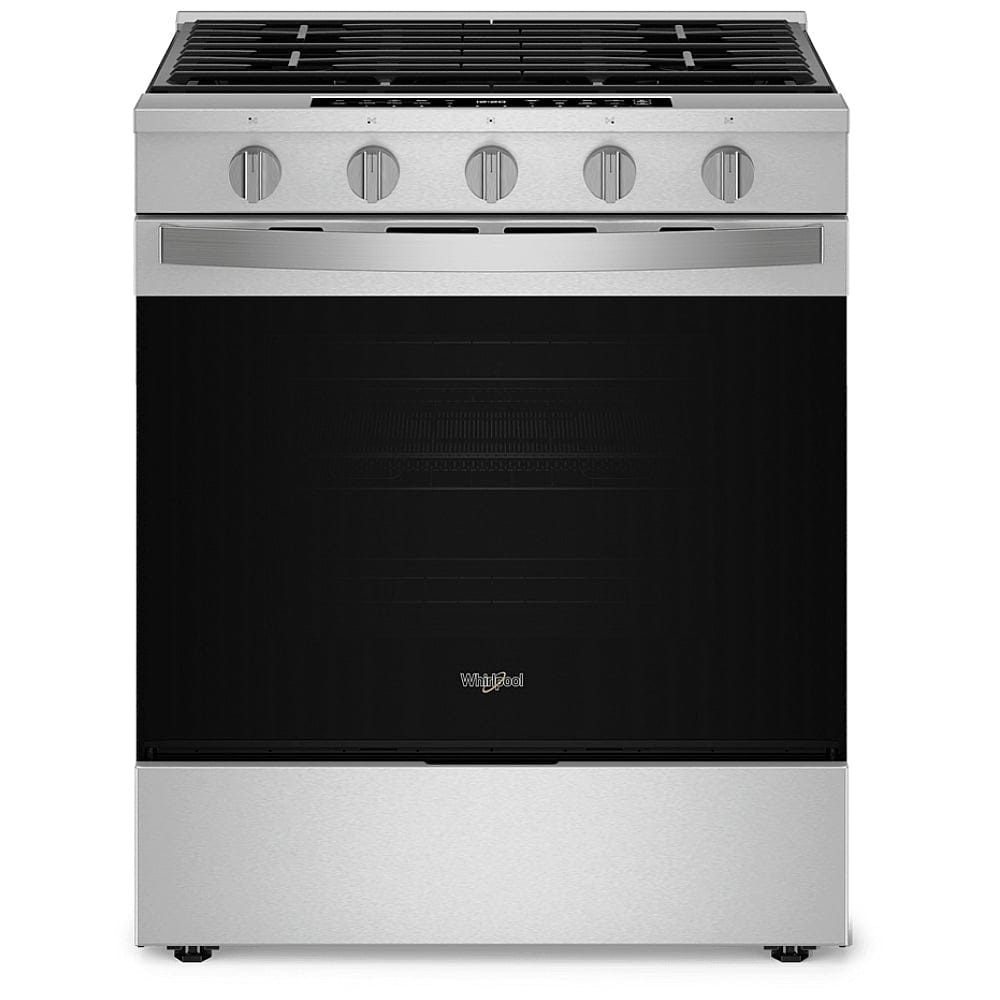

Whirlpool WSGS7530RZ Gas Ranges

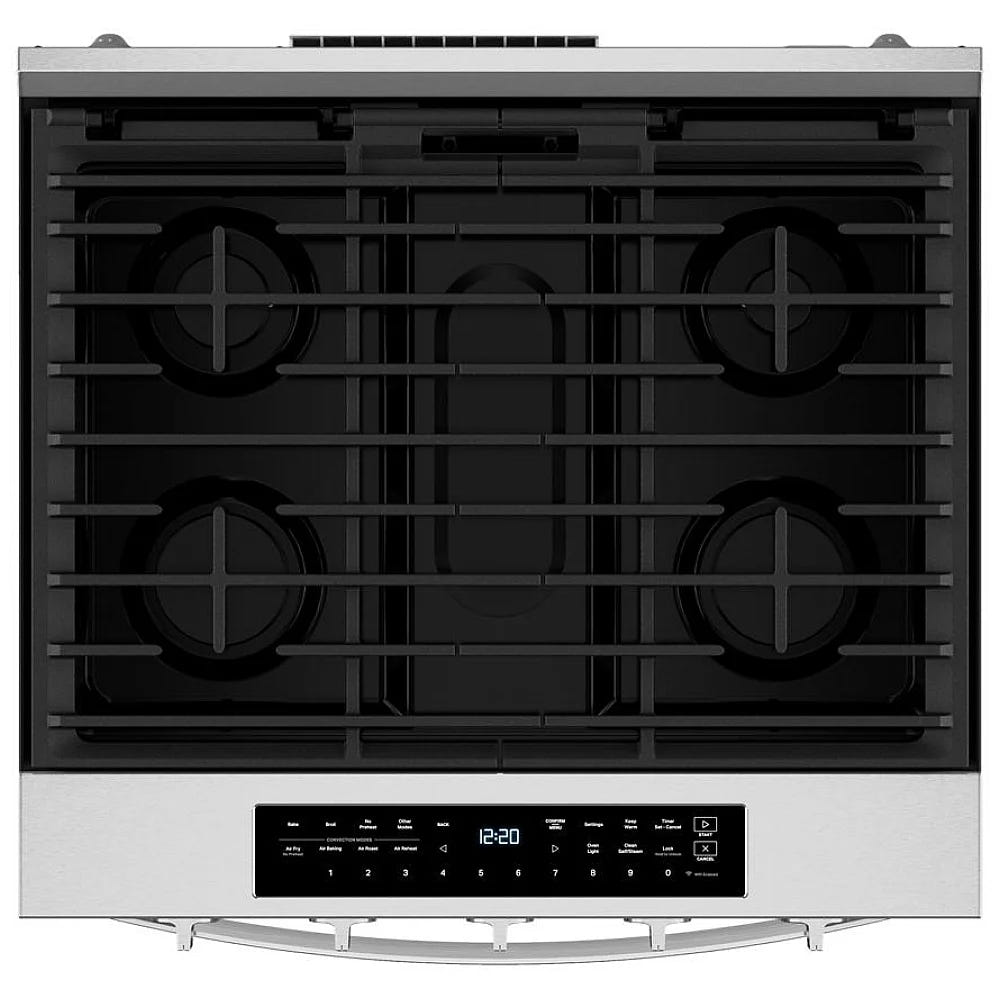

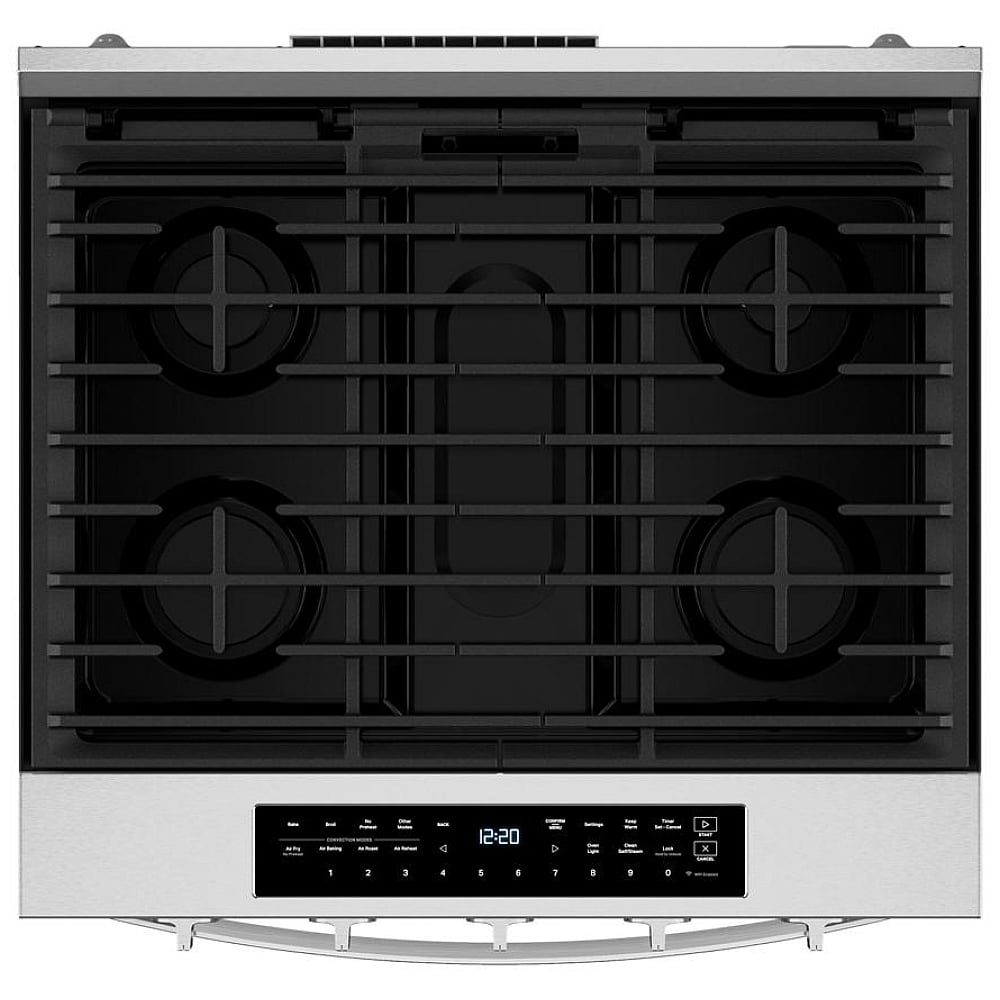

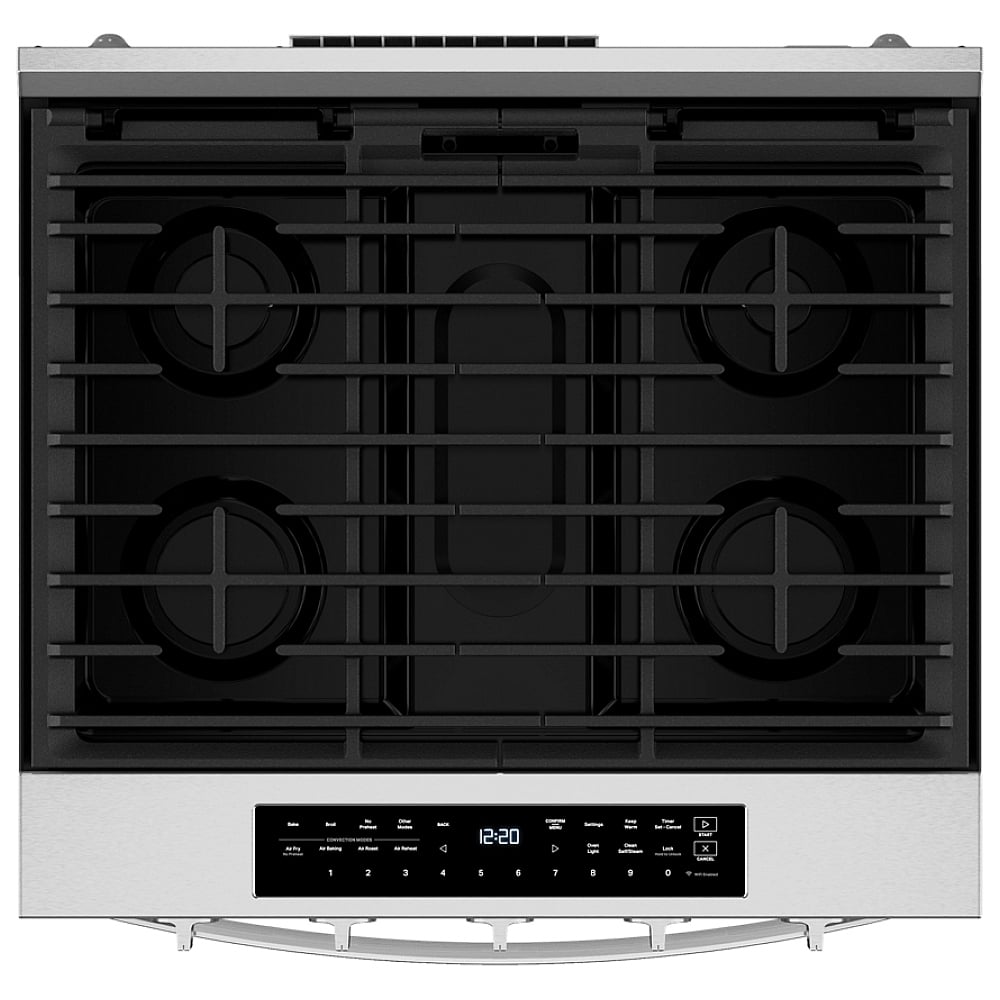

Cooktop Details

Auto Re-ignition No

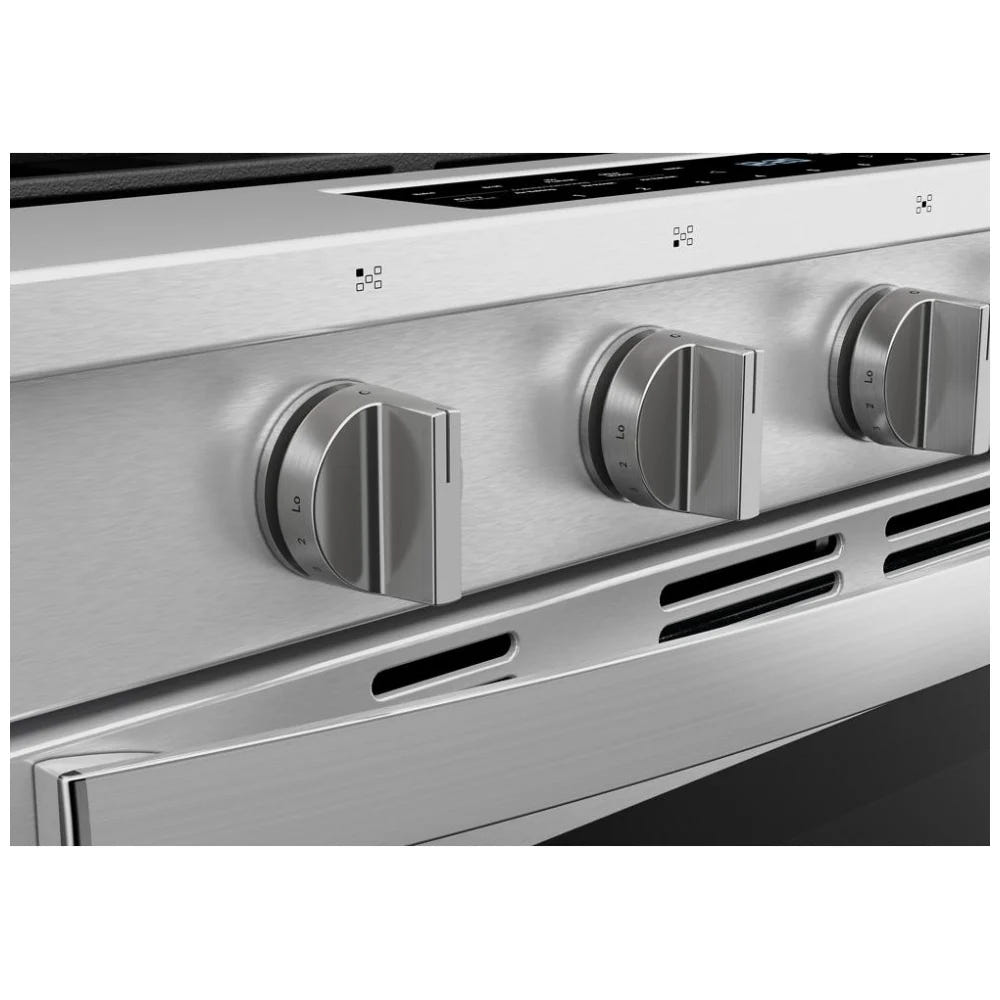

Cooktop Control Knob Type Weighted-Plastic

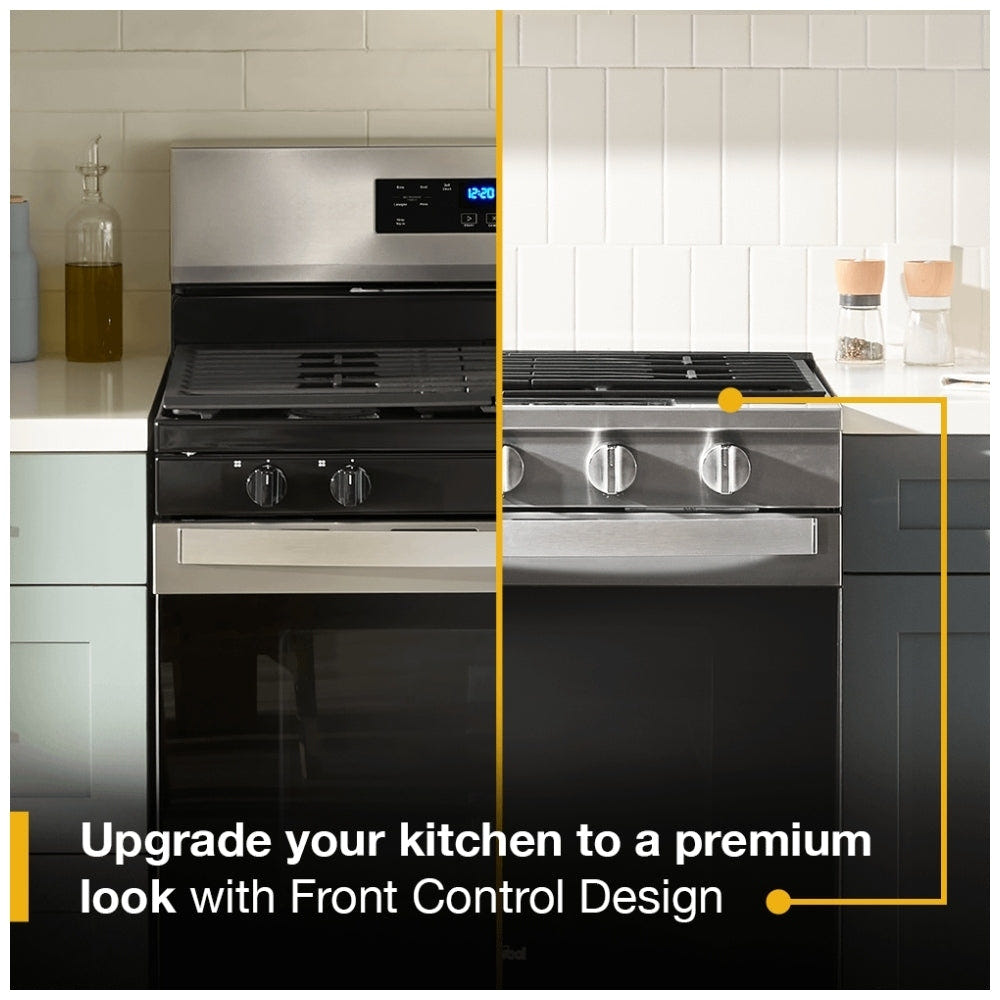

Cooktop Control Location Front

Cooktop Control Type Knobs

Cooktop Surface Material Porcelain Coated Steel

Griddle Included Optional Accessory

Heating Element On Indicator Light No

Hot Surface Indicator Light No

Ignition Type Direct Spark Ignition

Total Gas BTUs - Cooktop 63,000

Details

Air Fry Yes

Automatic Convection Conversion Temperature Adjust No

Cooktop Configuration All Burners

Fuel Type Gas

Lp Convertible Yes - Kit Included

Oven Automatic Shut-off Yes

Oven Configuration Single Oven

Oven Light Switch Location Oven Control

Oven Selections Air Baking; Air Reheat; Air Roast; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; No Preheat - Air Fry; No Preheat - Frozen Lasagna; No Preheat - Frozen Pizza; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Timer

Power On Indicator Light Yes

Power Outage Compatible Yes

Range Configuration Slide-In

Range Drawer Type Storage Drawer

Range Type Slide-in

Dimensions

Product Height 38.17

Carton Height 43

Gross Weight 196

Oven Interior Height 18.625

Carton Width 32

Product Depth 29.18

Oven Interior Depth 19

Depth With Door Open 90 Degree 47.72

Depth Excluding Doors 25.45

Adjustable Height Yes

Cutout Depth 24

Cutout Height 36

Depth Closed Excluding Handles 26.58

Depth Closed Including Handles 29.18

Carton Depth 31

Cutout Width 30

Oven Interior Width 24.25

Net Weight 180

Product Width 29.87

Electrical

Power Cord Included Yes

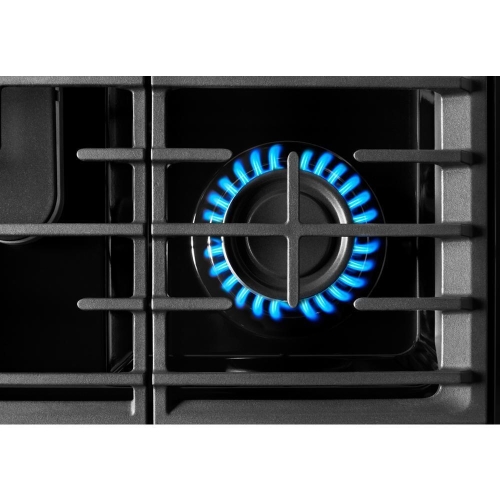

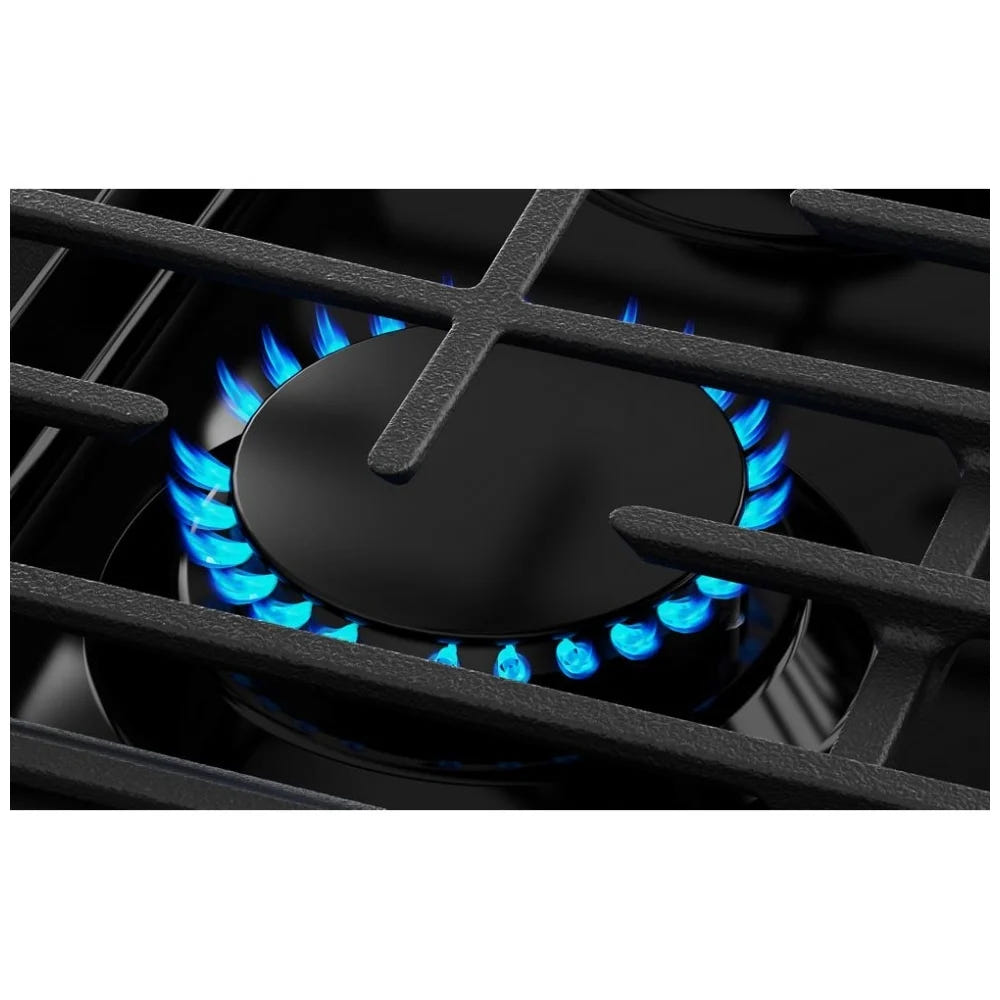

Element/burner Details

Center Front Element-burner Power 12000 BTU

Center Front Element-burner Type Oval Burner

Cooktop Element Style Sealed Burners

Left Front Element-burner Power 18,000 BTU

Left Front Element-burner Type Power™ Burner

Left Rear Element-burner Power 10,000 BTU

Left Rear Element-burner Type Standard

Number of Cooking Element-burners 5

Right Front Element-burner Power 18,000 BTU

Right Front Element-burner Type Power™ Burner

Right Rear Element-burner Powe r5,000 BTU

Right Rear Element-burner Type Simmer

Exterior Details

Door Type Glass

Oven Control Knob Type N/A

Oven Control Location Front

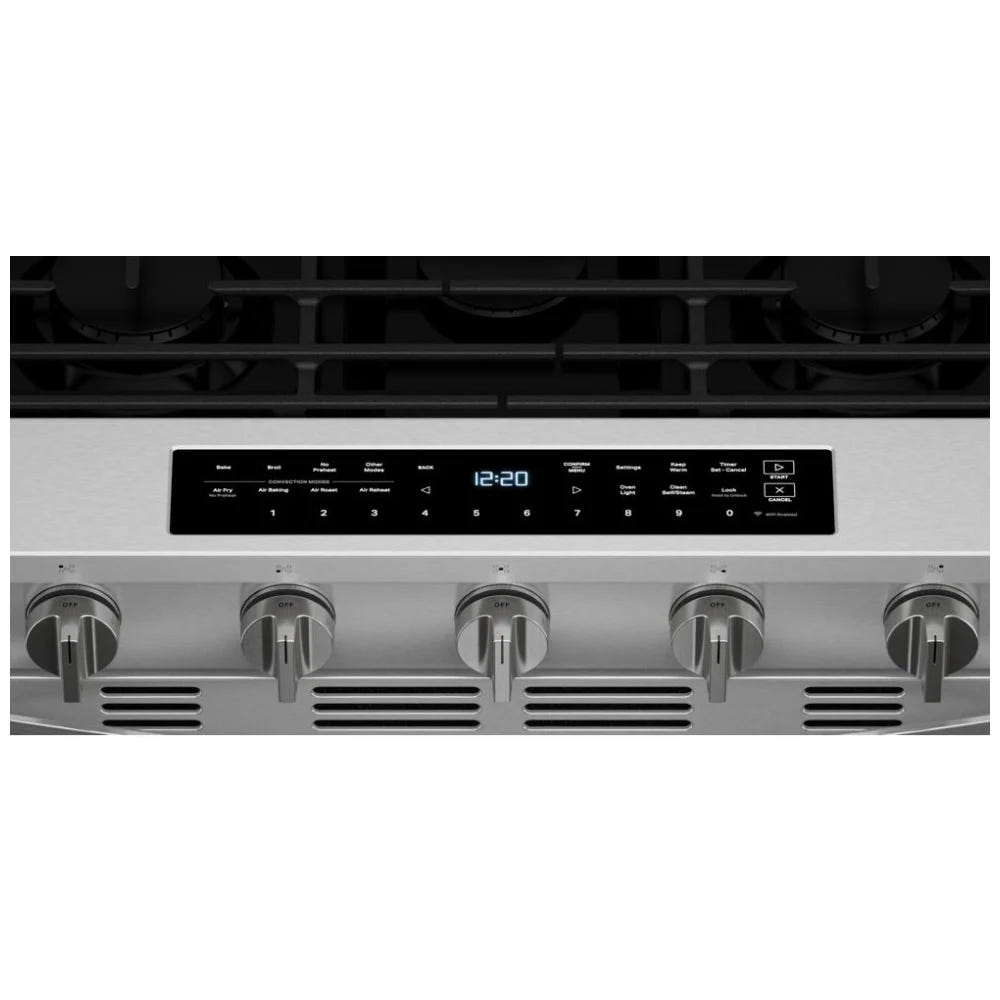

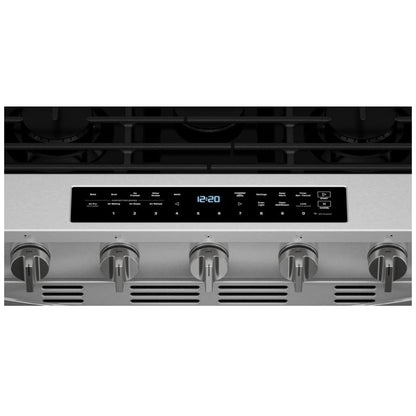

Oven Control Type Tap Touch

Oven Window Size Large

General

Air Fry Basket Included Yes

Literature Language English; French

Grate Details

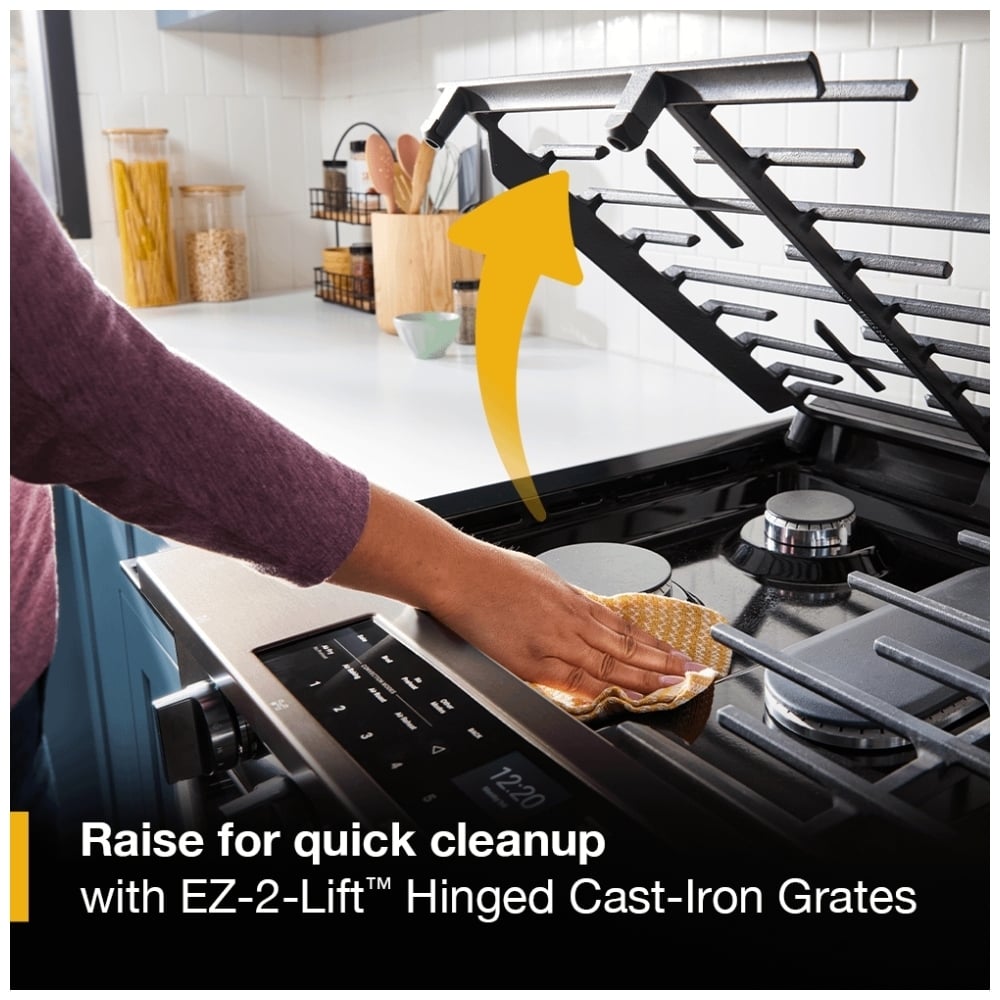

Grate Details Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish

Number of Grates 2

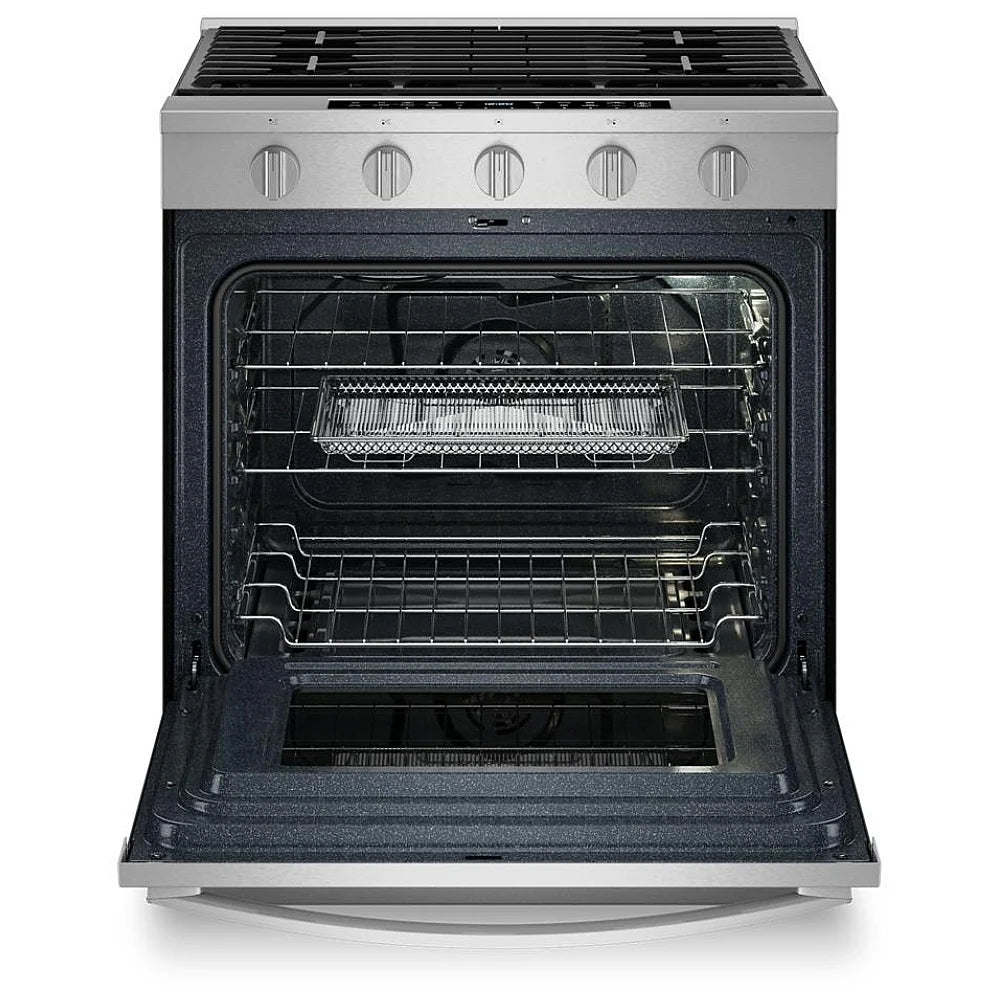

Oven Details

Bake Element Power 16,500 BTU

Broiler Element Power 1,300 W Electric Broil

Broiler Location Top Center

Convection Element Power 925

Convection Element Type True Convection

Convection Functions Bake; Broil

Door Removable Yes

Hidden Bake Element Yes

Natural Gas Convertible Yes

Number of Oven Lights 1

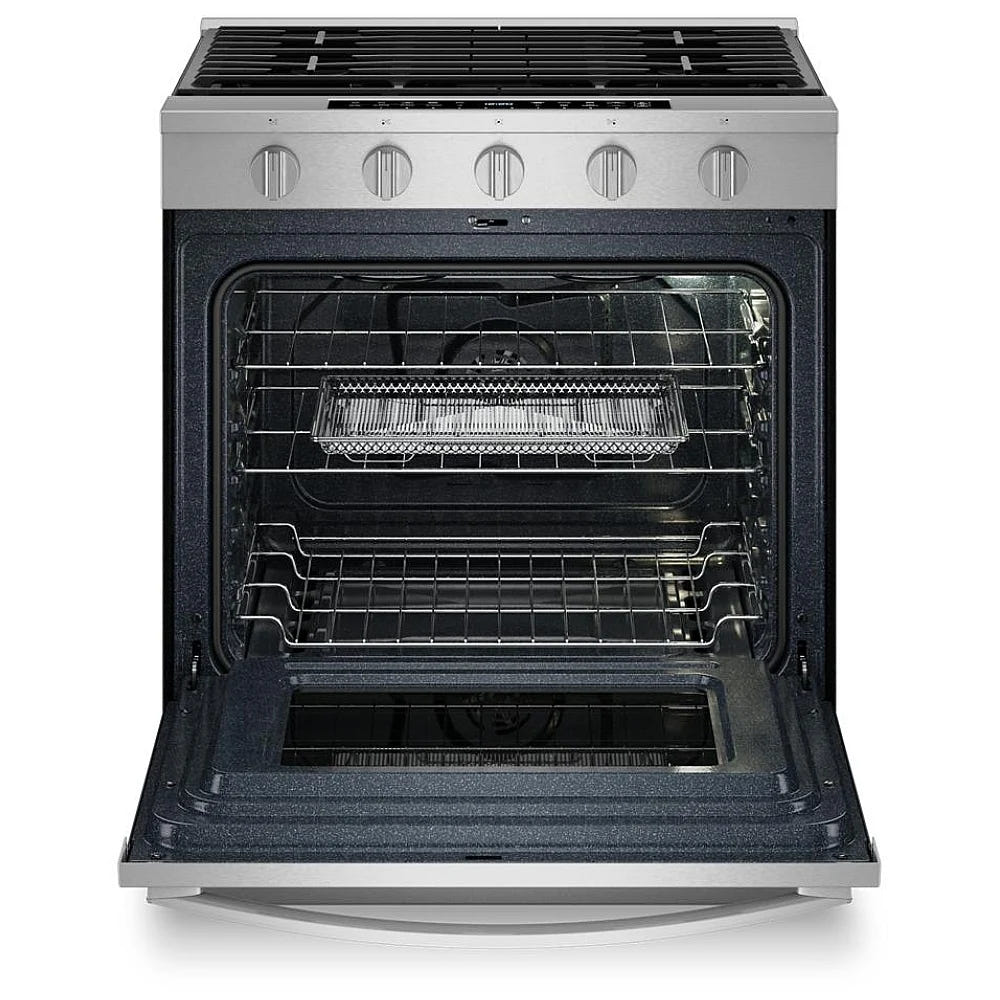

Number of Oven Racks 3

Number of Rack Guides 5

Oven Cleaning Type Self Clean + Steam Clean

Oven Cooking System True Convection

Oven Ignition Type Spark

Oven Light Type Halogen

Oven Rack Type 2 Standard and 1 Max Capacity

Temperature Probe No

Temperature Sensor No

Total Gas BTUs - Oven s16,500

Smart Compatibility

Connectivity Amazon Alexa; Android; Google Assistant; Nest; iOS

Smart Appliance Yes

Works With App; Bluetooth; Remote Access; Voice Controlled; WiF
