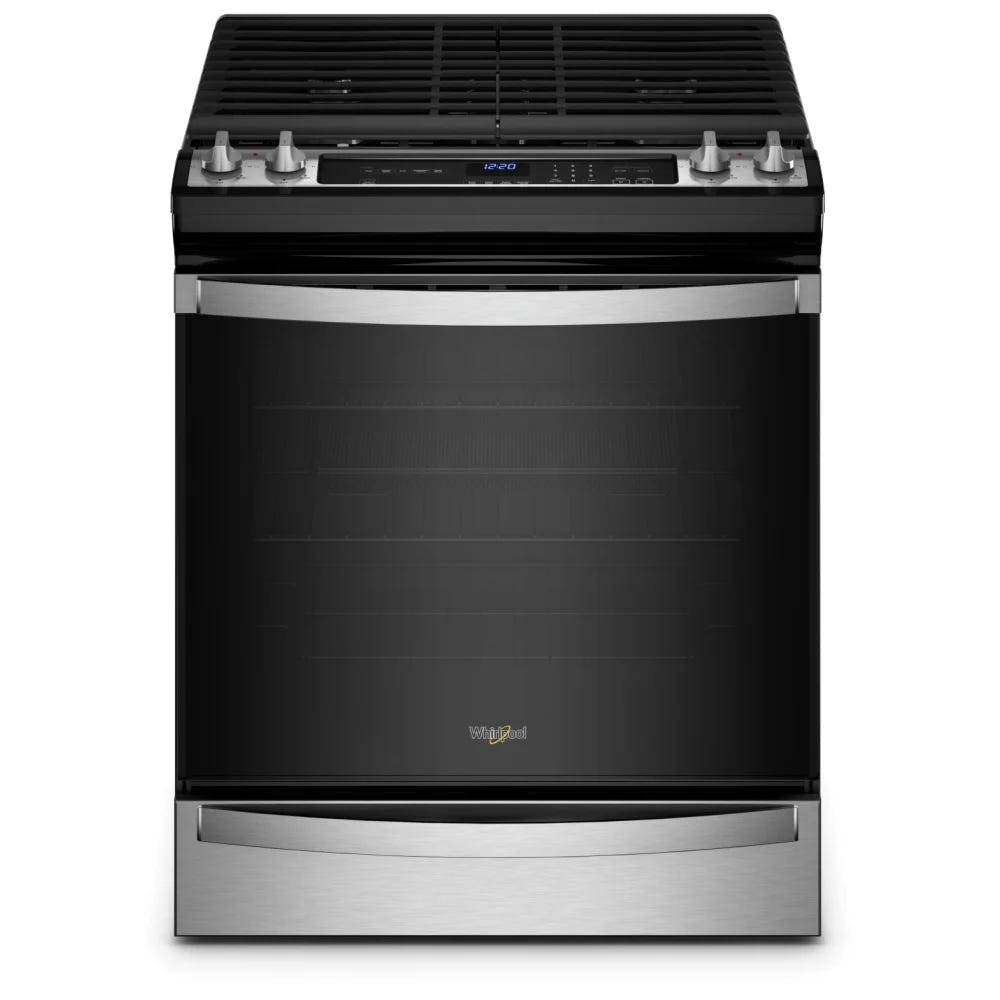

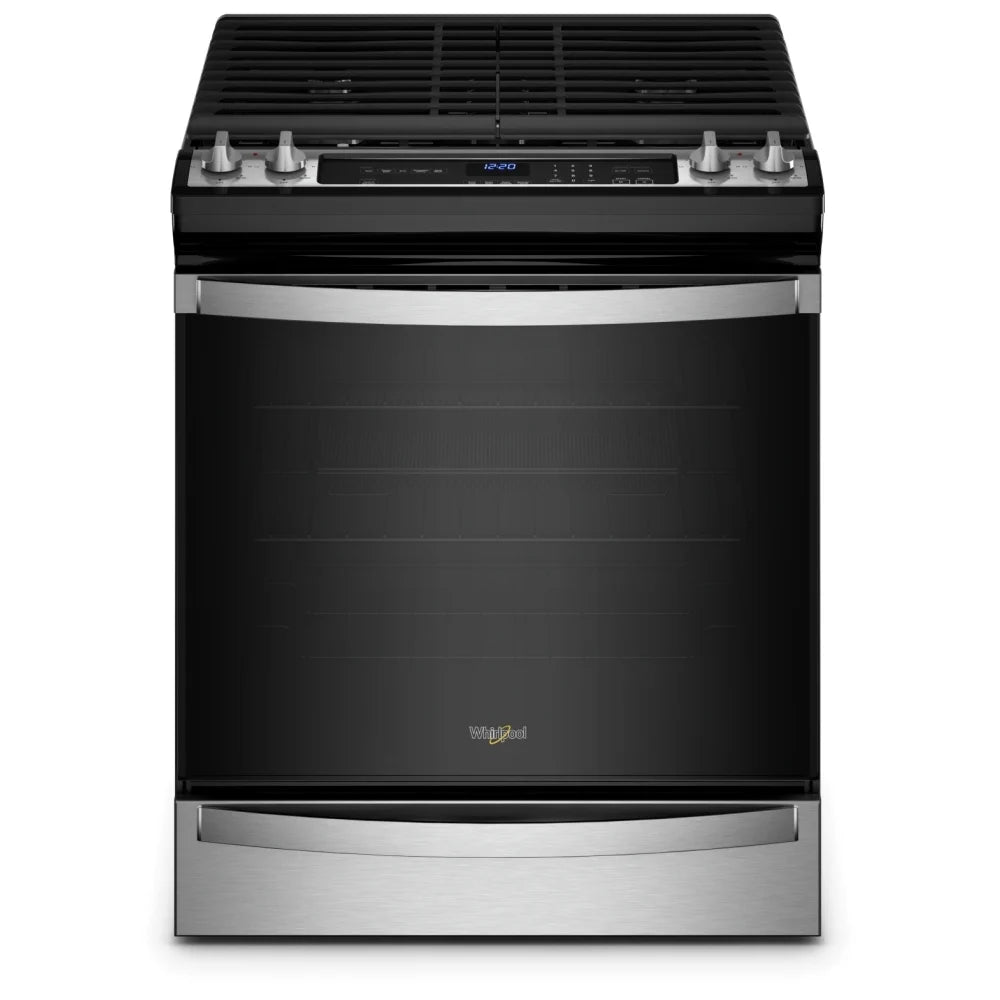

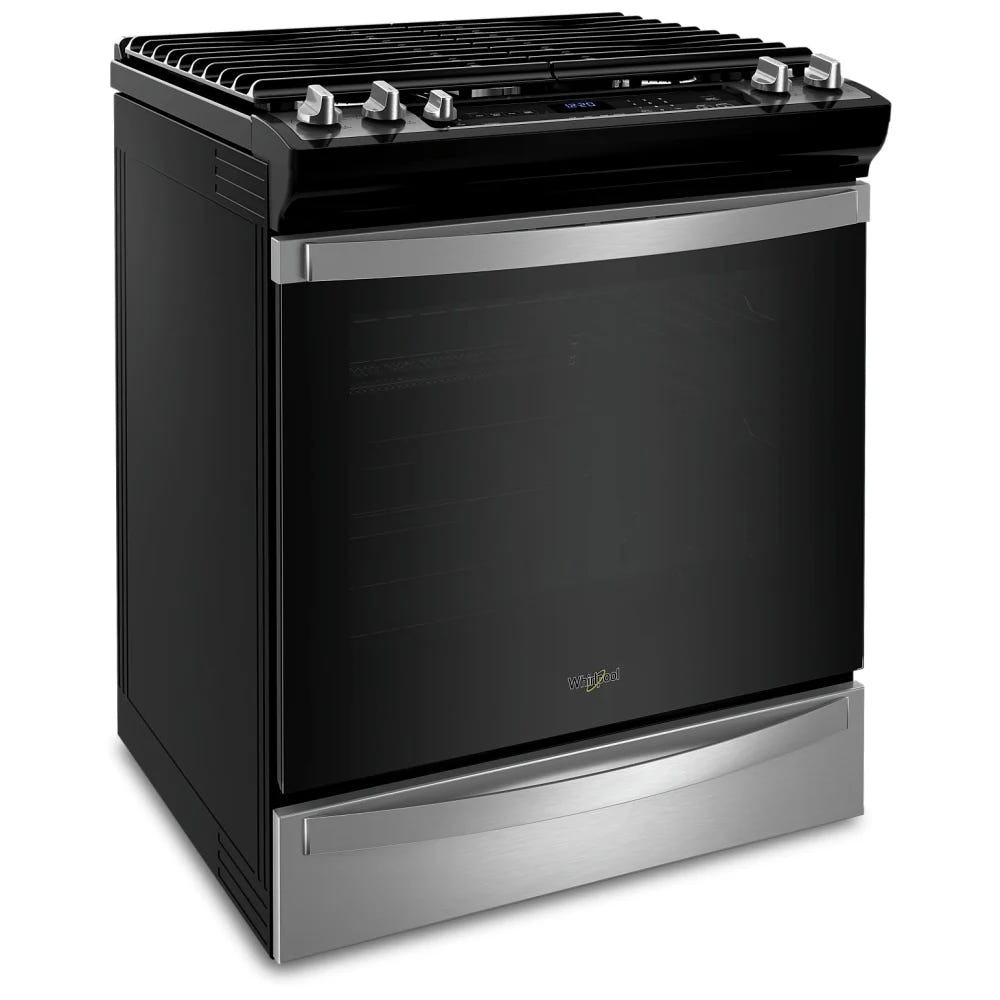

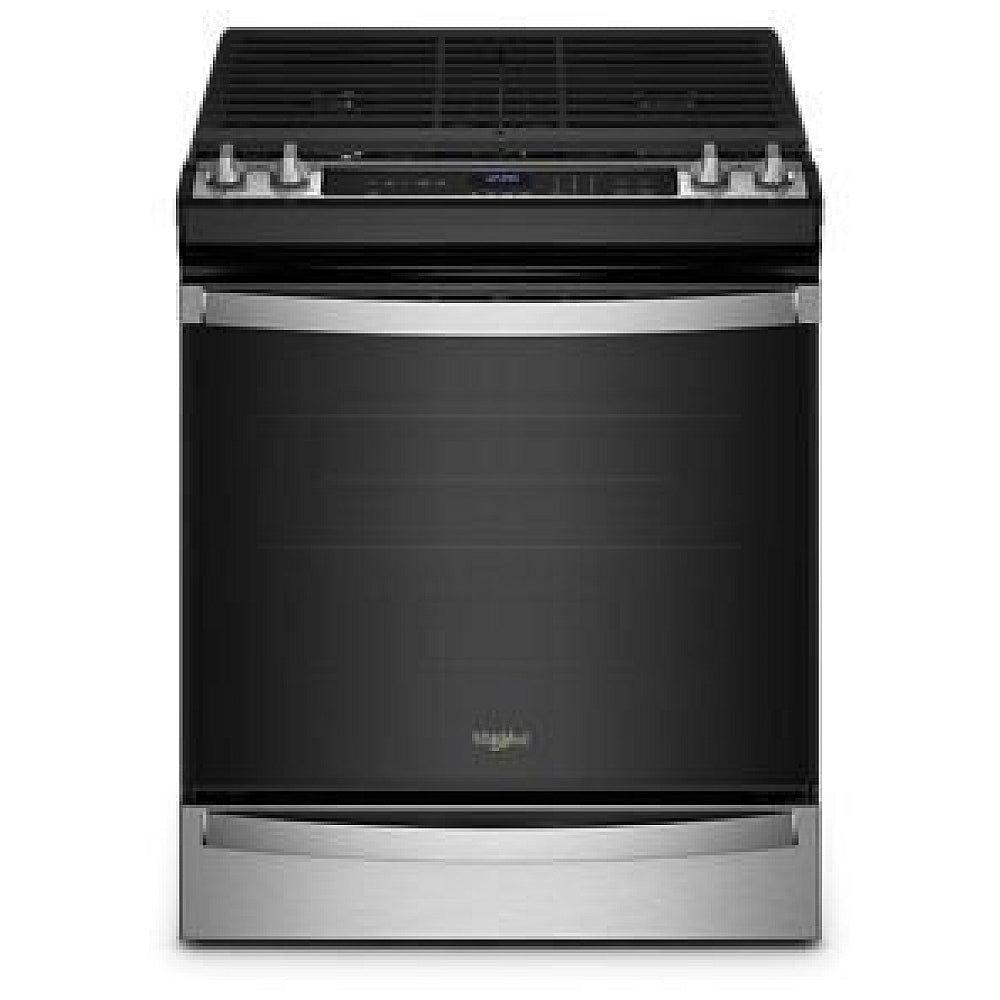

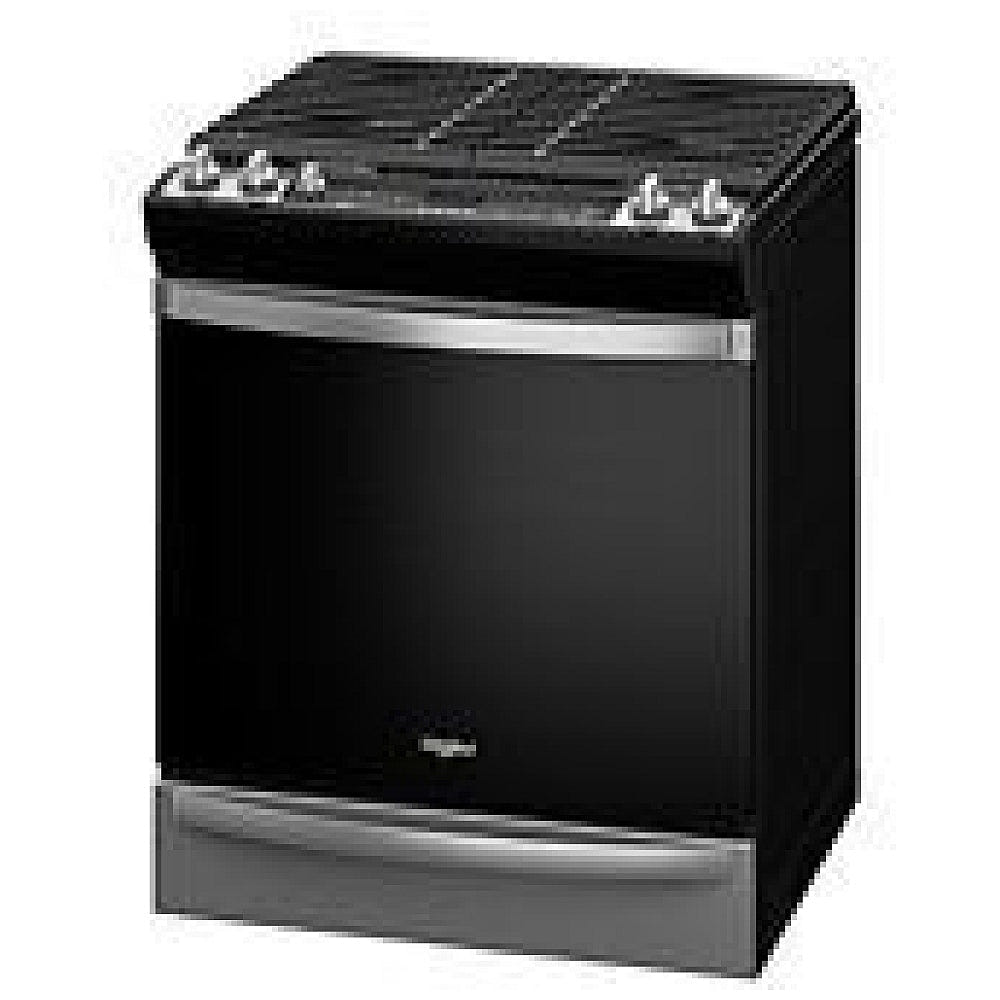

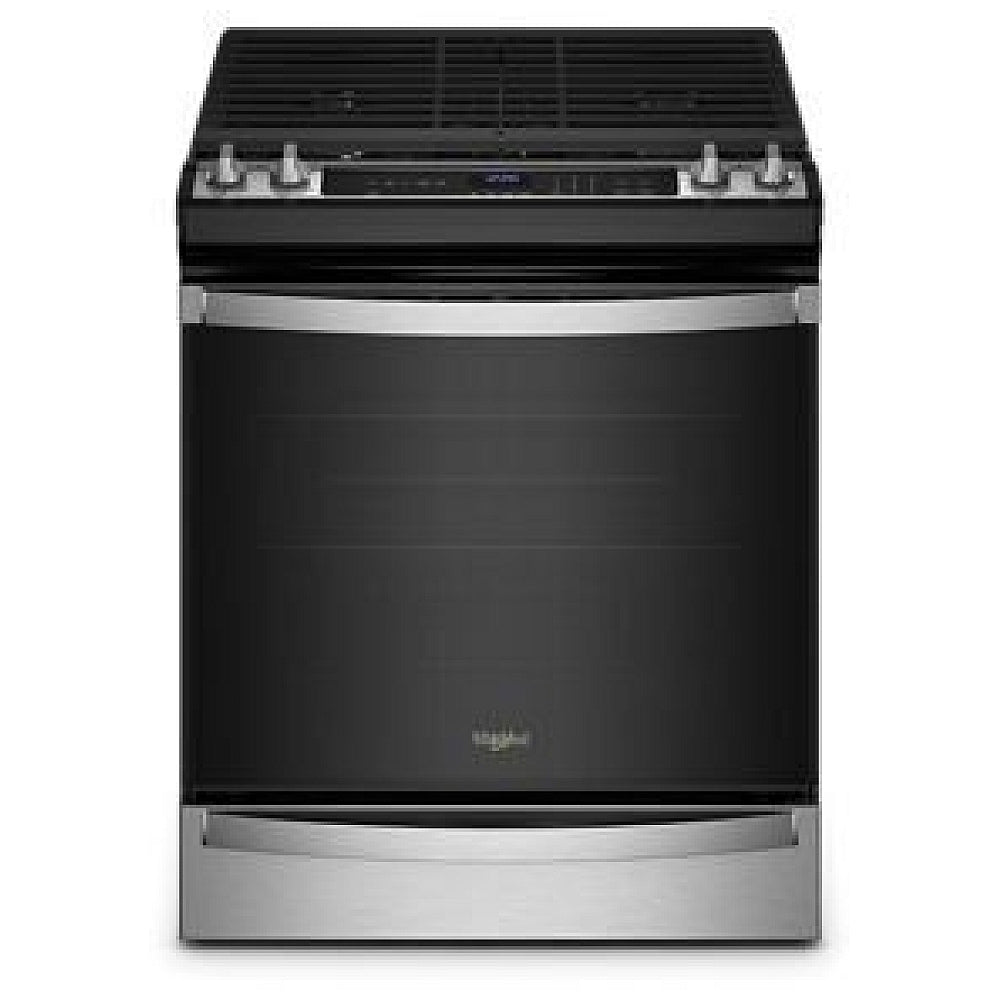

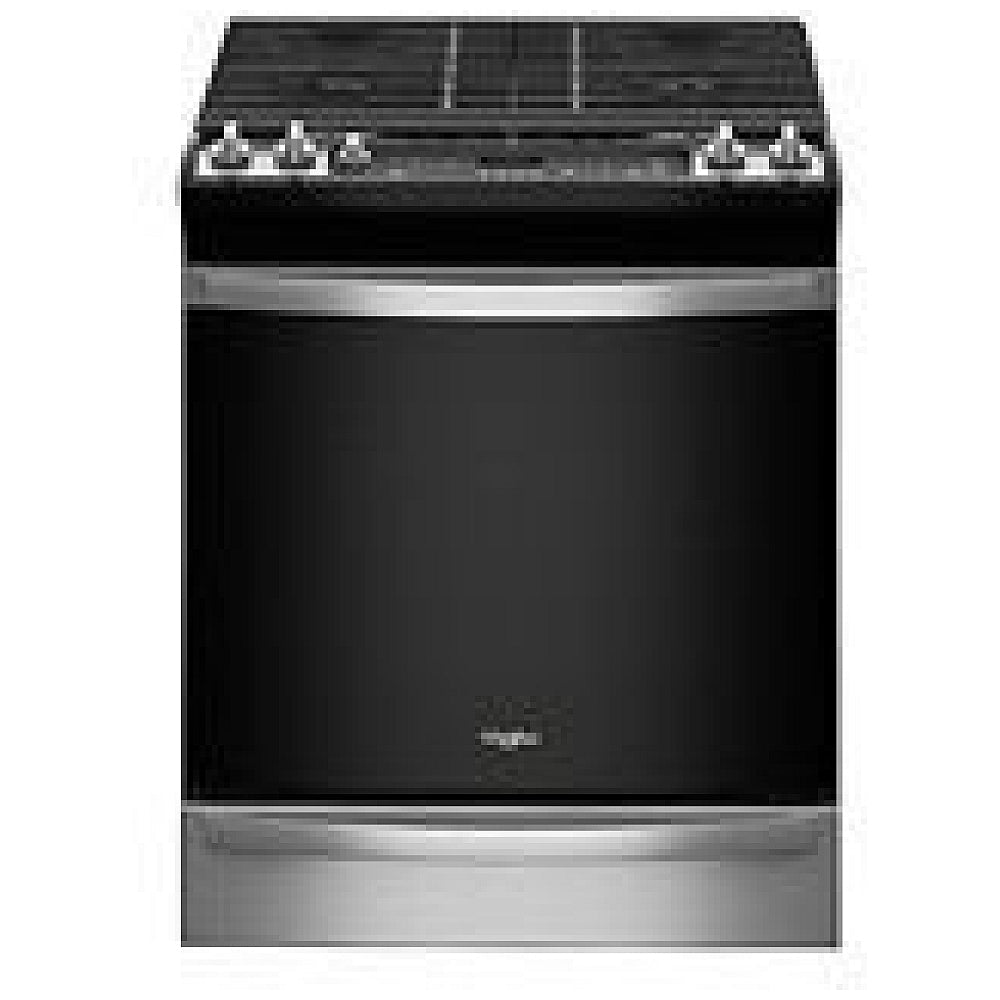

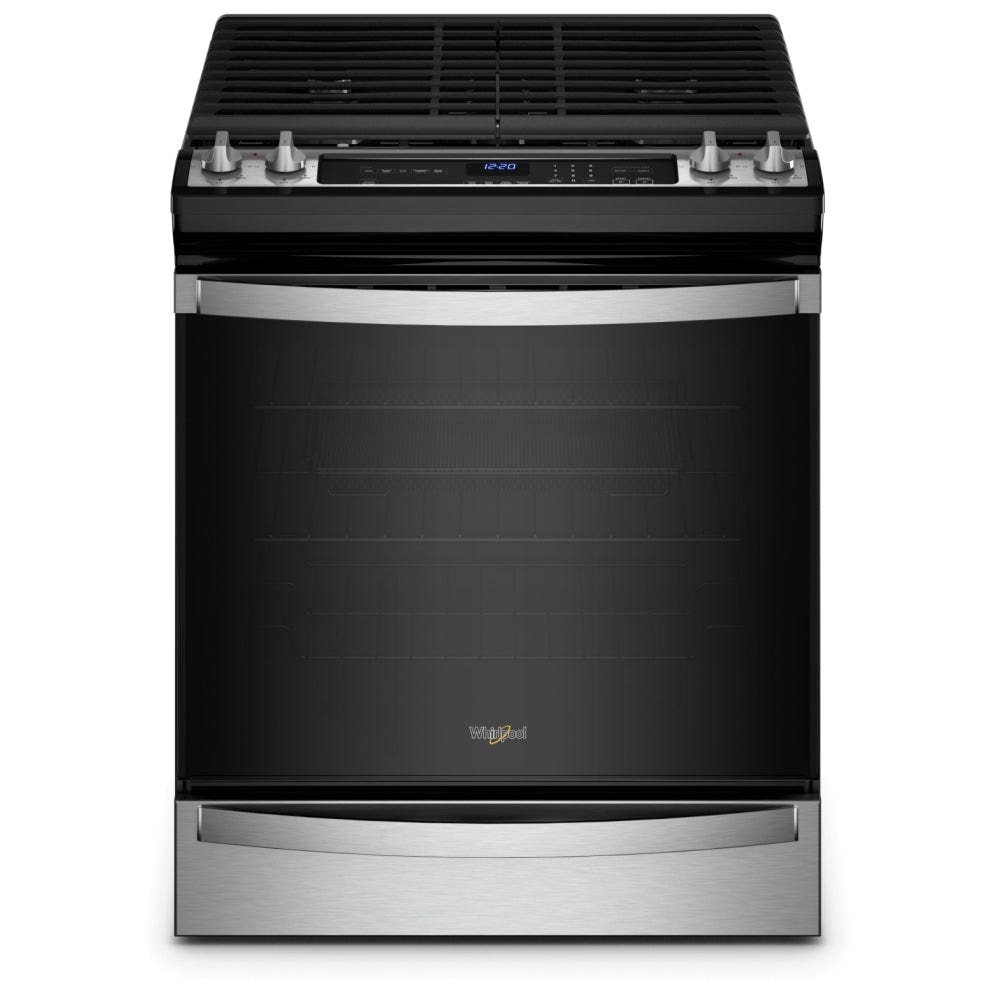

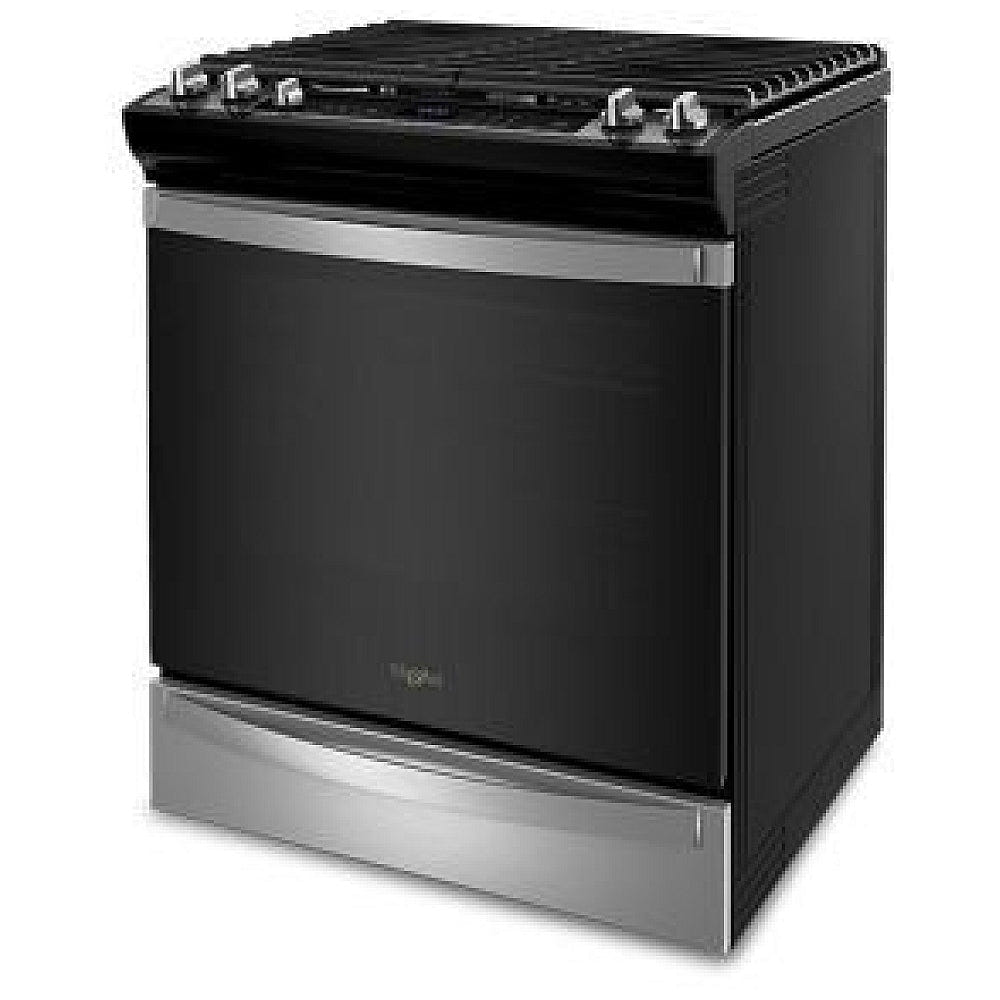

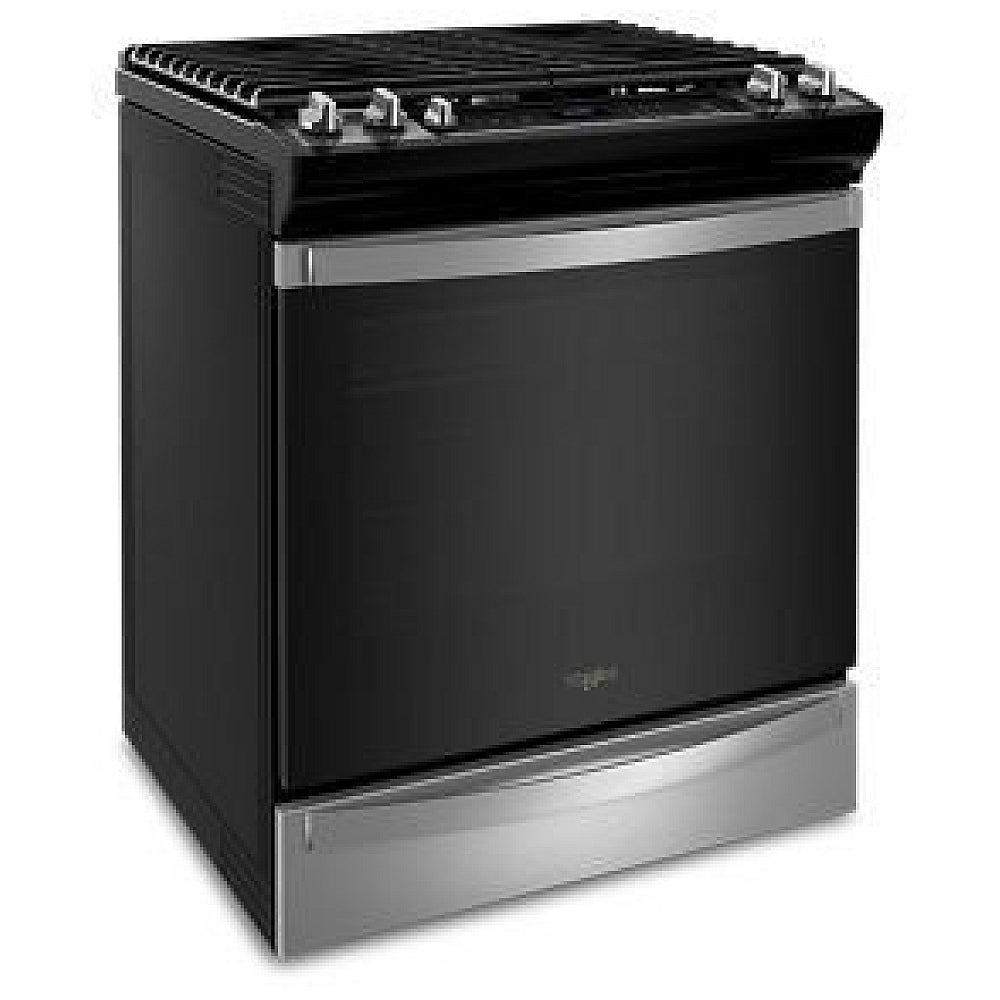

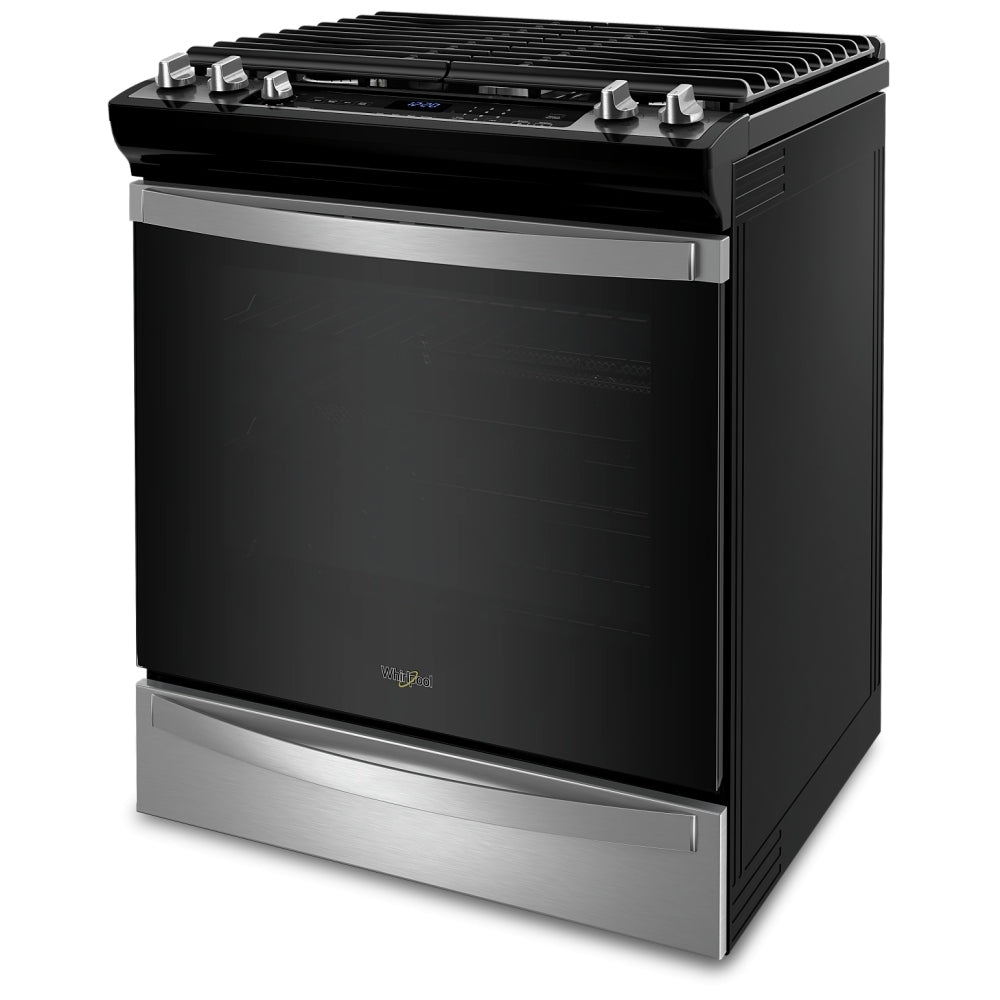

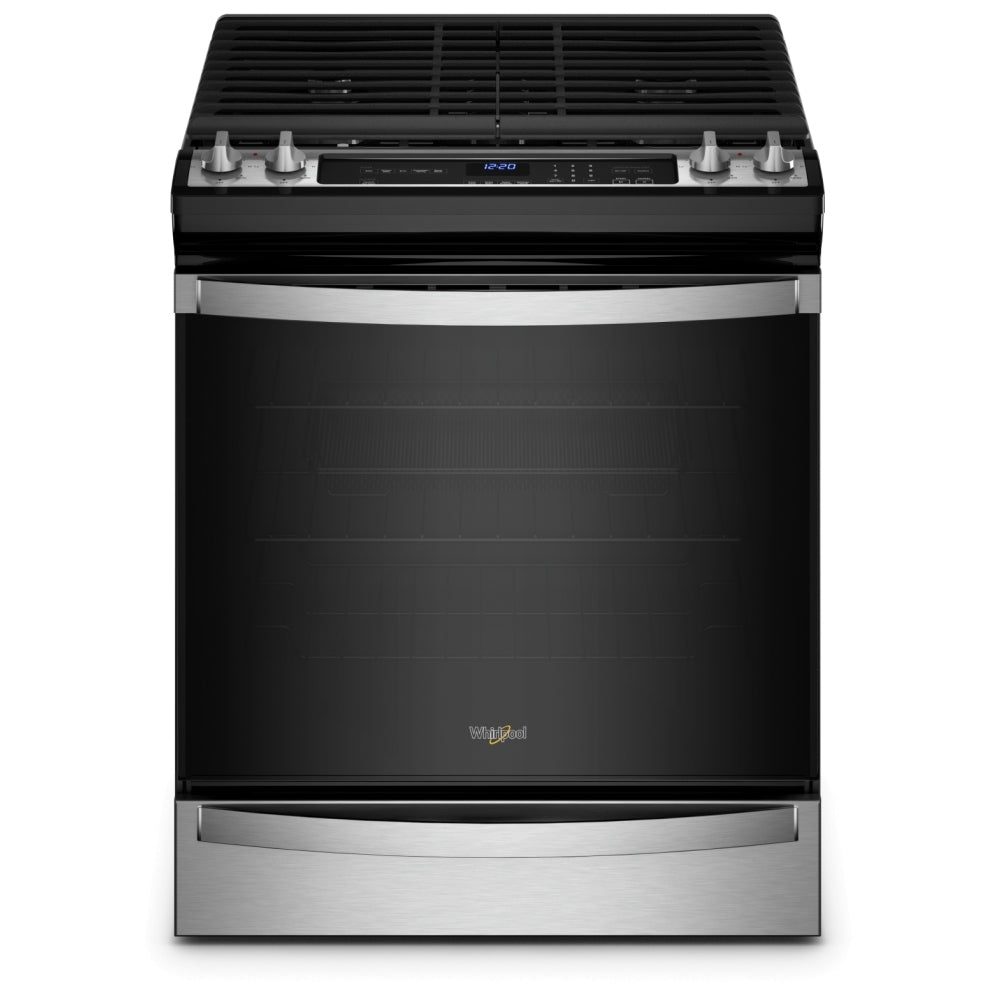

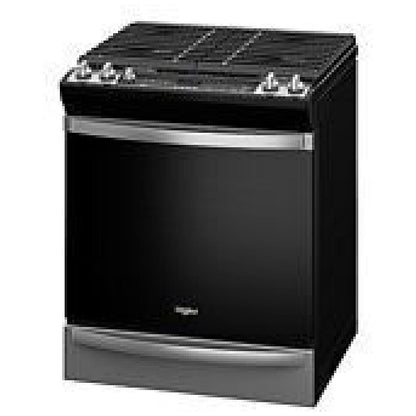

Whirlpool WEG745H0LZ Gas Range, 30'' Gas Ranges

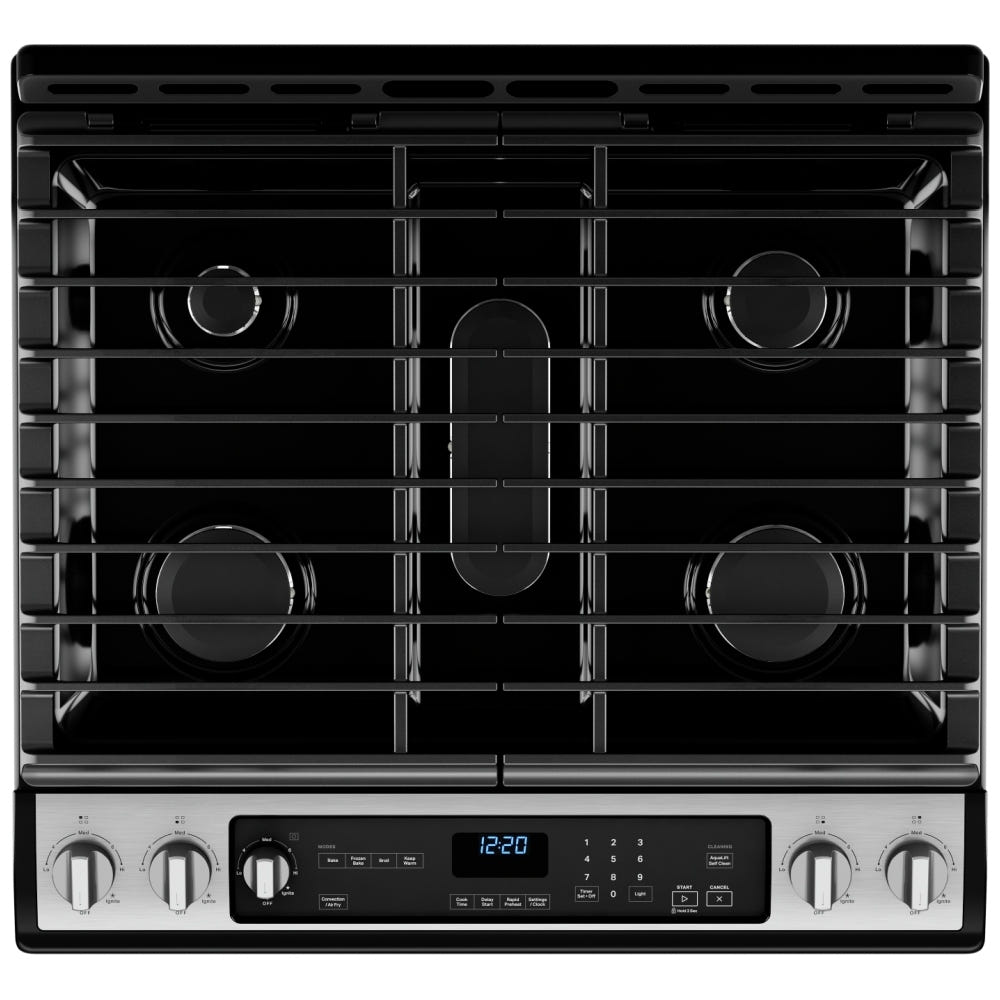

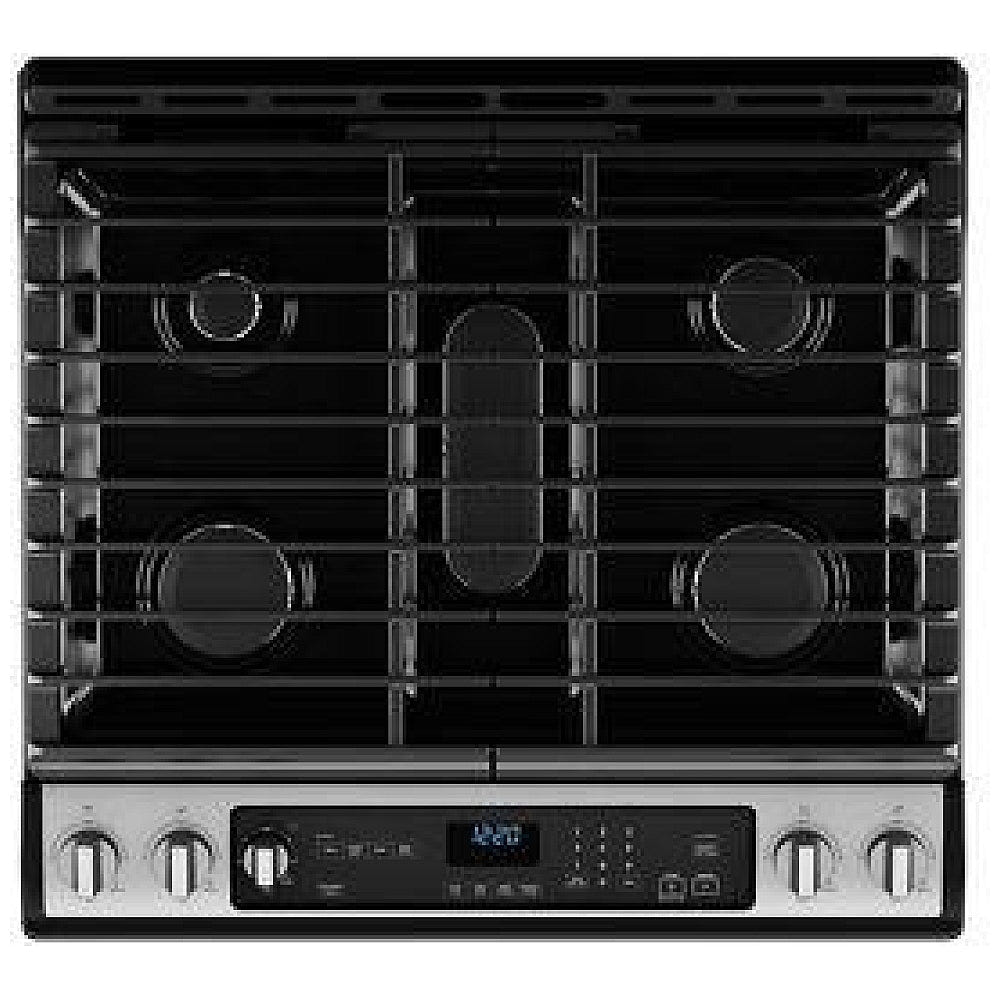

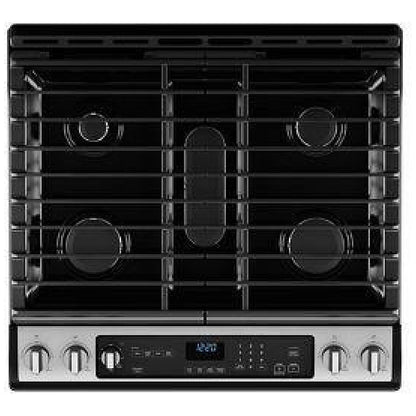

Cooktop Details

Auto Re-ignition No

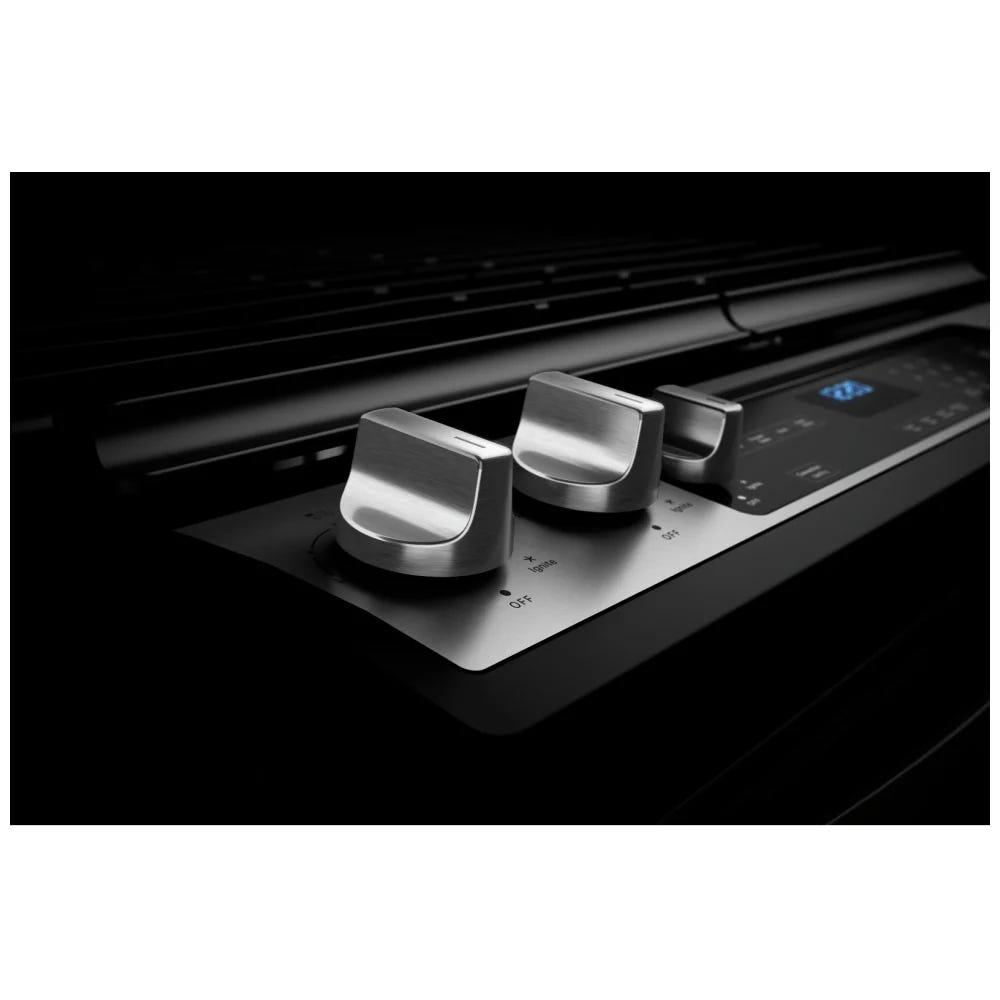

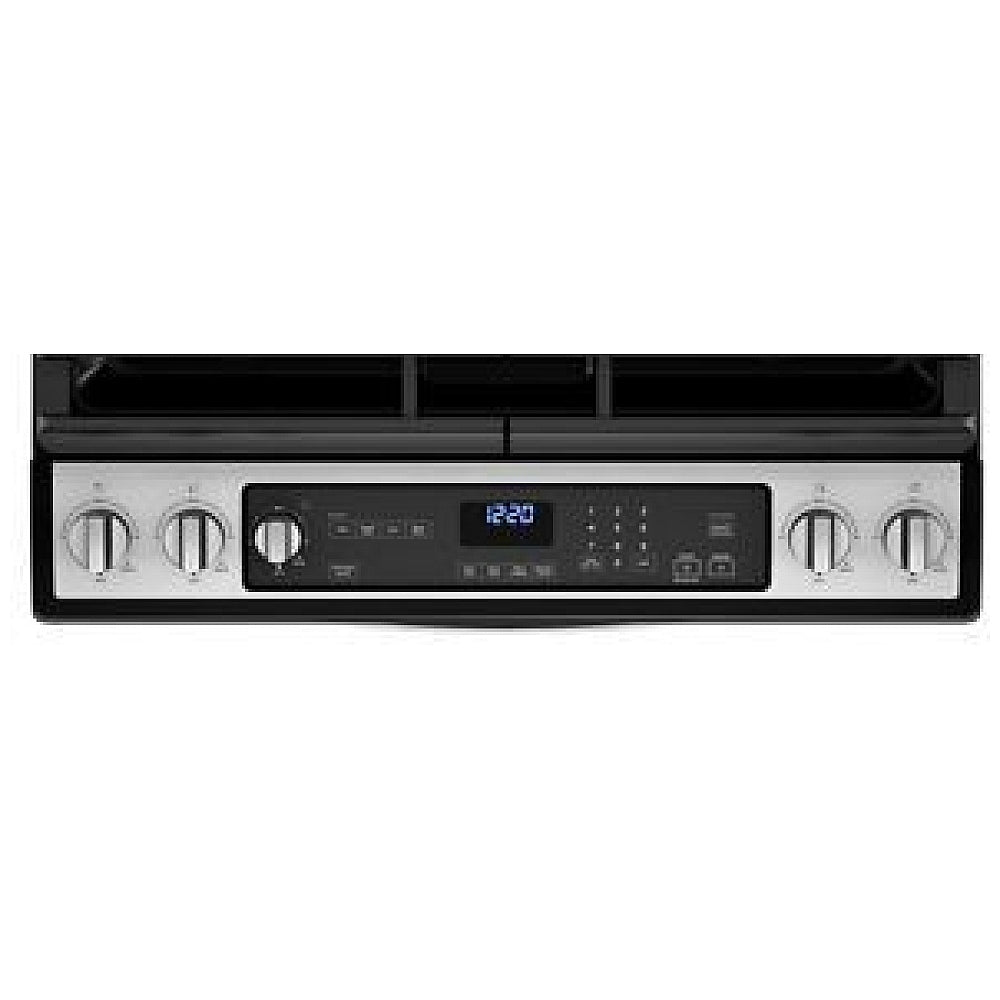

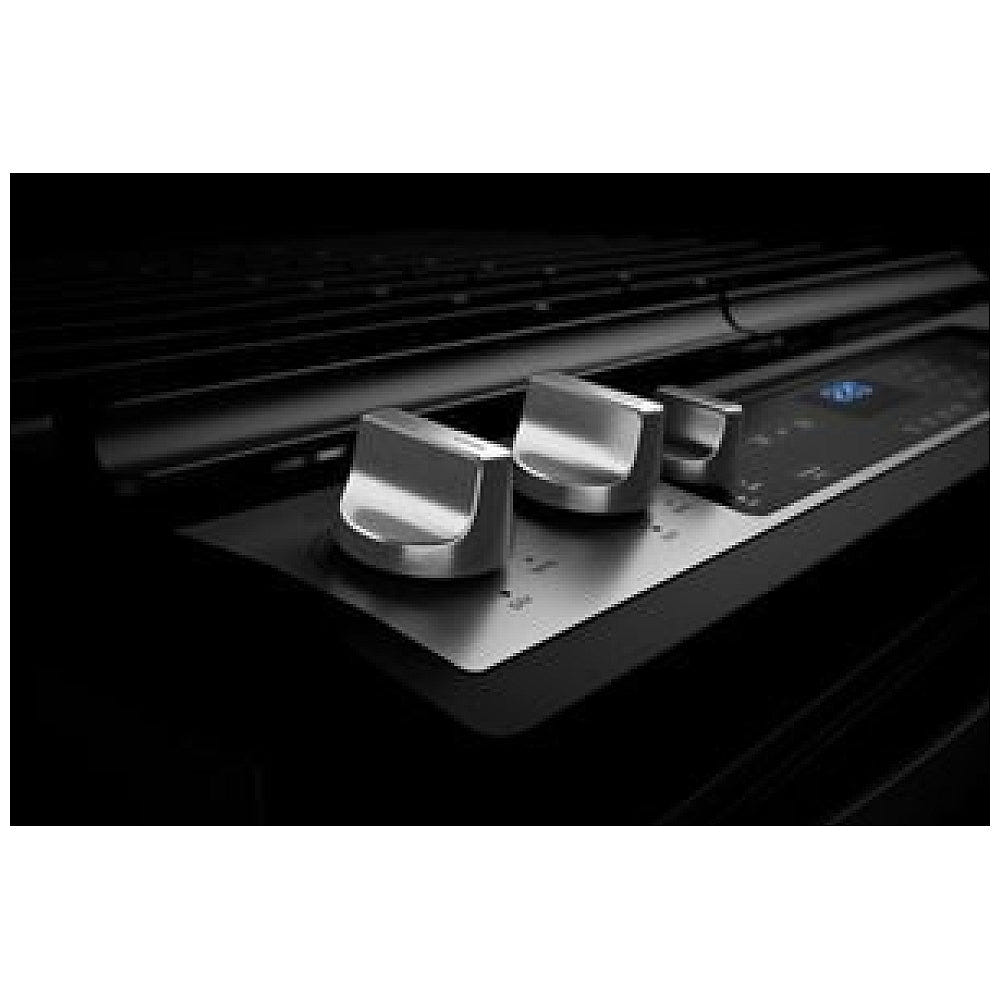

Cooktop Control Knob Color Stainless Steel

Cooktop Control Knob Type Dishwasher Safe Weighted

Cooktop Control Location Front

Cooktop Control Type Knobs

Cooktop Surface Color Black

Cooktop Surface Material Porcelain Coated Steel

Griddle Included Optional Accessory

Heating Element On Indicator Light Yes

Hot Surface Indicator Light Yes

Ignition Type Direct Spark Ignition

Total Gas BTUs - Cooktop 54,200

Details

Automatic Convection Conversion Temperature Adjust Yes

Fuel Type Gas

Lp Convertible Yes - Kit Included

Oven Automatic Shut-off No

Oven Light Switch Location Top of Console

Oven Selections Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Rapid Preheat; Sabbath Mode; Timer

Power On Indicator Light Yes

Power Outage Compatible Yes

Range Drawer Type Storage Drawer

Range Type Slide-in

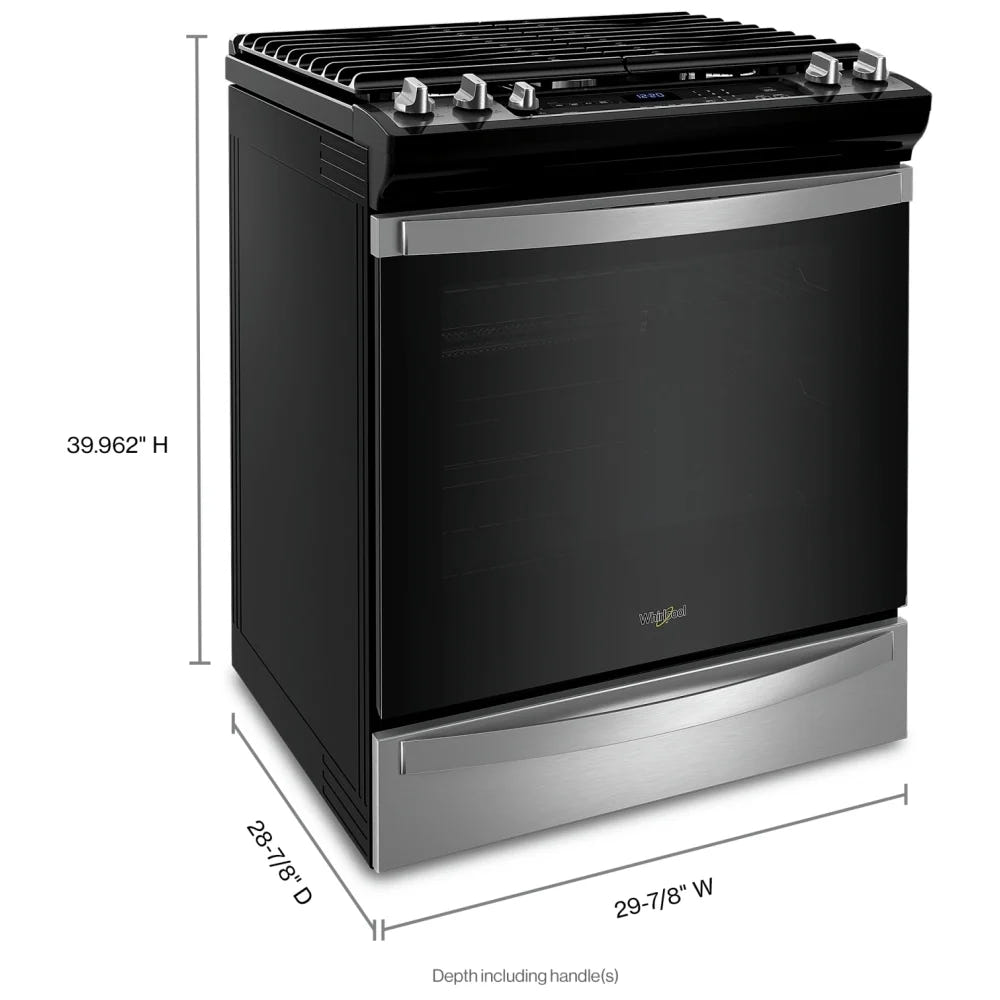

Dimensions

Product Height 39.962

Carton Height 43.5

Gross Weight 213

Oven Interior Height 22.125

Carton Width 31.5

Product Depth 28.5

Oven Interior Depth 20.625

Depth With Door Open 90 Degree 48.5

Cutout Depth 24

Cutout Height 36

Depth Closed Excluding Handles 27.875

Depth Closed Including Handles 28.875

Oven Interior Width 24.375

Net Weight 196

Product Width 29.875

Electrical

Power Cord Included Yes

Element/burner Details

Center Front Element-burner Power 8,000 BTU

Center Front Element-burner Type Warming

Cooktop Element Style Sealed Burners

Left Front Element-burner Power 17,000 BTU

Left Front Element-burner Type Standard

Left Rear Element-burner Power 5,000 BTU

Left Rear Element-burner Type Standard

Number of Cooking Element-burners 5

Right Front Element-burner Power 15,000 BTU

Right Front Element-burner Type Standard

Right Rear Element-burner Power 9,200 BTU

Right Rear Element-burner Type Standard

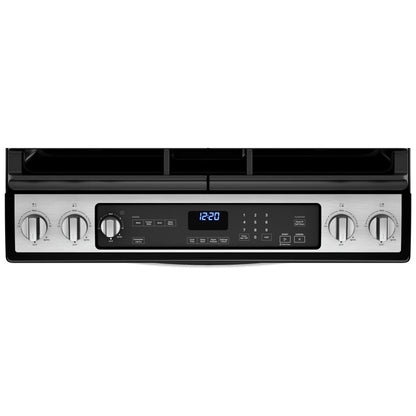

Exterior Details

Door Type Glass

Handle Color Stainless Steel

Handle Material Metal

Handle Type Reach Through Handle

Oven Control Knob Color Stainless Steel

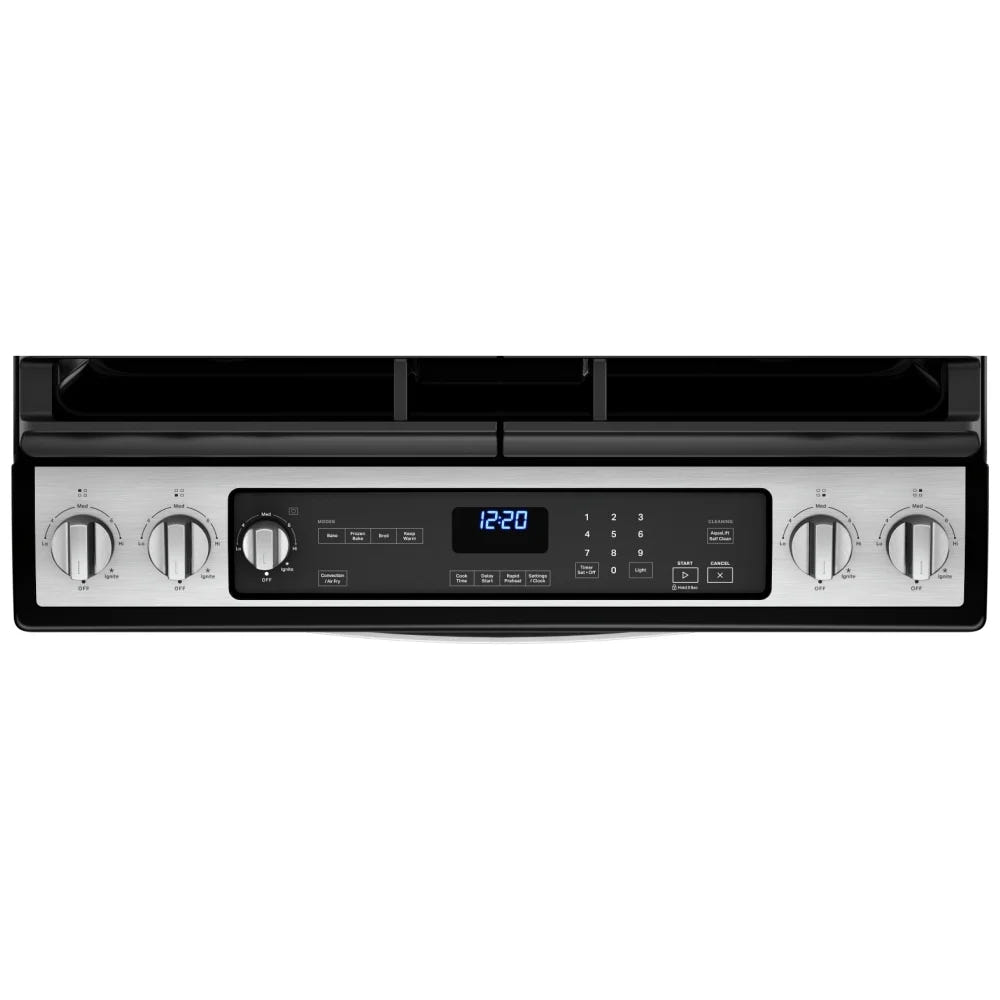

Oven Control Location Front

Oven Control Type Electronic Touch

Oven Window Size Extra Large

Grate Details

Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates; Rear Hinged GrateOven Details

Bake Element Power 18,000 BTU

Broiler Element Power 13,000 BTU

Broiler Location Top of Oven

Convection Element Power 925

Convection Element Type True Bow Tie

Convection Functions Bake; Broil

Door Removable Yes

Hidden Bake Element Yes

Interior Color Grey

Number of Oven Lights 1

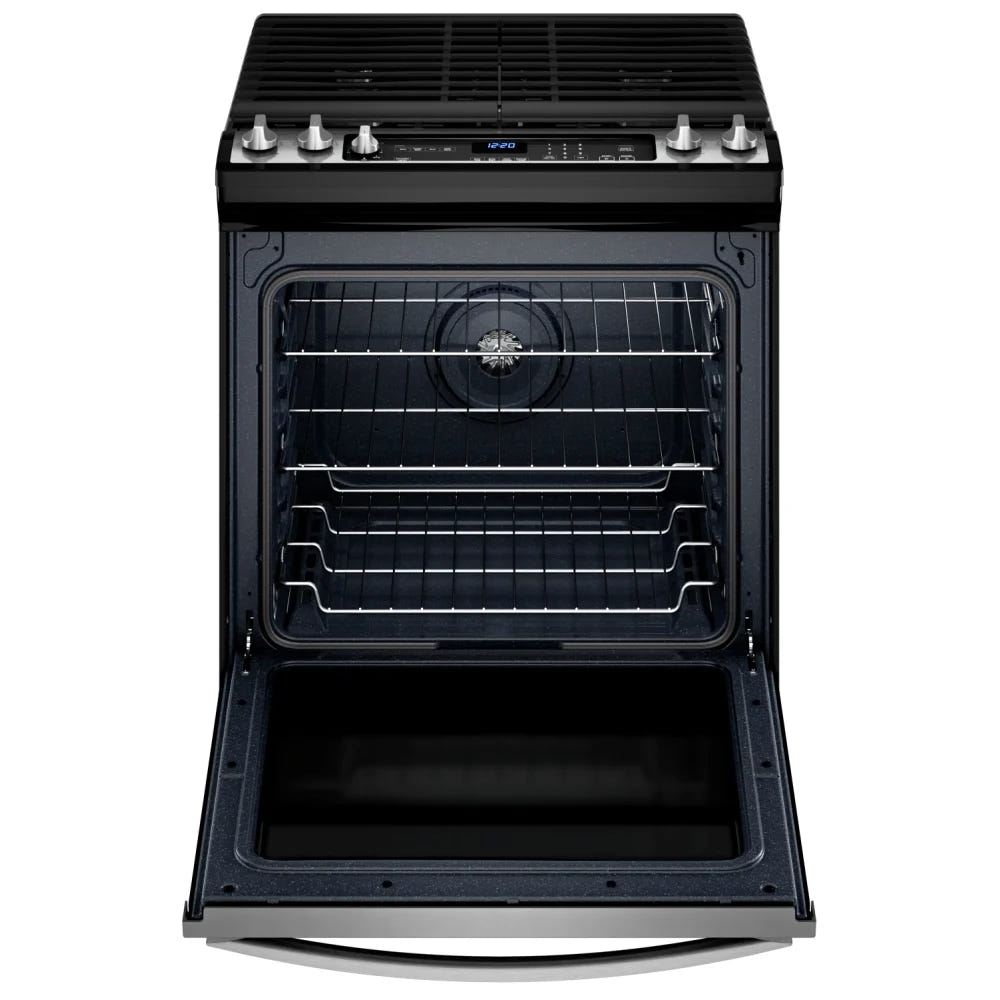

Number of Oven Racks 3

Number of Rack Guides 7

Oven Cleaning Type AquaLift® Self Clean

Oven Cooking System True Convection

Oven Light Type Incandescent

Oven Rack Type 2 Standard and 1 Max Capacity

Total Gas BTUs - Ovens 31,000

Smart Compatibility

Connectivity No

Works With No
