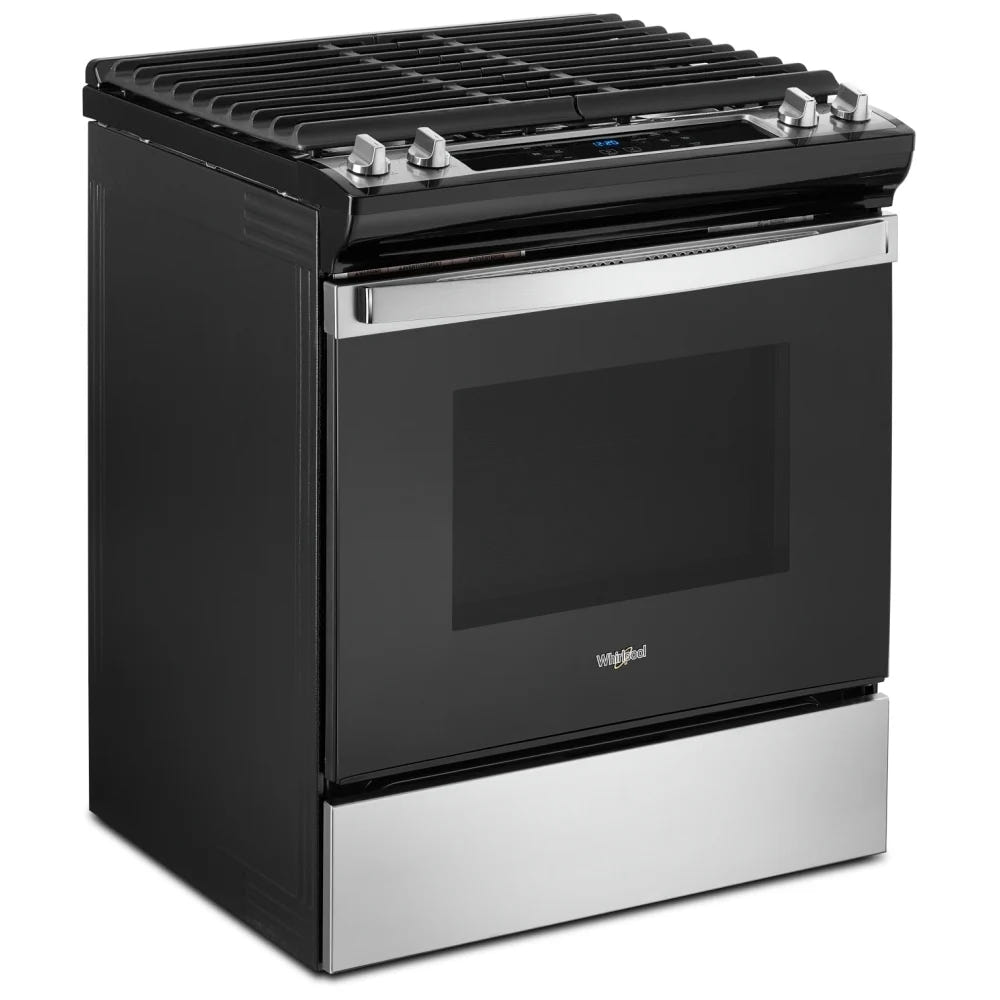

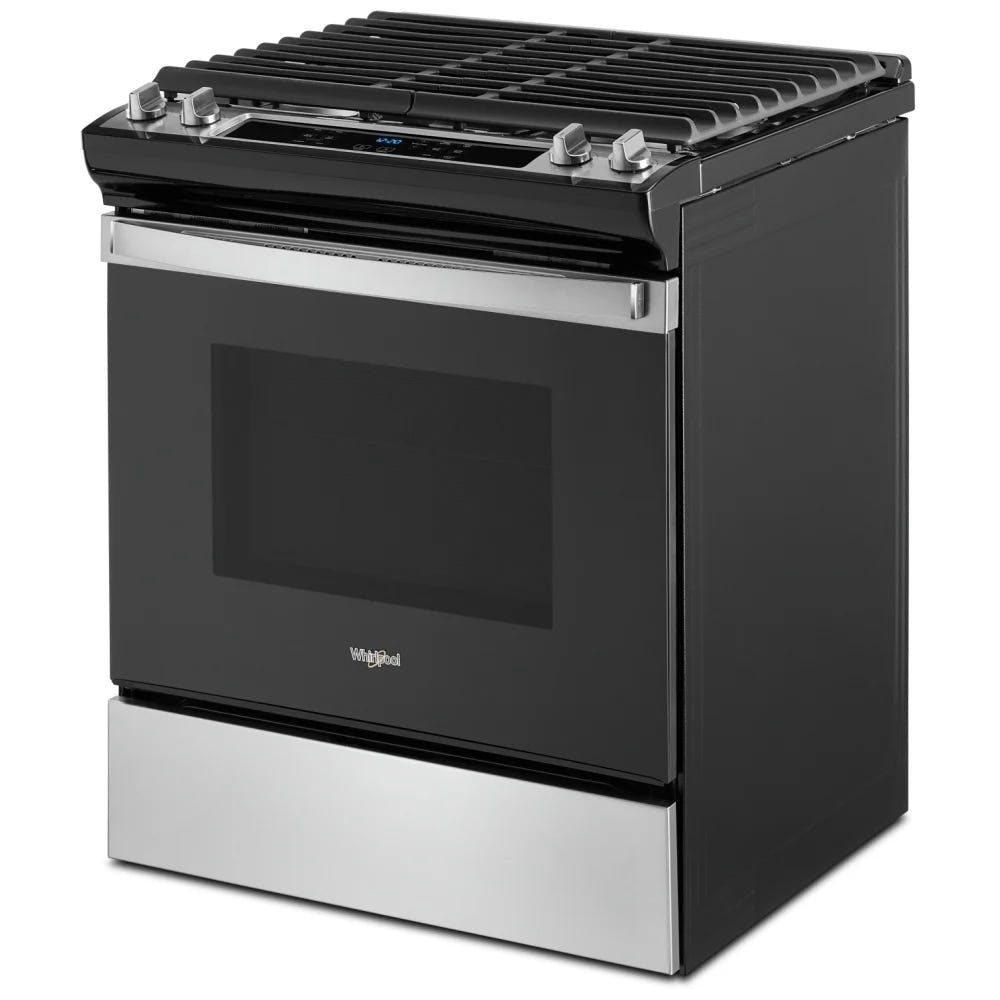

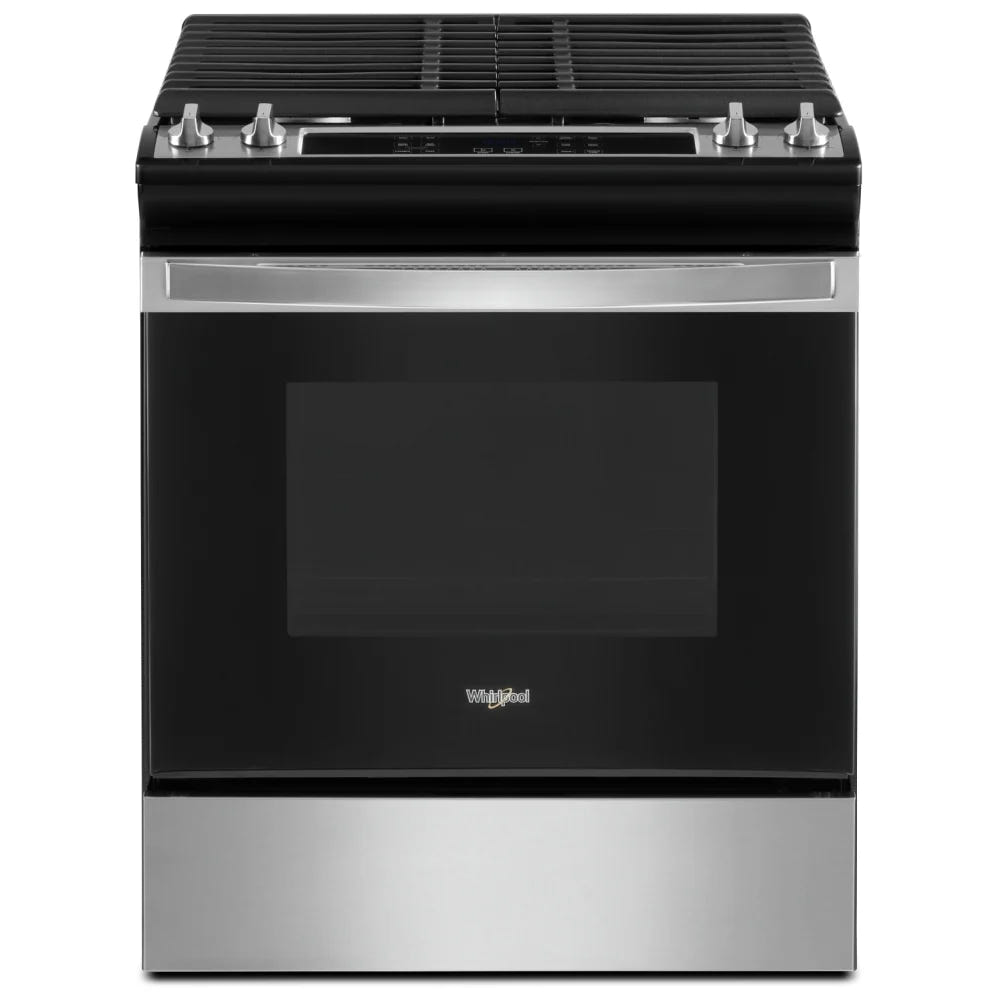

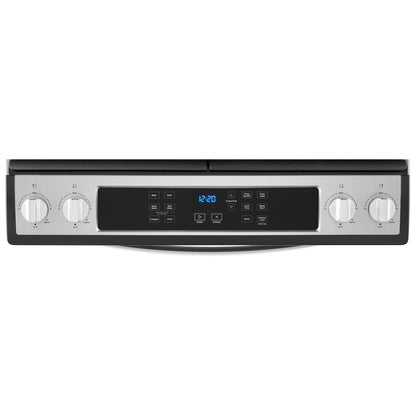

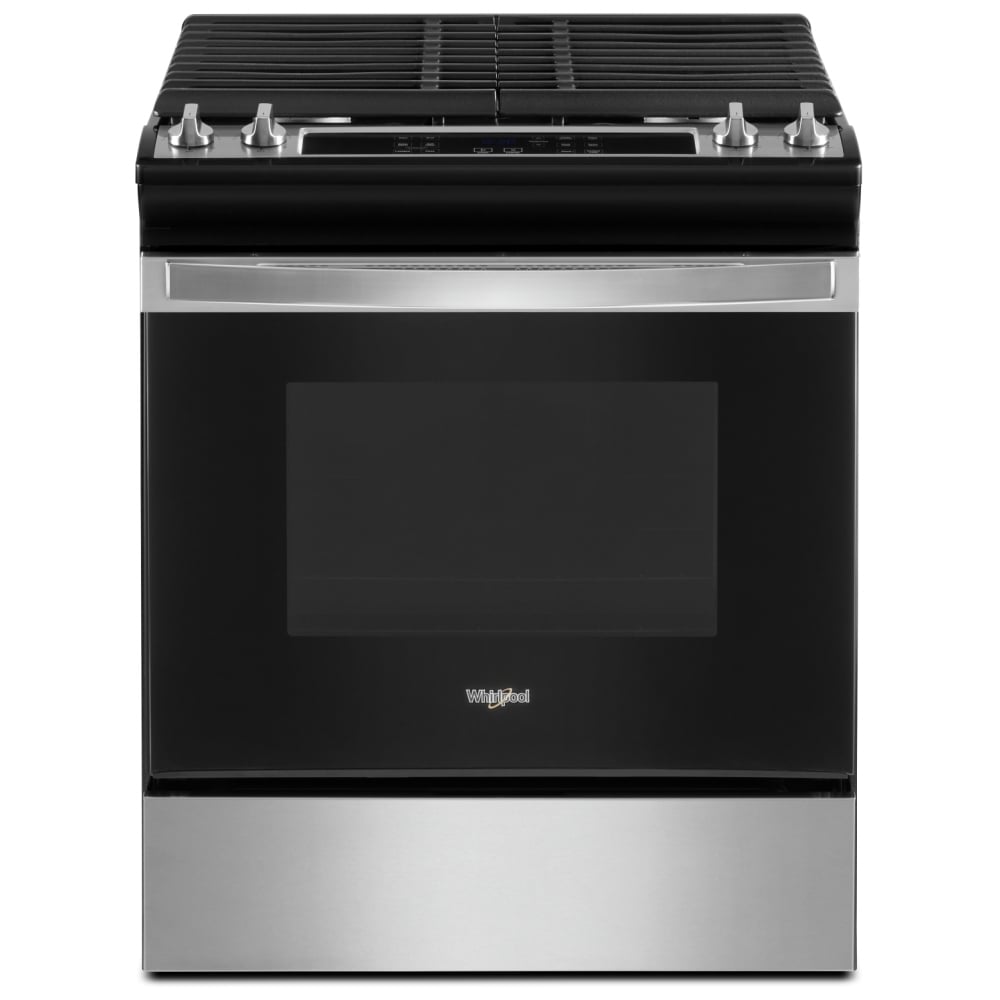

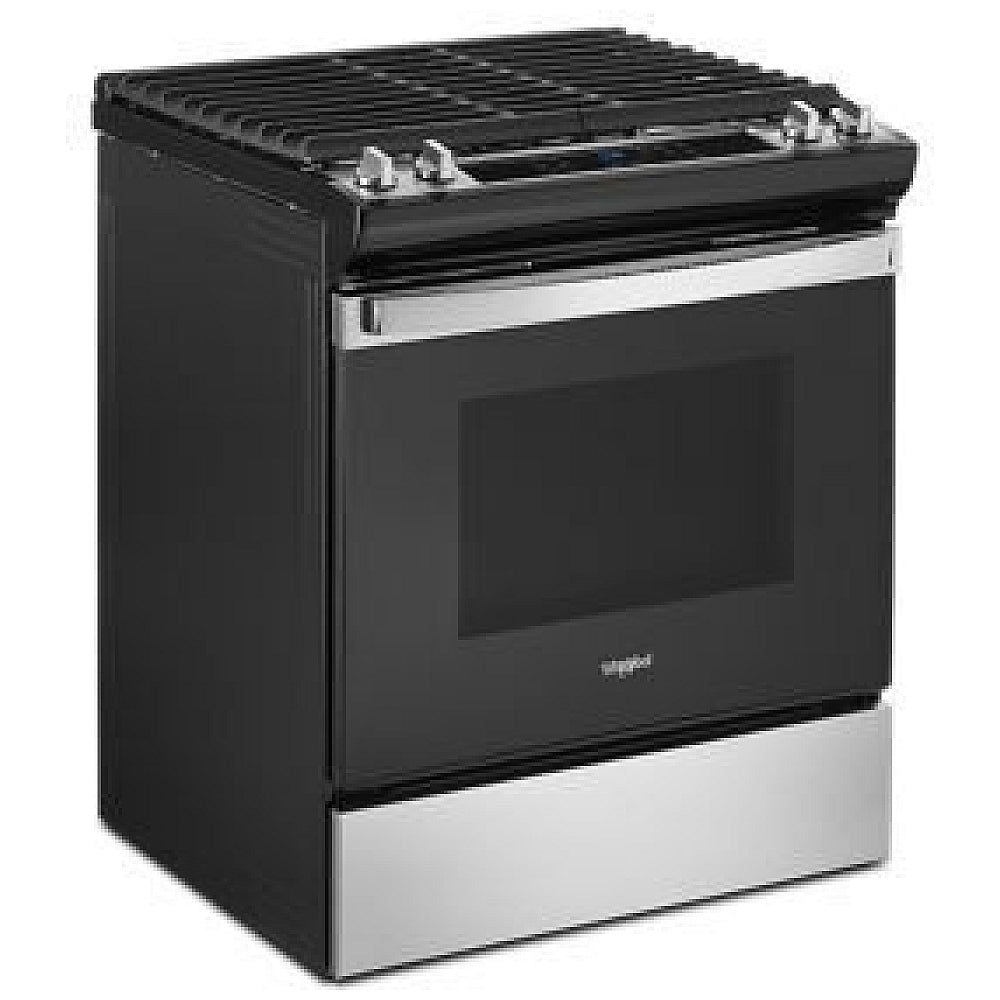

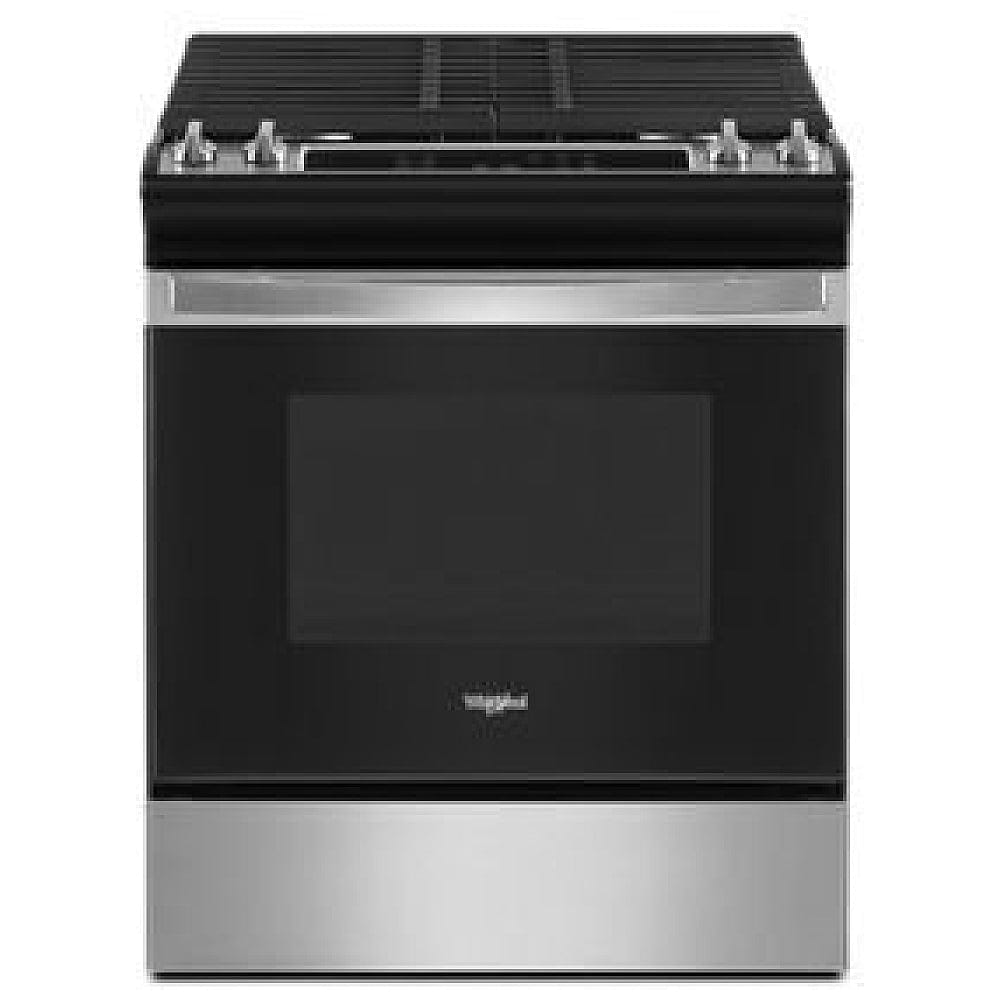

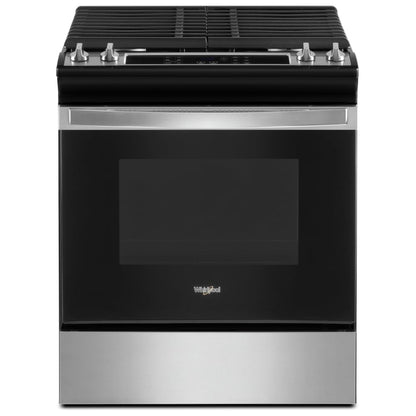

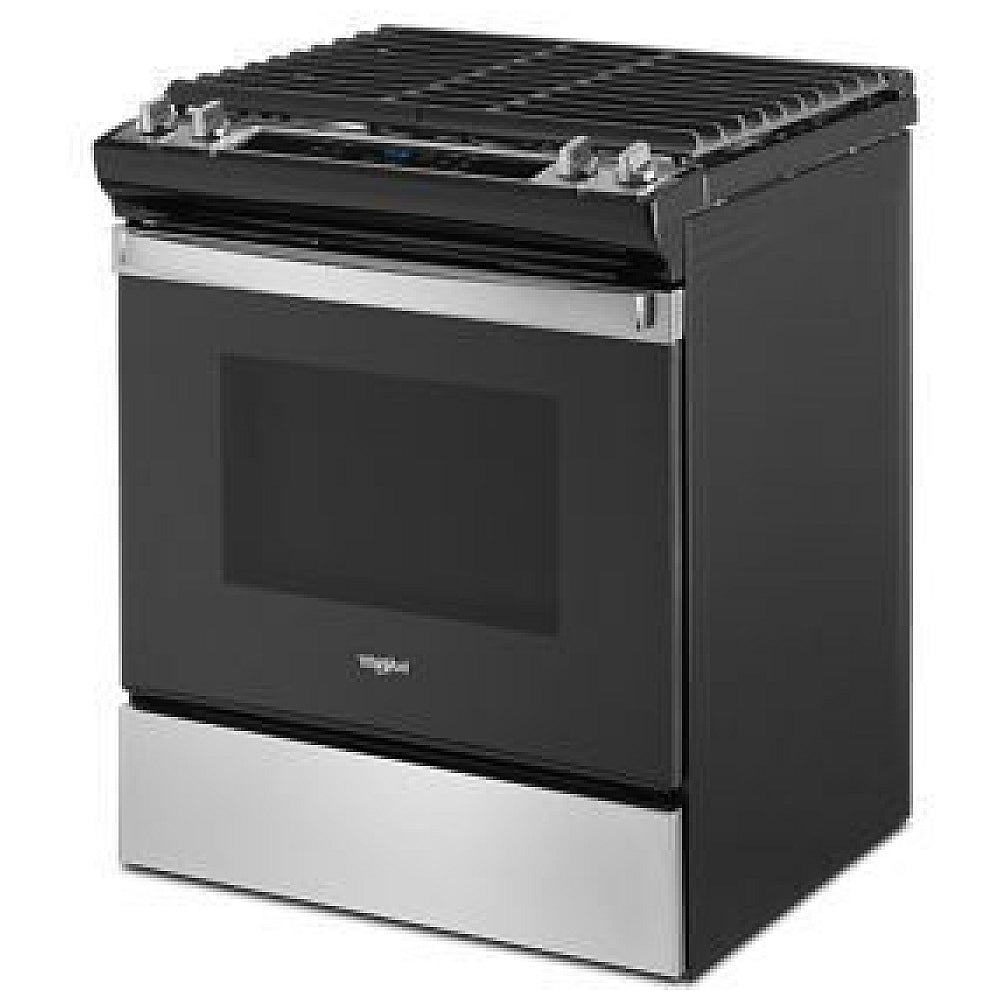

Whirlpool WEG515S0LS Gas Ranges

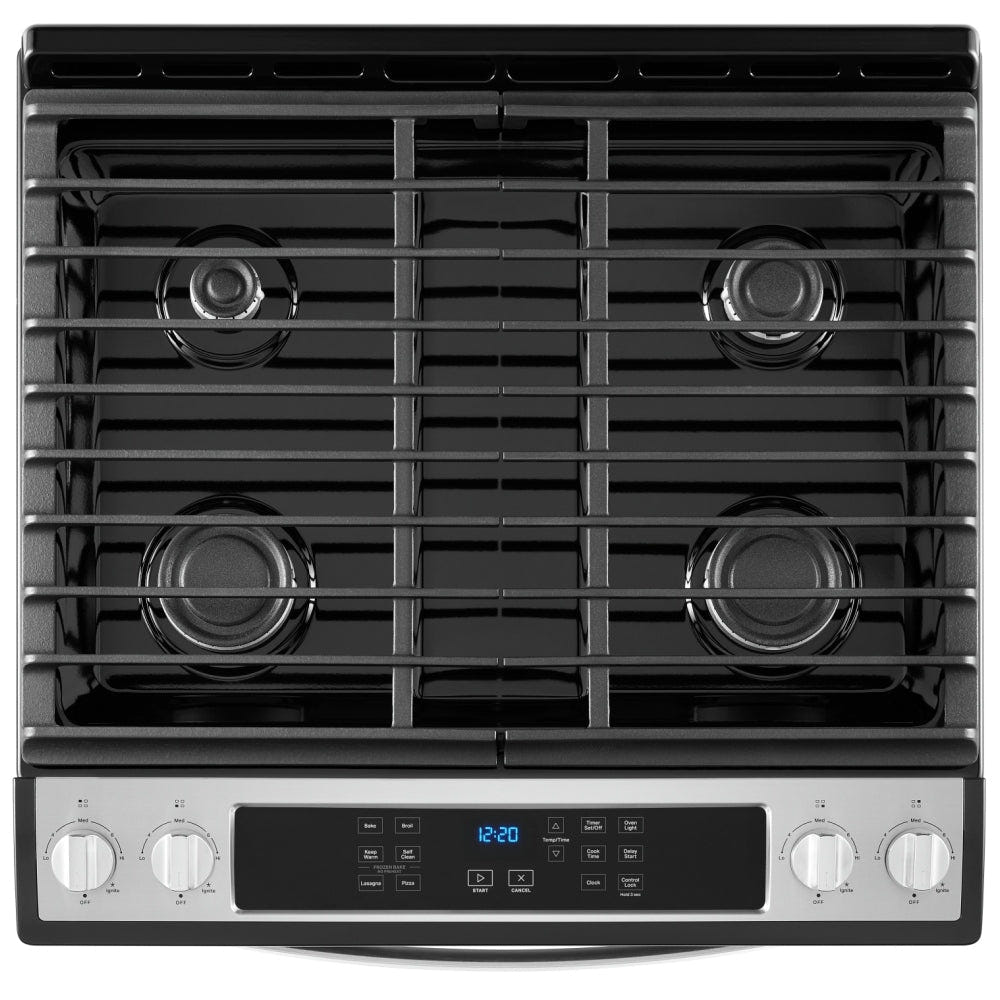

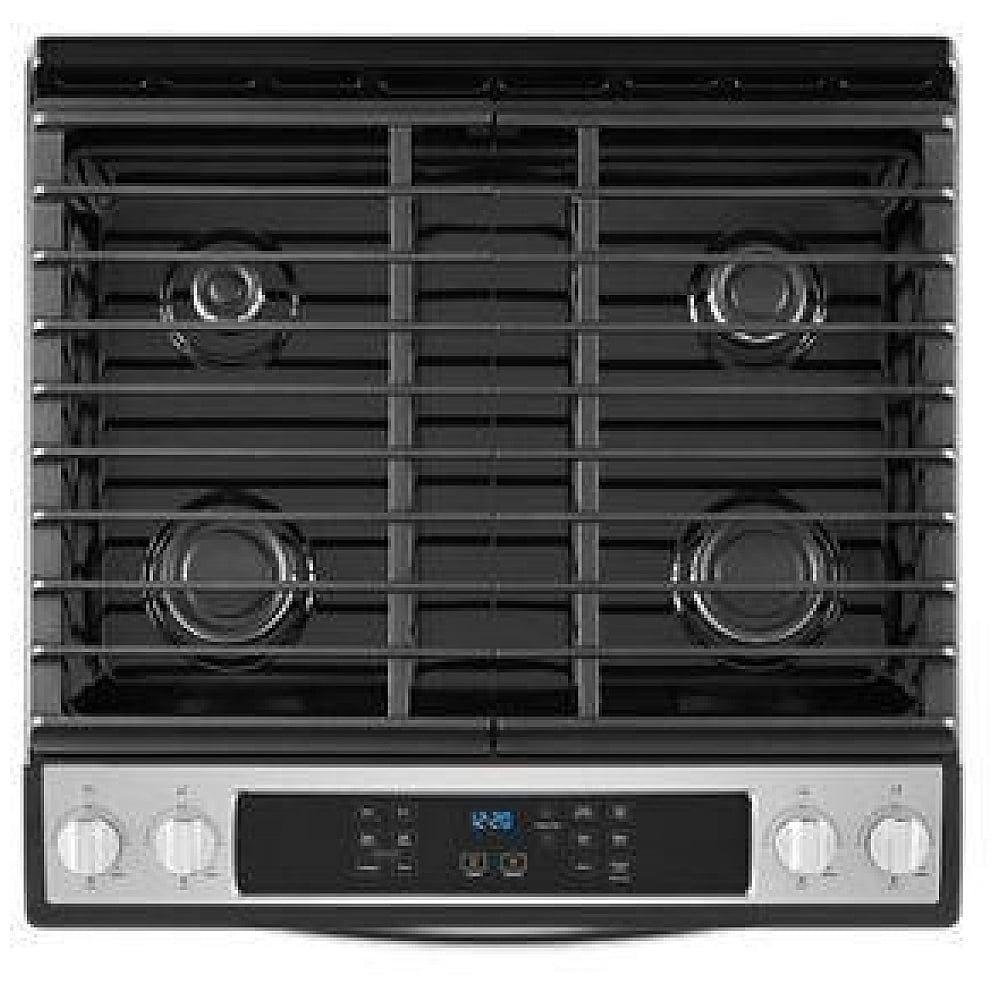

Cooktop Details

Auto Re-ignition No

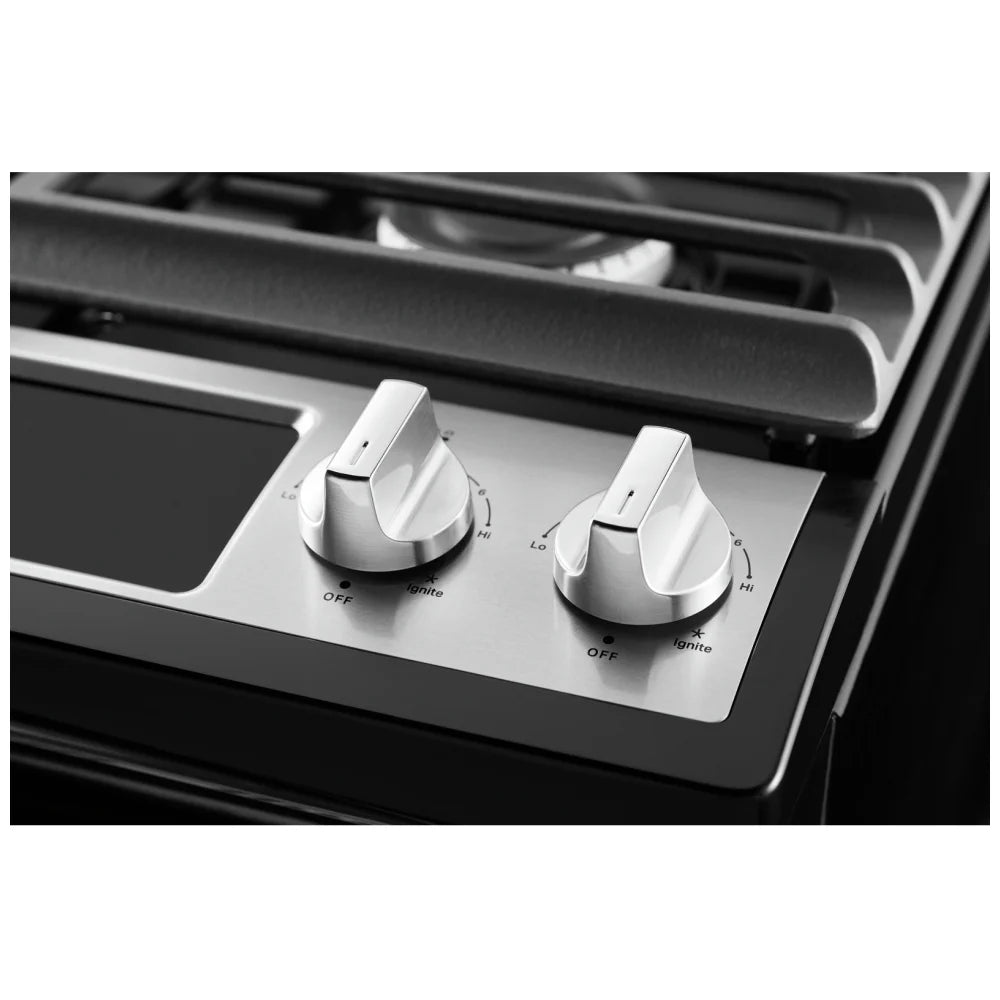

Cooktop Control Knob Color Stainless Steel

Cooktop Control Knob Type Plastic

Cooktop Control Location Front

Cooktop Control Type Knobs

Cooktop Surface Color Black

Cooktop Surface Material Porcelain Coated Steel

Griddle Included N/A

Heating Element On Indicator Light Yes

Hot Surface Indicator Light No

Ignition Type Electronic

Total Gas BTUs - Cooktop 44,500

Details

Automatic Convection Conversion Temperature Adjust No

Cooktop Configuration All Burners

Fuel Type Gas

Lp Convertible Yes - Kit Included

Oven Light Switch Location Oven Control

Oven Selections Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Frozen Bake; Keep Warm/Warm Hold; Sabbath Mode; Timer

Power Outage Compatible Yes

Range Drawer Type Storage Drawer

Range Type Slide-in

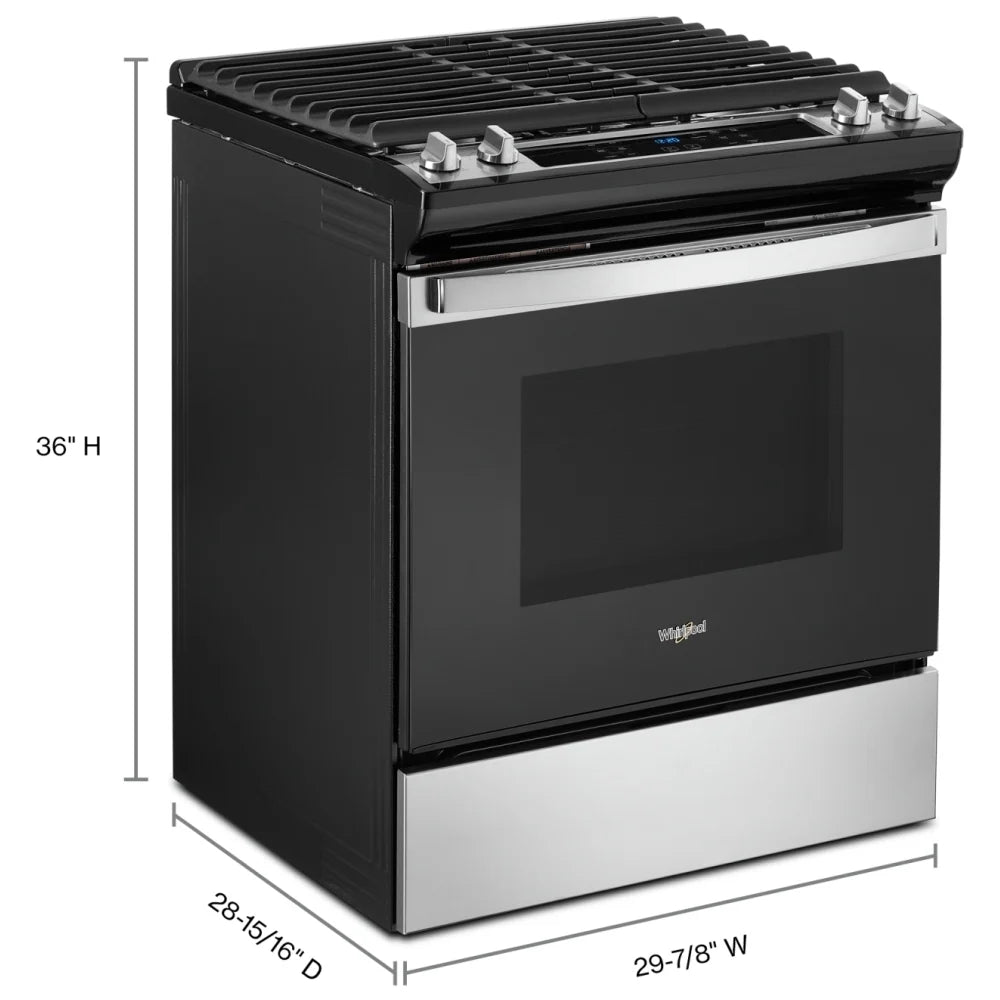

Dimensions

Carton Depth 30.5

Carton Height 43.5

Carton Width 31.5

Cutout Depth 24

Cutout Height 36

Cutout Width 30.125

Depth Closed Excluding Handles 28.125

Depth Closed Including Handles 28.938

Depth With Door Open 90 Degree 47.375

Gross Weight 200

Net Weight 183

Oven Interior Depth 18.5

Oven Interior Height 18.125

Oven Interior Width 24.5

Electrical

Power Cord Included Yes

Element/burner Details

Left Front Element-burner Power 15,000 BTU

Left Front Element-burner Type SpeedHeat™

Left Rear Element-burner Power 5,000 BTU

Left Rear Element-burner Type Simmer

Number of Cooking Element-burners 4

Right Front Element-burner Power 15,000 BTU

Right Front Element-burner Type SpeedHeat™

Right Rear Element-burner Power 9,500 BTU

Right Rear Element-burner Type Standard

Exterior Details

Door Type Glass

Handle Color Stainless Steel

Handle Material Metal

Handle Type Reach Through Handle

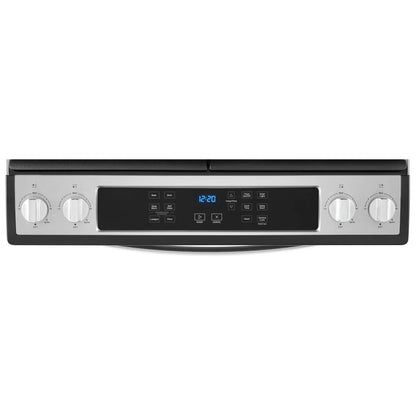

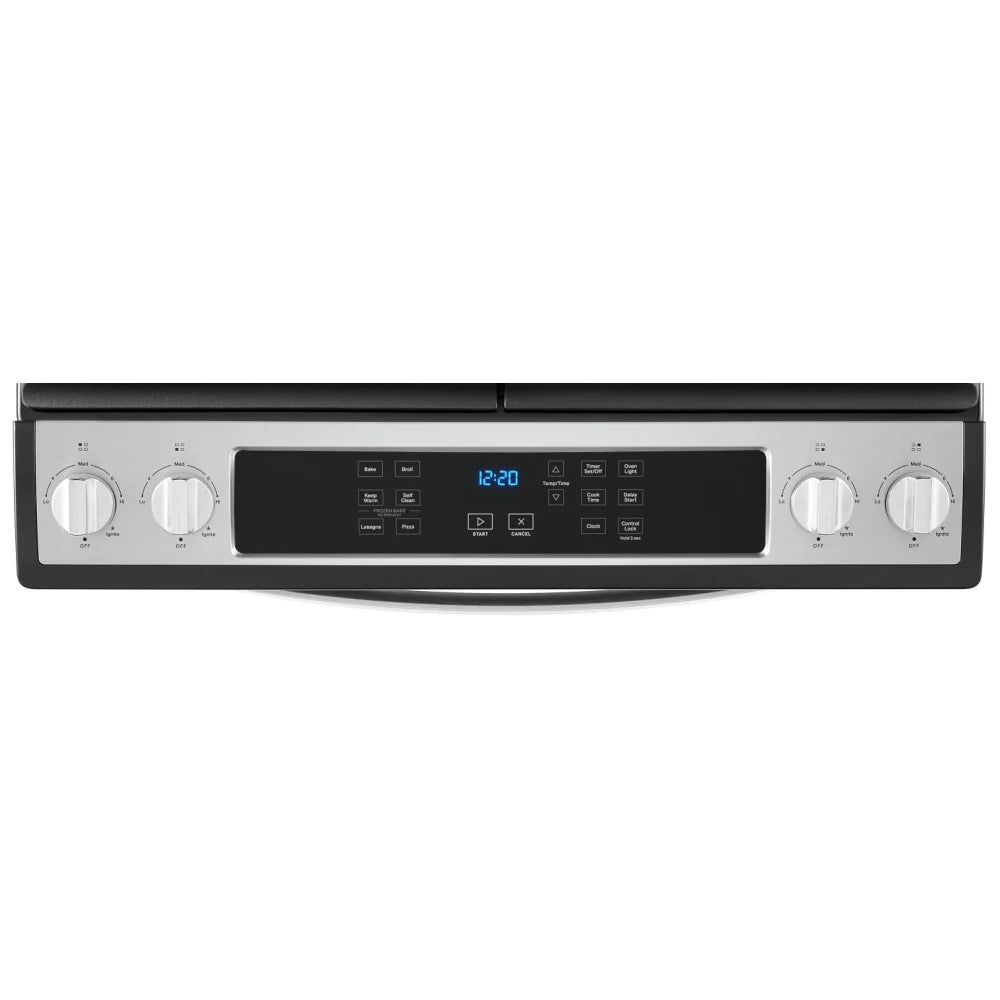

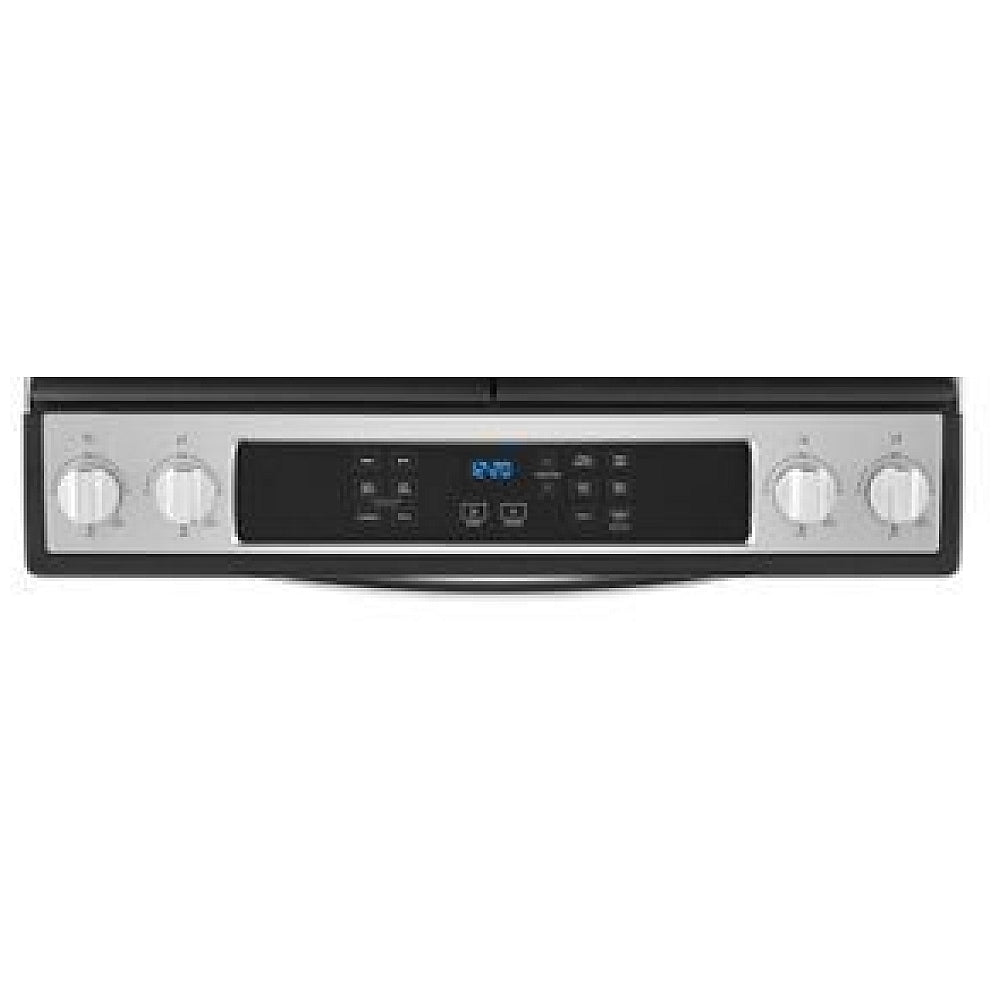

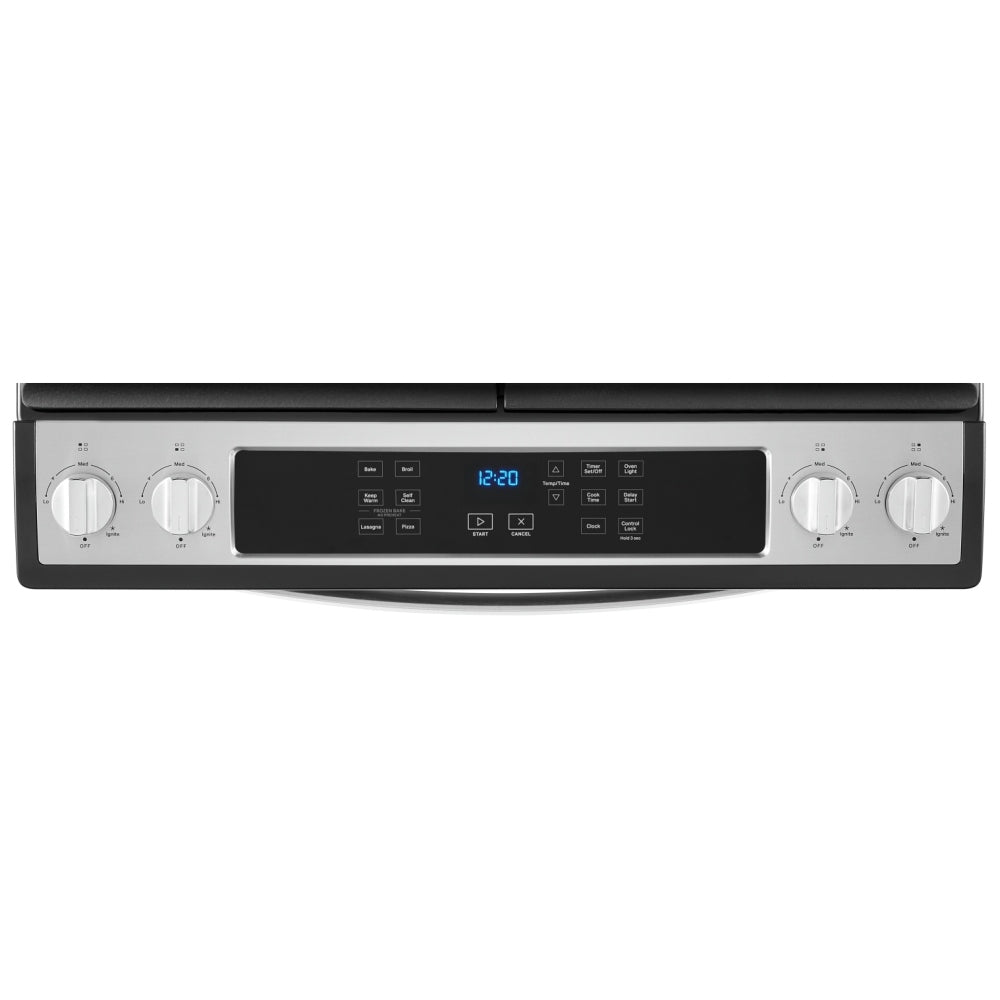

Oven Control Location Front

Oven Control Type Tap Touch

Oven Window Size Large

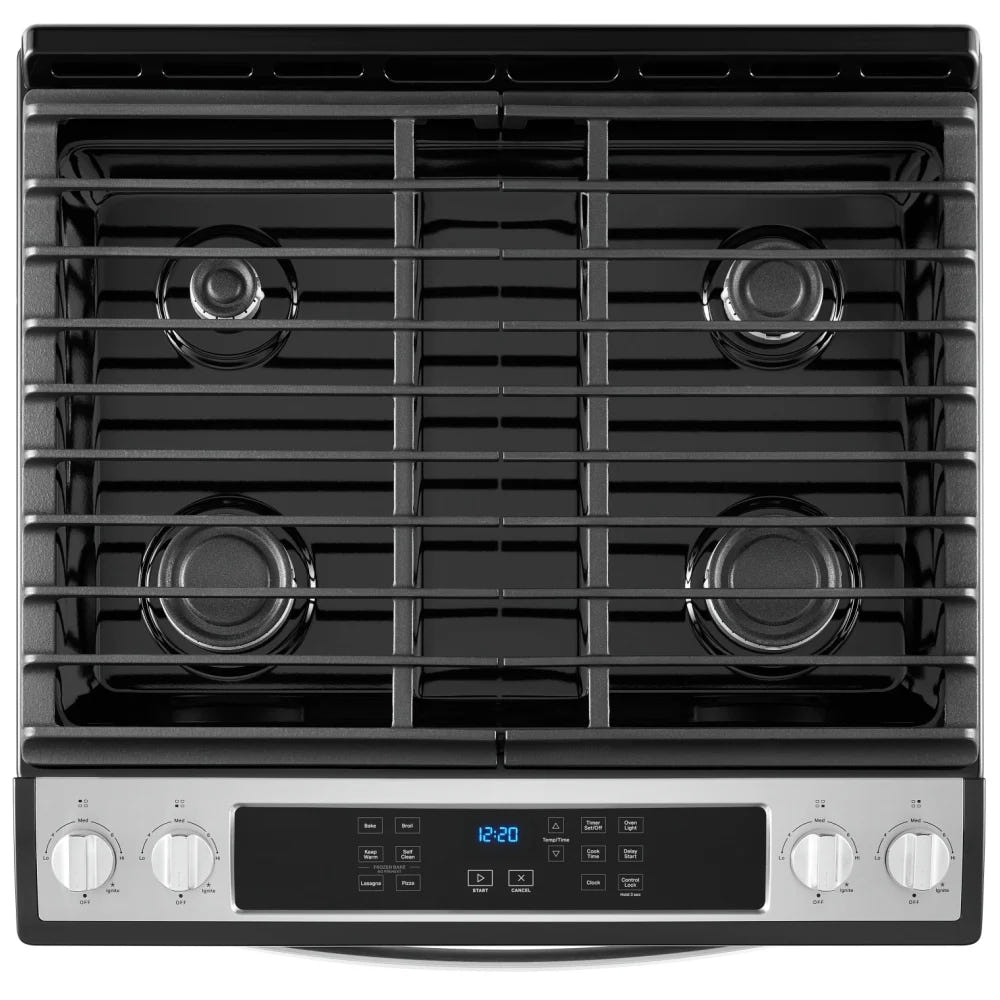

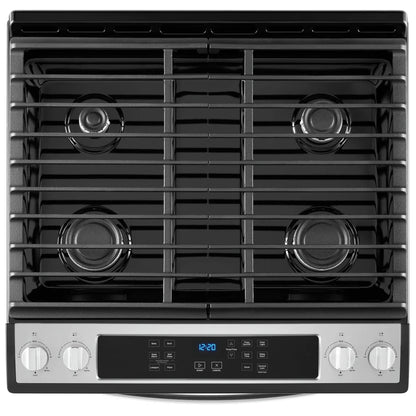

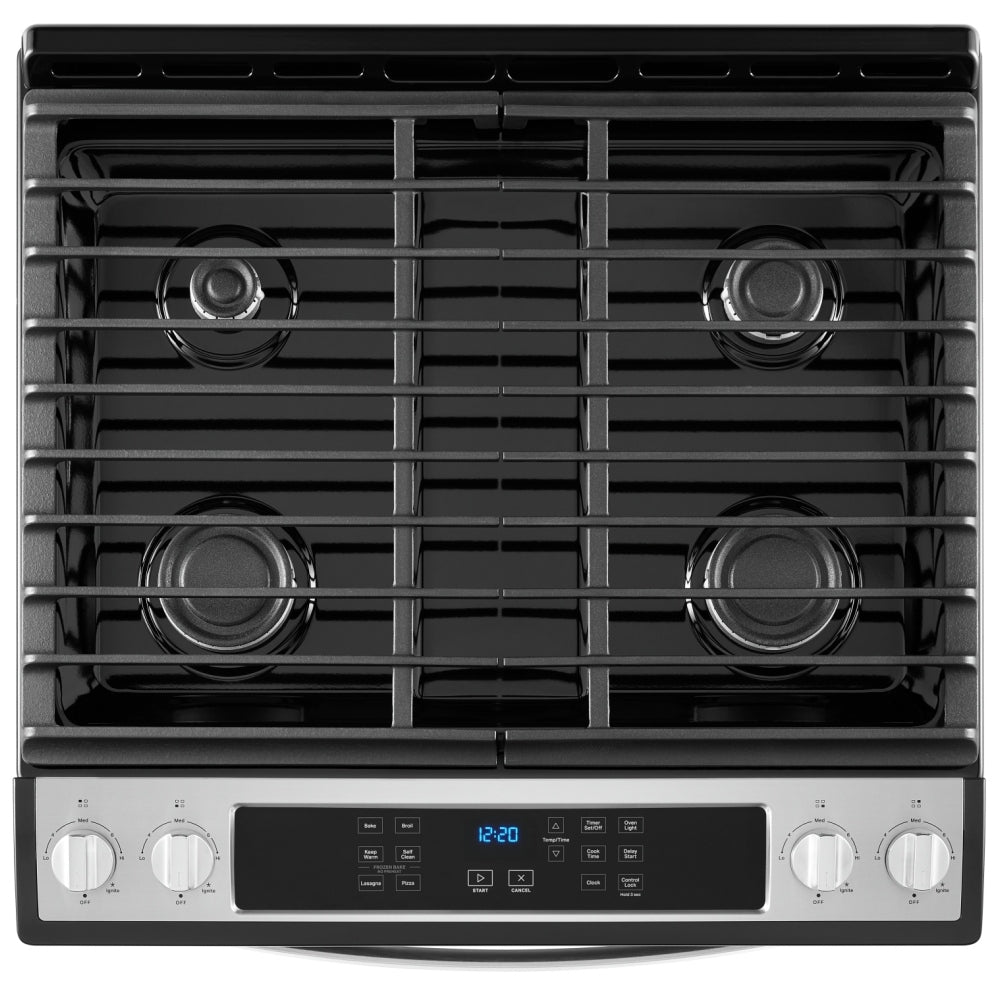

Grate Details

Grate Details Continuous; Matte Finish; Porcelain Coated Cast Grates

Number of Grates 2

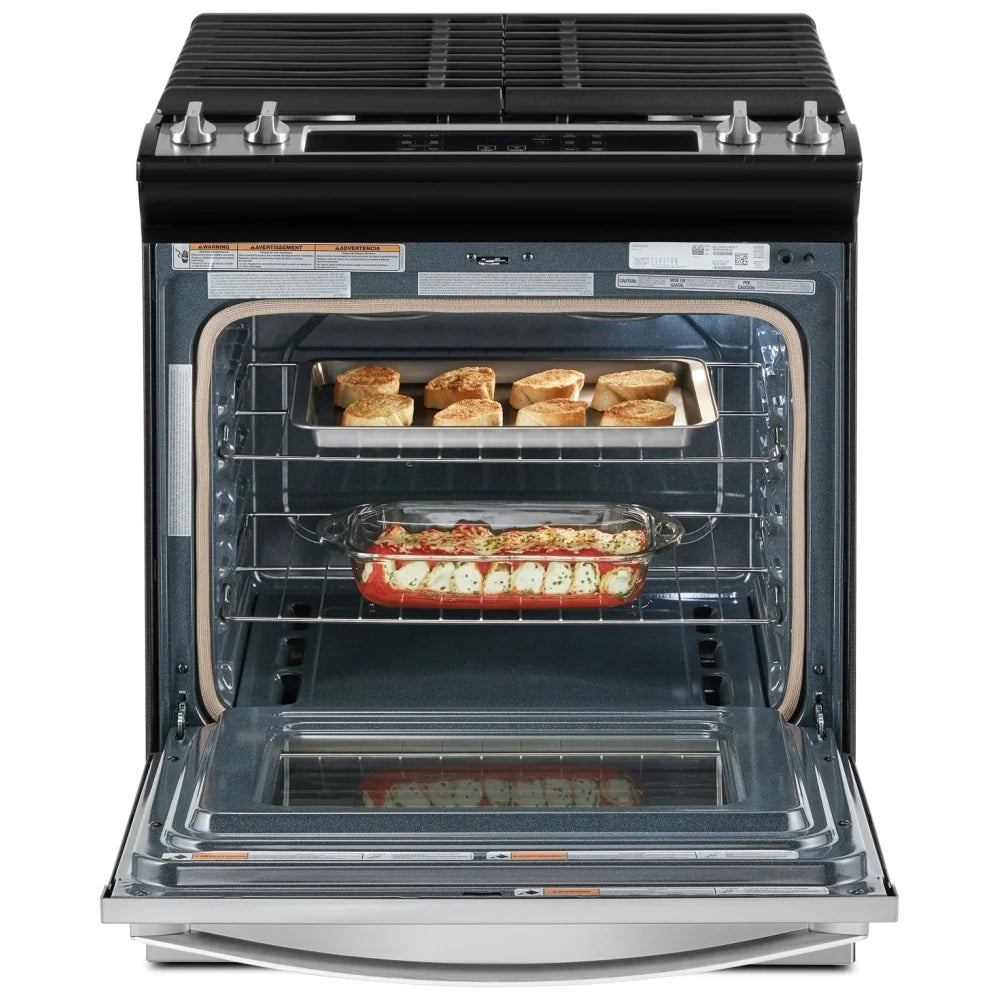

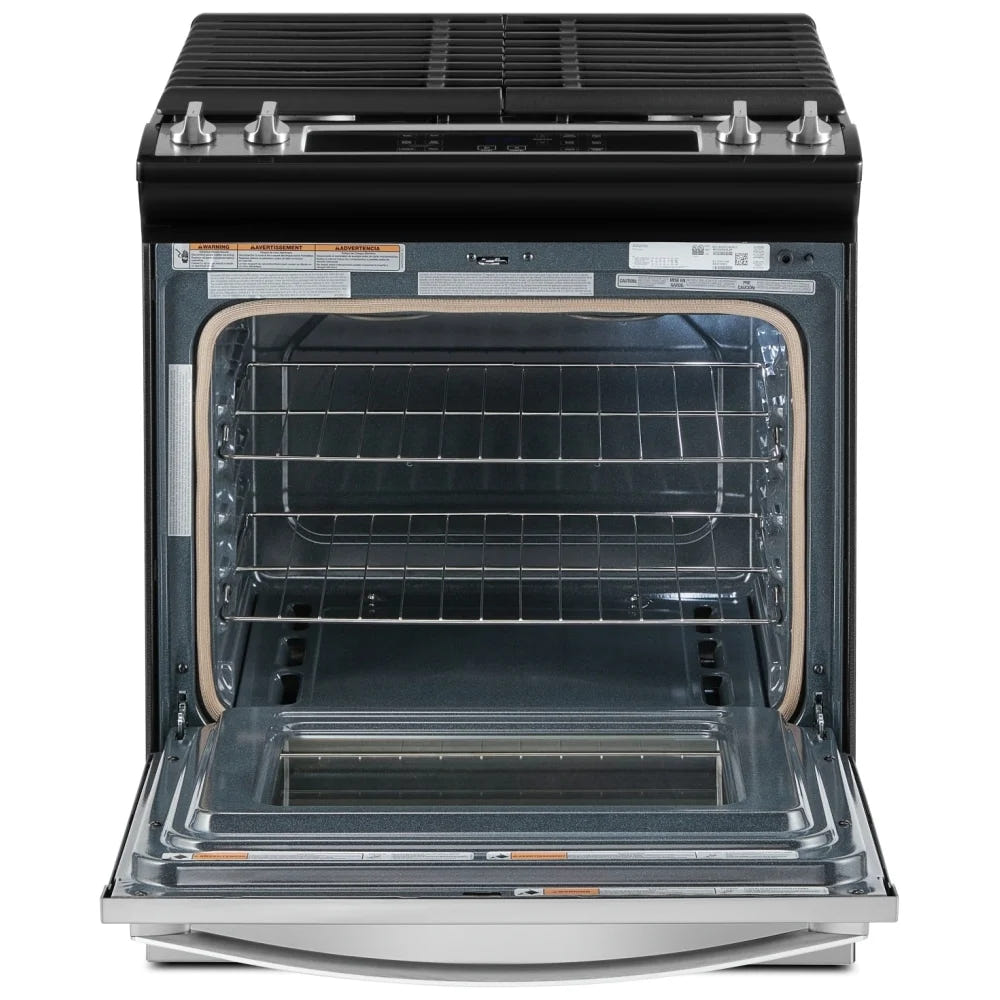

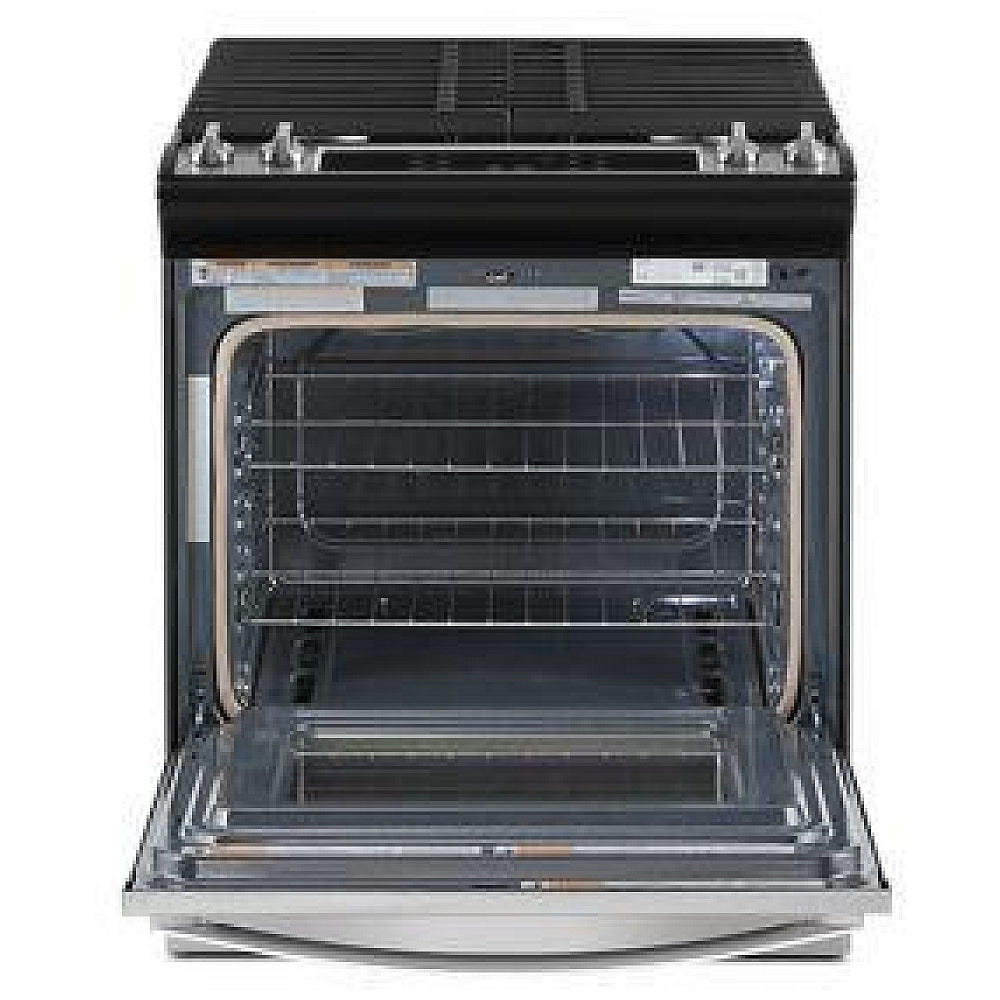

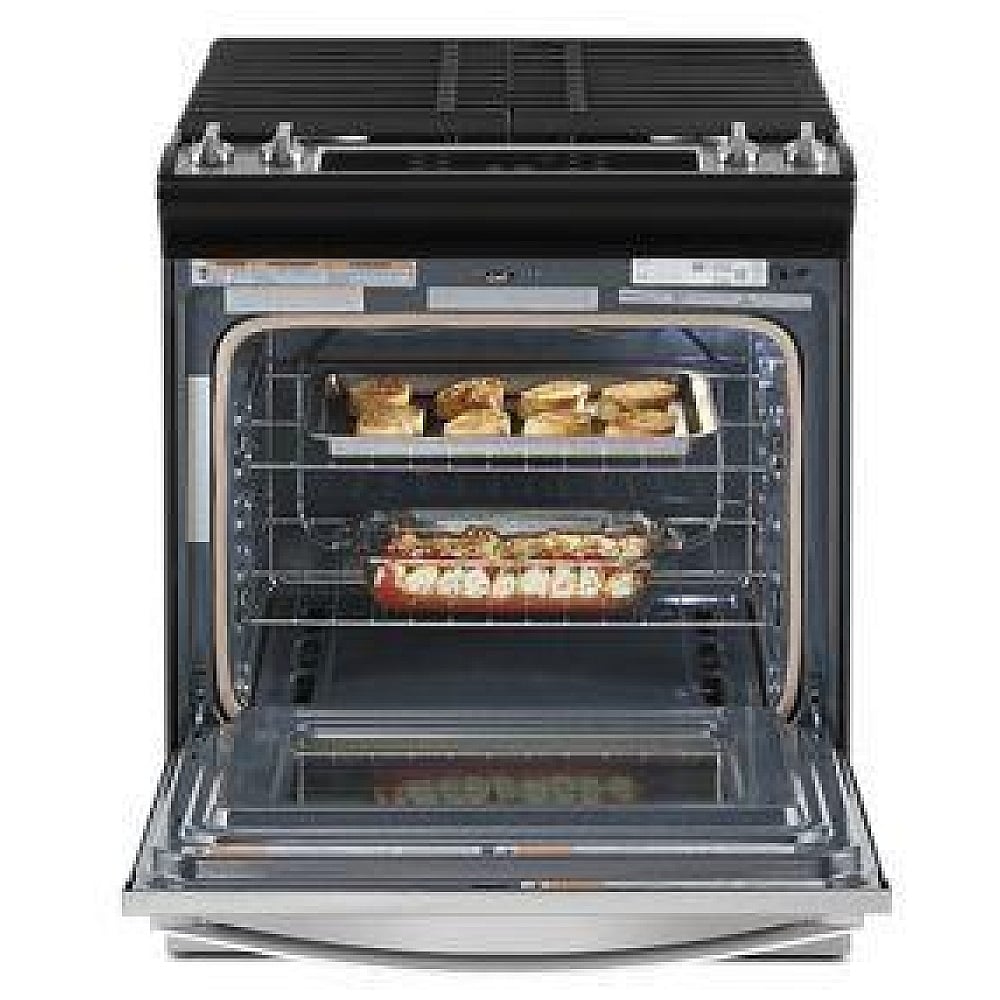

Oven Details

Bake Element Power 16,500 BTU

Broiler Element Power 1,300 W

Broiler Location Top of Oven

Door Removable Yes

Hidden Bake Element Yes

Interior Color Dark Grey

Natural Gas Convertible Yes

Number of Oven Lights 1

Number of Oven Racks 2

Number of Rack Guides 5

Oven Cleaning Type Adjustable Self Cleaning

Oven Cooking System Thermal

Oven Light Type Incandescent

Oven Rack Type Standard (Both)

Total Gas BTUs - Ovens 16,500
