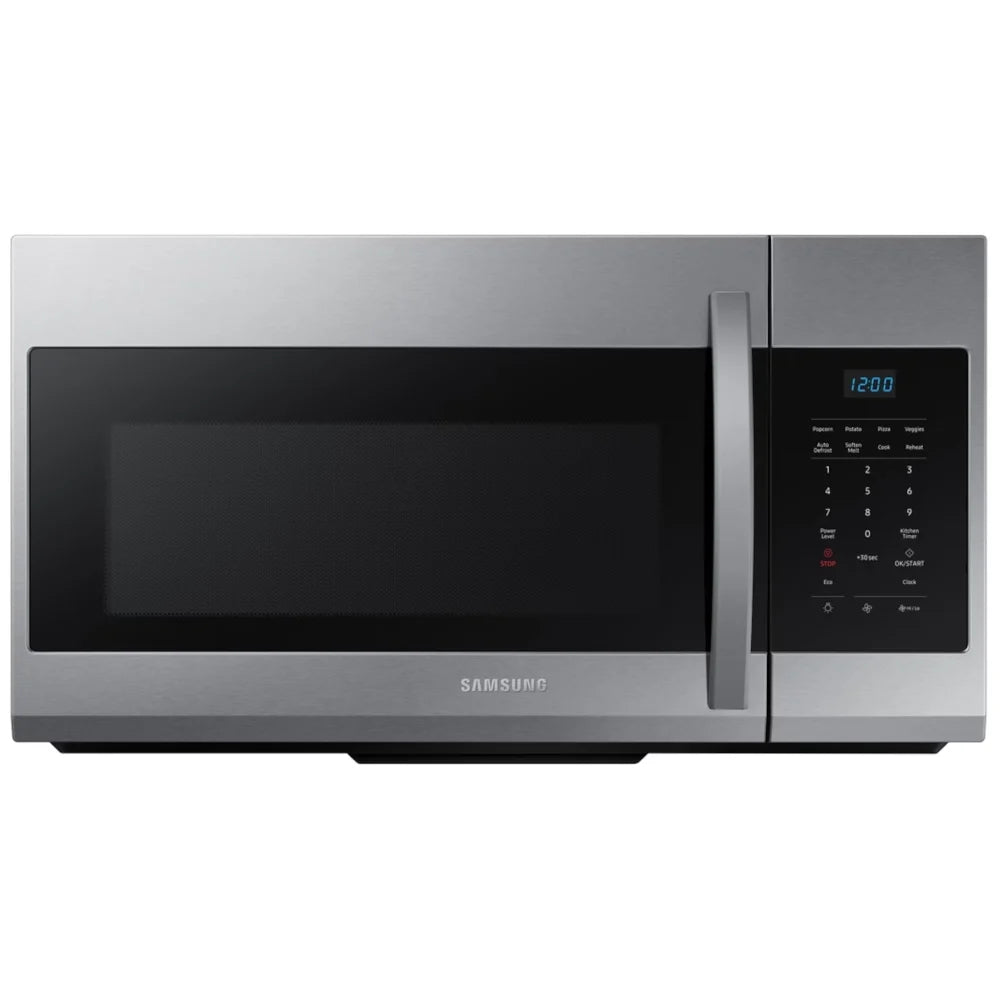

Samsung ME17R7011ES - 30" Over-the-Range Microwave
Samsung
ME17R7011ES/AC
Samsung ME17R7011ES - 30" Over-the-Range Microwave
MAP Price MAP Price $319.99
Quick Specs
  • Capacity: 2.0 cu ft
  • WiFi Enabled: No
  • Power Type: 1000 Watts
  • CFM: 300
Dimensions
W 30in
H 18in
D 17in

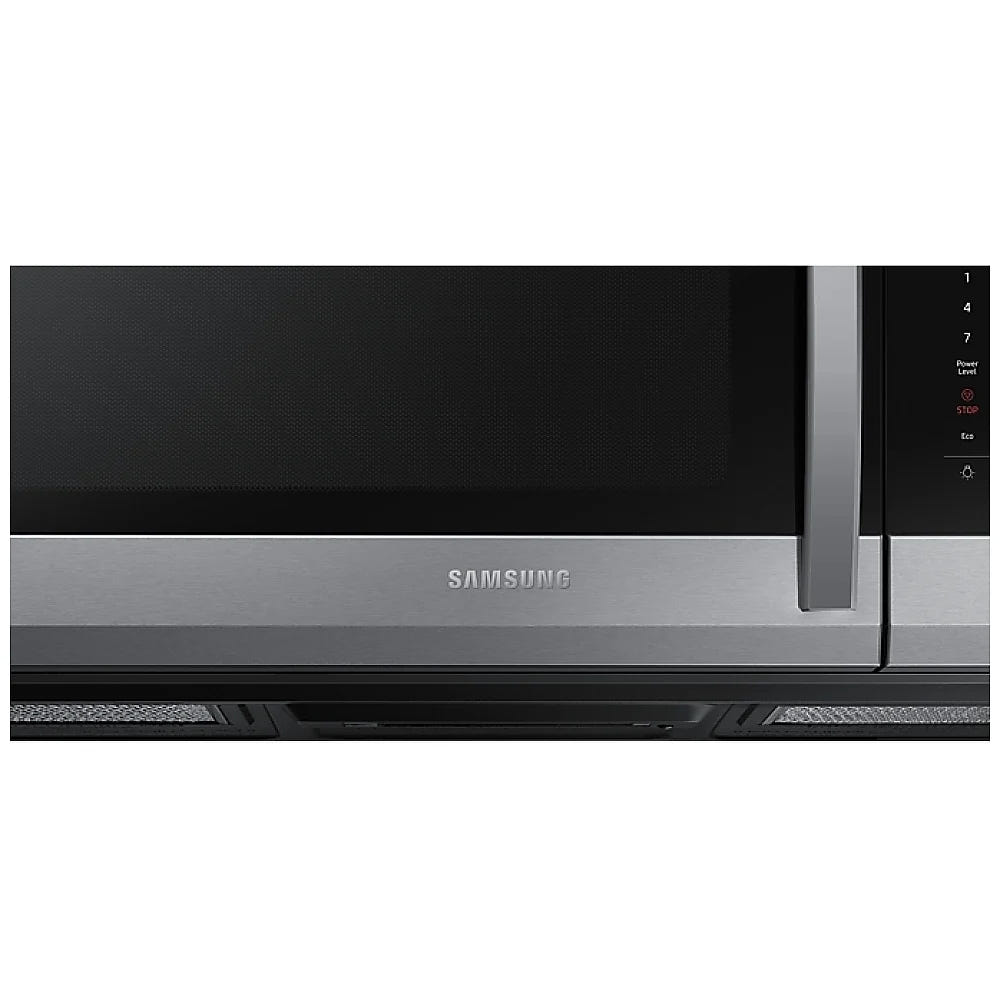

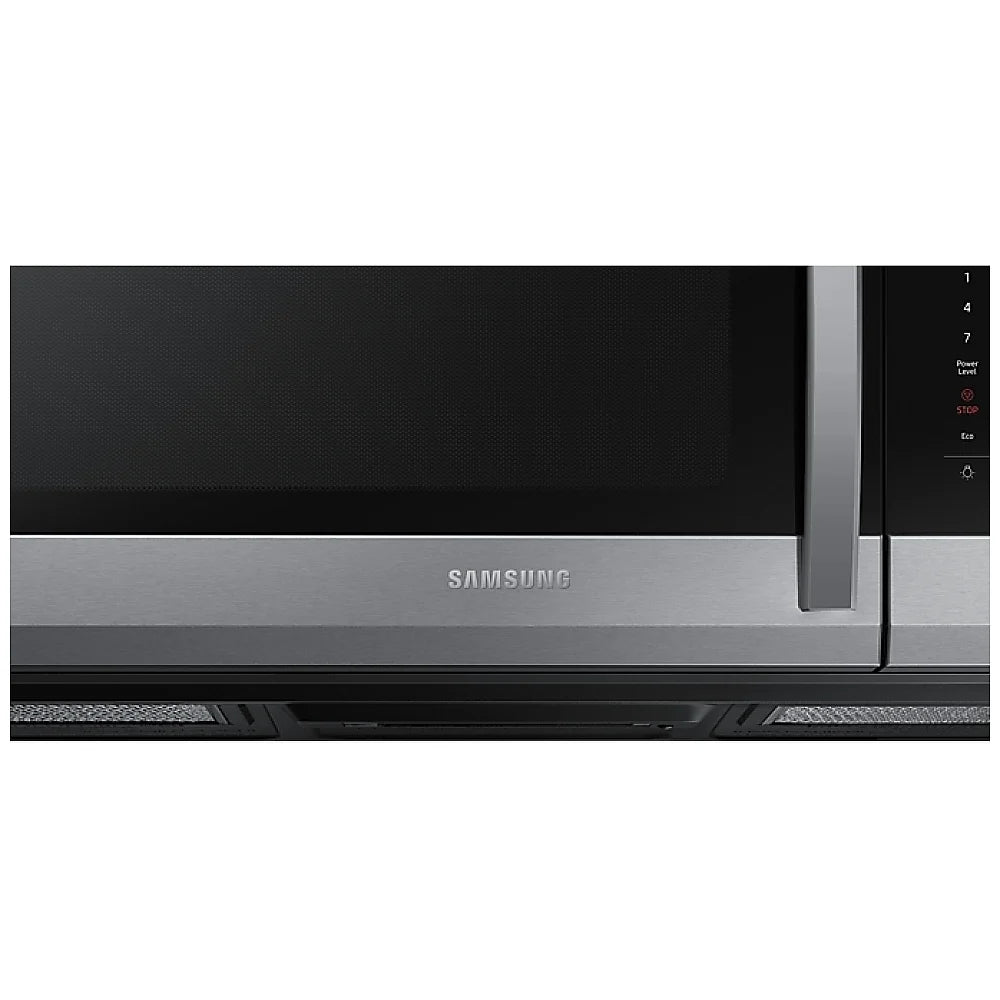

 Fingerprint Resistant Stainless Steel finish – resists fingerprints and smudges so the exterior stays looking clean and polished with minimal wiping.
 ECO Mode energy‑saving function – reduces standby power consumption when the microwave is not in use to help lower energy bills.
 Samsung harmonious door and handle design – flat bar handle and clean front integrate smoothly with other Samsung appliances for a modern, built‑in look.

 1.7 cu. ft. over‑the‑range capacity – accommodates larger dishes, plates and cookware while fitting a standard 30" range space.
 1000W microwave cooking power – delivers strong, even heating for fast cooking, reheating and defrosting.
 300 CFM power ventilation system – built‑in range hood quickly removes steam, smoke and cooking odours from the cooktop area.
 Over‑the‑range installation – mounts above your stove to save counter space and provide integrated ventilation.
 Auto Defrost programs – preset times and power levels thaw common foods evenly without guesswork.
 Auto Cook / Auto Programs – one‑touch settings automatically adjust time and power for popular foods and beverages.
 10 power levels – fine‑tune cooking intensity for everything from gentle reheating to full‑power cooking.
 30 Sec. Plus button – adds 30 seconds of cooking time with a single press for quick adjustments.
 Electronic membrane touch controls – flat, easy‑wipe control panel for simple operation and cleaning.
 LED display with ice‑blue digits – bright, easy‑to‑read time and setting information that adds a modern accent to the kitchen.
 Interior halogen lighting – brightly illuminates the cavity so you can monitor food without opening the door.

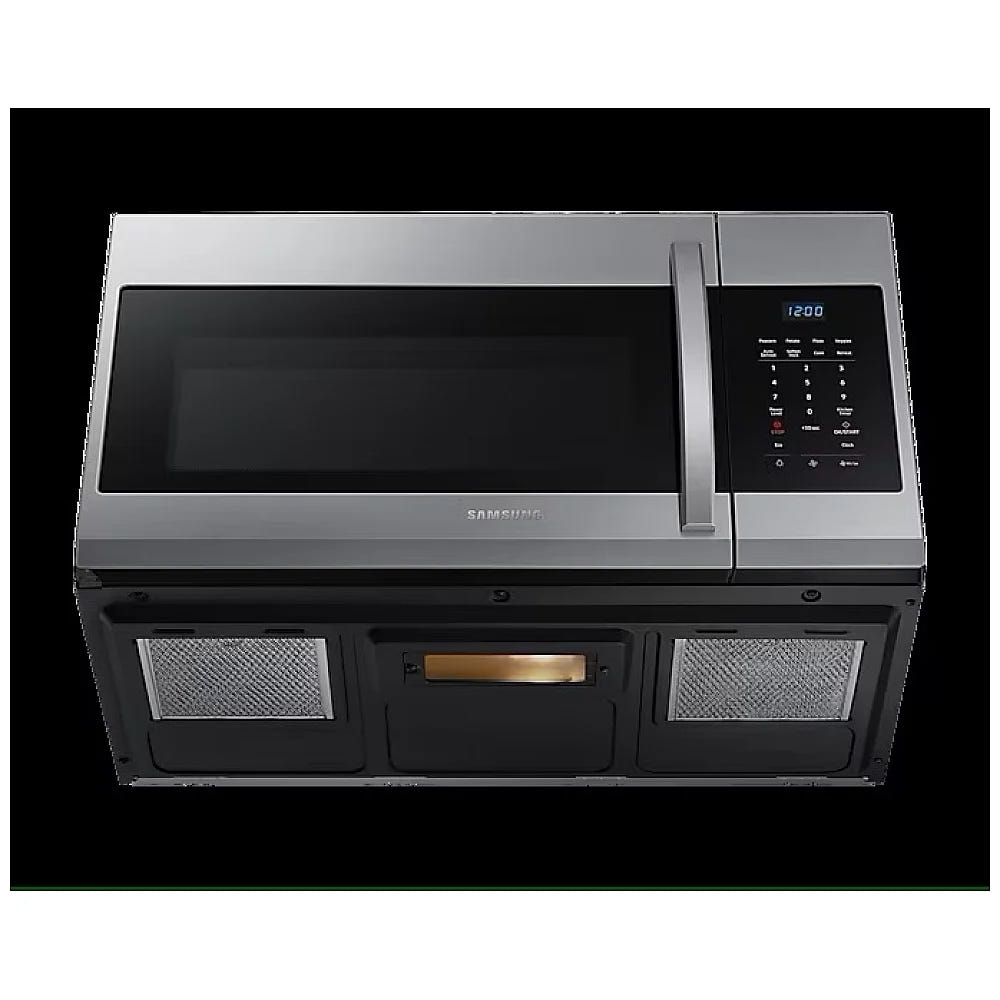

 Cooktop surface lighting – lights the range below to improve visibility while cooking on the stovetop.
 Removable glass turntable – rotates food for more even heating and lifts out for quick cleaning.
 Child Safety Lock / Control Lock – disables the control panel to prevent accidental or unsupervised use by children.
 Kitchen timer function – operates as a stand‑alone timer to track other cooking tasks.
 Digital clock display – shows current time and doubles as a convenient kitchen clock.
 Auto‑start and multi‑stage programming – allows setting power levels and times in sequence for more precise cooking (where available).
 300 CFM venting with multiple fan speeds – lets you choose higher airflow for heavy cooking or quieter operation for everyday use.
 Top or rear venting options – supports different duct configurations to match your kitchen’s ventilation setup.
 Recirculating or external vent capability – can be installed ducted to the outside or with filters to recirculate air when exterior venting isn’t possible.

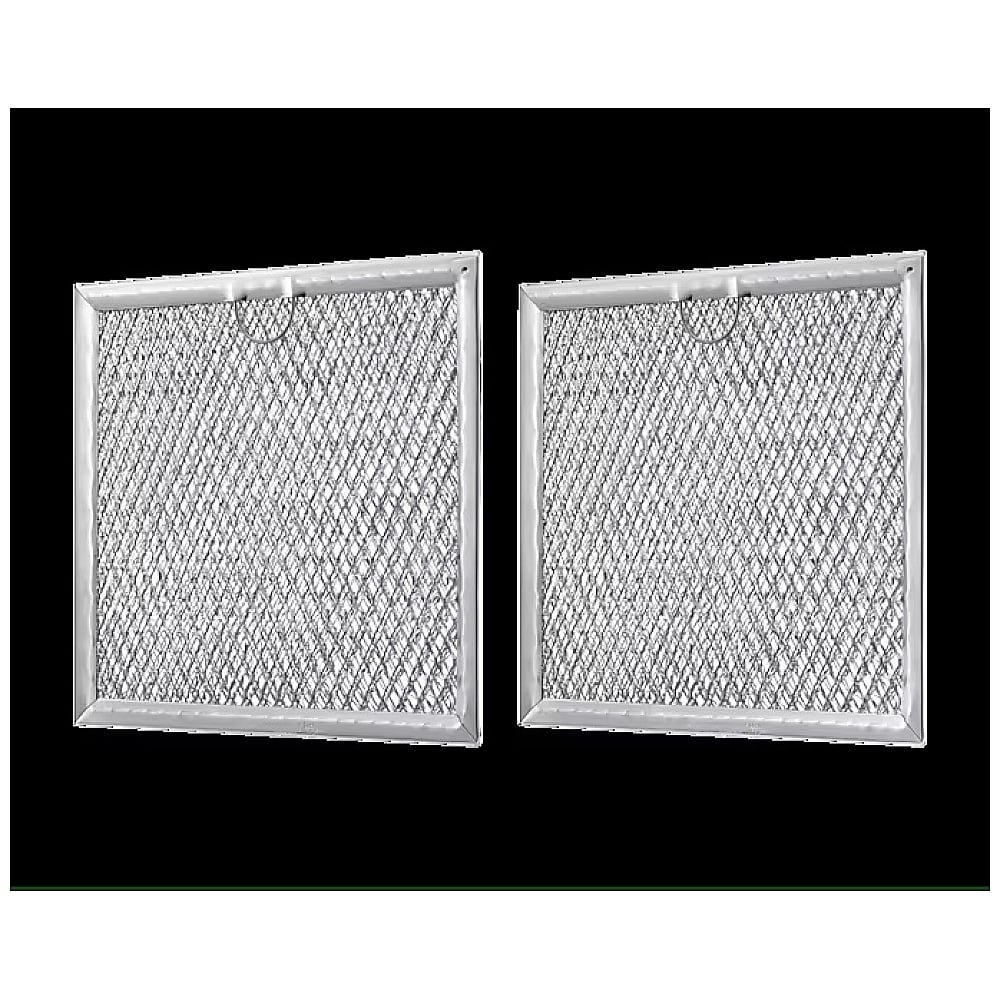

 Grease / air filter included – captures grease and particulates from cooktop steam to help keep kitchen air cleaner.
 Easy‑access filter design – allows quick removal and cleaning of the filter to maintain ventilation performance.

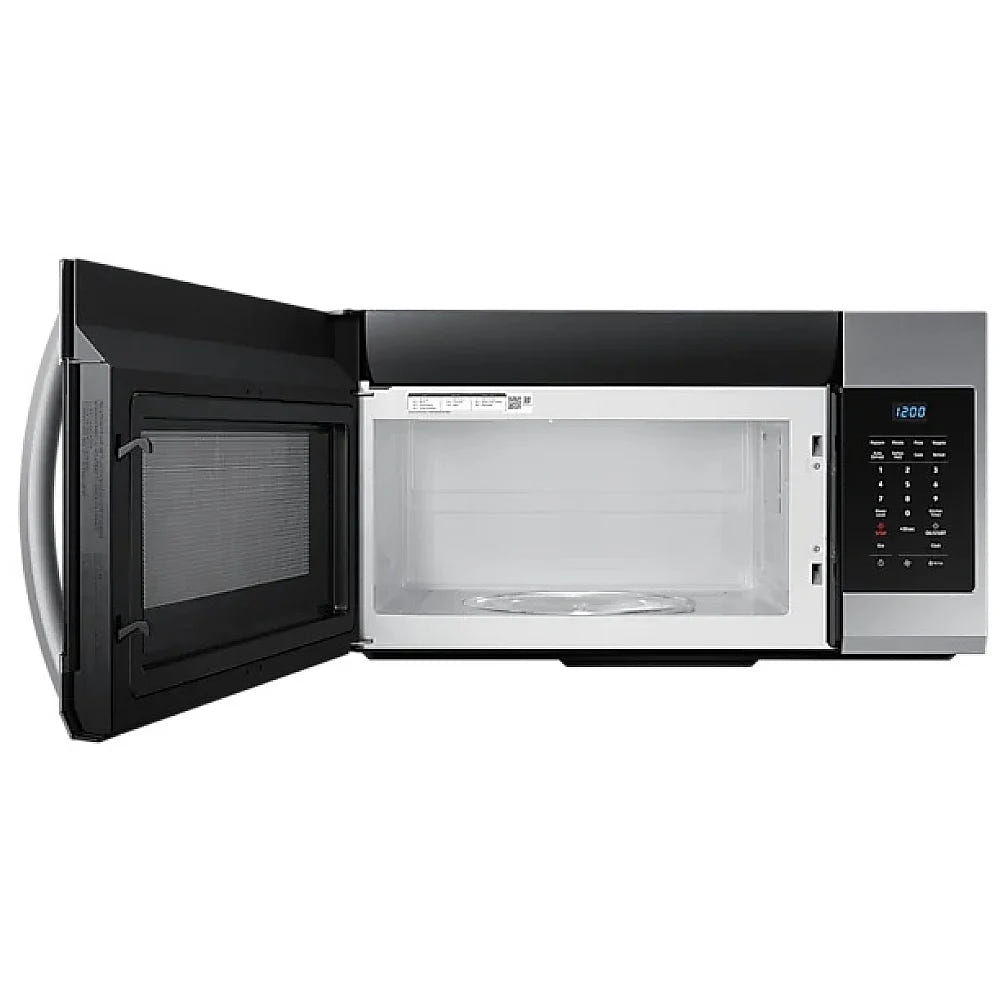

 White epoxy interior cavity – durable, light‑coloured interior makes spills easy to see and wipe away.
 Stainless steel door with silver handle – neutral finish coordinates with a wide range of appliance and cabinet colours.
 Approx. 30" exterior width – designed to fit standard cabinetry and range widths for straightforward replacement or new installation.
 Compact exterior depth and height – sized to provide good headroom over the range while maximizing interior space.
 1,500W input power – supports strong microwave output while operating on a standard 120V / 60Hz household circuit.
 10‑level power control – allows precise adjustment for defrosting, simmering, reheating or full‑power cooking.
 Sound on/off option (where available) – lets you mute audible beeps for quieter operation in open‑concept spaces.
 30" wide door opening – provides easy access for larger dishes and casserole pans.
 Bar‑style flat handle – comfortable grip and low‑profile design that’s easy to clean and complements modern cabinetry.
 Eco‑friendly Kraft packing case – packaging designed to be more environmentally conscious while protecting the appliance in transit.
 Included quick‑guide label – provides at‑a‑glance reference for common functions and settings inside the door.
 Included cleaning filter – helps maintain both microwave interior cleanliness and vent performance over time.
 CSA/UL‑style safety compliance (region‑dependent) – built to meet recognized electrical and safety standards for home appliances.
 Samsung manufacturer support – backed by Samsung’s service network, documentation and warranty for added peace of mind.

Specification Value
Model ME17R7011ES / ME17R7011ES/AC
Product Type Over-the-Range Microwave
Installation Type OTR (Over-the-Range)
Capacity 1.7 cu. ft.
Cooking Power (Output) 1000 W
Power Levels 10
Power Consumption (Microwave) 1500 W
Power Source 120 V / 60 Hz
Colour (Door) Fingerprint Resistant Stainless Steel (with Silver handle)
Finish Name Fingerprint Resistant Stainless Steel
Door Type Flat door with bar handle
Door Hinge Left swing
Microwave Type Over-the-Range
Control Method Membrane touch controls
Display Type Ice blue LED
Cavity Material White epoxy
Ventilation Type Built-in, convertible over-the-range ventilation
Ventilation Power 300 CFM
Exhaust Fan Speeds 2-speed
Charcoal Filter Yes
Cleaning Filter Indicator Yes
Interior Light Type Standard incandescent
Cooktop Lighting Yes
Turntable Yes
Turntable Size Approx. 11.5–12 in (typical for this cavity size; not always listed)
Sensor Cooking No
Auto Defrost Yes (Auto)
Auto Cook / Auto Programs Yes
Kitchen Timer Yes
Eco Mode Yes (reduced standby power)
Child Lock / Control Lock Yes
Warm / Reheat Setting Yes
Defrost Setting Yes (Auto Defrost)
Quick Guide Label Yes
Outside Width 29 7/8 in (29.87 in / 75.88 cm)
Outside Height 17 1/16 in (17.06 in / 43.33 cm)
Outside Depth 16 1/2 in (16.5 in / 41.91 cm)
Depth (without handle) 15.12 in (38.41 cm)
Appliance Fit Width 30 in (class width 29 in to 30.9 in)
Cut-out Width 30 in (76.2 cm)
Cut-out Height 16 in (approx. 406.4 mm, typical OTR opening)
Cavity Width 19 5/16 in
Cavity Height 9 5/8 in
Cavity Depth 14 3/8 in
Net Weight Approx. 48.3 lb (21.9–22.0 kg)
Shipping Weight Approx. 51.8–55.1 lb (23.5–25.0 kg)
Shipping Width 33 11/32 in (≈33.34–33.37 in / 84.7 cm)
Shipping Height ≈20.0–20.78 in (50.6–52.8 cm)
Shipping Depth ≈19.37–19.38 in (49.2 cm)
Microwave Category 1.7 cu. ft. OTR with 300 CFM ventilation
Fingerprint Resistant Yes (stainless steel)
Smart / Wi-Fi Capable No
App Compatibility No
Voice Control No
Works with Alexa / Google / SmartThings / HomeKit No
ADA Compliant No
Energy Star Certified No
Country of Manufacture Malaysia (varies by batch)
UPC 887276528588
Base Warranty – Parts 1 year limited
Base Warranty – Labor 1 year limited
Magnetron Warranty – Parts 5 years
Magnetron Warranty – Labor 1 year

Warranty Support

Warranty support and documents in one place.

Find the manufacturer support line and open your brochure or warranty PDFs below in the floating preview window.

Files

Brochure and warranty documents

1 file
