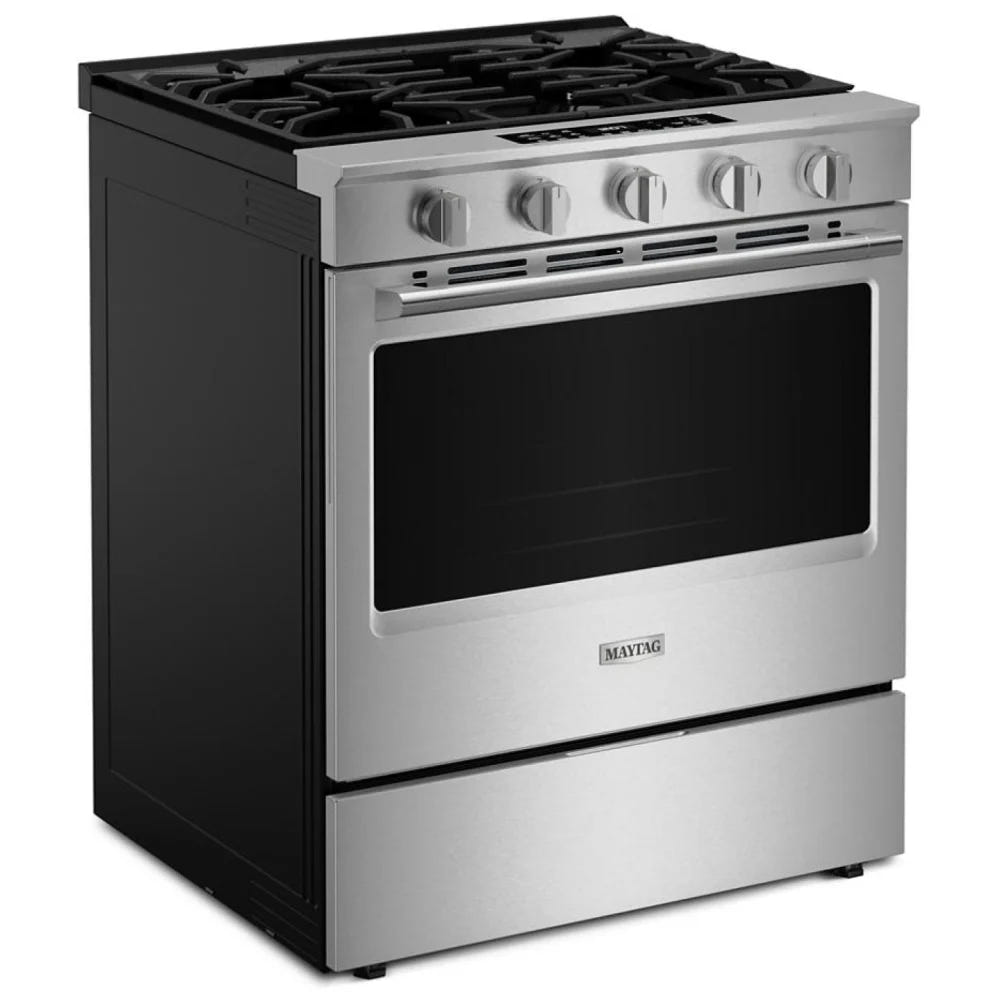

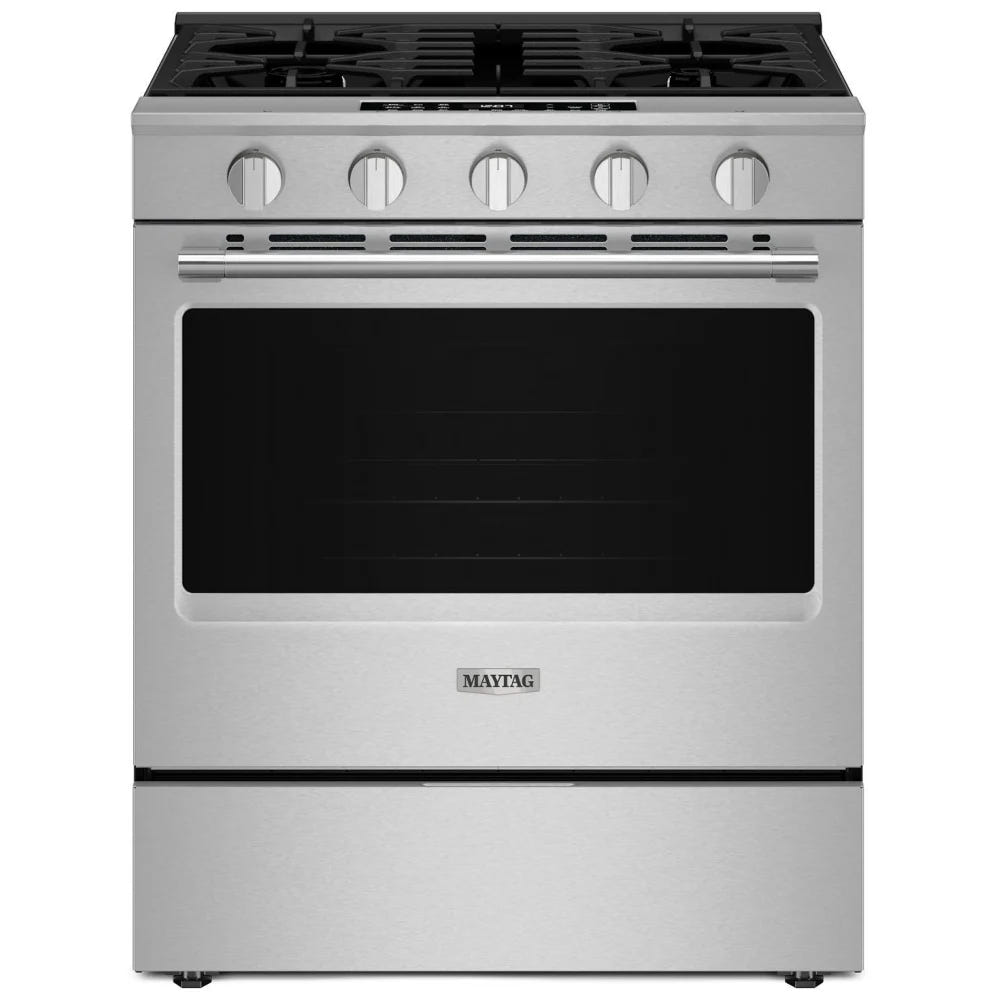

Maytag Gas Range, 5 cu. ft. Capacity, 30 inch Exterior Width, Convection, 5 Burners, Storage Drawer, Air Fry, 18,000 BTU Highest Burner, FingerPrint Resistant Stainless Steel colour, Keep Warm™, Power™ Burner, Precision Cooking™
Manufacturer's Warranty: 1 year
Dimensions
Depth 25.4 "
Width 29.9 "
Height 36.6 "
Carton Depth 31.0 "
Carton Height 43.0 "
Carton Width 32.0 "
Gross Weight 220.0 lbs
Depth With Door Open 90 Degree 47.7 "
Maximum Height 42.1 "
Minimum Height 36.3 "
Cutout Depth 24.0 "
Cutout Height 36.0 "
Cutout Width 30.0 "
Capacity FT3 (cubic feet) 5.0
Depth Closed Excluding Handles 27.4 "
Depth Closed Including Handles 29.0 "
Details
Oven Control Location Front Control
Rack Guide Type Embossed
Oven Rack Type 2 Standard
Oven Light Type Halogen
Oven Light Switch Location Oven Control
Oven Interior Width In Inches 24.2
Oven Interior Depth In Inches 19.0
Oven Cooking System Convection

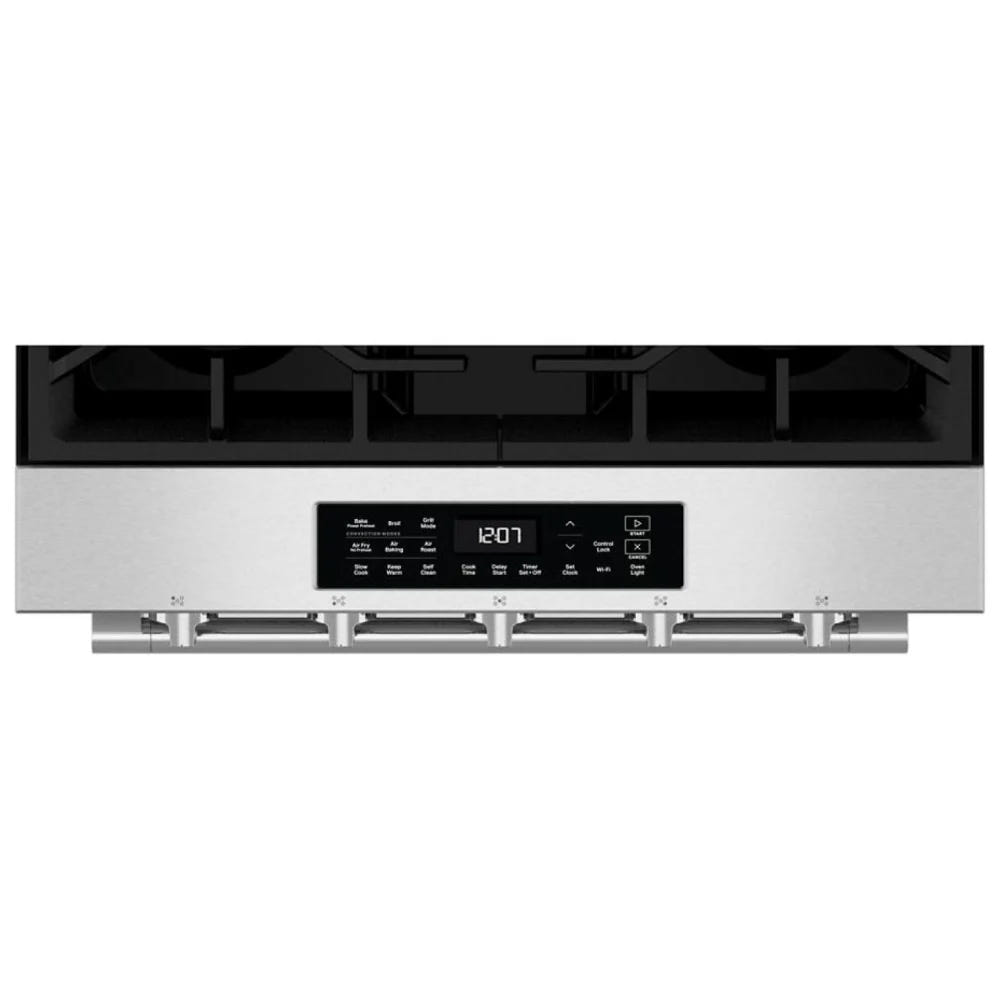

Oven Control Type Tap Touch
Oven Control Knob Type N/A
Oven Cleaning Type Self-Clean
Number Of Rack Guides 5
Number Of Oven Racks 2
Number Of Oven Lights 1

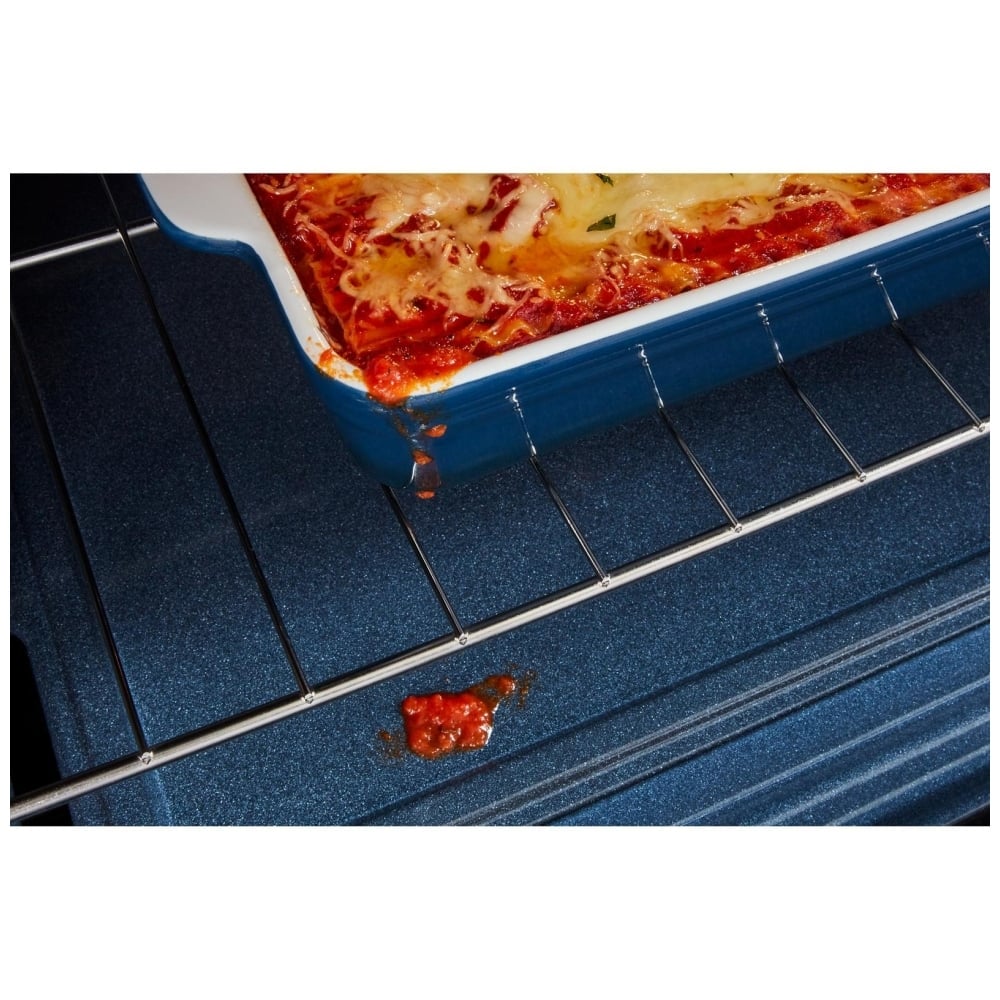

Interior Color Blue
Hidden Bake Element Hidden
Cooktop Surface Material Porcelain Coated Steel
Convection Functions No

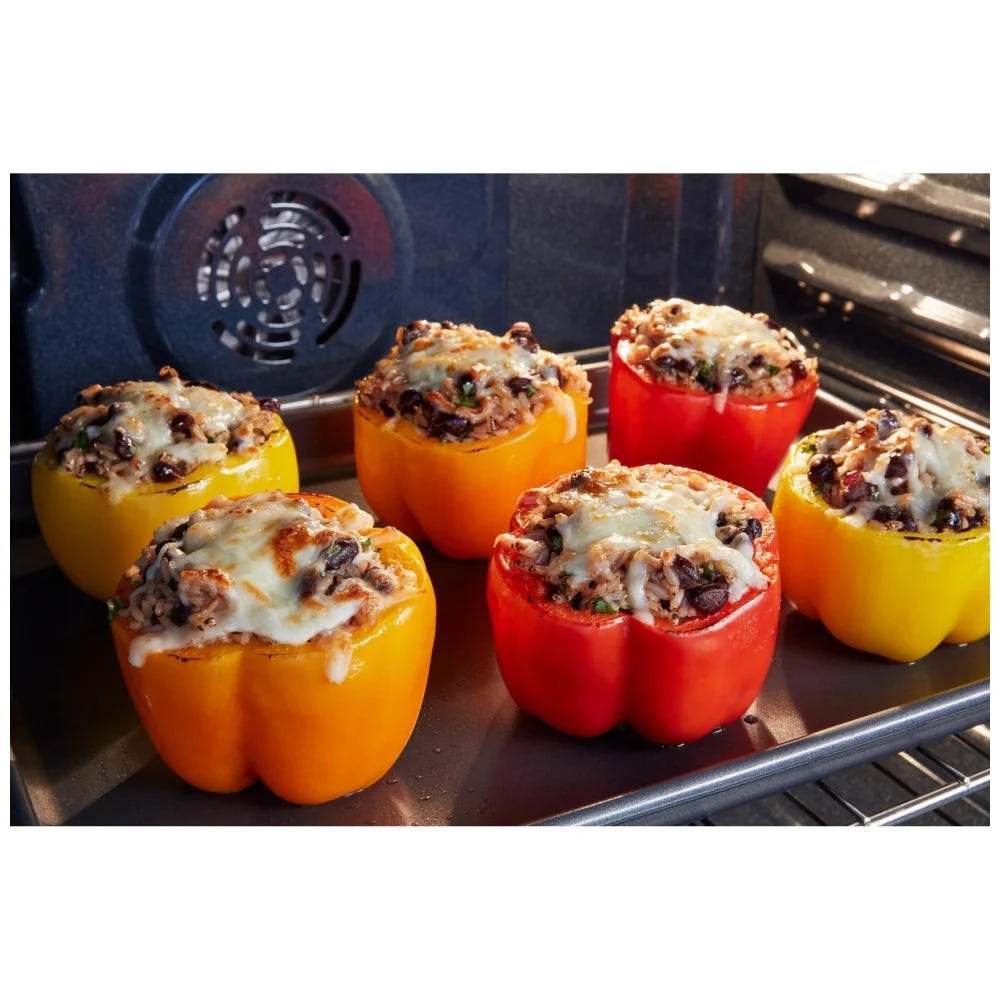

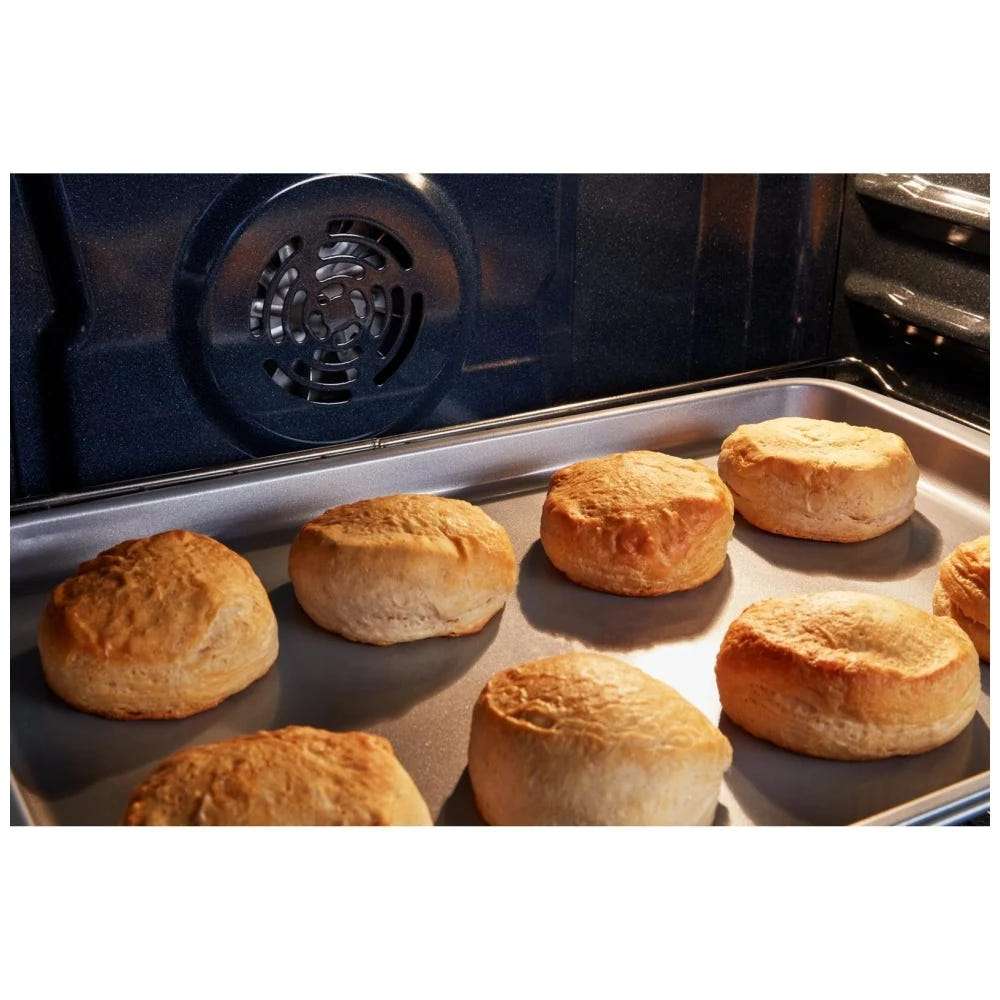

Convection Element Type Fan

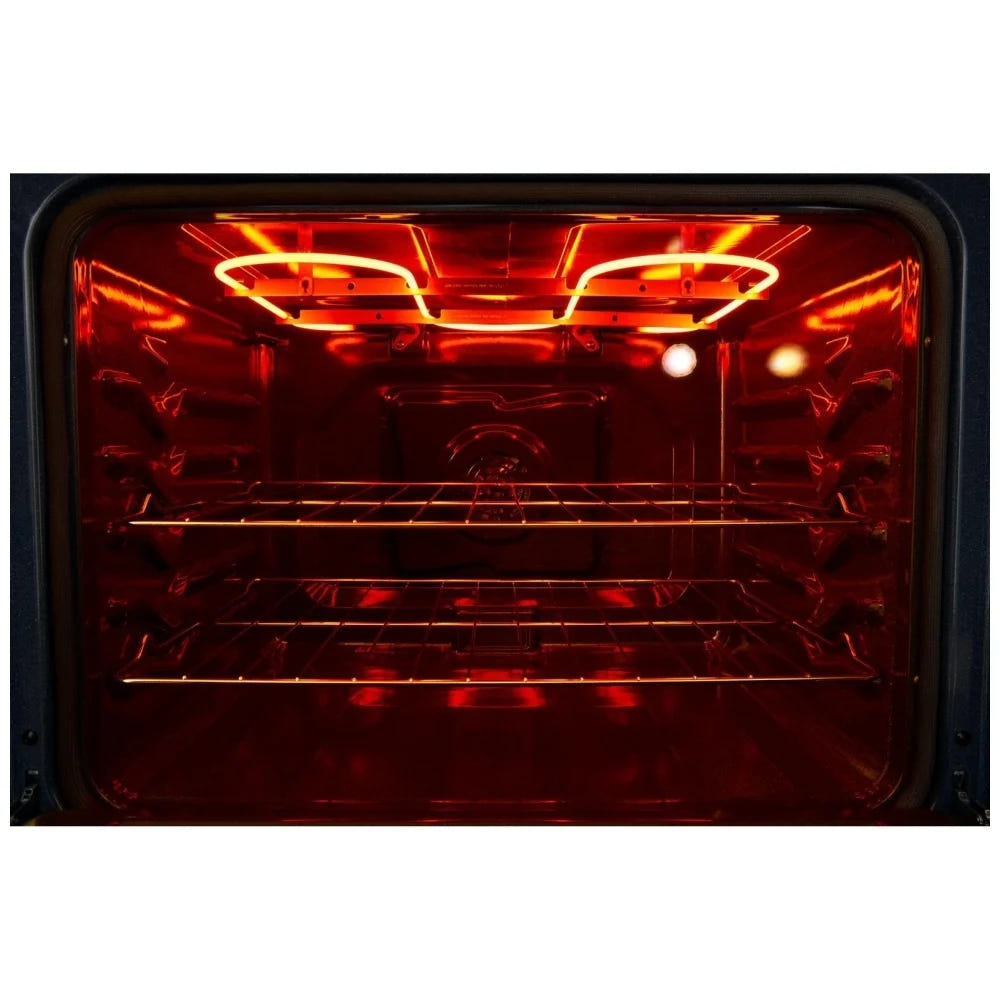

Broiler Location Top Center

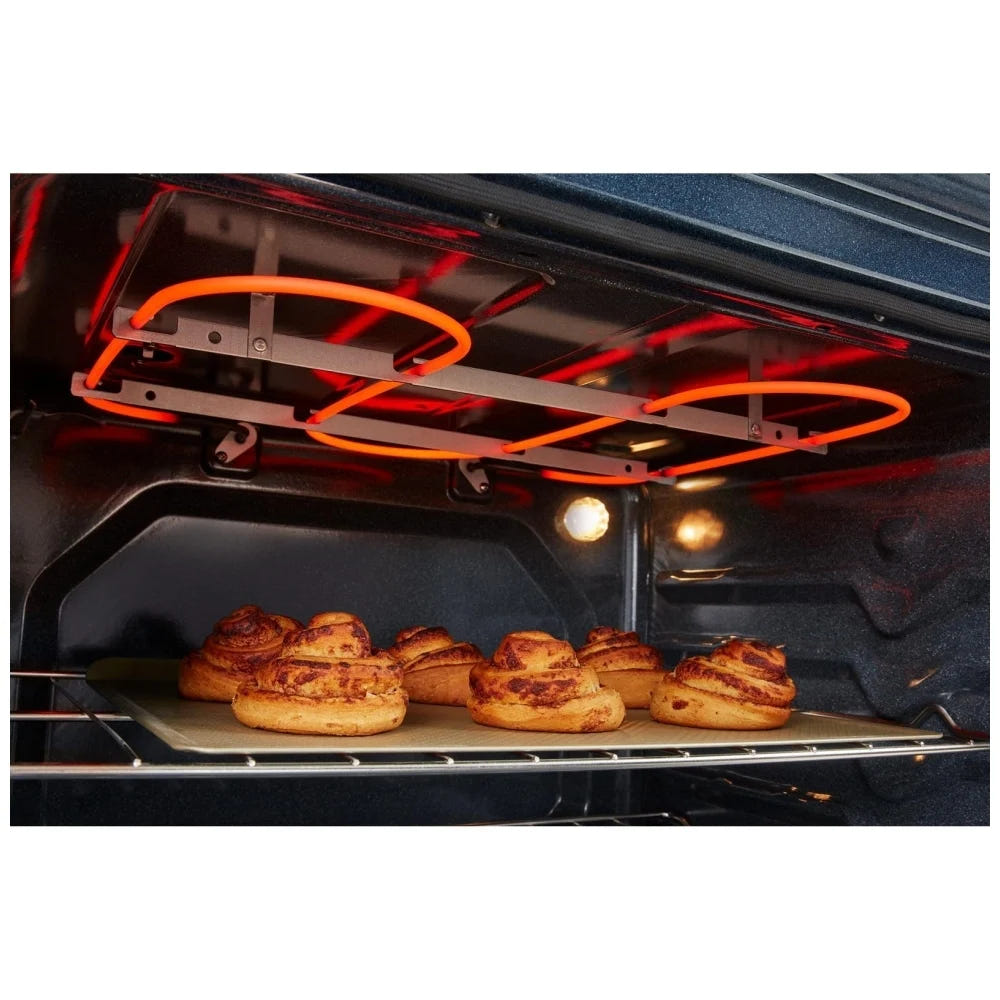

Broiler Element Power 1300WElectricBroil
Bake Element Power 16500BTU
Electrical
Hz 60
Amps 15
Power Cord Included Yes
Watts 1
Volts 120
Features
Heating Element On Indicator Light Yes
Total Gas Btus Oven S 16,500
Total Gas Btus Cooktop 57,000
Power Outage Compatible Yes
Natural Gas Convertible No
LP Convertible Yes
Hot Surface Indicator Light Yes
Griddle Sí
Automatic Convection Conversion Temperature Adjust No

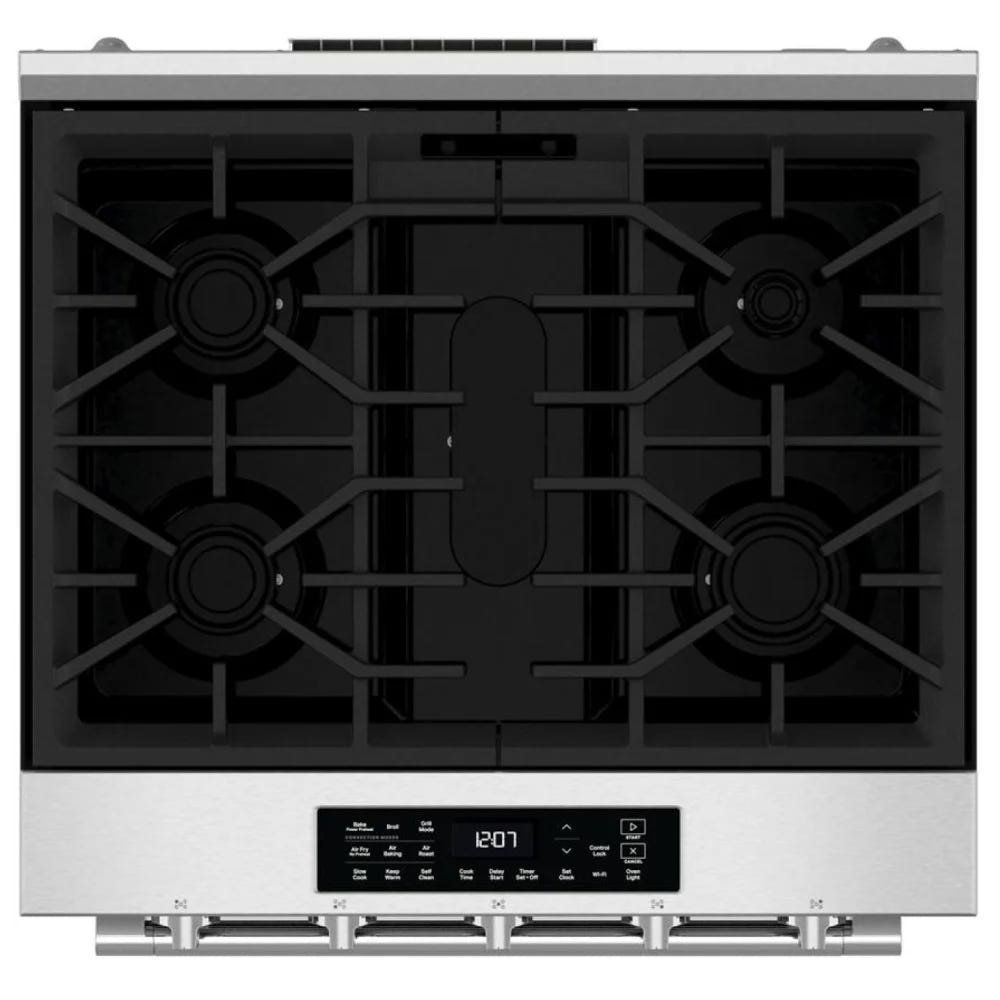

Cooktop Details
Center Rear Element Burner Size N/A
Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Cooktop Element Style Sealed Burners
Cooktop Control Type Knobs
Cooktop Control Location Front
Cooktop Configuration All Burners
Center Rear Element Burner Type Sealed Burner
Center Rear Element Burner Power 10000BTU
Auto Re Ignition Yes
Right Front Element Burner Power 18000BTU
Right Rear Element Burner Type Simmer
Right Rear Element Burner Size N/A
Right Rear Element Burner Power 5000BTU
Right Front Element Burner Type Extra Large
Right Front Element Burner Size N/A
Number Of Grates 2
Number Of Cooking Element Burners 5
Left Rear Element Burner Type Griddle
Left Rear Element Burner Size N/A
Left Rear Element Burner Power 12000BTU
Left Front Element Burner Type Griddle
Left Front Element Burner Size N/A
Left Front Element Burner Power 12000BTU
Ignition Type Direct Spark Ignition
Controls

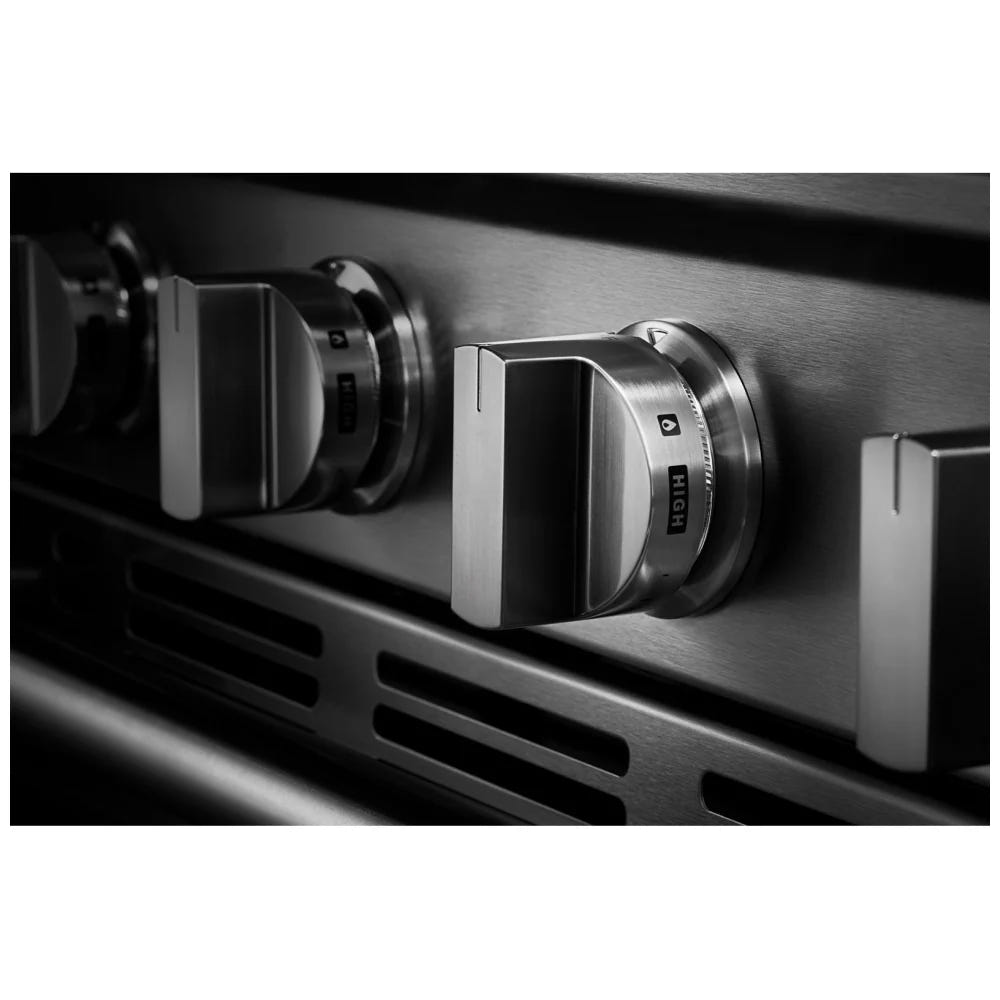

Control Type Knobs
Knob Type Weighted
Knob Color Stainless Steel
Specifications
Extended Service Plan Parent EW08IW1Y, EW08IW2Y, EW08IW4Y
Optional Accessories 4396096RB, W11692811
Matte Finish Vs Satin Finish Matte Finish
Dishwasher Safe Yes
Cast Iron Vs Porecelain Porcelain Coated Grates
Country Of Origin USA
Exterior
Handle Type Reach-Through Handle
Handle Material Metal
Handle Color Stainless Steel
Drawer Type Storage Drawer
Door Removable Yes
Configuration
Range Configuration Slide-In
Oven Configuration Single Oven
Configuration and Overview
Fuel Type Gas
Compatibility
Works With Amazon Alexa; Android; Google Assistant; Nest; iOS
Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi
Certifications
UL Yes
Star K Certified Star K Certified
CUL Yes
ADA Compliant No
Description
Size In 30
Range Type Slide-in
