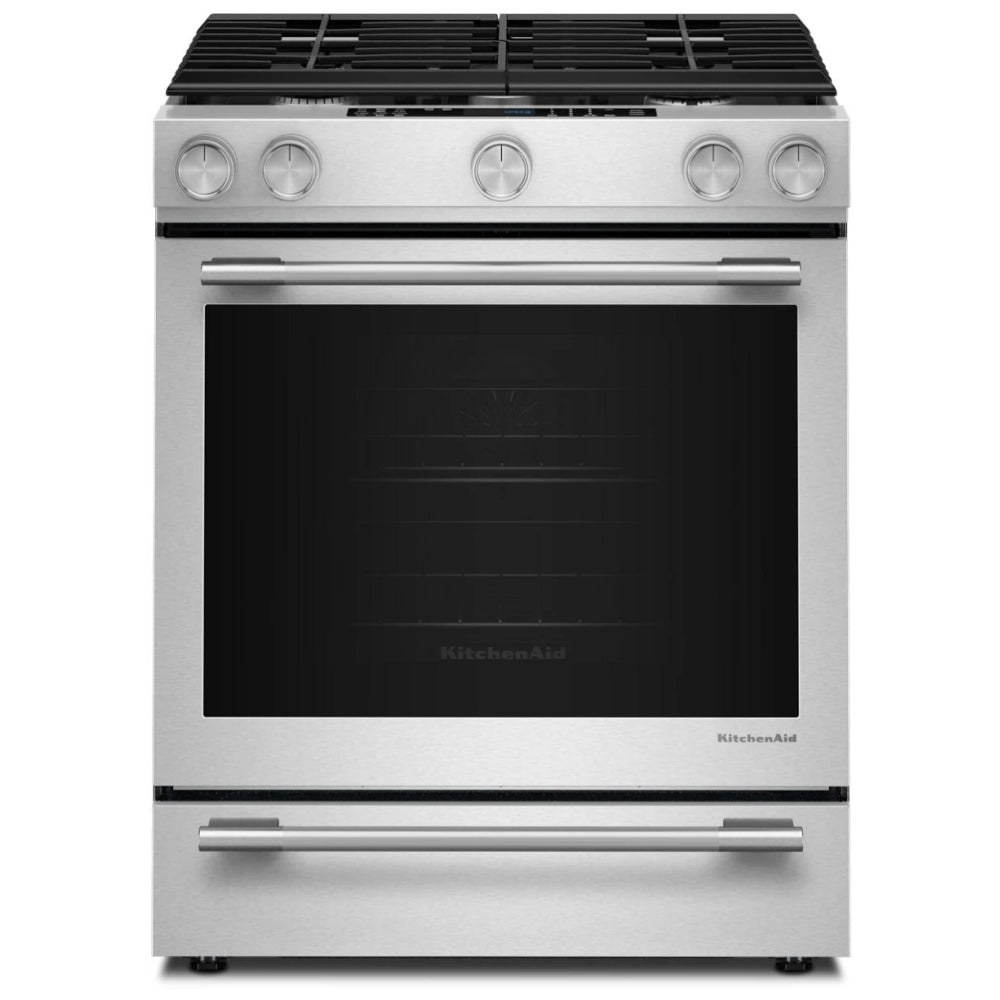

KitchenAid KSGS730TPS
KitchenAid
KSGS730TPS
KitchenAid KSGS730TPS Gas Range, 6.5 cu. ft. Capacity, 30 inch Exterior Width, Steam Clean, True Convection, 5 Burners, Oven Drawer, Air Fry, 19,000 B
MAP Price MAP Price $2,695.00
Quick Specs
  • Burners: 5 burners
Dimensions
W N/Ain
H 36in
D 28.88in

KitchenAid KSGS730TPS Gas Ranges

Specifications
Depth: 28.88 "
Width: 29.88 "
Height: 36.0 "
Carton Depth: 30.5 "
Carton Height: 43.0 "
Carton Width: 32.0 "
Depth Closed Excluding Handles: 26.38 "
Depth Closed Including Handles: 28.88 "
Depth With Door Open 90 Degree: 48.75 "
Gross Weight: 265.0 lbs
Net Weight: 249 lbs
Capacity FT3 (cubic feet): 6.5
Cutout Height: 36.0 "
Cutout Width: 30.0 "
Broiler Location: Top of Oven
Number Of Rack Guides: 7
Number Of Oven Racks: 2
Number Of Oven Lights: 2
Interior Color: Black
Hidden Bake Element: Yes
Cooktop Surface Material: Stainless Steel
Convection Functions: No
Convection Element Type: True-Bow Tie
Convection Element Power Watts: 914W
Oven Cleaning Type: Steam Clean
Broiler Element Power: 13000BTU
Bake Element Power: 18000BTU
Automatic Shut Off: No
Rack Guide Type: Embossed
Oven Rack Type: 1 Heavy Duty and 1 Steam Rack
Oven Light Type: Halogen
Oven Light Switch Location: Oven Control
Oven Interior Width In Inches: 24.13
Oven Interior Depth In Inches: 20.63
Oven Ignition Type: Electronic
Oven Cooking System: True Convection
Oven Control Type: Tap Touch
Oven Control Location: Front Control
Range Type: Slide-in
Right Rear Element Burner Type: Sealed Burner
Right Rear Element Burner Power: 9200BTU
Right Front Element Burner Type: Sealed Burner
Right Front Element Burner Power: 15000BTU
Number Of Grates: 2
Number Of Cooking Element Burners: 5
Cooktop Surface Color: Stainless Steel
Left Rear Element Burner Type: Sealed Burner
Left Rear Element Burner Power: 5000BTU
Left Front Element Burner Type: Sealed Burner
Left Front Element Burner Power: 19000BTU
Ignition Type: Électroniques
Grate Details: Cast Iron Grates
Cooktop Element Style: Sealed Burners
Cooktop Control Type: Knobs
Cooktop Control Location: Front
Cooktop Configuration: All Burners
Center Rear Element Burner Type: Sealed Burner
Center Rear Element Burner Power: 8000BTU
Auto Re Ignition: No
Power Outage Compatible: No
Natural Gas Convertible: Yes
LP Convertible: Yes
Hot Surface Indicator Light: No
Heating Element On Indicator Light: No
Griddle: No
Automatic Convection Conversion Temperature Adjust: Yes
Drawer Type: Baking Drawer
Door Removable: Yes
Handle Type: Towel Bar
Handle Material: Stainless Steel
Handle Color: Stainless Steel
Optional Accessories: W11692811
Customizable: Yes
Aesthetic: New Design
Launch Date: November 2026
Country Of Origin: USA
Cast Iron Vs Porecelain: Cast Iron Grates
Matte Finish Vs Satin Finish: Cast Iron Grates
Dishwasher Safe: No
Oven Configuration: Single Oven
Range Configuration: Slide-In
Fuel Type: Gas
Star K Certified: No
CUL: Yes
UL: Yes
ADA Compliant: Yes
Oven Door: Metal & Glass
Hz: 60.0
Volts: 120.0
Power Cord Included: Yes
Amps: 15.0
Control Type: Knobs
Knob Type: Weighted
Knob Color: Stainless Steel
