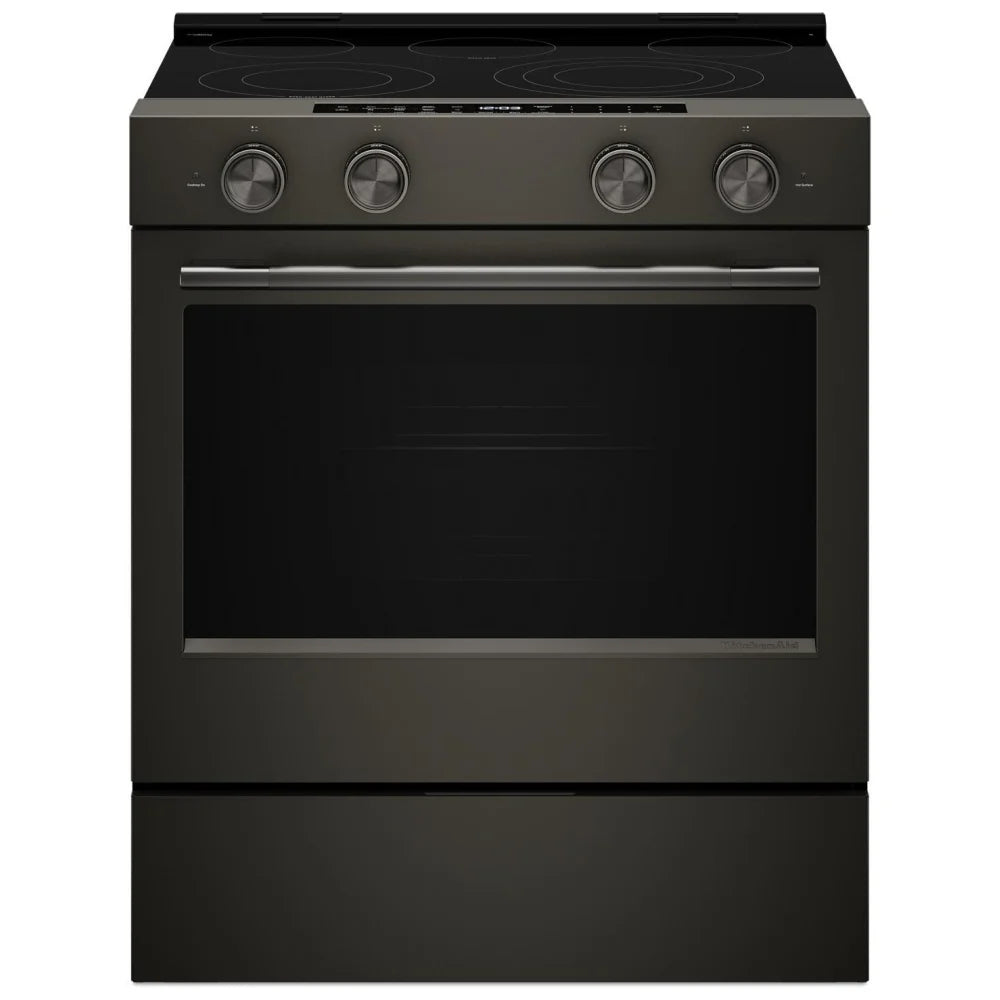

KitchenAid YKSES530SBE Electric Range, 5.3 cu. ft. Capacity, 30 inch Exterior Width, True Convection, 5 Burners, Storage Drawer, Air Fry, Self Clean, 3200 Watts Highest Burner Element, Black Ore colour

Dimensions
Depth 25.4 "
Width 29.9 "
Height 36.6 "
Carton Depth 31.0 "
Carton Height 43.0 "
Carton Width 32.0 "
Gross Weight 195.0 lbs
Depth With Door Open 90 Degree 47.9 "
Cutout Depth 24.0 "
Cutout Height 36.0 "
Cutout Width 30.0 "
Depth Closed Excluding Handles 27.4 "
Depth Closed Including Handles 29.2 "
Maximum Height 42.1 "
Minimum Height 36.6 "
Capacity FT3 (cubic feet) 5.3

Details
Convection Element Type True-Bow Tie
Oven Control Knob Type N/A
Oven Cleaning Type Steam Clean
Number Of Rack Guides 5
Number Of Oven Racks 2
Number Of Oven Lights 1
Interior Color Blue
Hidden Bake Element Hidden
Cooktop Surface Material Glass
Convection Functions No
Oven Control Location Front Control
Broiler Location Top Center
Broiler Element Power 3400W
Bake Element Power 2400W
Rack Guide Type Embossed
Oven Rack Type Max Capacity; Steam Rack
Oven Light Type Halogen
Oven Light Switch Location Oven Control
Oven Interior Width In Inches 24.2
Oven Interior Depth In Inches 19.0
Oven Cooking System True Convection
Oven Control Type Electronic Touch

Description
Range Type Slide-in
Size In 30

Cooktop Details
Right Rear Element Burner Type Even-Heat™
Right Rear Element Burner Size 6in.
Right Rear Element Burner Power 1300W
Right Front Element Burner Type Triple
Right Front Element Burner Size 12in./9in./6in.
Right Front Element Burner Power 3000W
Number Of Cooking Element Burners 5
Left Rear Element Burner Type Standard
Left Rear Element Burner Size 6in.
Left Rear Element Burner Power 1200W
Left Front Element Burner Type Dual
Left Front Element Burner Size 10in./6in.
Left Front Element Burner Power 3200W
Cooktop Element Style Ceran
Cooktop Control Type Knobs
Cooktop Control Location Front
Cooktop Configuration All Burners
Center Rear Element Burner Type Warming
Center Rear Element Burner Power 100W

Electrical
Watts 12
Power Cord Included Yes
Volts 208
Hz 60
Amps 40

Features
Power Outage Compatible Yes
Hot Surface Indicator Light Yes
Heating Element On Indicator Light Yes
Griddle No
Automatic Convection Conversion Temperature Adjust No

Exterior
Drawer Type Storage Drawer
Door Removable Yes
Handle Type Reach-Through Handle
Handle Material Metal

Energy
Annual Energy Usage Kwh 564

Certifications
ADA Compliant No
CUL Yes
Energy Rating Kwh Year 564
Star K Certified Star K Certified
UL Yes

Configuration and Overview
Fuel Type Electric

Compatibility
Works With Amazon Alexa; Android; Google Assistant; Nest; iOS
Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi

Configuration
Oven Configuration Single Oven
Range Configuration Slide-In

Specifications
Extended Service Plan Parent EW08IW4Y, EW08IW2Y, EW08IW1Y
Optional Accessories W11692811, 4396096RB
Country Of Origin USA
Dishwasher Safe No

Controls
Knob Type Weighted
