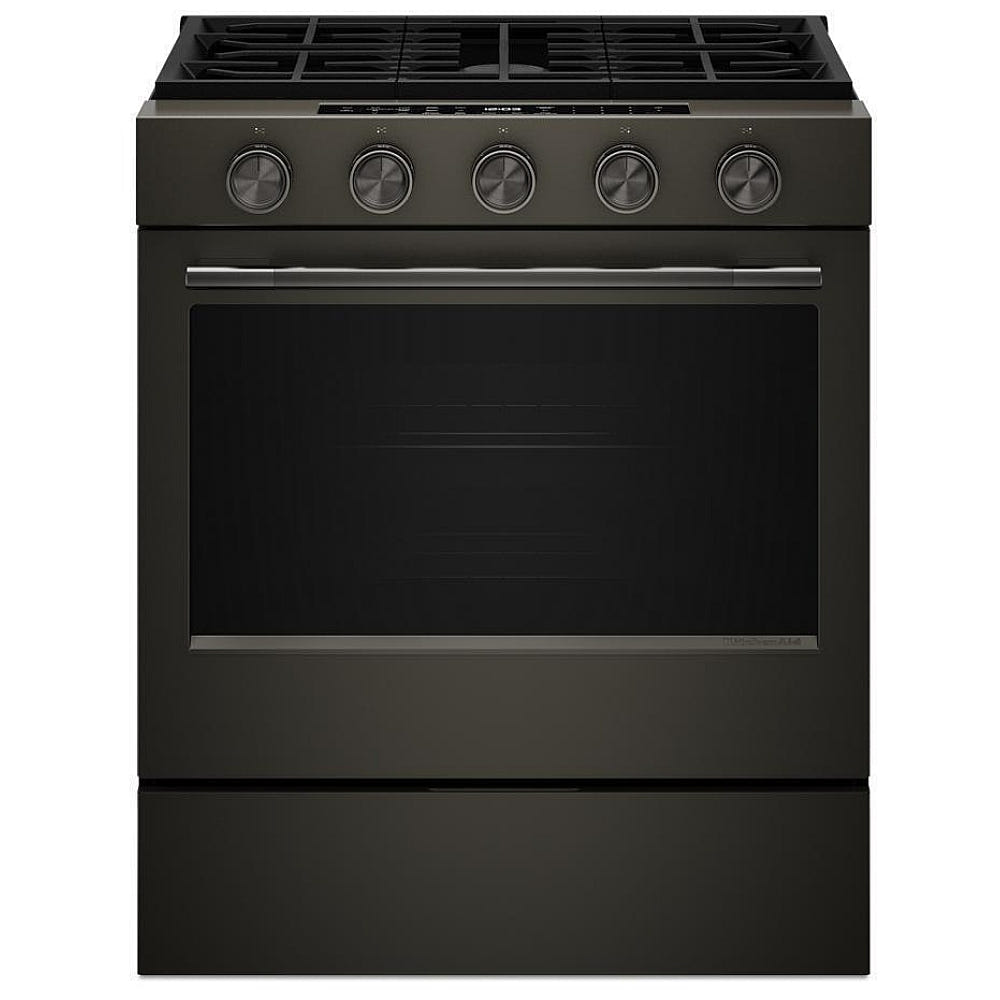

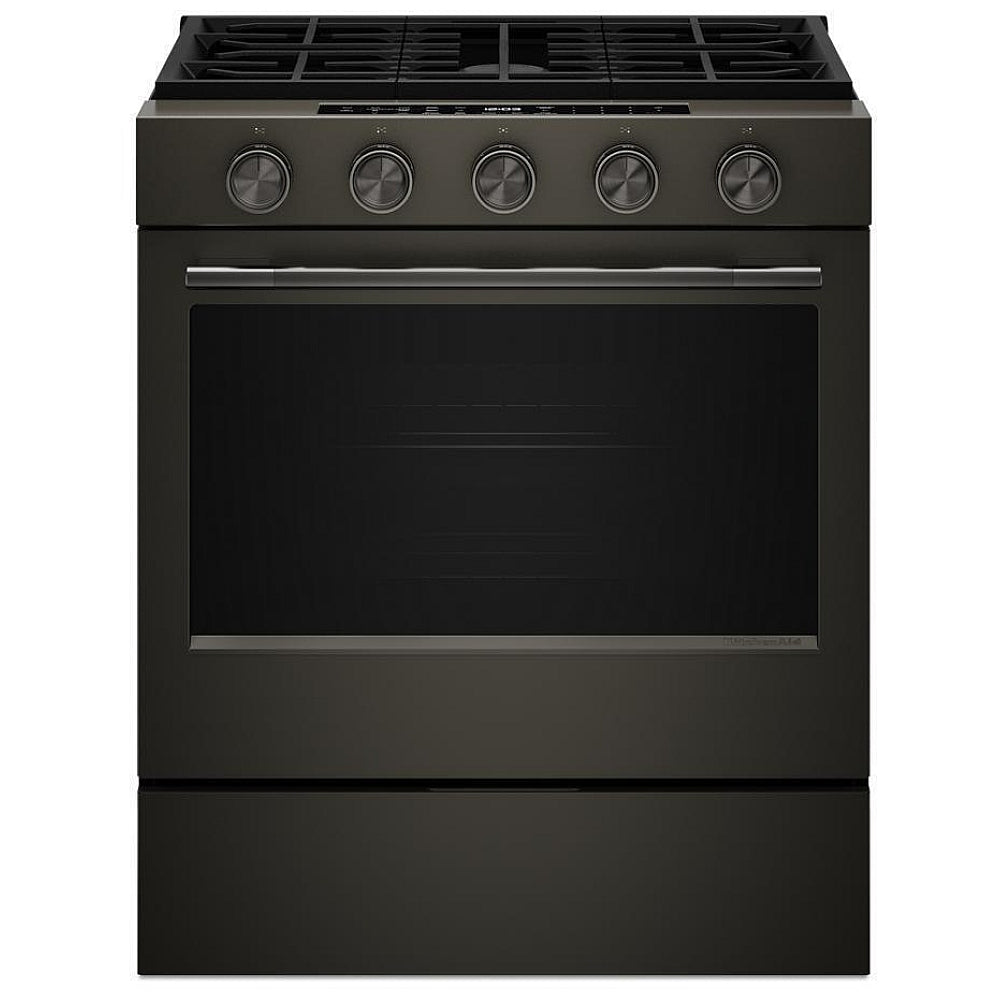

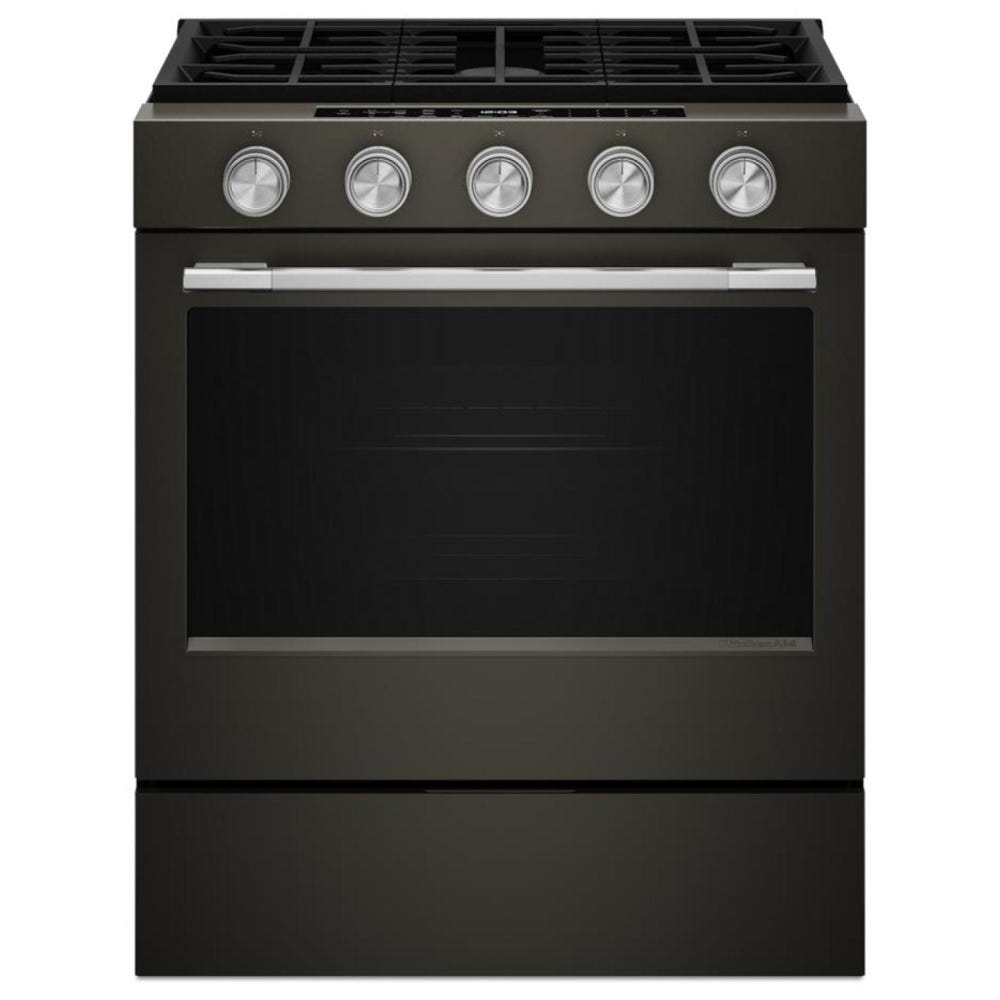

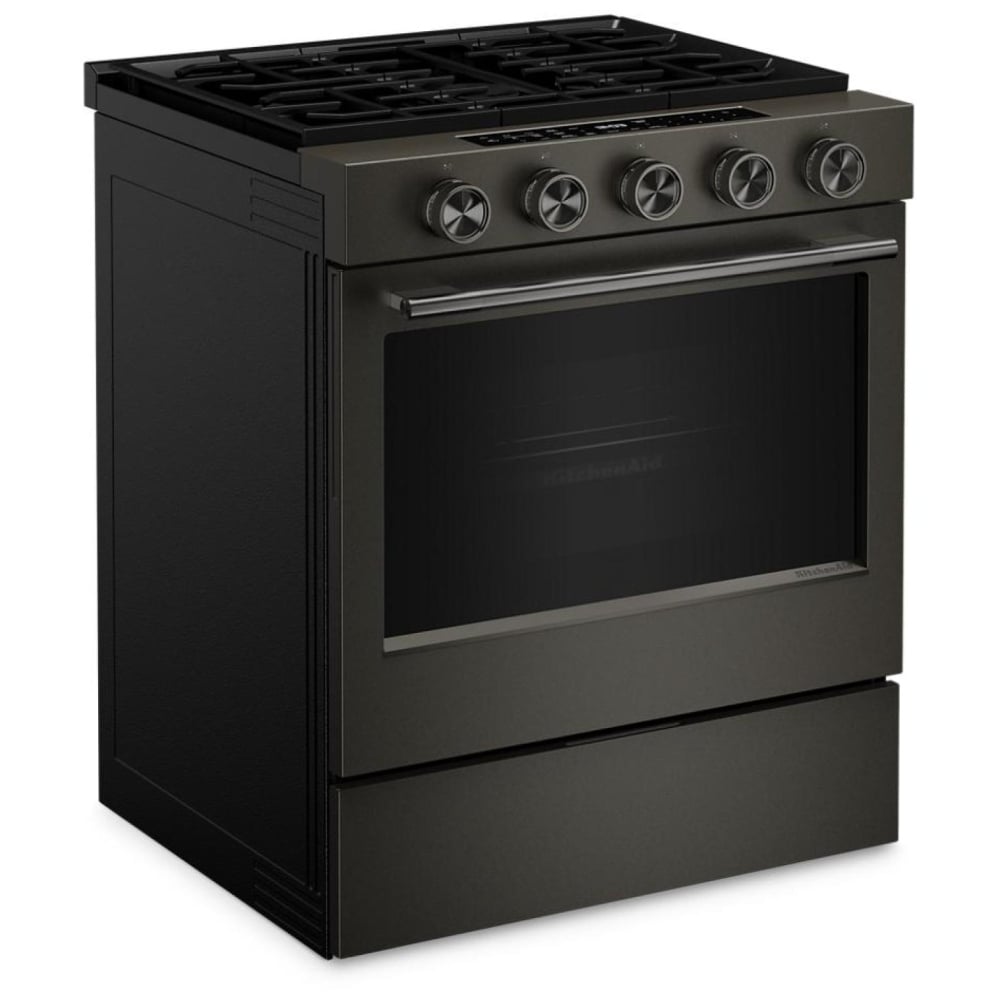

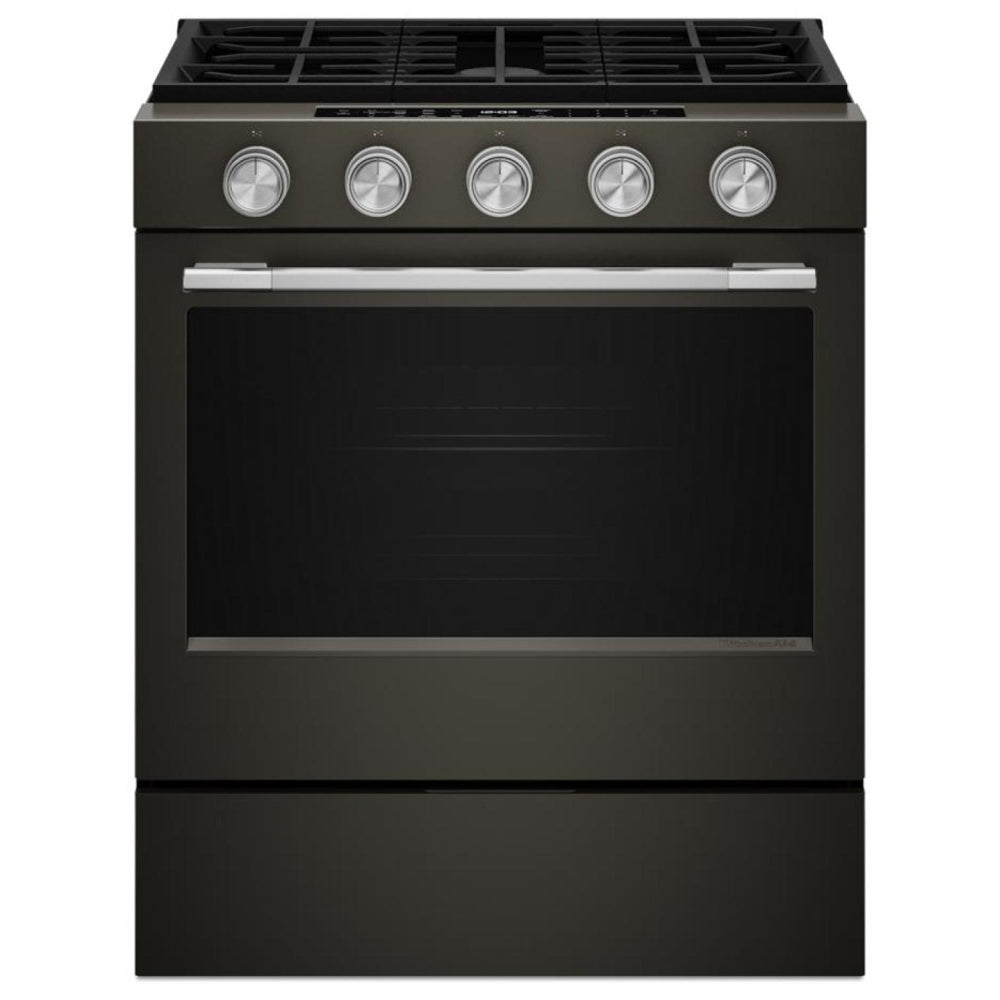

KitchenAid KSGS530SBE Gas Range, 5 cu. ft. Capacity, 30 inch Exterior Width, Self Clean, True Convection, 5 Burners, Storage Drawer, Air Fry, 18,000 BTU Highest Burner, Black Ore colour
KitchenAid
KSGS530SBE
KitchenAid KSGS530SBE Gas Range, 5 cu. ft. Capacity, 30 inch Exterior Width, Self Clean, True Convection, 5 Burners, Storage Drawer, Air Fry, 18,000 BTU Highest Burner, Black Ore colour
MSRP: $2,699.99
MAP Price MAP Price $2,399.99
Quick Specs
  • Capacity: 5.0 cu ft
  • WiFi Enabled: Yes
  • Power Type: 18000 BTU
  • Burners: 5 burners

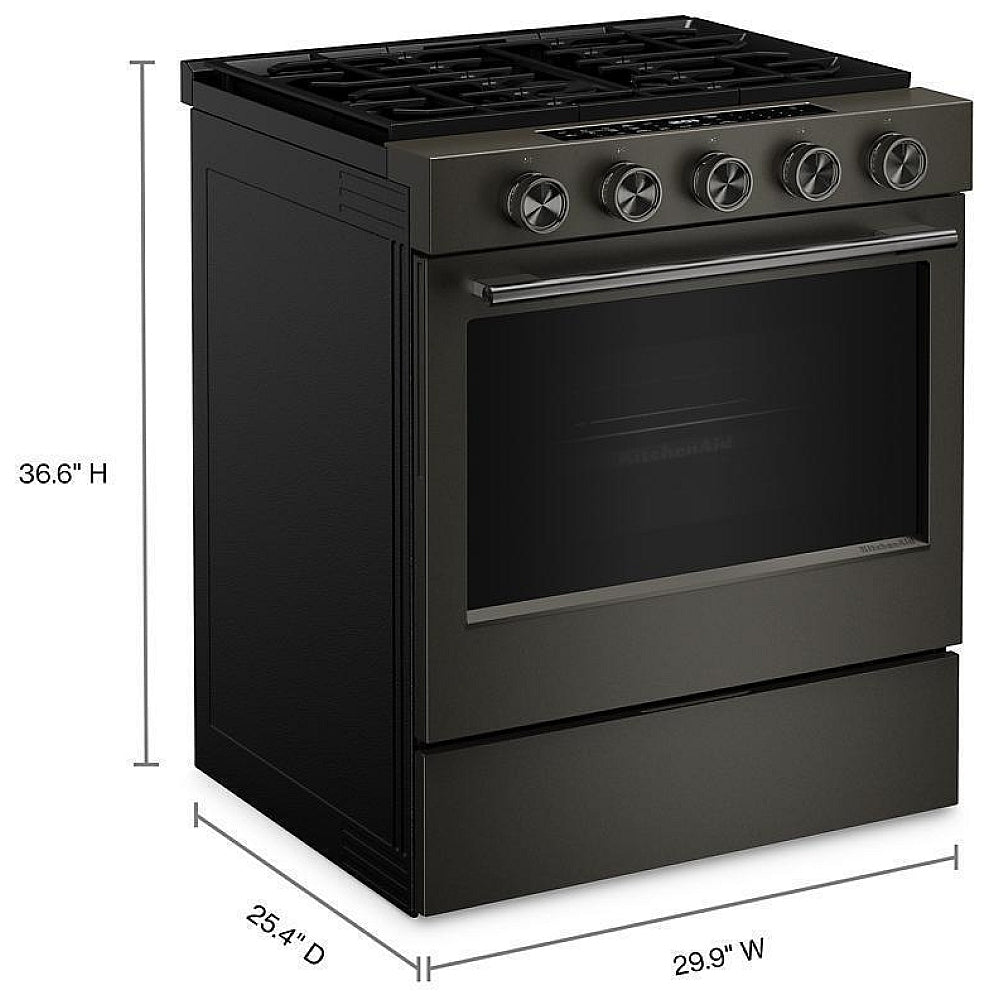

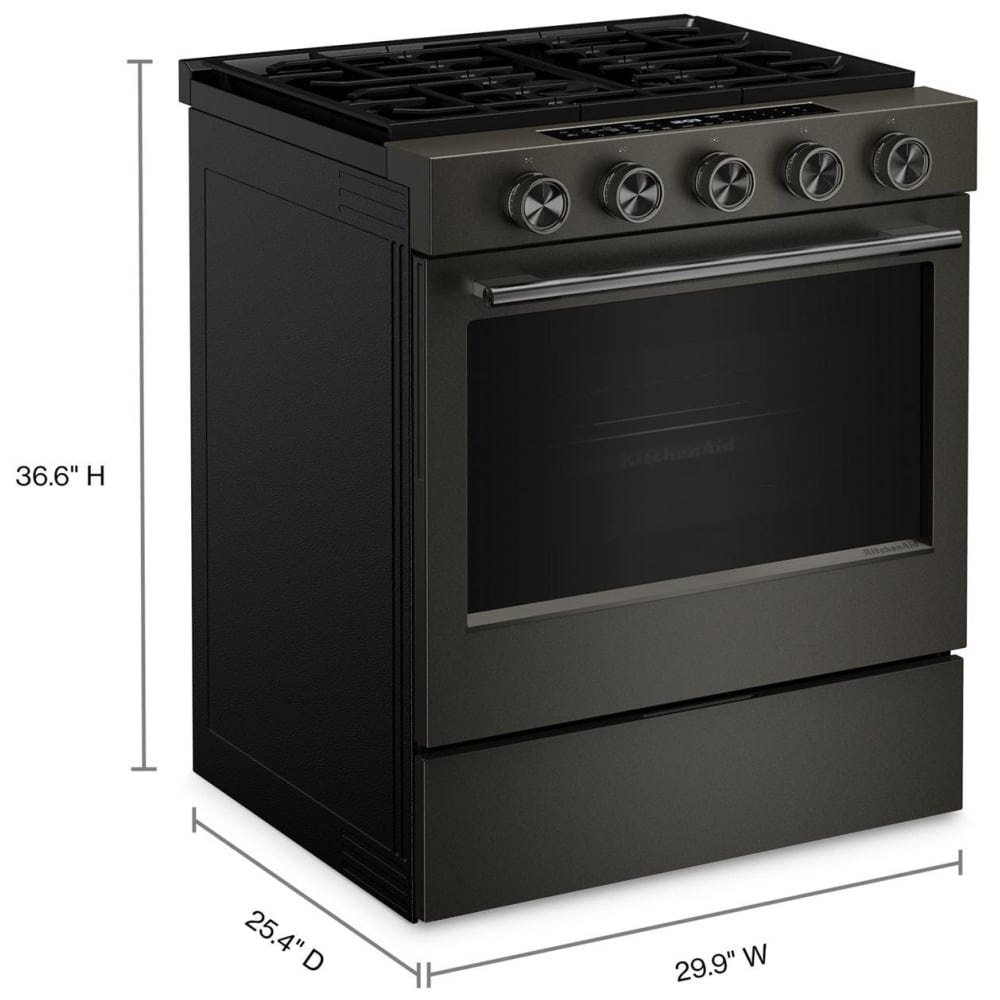

Dimensions
W 30in
H 37in
D 25in

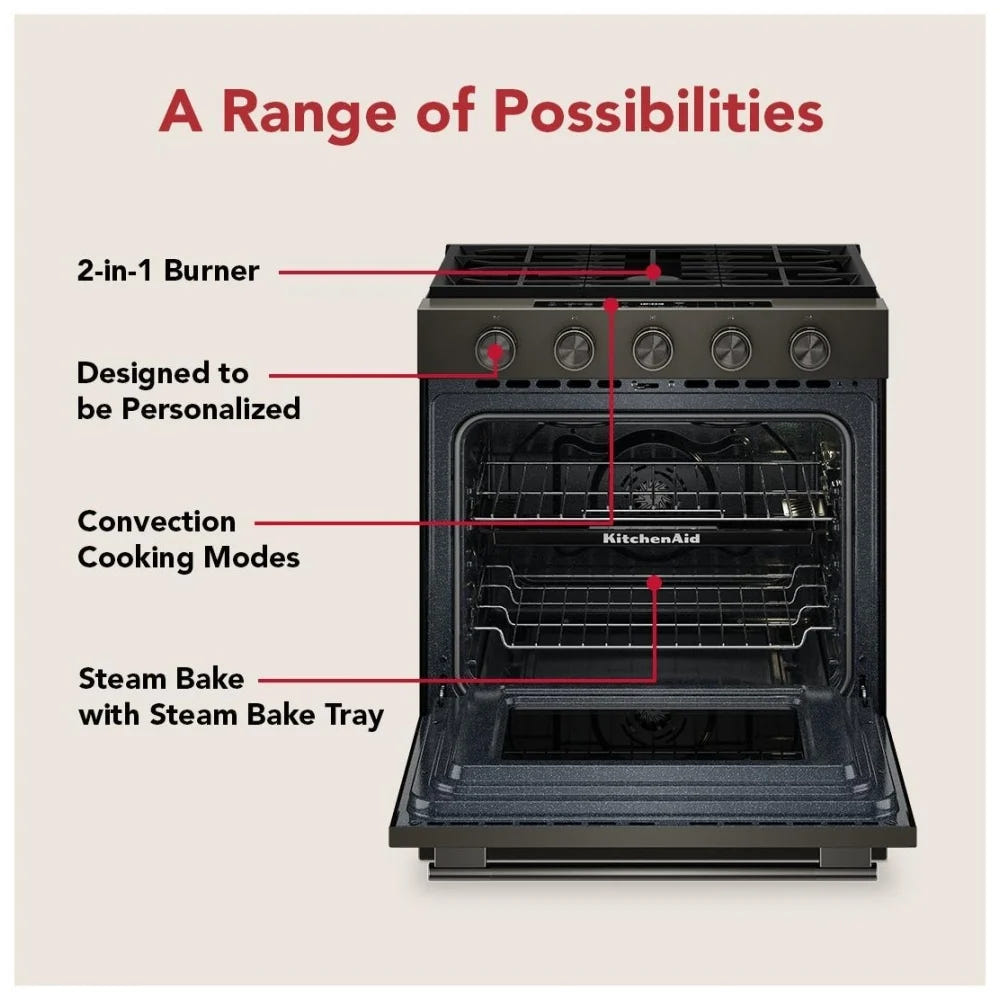

Key Features

  • True Convection cooking modes for consistent results
  • Smart Appliance for hands-on or hands-off control
  • 5 Burner Gas Range with Edge-to-Edge Cast-Iron Grates
  • No Preheat Air Fry Mode for crispy food with less oil
  • Fresh Pizza Mode for restaurant-style pizzas

Dimensions
Depth 25.4 "
Width 29.9 "
Height 36.7 "
Carton Depth 31.0 "
Carton Height 43.0 "
Carton Width 32.0 "
Gross Weight 238.0 lbs
Net Weight 222 lbs
Depth With Door Open 90 Degree 47.9 "
Maximum Height 42.2 "
Minimum Height 36.7 "
Cutout Depth 24.0 "
Cutout Height 36.0 "
Cutout Width 30.0 "
Capacity FT3 (cubic feet) 5.0
Depth Closed Excluding Handles 27.4 "
Depth Closed Including Handles 29.2 "

Details
Convection Element Type True
Oven Control Location Front Control
Oven Control Knob Type N/A
Oven Cleaning Type Steam Clean
Number Of Rack Guides 5
Number Of Oven Racks 2
Number Of Oven Lights 1
Interior Color Blue
Hidden Bake Element Hidden
Cooktop Surface Material Porcelain Coated Steel
Convection Functions No

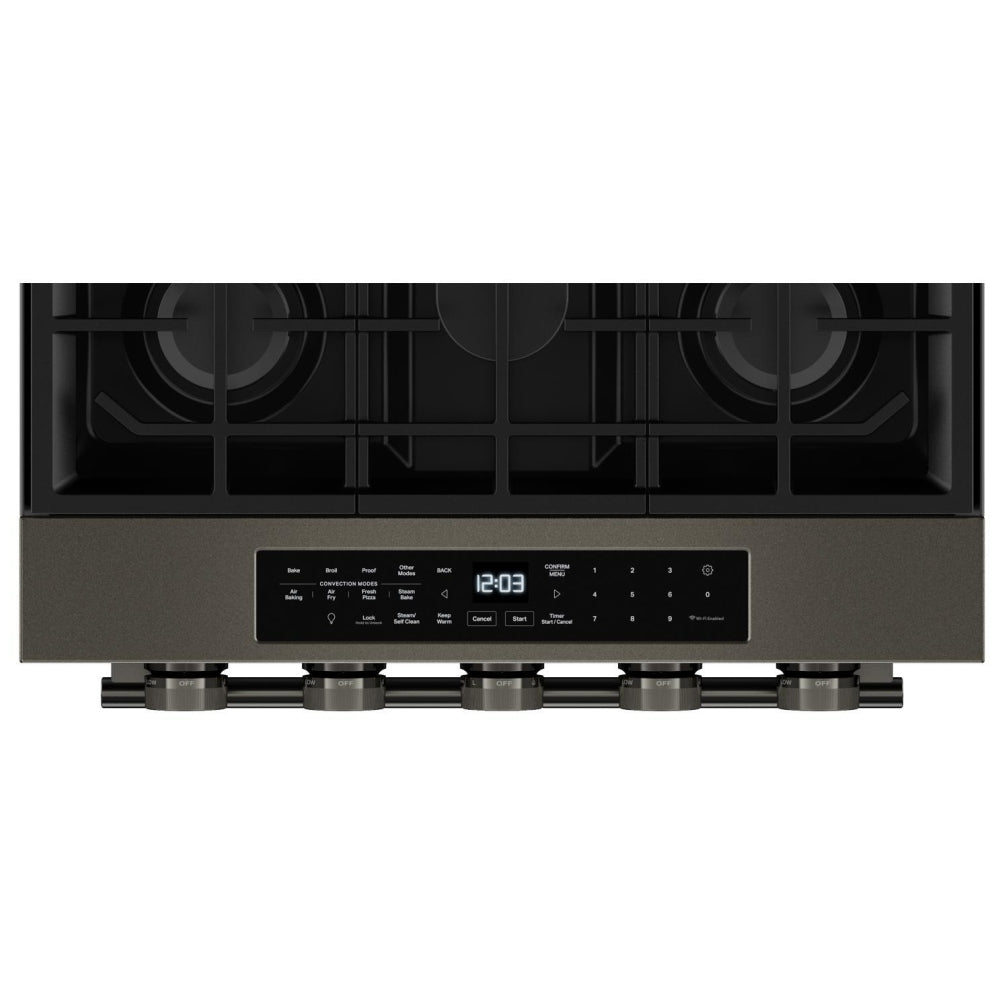

Oven Control Type Electronic Touch
Broiler Location Top Center
Broiler Element Power 1300WElectricBroil
Bake Element Power 16500BTU
Rack Guide Type Embossed
Oven Rack Type 2 Standard
Oven Light Type Halogen
Oven Light Switch Location Oven Control
Oven Interior Width In Inches 24.2
Oven Interior Depth In Inches 19.0
Oven Cooking System True Convection

Description
Range Type Slide-in
Size In 30

Cooktop Details
Right Rear Element Burner Type Simmer
Right Rear Element Burner Size N/A
Right Rear Element Burner Power 5000BTU
Right Front Element Burner Type Extra Large
Right Front Element Burner Size N/A
Right Front Element Burner Power 18000BTU
Auto Re Ignition Yes
Number Of Grates 3
Number Of Cooking Element Burners 5
Left Rear Element Burner Type Standard
Left Rear Element Burner Size N/A
Left Rear Element Burner Power 10000BTU
Left Front Element Burner Type Large
Left Front Element Burner Size N/A
Left Front Element Burner Power 18000BTU
Ignition Type Direct Spark Ignition
Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Cooktop Element Style Sealed Burners
Cooktop Control Type Knobs
Cooktop Control Location Front
Cooktop Configuration All Burners
Center Rear Element Burner Type Dual
Center Rear Element Burner Power 12000BTU

Exterior
Drawer Type Storage Drawer
Door Removable Yes
Handle Type Reach-Through Handle
Handle Material Metal

Features
Total Gas Btus Oven S 16,500
Total Gas Btus Cooktop 64,000
Power Outage Compatible Yes
Natural Gas Convertible No
LP Convertible Yes
Hot Surface Indicator Light Yes
Heating Element On Indicator Light Yes
Griddle Sí
Automatic Convection Conversion Temperature Adjust No

Electrical
Watts 1
Power Cord Included Yes
Volts 120
Hz 60
Amps 15

Compatibility
Connectivity App; Bluetooth; Remote Access; Voice Controlled; WiFi
Works With Amazon Alexa; Android; Google Assistant; Nest; iOS

Controls

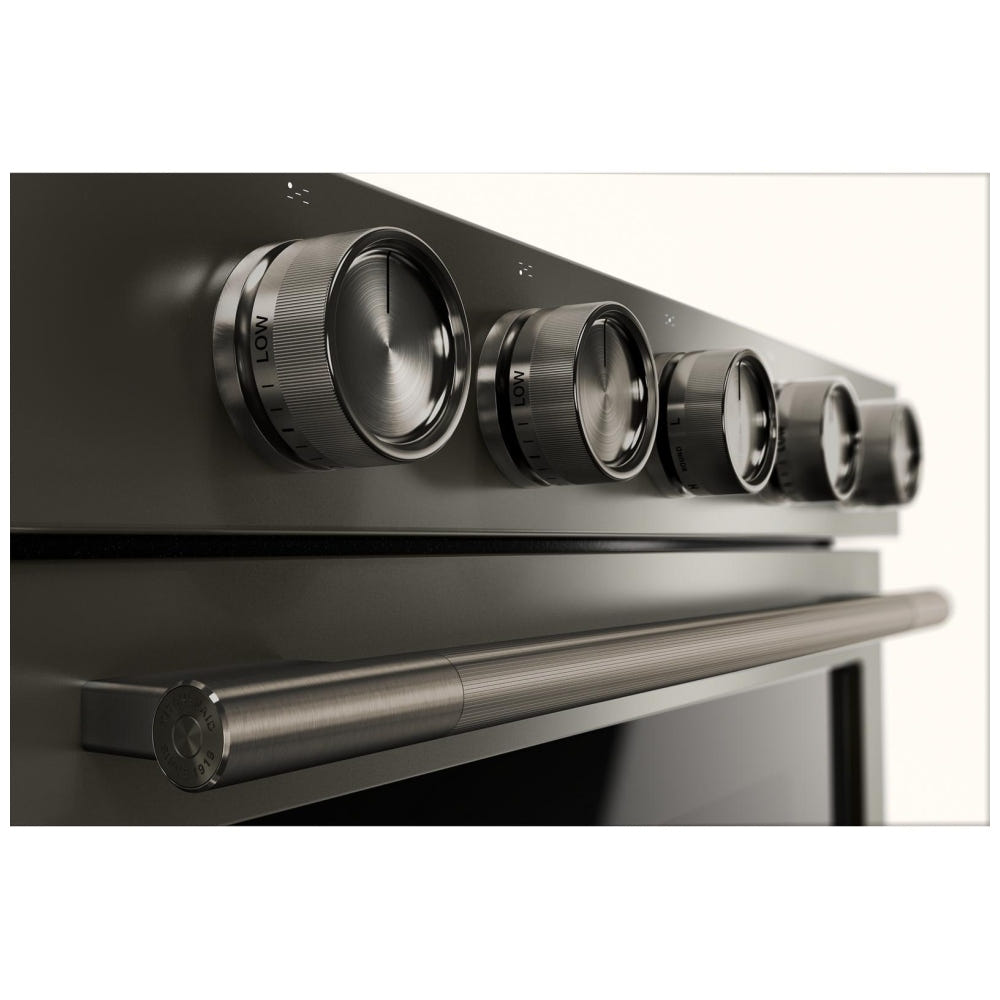

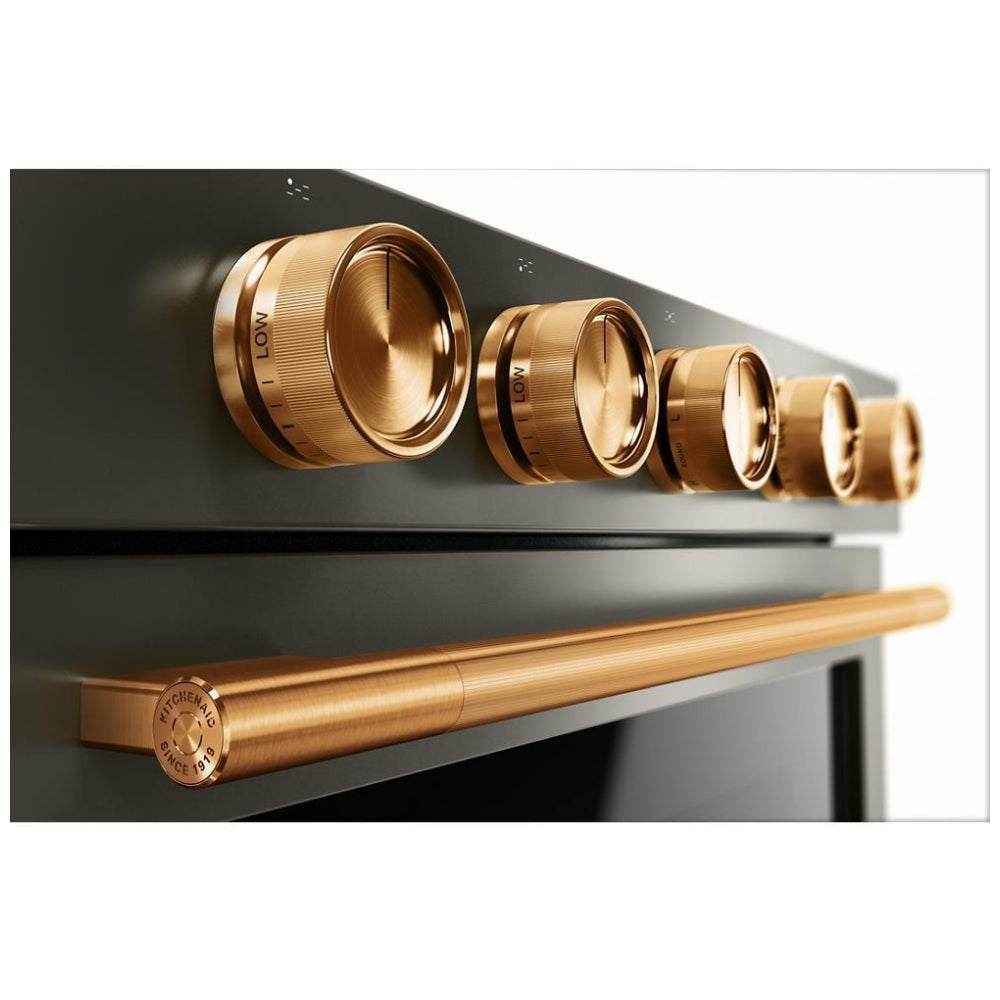

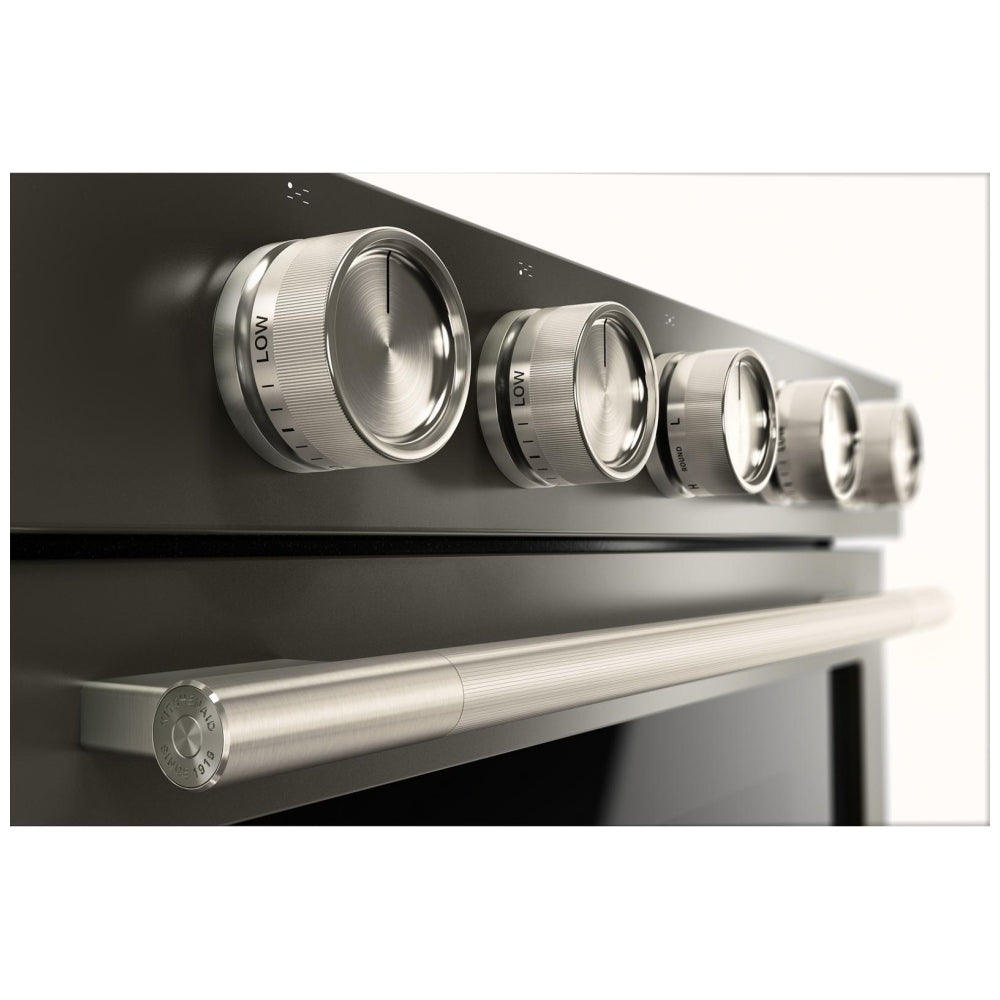

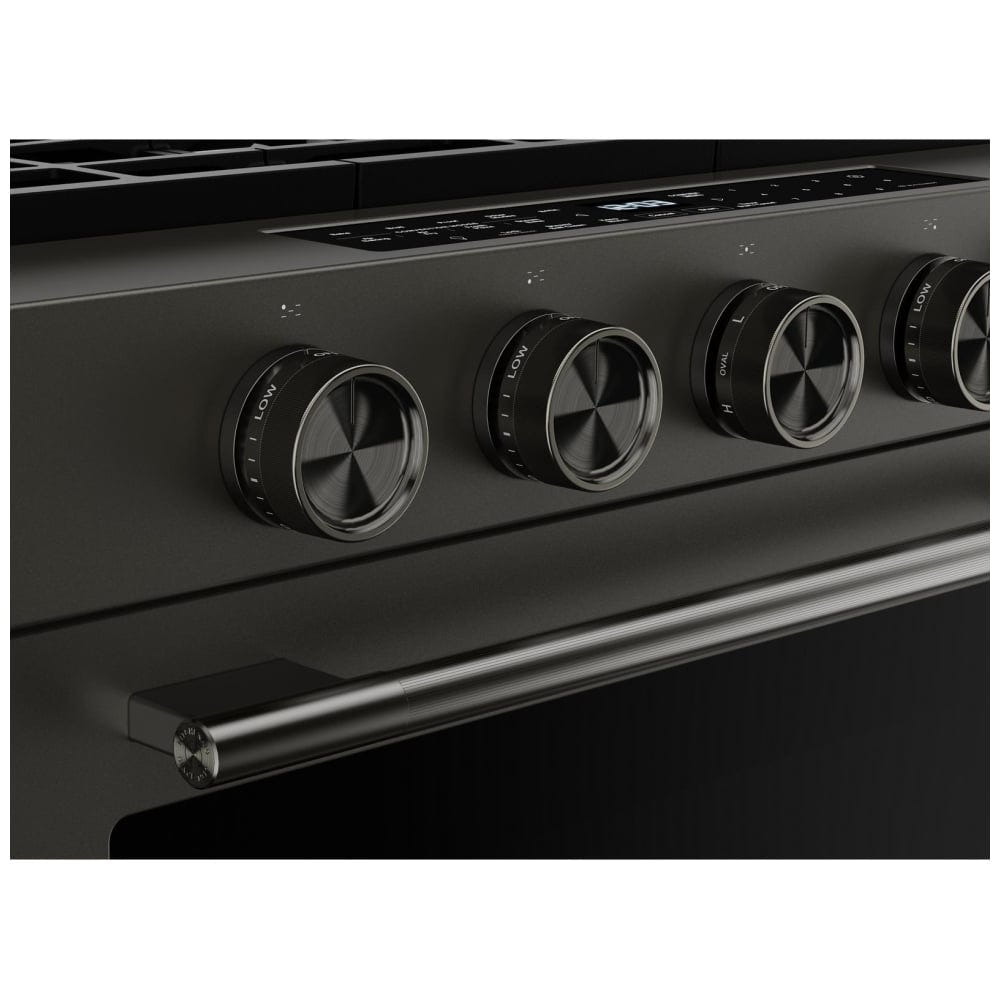

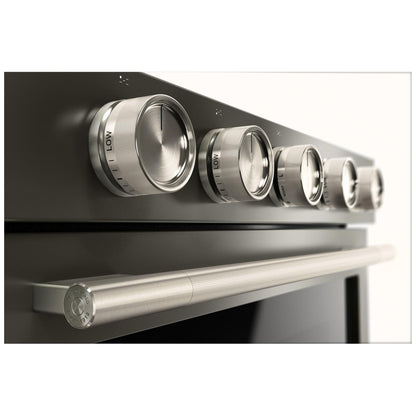

Knob Type Weighted

Configuration
Range Configuration Slide-In
Oven Configuration Single Oven

Configuration and Overview
Fuel Type Gas

Certifications
CUL Yes
Star K Certified Star K Certified
ADA Compliant No
UL Yes

Specifications
Extended Service Plan Parent EW08IW4Y, EW08IW2Y, EW08IW1Y
Optional Accessories W11692811, 4396096RB
Country Of Origin USA
Cast Iron Vs Porecelain Porcelain Coated Grates
Matte Finish Vs Satin Finish Matte Finish
Dishwasher Safe Yes
Manuals
Video
Reviews
Rebates
Warranty
Financing
Install
Delivery

Manuals and installation guides are available upon request.

Standard manufacturer warranty applies. Contact support for details.

Reviews will appear here once your reviews app is connected.
