KitchenAid

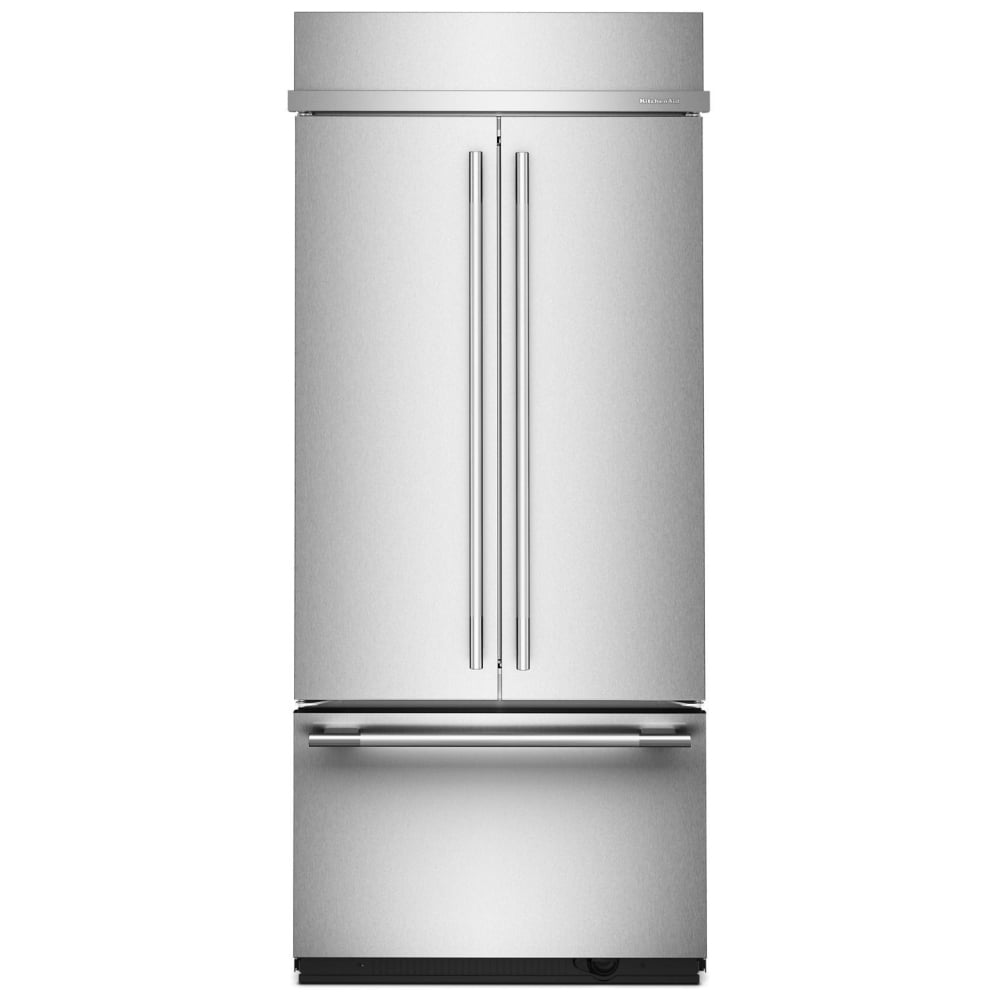

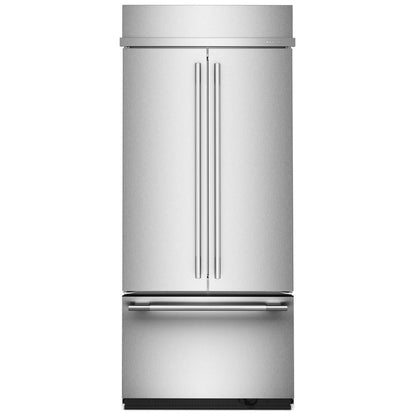

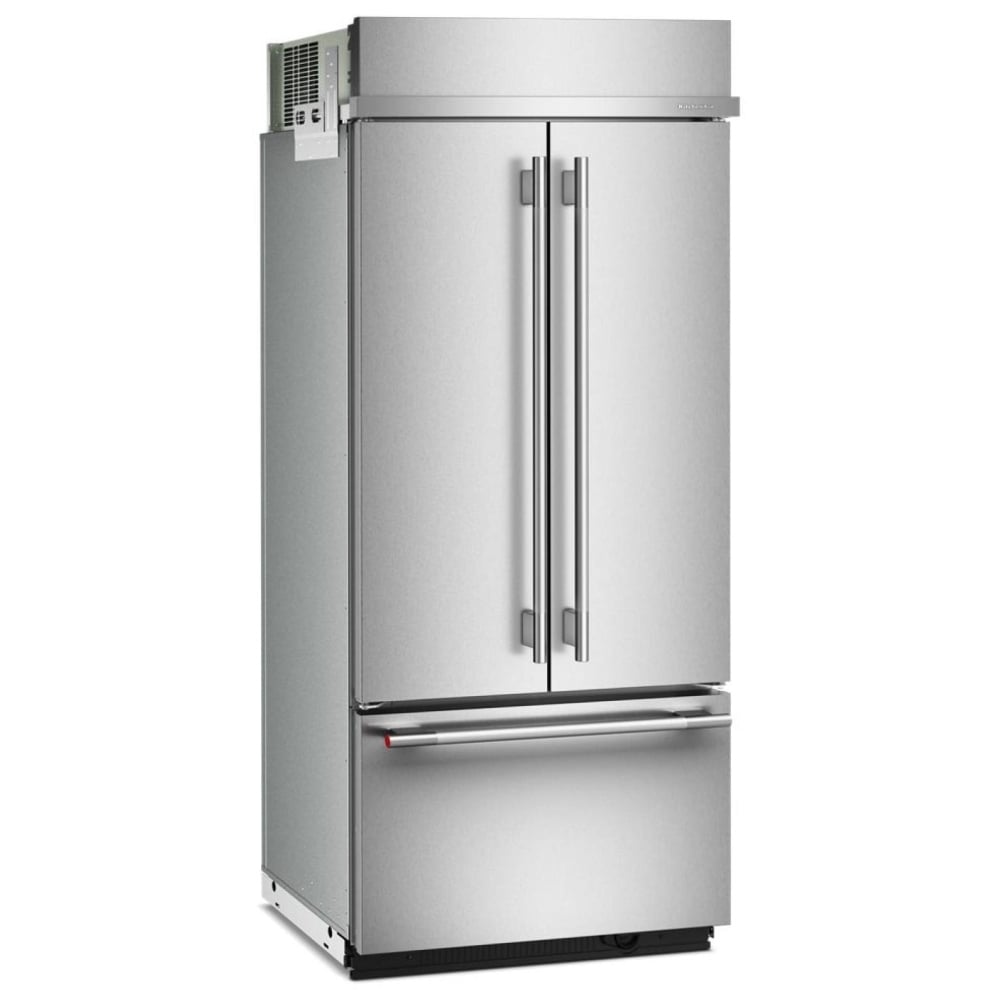

KitchenAid KBFN536SPS Bottom Freezer French Door Built In Refrigerator, 36 inch Width, 20.8 cu. ft. Capacity, Water Dispenser (Interior), Ice Dispenser (Freezer Located), PrintShield Stainless

KitchenAid KBFN536SPS Bottom Freezer French Door Built In Refrigerator, 36 inch Width, 20.8 cu. ft. Capacity, Water Dispenser (Interior), Ice Dispenser (Freezer Located), PrintShield Stainless

Just 3-5 Days*
Regular price $8,999.99 CAD
Regular price $9,999.99 CAD Sale price $8,999.99 CAD
View full details
  • brand:
    KitchenAid
  • capacity cu ft :
    20.8
  • category:
    Refrigerator
  • colour:
    Stainless Steel
  • counter depth:
    Yes
  • depth:
    24
  • depth type:
    Built-In
  • doors:
    3
  • height inch :
    83
  • ice maker:
    Ice Dispenser (Freezer Located)
  • power type:
    Built-In
  • prices:
    $4000+
  • reversible doors:
    No
  • sabbath mode functions:
    Yes
  • sub categories:
    Built-In French Door Refrigerator
  • water dispenser:
    No
  • width:
    36
  • wifi enabled:
    No

 Preserva®+ Cooling System – uses two independent cooling systems to maintain optimal humidity and temperature, helping keep fresh and frozen foods at peak freshness longer.

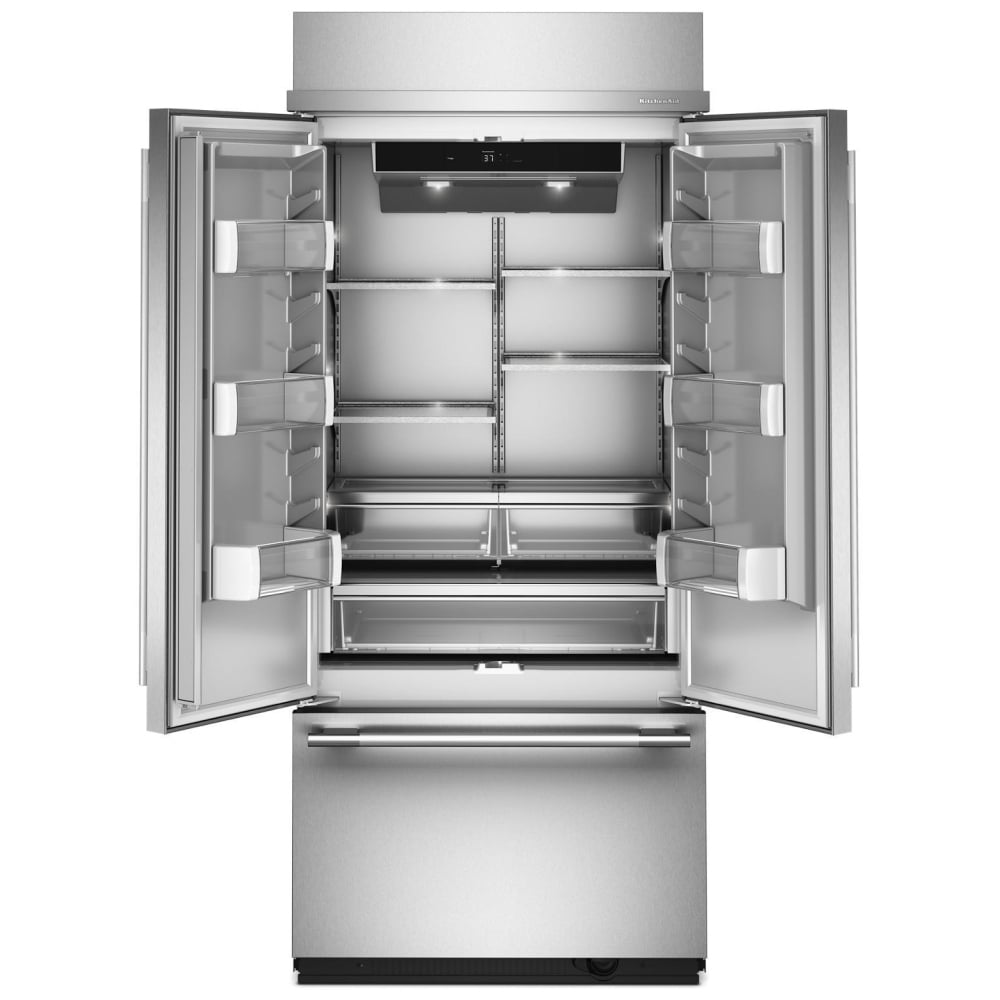

 Signature Platinum Interior – premium silver-colored interior with metallic accents, smoked crisper bins and ultra-bright LED lighting for a high-end, gallery-style look.

 SatinGlide® Drawer System – ball-bearing rollers provide smooth, effortless opening and closing of crisper and freezer drawers, even when fully loaded.

 FreshFlow™ Air Filter – carbon-based filter deodorizes up to 15x better than baking soda, helping neutralize common food odors for up to 6 months.

 FreshFlow™ Produce Preserver – helps delay over-ripening of fruits and vegetables by absorbing ethylene gas in the crisper drawers, extending produce freshness.

 Max Cool – one-touch function temporarily drops refrigerator temperature to the coldest setting to quickly chill newly loaded groceries or beverages, then automatically returns to normal after 24 hours.

 Max Freeze – one-touch function lowers freezer temperature to the coldest level (down to -8°F) to rapidly freeze items, then automatically returns to normal after 48 hours.

 Ultra-Bright LED Lighting – gradually brightens to fully illuminate both refrigerator and freezer compartments, making it easy to see and find items on every shelf.

 Adjustable Spill-Resistant Glass Shelves – premium edge-to-edge glass shelves with nano-etched edges help contain spills to a single shelf and can be removed for easy cleaning.

 Personalized Door Stop – allows you to set the door opening angle at 90°, 110° or 130° to prevent doors from swinging into adjacent cabinets, walls or appliances.

 Galloon Door Bins – large, adjustable door bins designed to hold gallon jugs, tall bottles and bulky containers to free up shelf space.

 Intuitive Controls – easy-to-use, up-front electronic touch controls let you adjust temperatures, manage ice production and check filter status at a glance.

 Fit System Limited Guarantee – provides a credit (up to a specified amount) toward professional cabinet modifications if this new 36" or 42" built-in refrigerator does not fit your existing cutout.

 Designed to be Personalized – curated palette of exterior finishes (including Black Ore) and mixed-metal handle options lets you coordinate with your kitchen décor.

 Multiple Installation Options – supports flush, overlay or proud installation styles so you can choose a seamless built-in look or a more prominent appliance presence.

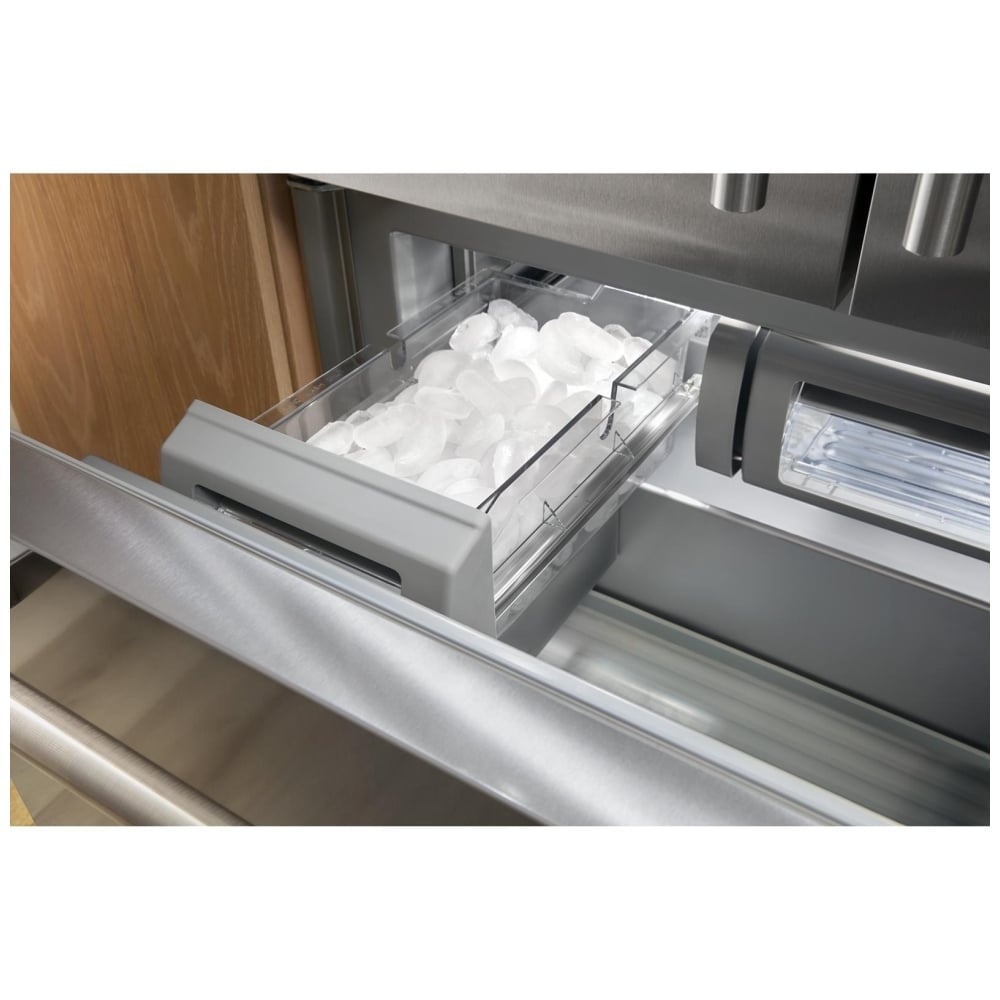

 Automatic Ice Maker – built-in ice maker delivers a continuous supply of fresh, filtered ice for everyday use and entertaining.

 20.8 cu. ft. total capacity – offers a generous combined refrigerator and freezer volume to store fresh groceries, meal prep containers and frozen foods for a busy household.

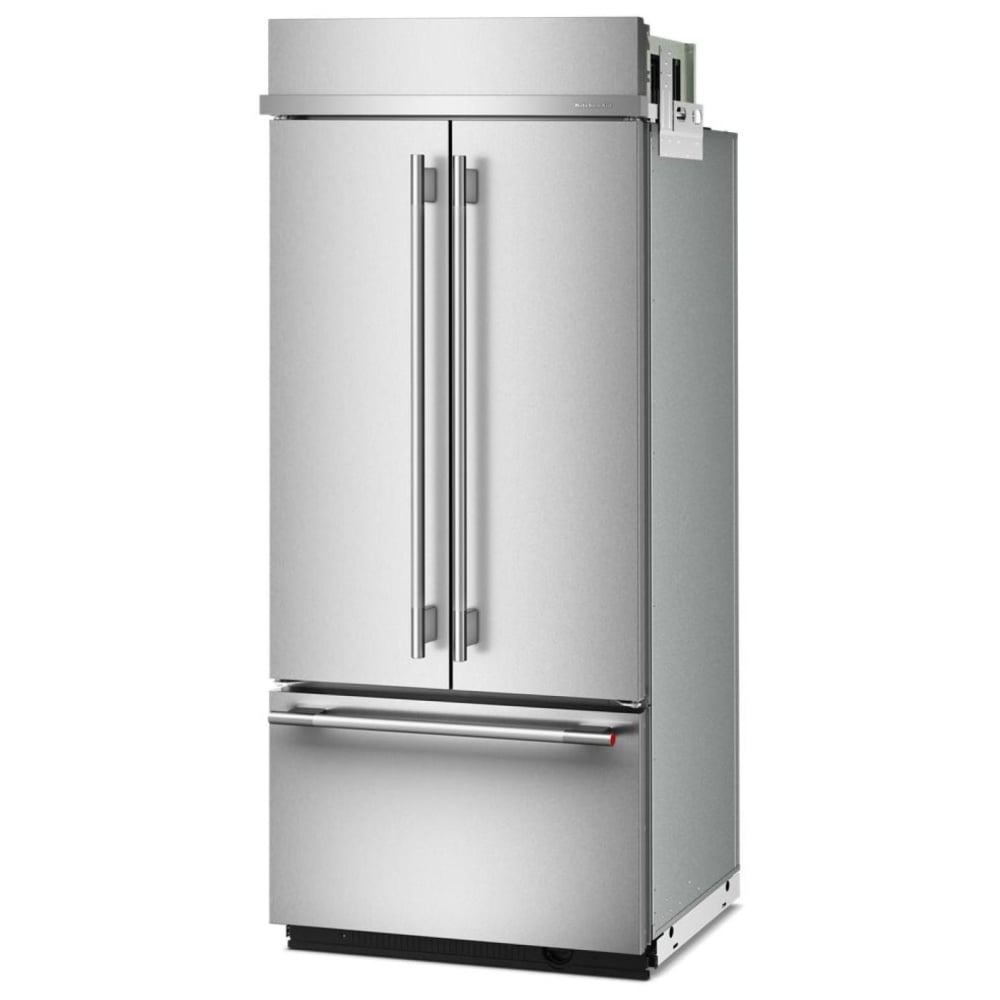

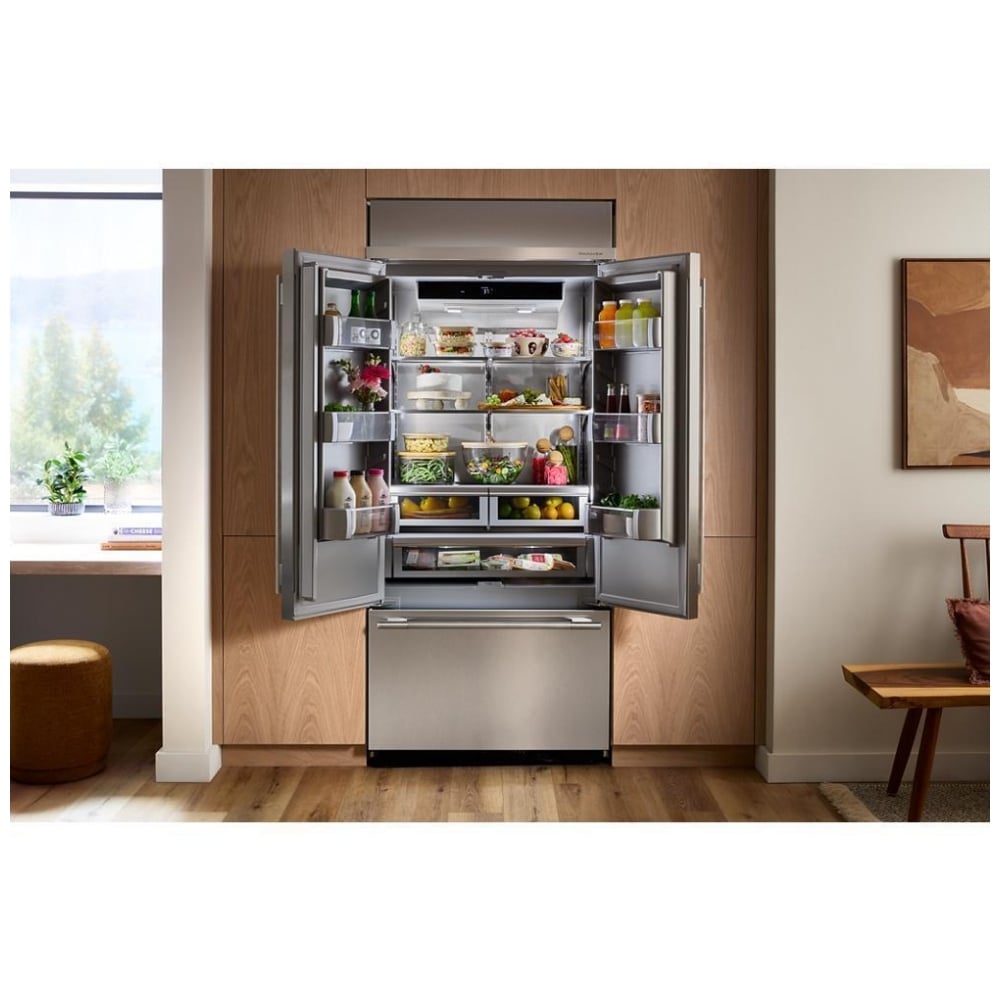

 Built-in 36" French door design – counter-depth, built-in configuration with French doors and bottom freezer provides a premium, integrated appearance.

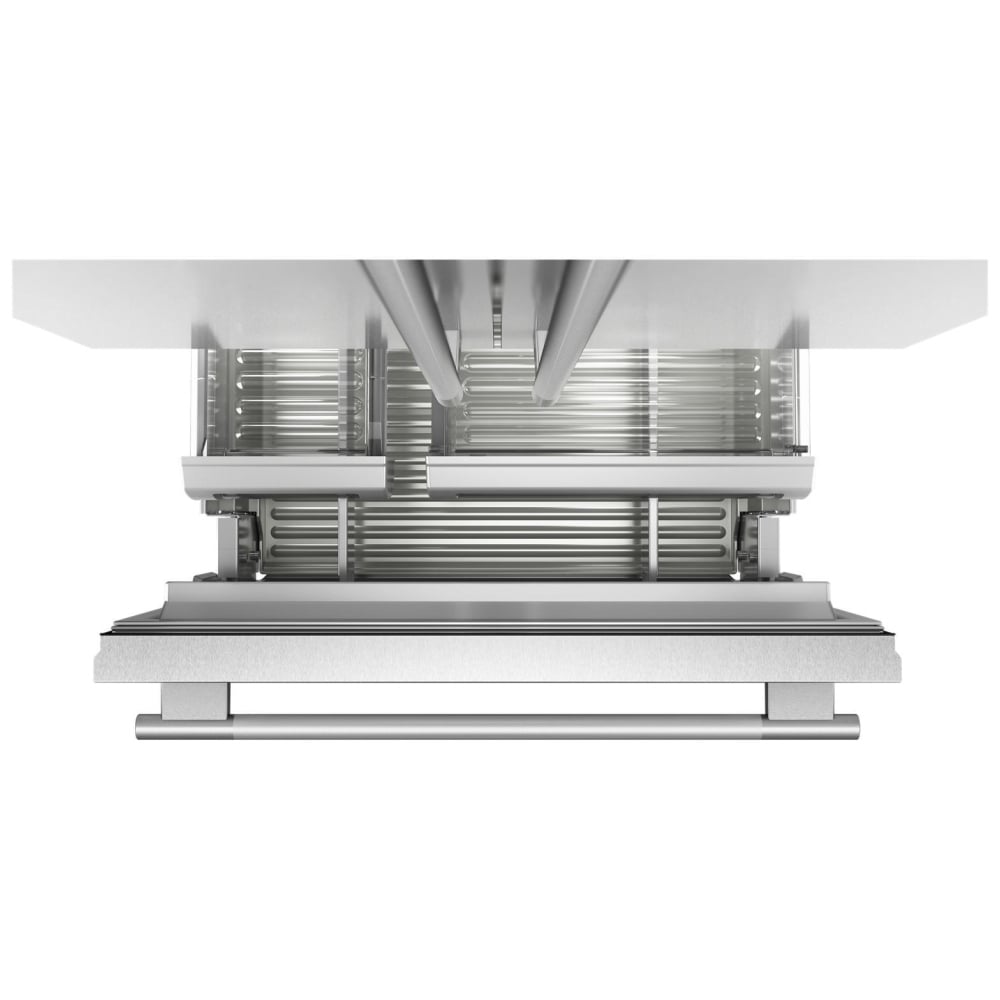

 Bottom-mount freezer compartment – keeps frequently used fresh foods at eye level while providing organized, pull-out storage for frozen items below.

 Adjustable interior storage – multiple shelves, bins and drawers can be repositioned to accommodate tall bottles, wide platters and oversized items.

 Smoked crisper bins – tinted, see-through crisper drawers enhance the premium interior look while keeping produce visible and organized.

 Door-ajar alarm – alerts you if a door is left open, helping to prevent temperature loss and food spoilage.

 Automatic defrost system – reduces manual maintenance by periodically melting frost buildup in the freezer.

 Sabbath Mode / Star-K Certified – disables certain lights and functions in accordance with Sabbath observance requirements when activated.

 Everyday temperature consistency – advanced insulation and cooling help maintain stable temperatures throughout the cavity to protect food quality.

 Refined exterior styling – sleek handles, minimal seams and premium finish create a modern, built-in aesthetic that complements high-end cabinetry.

 Quiet operation – engineered for low operating noise, helping maintain a comfortable, quiet kitchen environment.

 Interior up-front control location – controls are positioned just inside the door at the top for quick access without reaching deep into the cabinet.

 Energy-efficient LED lighting – uses less energy and generates less heat than traditional bulbs while providing bright, even illumination.

 Flexible door storage – multiple adjustable door bins and shelves allow you to customize storage for condiments, beverages and frequently used items.

 High-quality insulation – advanced foam insulation improves energy performance and temperature retention when doors are opened.

Manufacturer's Warranty: 1 year

Specification Value
Capacity: Total 20.8 cu ft
Capacity: Refrigerator 15.2 cu ft
Capacity: Freezer 5.6 cu ft
Width 36 3/8 inches
Cabinet Width 35 1/4 inches
Cutout Width 35 1/2 inches
Height 83 1/4 inches
Height to Top of Cabinet 83 1/4 inches
Cutout Height 83 1/2 inches
Depth 27 3/4 inches
Depth Closed Including Handles 27 3/4 inches
Depth Closed Excluding Handles 25 13/16 inches
Depth Excluding Doors 23 11/16 inches
Depth with Door Open 90° 41 1/4 inches
Cutout Depth 24 inches
Net Weight 538.2 lbs
Gross Weight 566.5 lbs
Refrigerator Type Built-in French door bottom mount
Installation Type Built-in
Door Style Configuration French door
Number of Doors 3 (2 refrigerator doors, 1 freezer drawer)
Door Hinge Left and right
Color Stainless steel with PrintShield finish
Cabinet Finish Smooth
Door Style Flat
Handle Type Reach-through handle
Handle Color Stainless steel
Hidden Hinge Yes
Fingerprint Resistant Yes (PrintShield)
Refrigeration Configuration Refrigerator with bottom freezer
Cooling System Preserva+ Food Care System (dual evaporators)
Interior Finish Signature Platinum interior
Refrigerator Shelves: Type Spill-resistant glass
Refrigerator Shelves: Number 4 adjustable half-width spill-resistant glass shelves
Fixed Shelves 1
Refrigerator Door Bins 4 adjustable full-width door bins
Gallon Door Storage Yes
Humidity-Controlled Crispers 3 (1 full-width, 2 half-width)
Refrigerator Lighting LED (multiple points, Signature Platinum interior)
Number of Refrigerator Lights 8
Freezer Door Type Pull-out drawer
Freezer Baskets 1 full-width lower metal, 1 half-width upper plastic
Freezer Defrost Automatic
Freezer Lighting LED
Automatic Ice Maker Yes (factory installed)
Ice Location Interior
Water Dispenser No
Water Filtration Yes
Water Filter Location Exterior
Water Filter Part Number EDR3RXD1
Air Filter FreshFlow air filter
Air Filter Part Number W10311524
Controls: Location Interior, up front
Controls: Type Electronic
Automatic Defrost Yes
Door Ajar / Open Alarm Yes
Max Cool / Fast Cool Max Cool function
Freezer Fast Cool Yes (Max Freeze / fast cool)
Digital Temperature Control Yes
Smart Appliance No
Wi‑Fi No
Voice Assistant Compatibility No (not compatible with Alexa or Google Assistant)
Sabbath Mode Yes (Star-K certified)
Star-K Certified Yes
Energy Star Certified No
ADA Compliant No
Approved for Outdoor Use No
Approved for Commercial Use No
Voltage 120 V
Amps 15 A
Advance Foam Insulation Yes (low global warming potential, improved energy performance)
Interior Color Platinum
Door Alarm Yes
Spill-Proof Shelves Yes (adjustable spill-resistant glass)
Convertible Freezer / Refrigerator No
Child Lock No
Panel Ready / Accepts Custom Panels No (this model is stainless with PrintShield finish)
Usage Residential
UPC 883049923161

KitchenAid Manufacturer Warranty: 📞 (800) 688-2002


Parts Warranty: 1 Year

Labour Warranty: 1 Year
