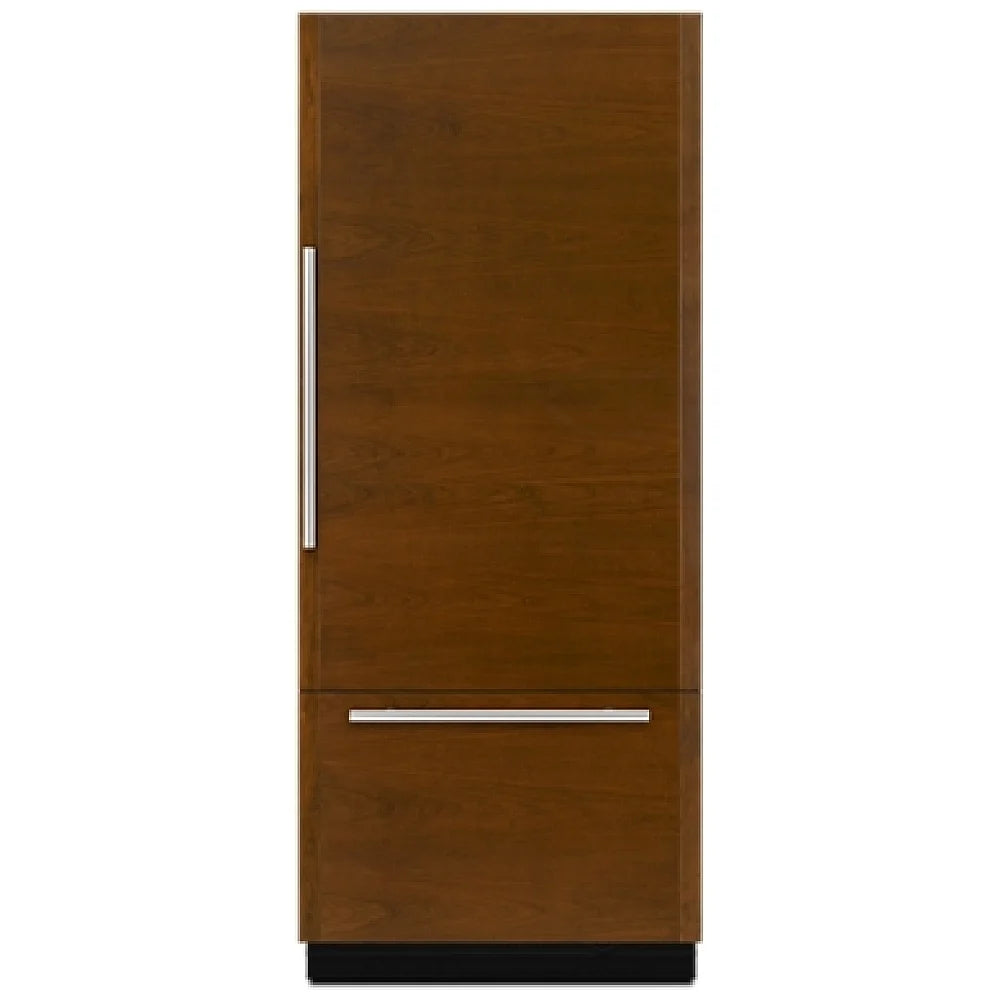

JennAir JB36NXFXRE Bottom Freezer Built In Refrigerator
JennAir
JB36NXFXRE
JennAir JB36NXFXRE Bottom Freezer Built In Refrigerator, 36 inch Width, Counter Depth, Custom Panel Ready, 20.9 cu. ft. Capacity, Ice Dispenser (Freezer Located), ENERGY STAR Certified, Panel Ready
MAP Price MAP Price $13,349.00
Quick Specs
  • Capacity: 21.0 cu ft
  • Counter Depth: Yes
  • Water Dispenser: No
  • Ice Maker: Ice Dispenser (Freezer Located)
  • Reversible Doors: No
  • WiFi Enabled: No
Dimensions
W 36in
H 84in
D 24in

Key Features

  • Automatic Ice Maker with Storage Drawer
  • Bottom-Freezer Refrigerator
  • Daring Obsidian Interior
  • Elegance Shelving
  • FreshFlow Air Filter
  • Fully Flush, Fully Integrated Design
  • Glass Shelving
  • Light-Guided Capacitive Touch Controls
  • Max Ice Option
  • Multi-Point Cinematic Lighting
  • Multi-Point LED Theater Lighting
  • Obsidian Interior
  • Precision Temperature Management System
  • Produce Preserver
  • Soft-Close Crisper Drawers
  • Style with Custom Wood Panels or Suite-Coordinating Stainless Steel Panel Kits
  • TwinFresh Climate Control System
  • Variable Capacity Compressor

Specification Value
Capacity (Total) 20.8 cu ft
Refrigerator Capacity 15.25 cu ft
Freezer Capacity 5.56 cu ft
Width 35.75 inches
Common Width Class 36 inches
Cabinet Width 35 inches
Cutout Width 36 inches
Height 84 inches
Height to Top of Cabinet 83.125 inches
Height with Hinge / Height to Top of Refrigerator 84 inches
Height to Top of Door Hinge (some retailers) 83.9 inches
Depth (overall, including door) 27 11/16 inches
Depth (product) 24 inches
Depth Closed Excluding Handles 24.75 inches
Depth Excluding Doors 24 inches
Depth With Door Open 90° 41 inches
Cutout Depth 25 inches
Counter Depth Yes (built-in, flush installation)
Refrigerator Type Built-in French Door, Bottom Freezer
Configuration 3-door French door refrigerator with bottom freezer drawer
Number of Doors 3
Installation Configuration Built-in
Installation Option Built-in, panel-ready
Design Expression Panel-ready
Door Style Flat French door
Door Opening Direction French doors (left and right), bottom freezer drawer
Reversible Door No
Hidden Hinge Yes
Panel Ready Yes (accepts custom panels)
Color Panel Ready (Obsidian interior)
Interior Finish Obsidian (dark) interior
Energy Star Certified No
CEE Tier Not Rated
ADA Compliant No
UL Listed Yes (varies by listing)
Prop 65 Standard
Voltage 115 V
Frequency 60 Hz
Amps 15 A
Cooling System TwinFresh / dual-evaporator climate control system
Automatic Defrost Yes
Frost Free Yes
Controls Interior up-front electronic touch controls
Control Type Touch pad
Digital Temperature Control Yes
Door Ajar / Open Alarm Yes
Max Cool / Fast Cool Yes
Sabbath Mode Yes (Star-K certified)
LCD Touch Screen No
Wi-Fi Connected No
Smart Home Compatible No (no Alexa / Google Home integration)
Ice Maker Factory-installed interior ice maker (freezer)
Ice Dispenser Location In freezer (no external dispenser)
Dispenser Type No external dispenser
Dispenser Options Filtered ice (internal)
Water Dispenser No external water dispenser
Water Filter Yes (internal filter)
Water Filter Indicator / Reset Yes
Air Filter Yes (FreshFlow / odor control)
Air Filter Indicator / Reset No (varies by listing; manufacturer generally lists water filter indicator only)
Produce Preserver Yes (fruit and vegetable keeper / Produce Preserver)
Refrigerator Shelves (Number) 4
Refrigerator Shelves (Type) Glass shelves
Door Bins 2 fixed full-width gallon bins, 4 adjustable full-width bins (varies slightly by retailer description)
Gallon Door Storage Yes (one-gallon containers)
Humidity-Controlled Crispers Soft-close vegetable bins (functionally humidity-controlled)
Non-Climate-Control Drawers 1 full-width, 2 half-width drawers
Pantry / Deli Drawer No separate full-width deli pantry drawer
Supplementary Containers Wine rack
Lighting Multi-point LED theatrical lighting (refrigerator and freezer)
Freezer Drawer/Basket Configuration 1 full-width lower plastic basket, 2 half-width upper plastic baskets
Freezer Light LED
Leveling Legs Yes
Rollers No (listed as not having rollers in some specs)
Counter Depth Classification Built-in, flush with 25-inch cutout depth
Gross Weight Approx. 566 lb
Net Weight Approx. 525–566 lb (varies by listing)
Warranty (General Parts & Labor) 2 years
Warranty (Sealed System Parts & Labor) 6 years
Warranty (Compressor Parts & Labor) 6 years
Warranty (Linear / Inverter Compressor Parts Only) 12 years
Star-K Certification Yes (for Sabbath mode)
GTIN / UPC 00883049336879

Standard manufacturer warranty applies. Contact support for details.
