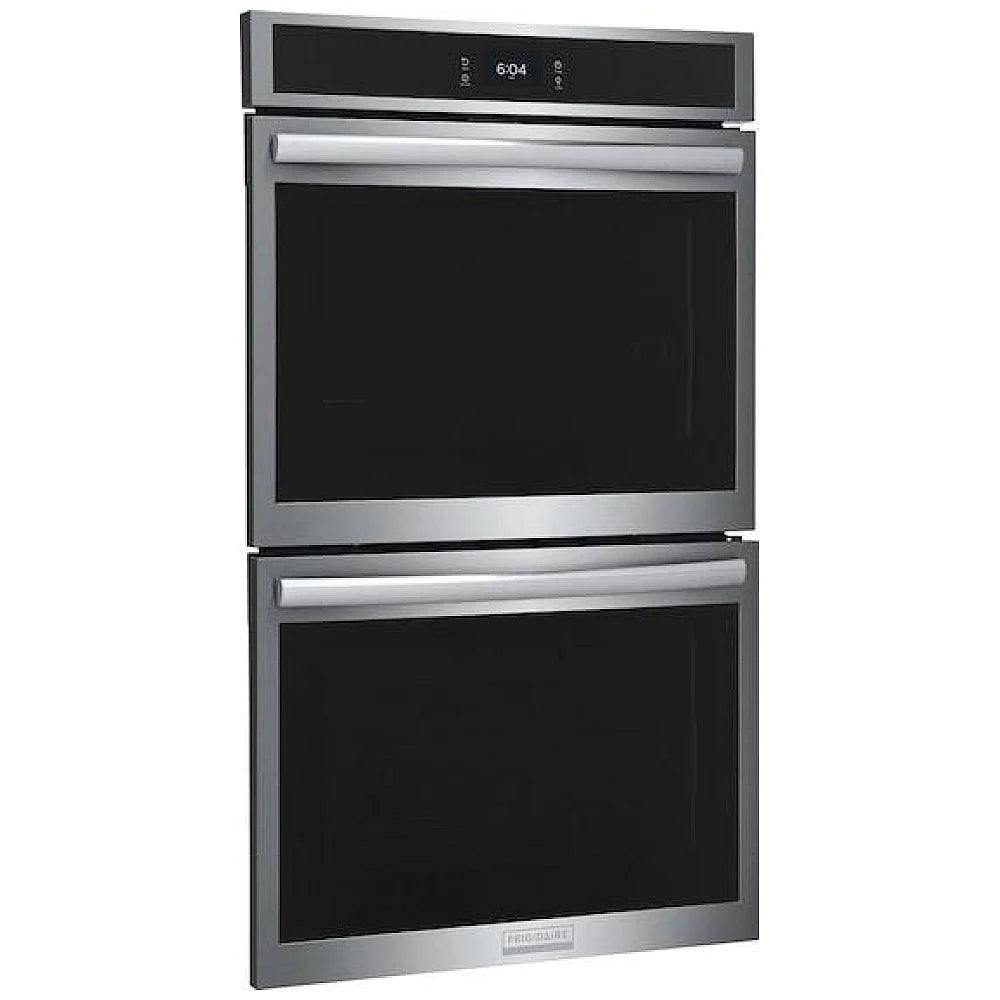

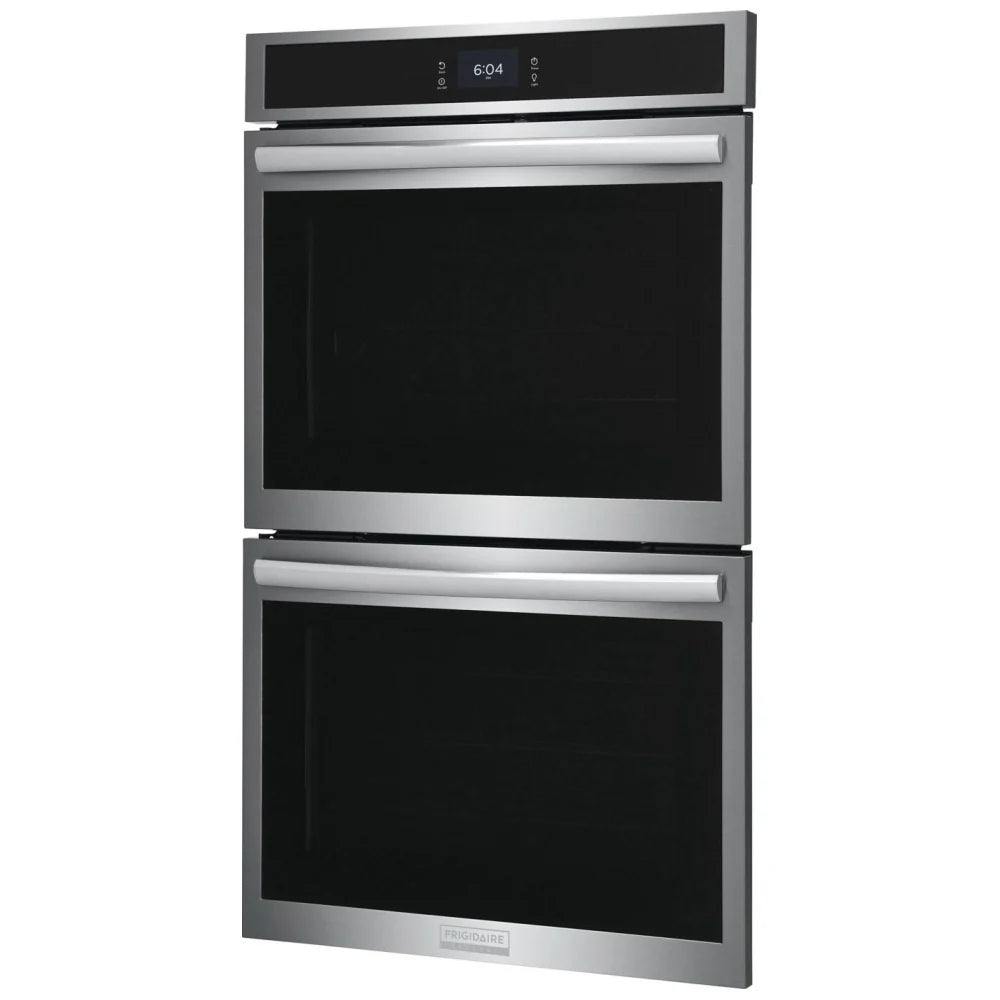

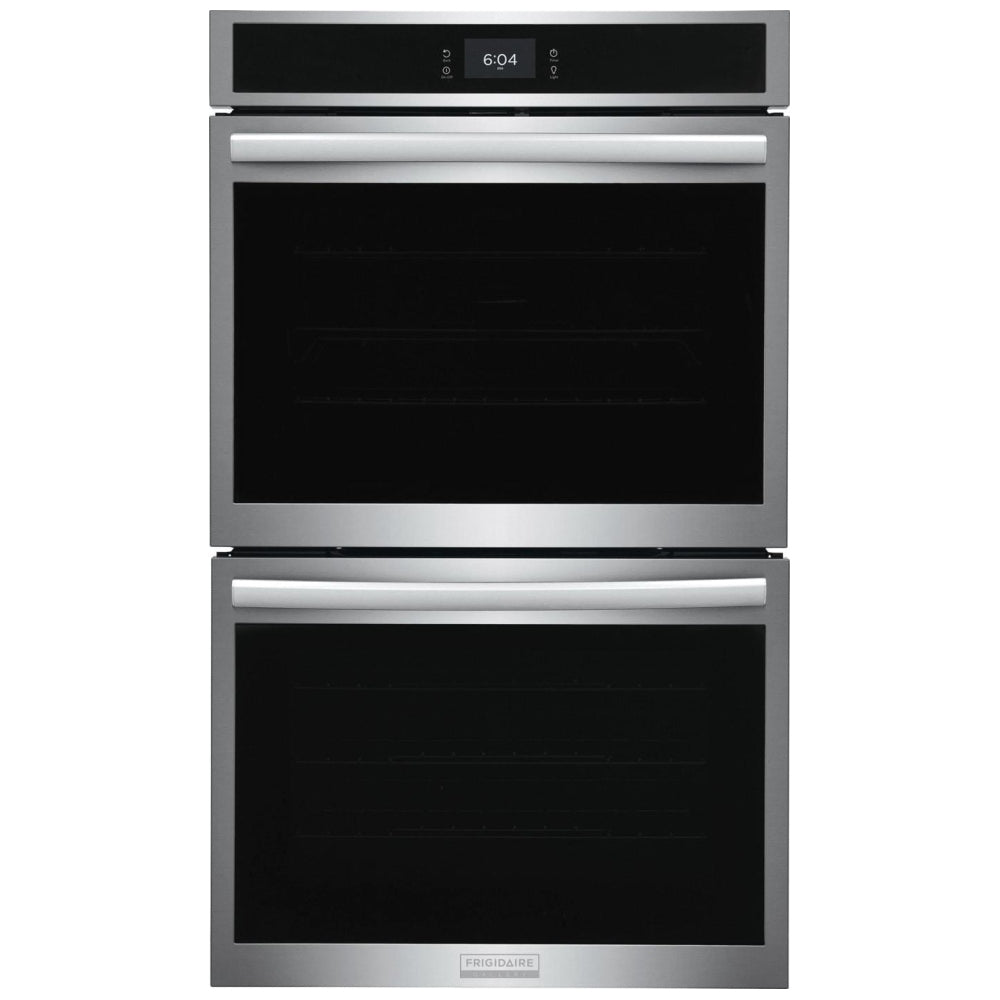

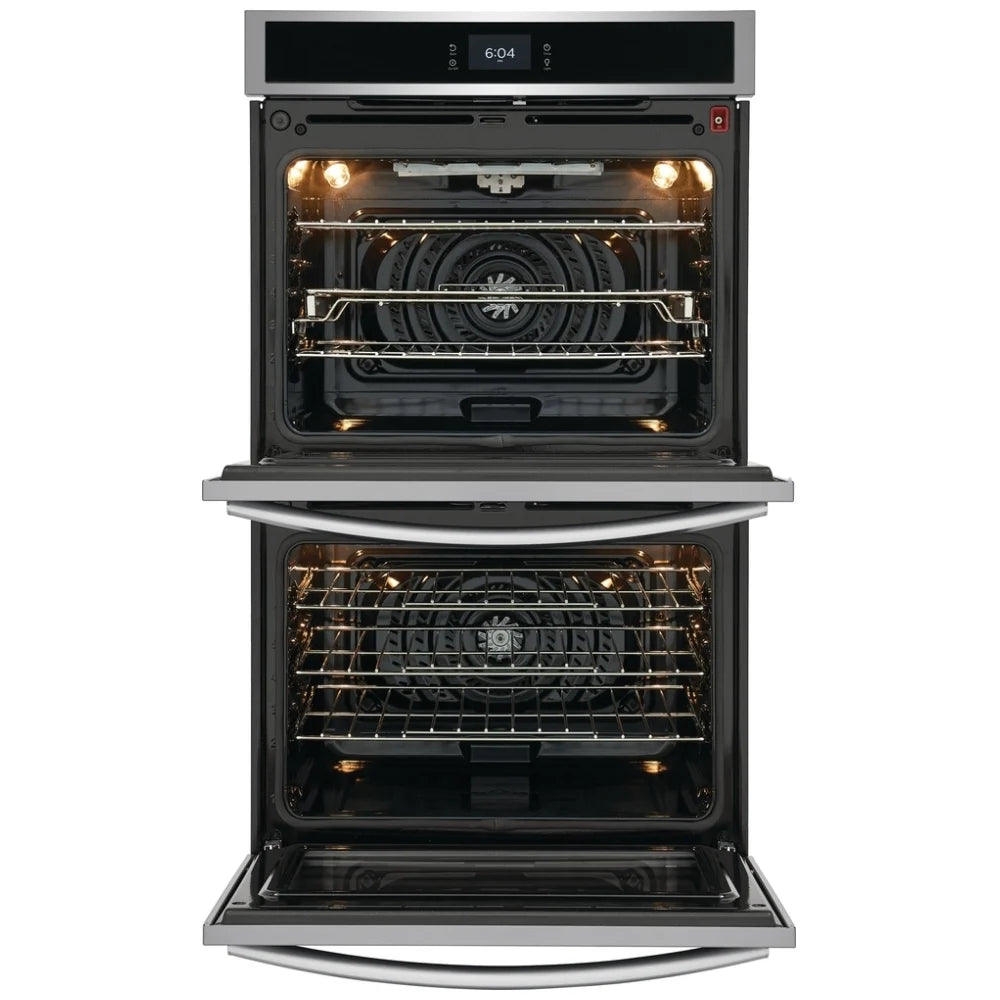

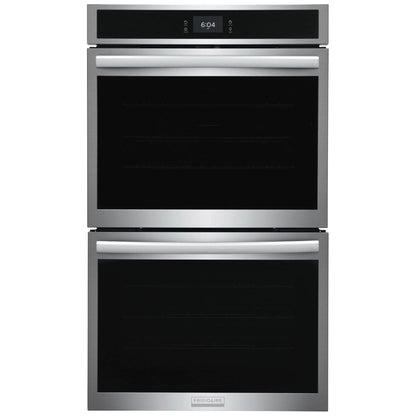

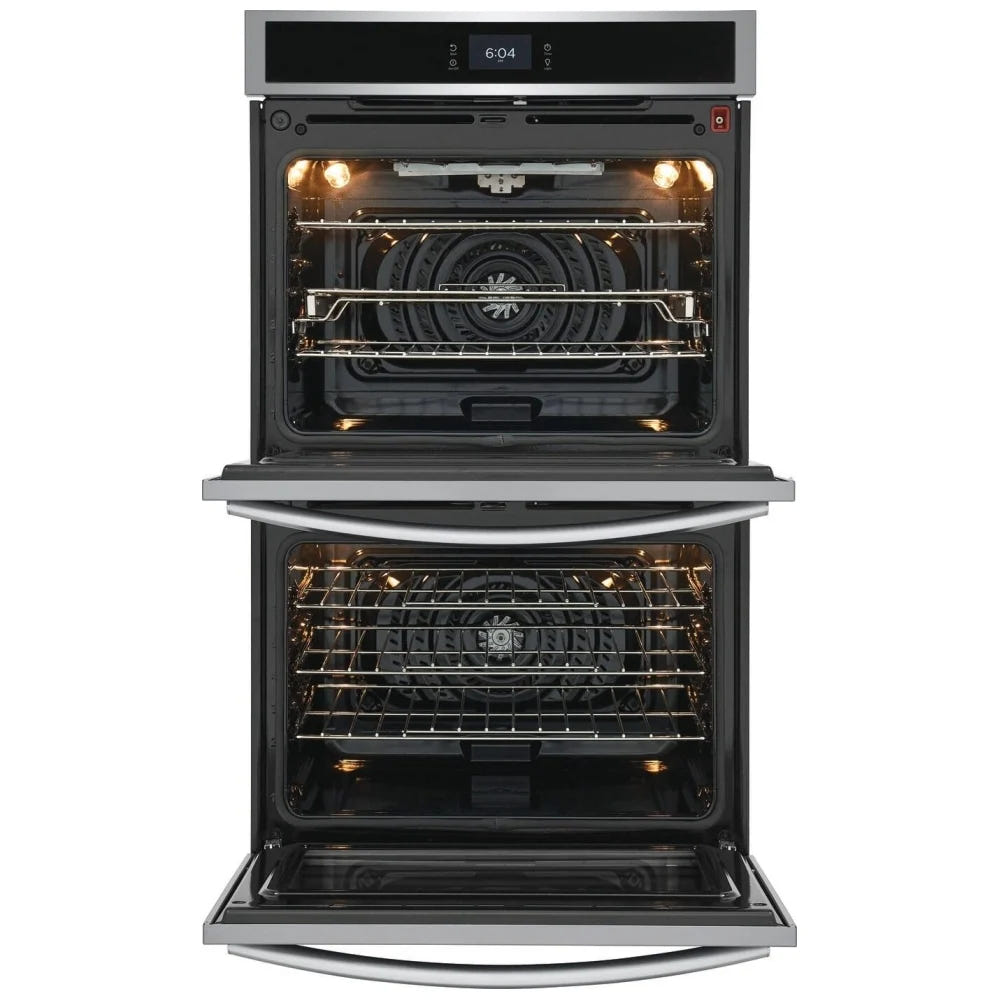

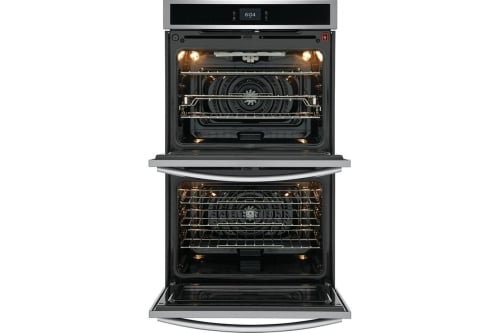

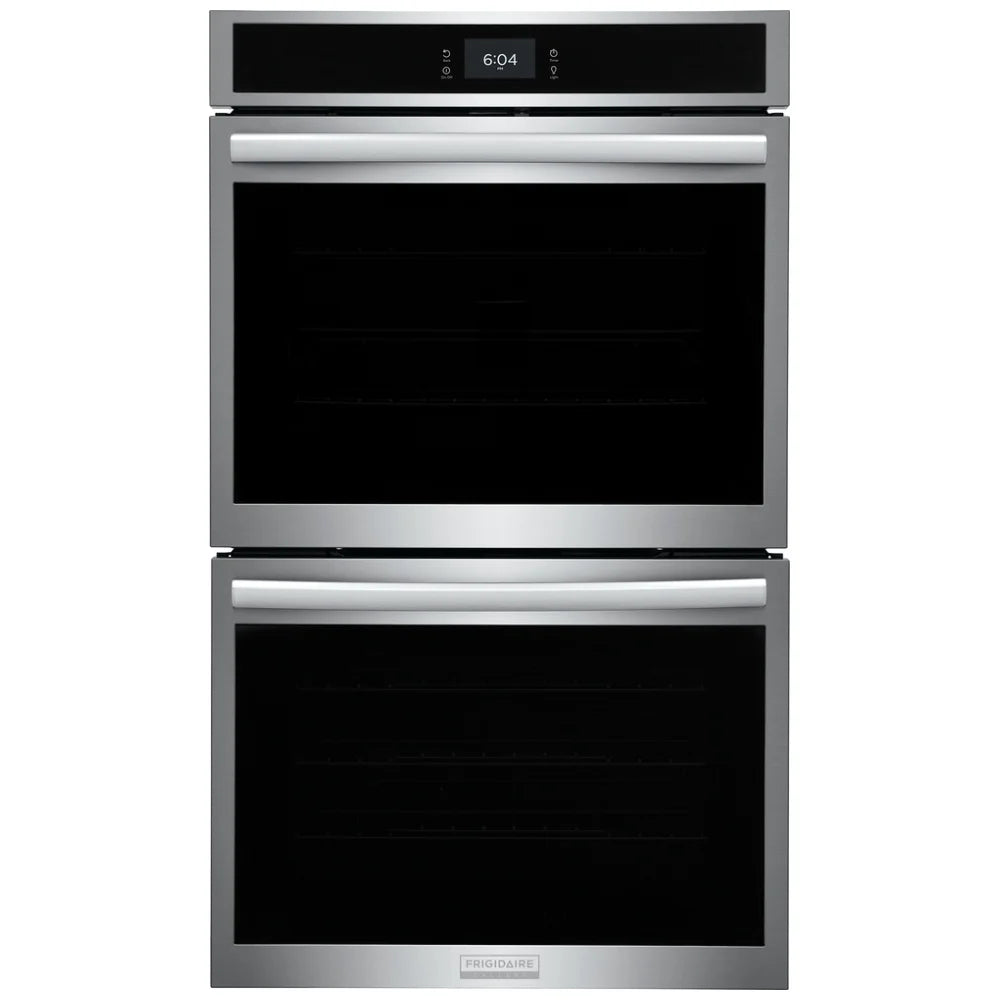

Frigidaire Gallery GCWD3067AF Double Wall Oven

Product LineDouble Wall Oven

Power TypeElectric 240v

Size30"

Installation TypeBuilt-In

FactorySpringfield

ColorStainless SteelCooking Controls

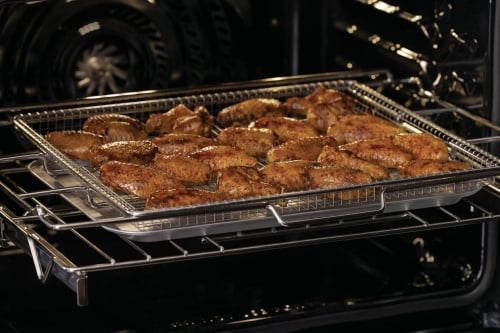

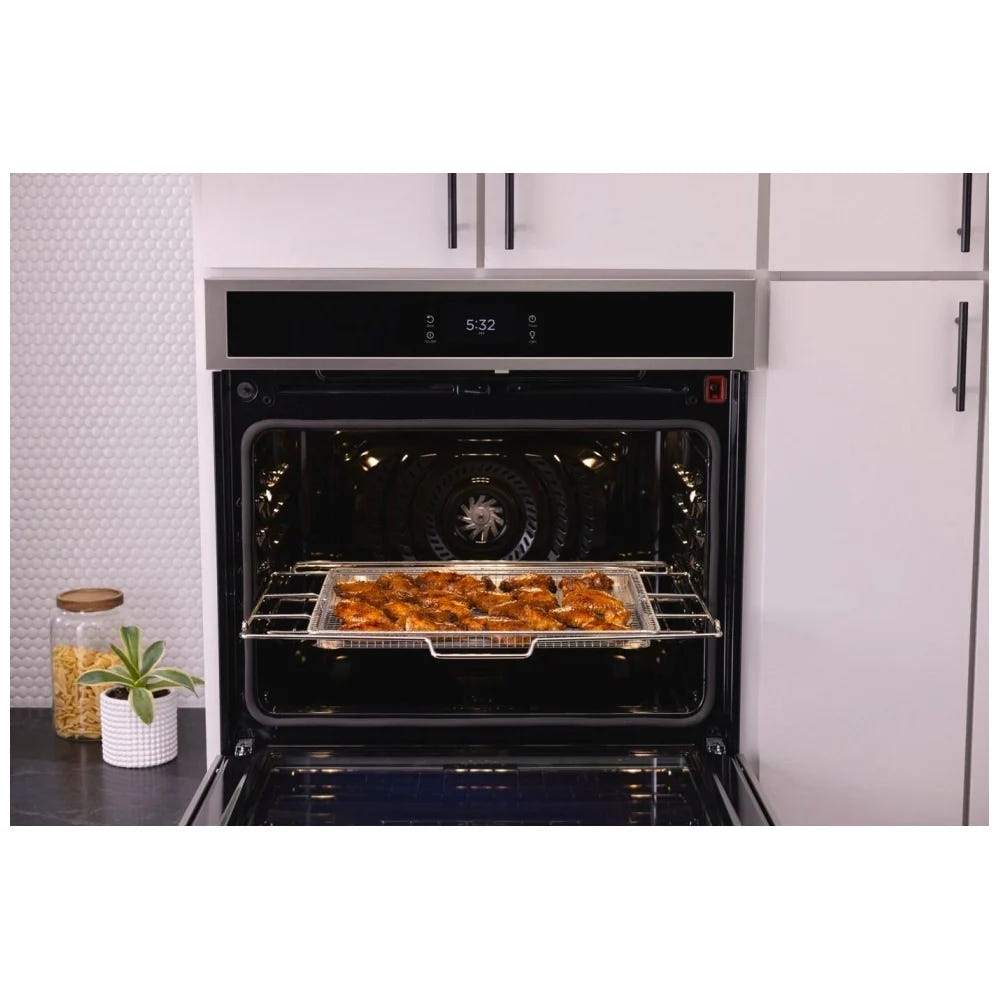

Air FryYes

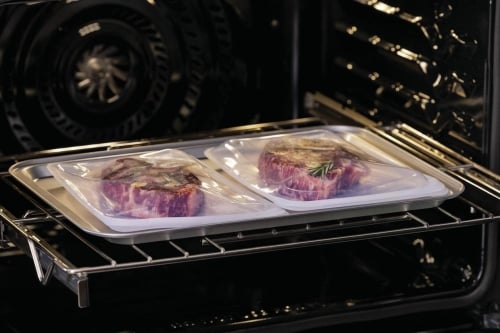

Air Sous VideYes

BakeYes

Bake TimeYes

Bread ProofYes

BroilYes

CancelYes

Child LockYes

Clear OffYes

ClockYes

Convection BakeYes

Convection RoastYes

Cook TimeYes

DehydrateYes

Delay CleanYes

Delay StartYes

Fast PreheatYes

Keep WarmYes

Kitchen TimerYes

LightYes

My FavoriteYes

No PreheatYes

OffYes

Oven LightYes

Perfect TurkeyYes

PreheatYes

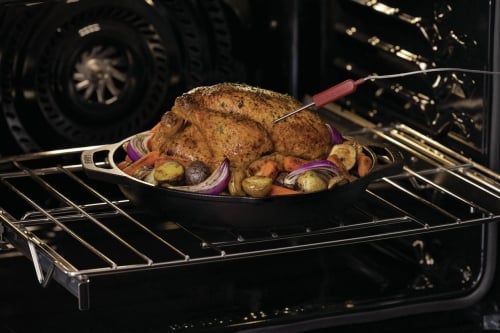

ProbeYes

Quick PreheatYes

Self CleanYes

Set ClockYes

Slow CookYes

StartYes

Start TimeYes

Steam BakeYes

Steam CleanYes

Steam RoastYes

StopYes

Temperature DisplayYes

Timed BakeYes

Timer On / OffYes

User PreferencesYesCooking Controls Function

Change between Continuous Bake Setting or 12-Hour Energy Saving FeatureYes

Delayed BakeYes

Program Fahrenheit or CelsiusYes

Silent Control PanelYes

Timed CookingYesOven

Bake Element2500 Watts

Bake Element Pass8

Bake Element TypeHidden

Broil Element4000 Watts

Broil Element Pass6

Broil SystemYes

Cleaning SystemYes

ConvectionYes

Convection Element3800 Watts

Convection TypeTotal

Number of Convection Fans1

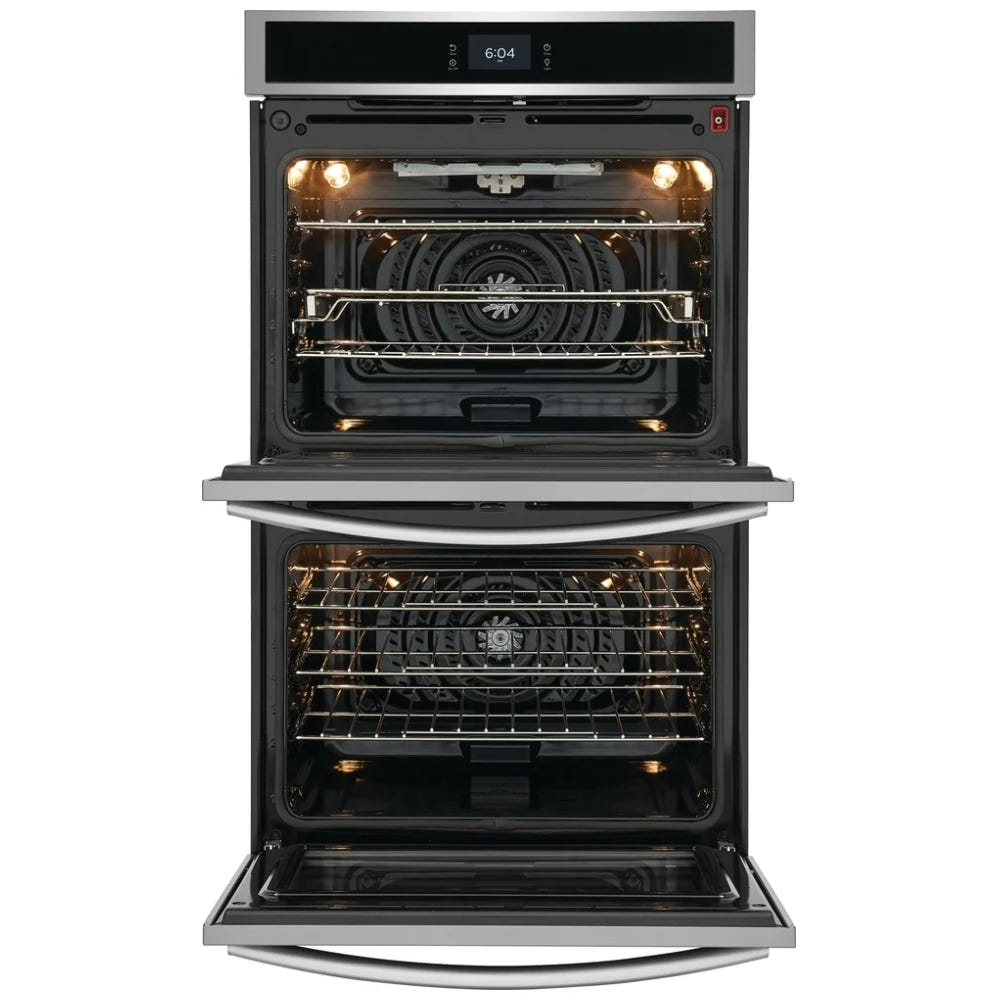

Number of Rack Positions6

Oven Interior ColorMidnight Black

Oven Light Quantity2

Oven Light TypeHalogen

Oven Light Watts40 Watts

Rack Position TypeEmbossed

Rack Type 1Flat

Rack Type 1 Quantity5

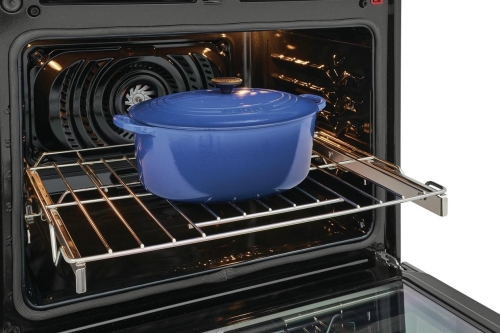

Rack Type 2Glide

Rack Type 2 Quantity1Controls

Control LockYes

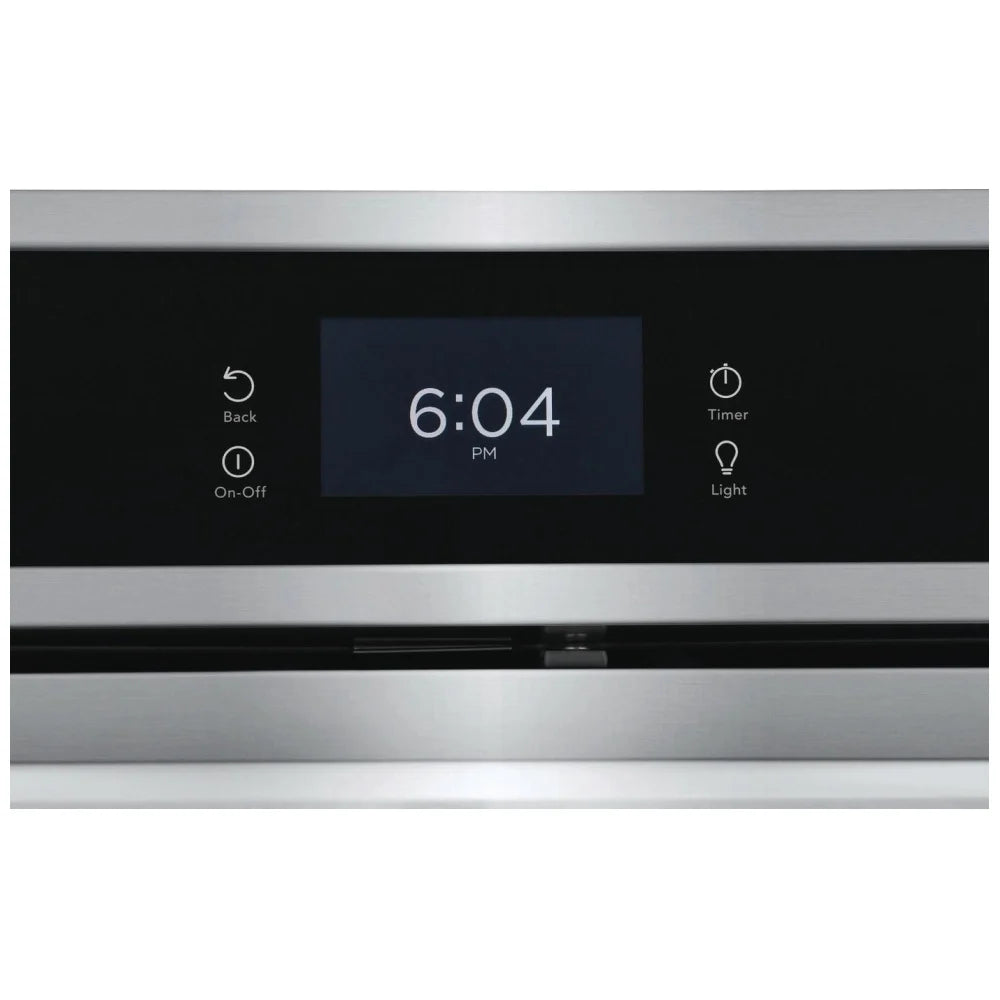

Sabbath ModeYesDisplay

Display Interface ColorWhite

Display Light ColorWhite

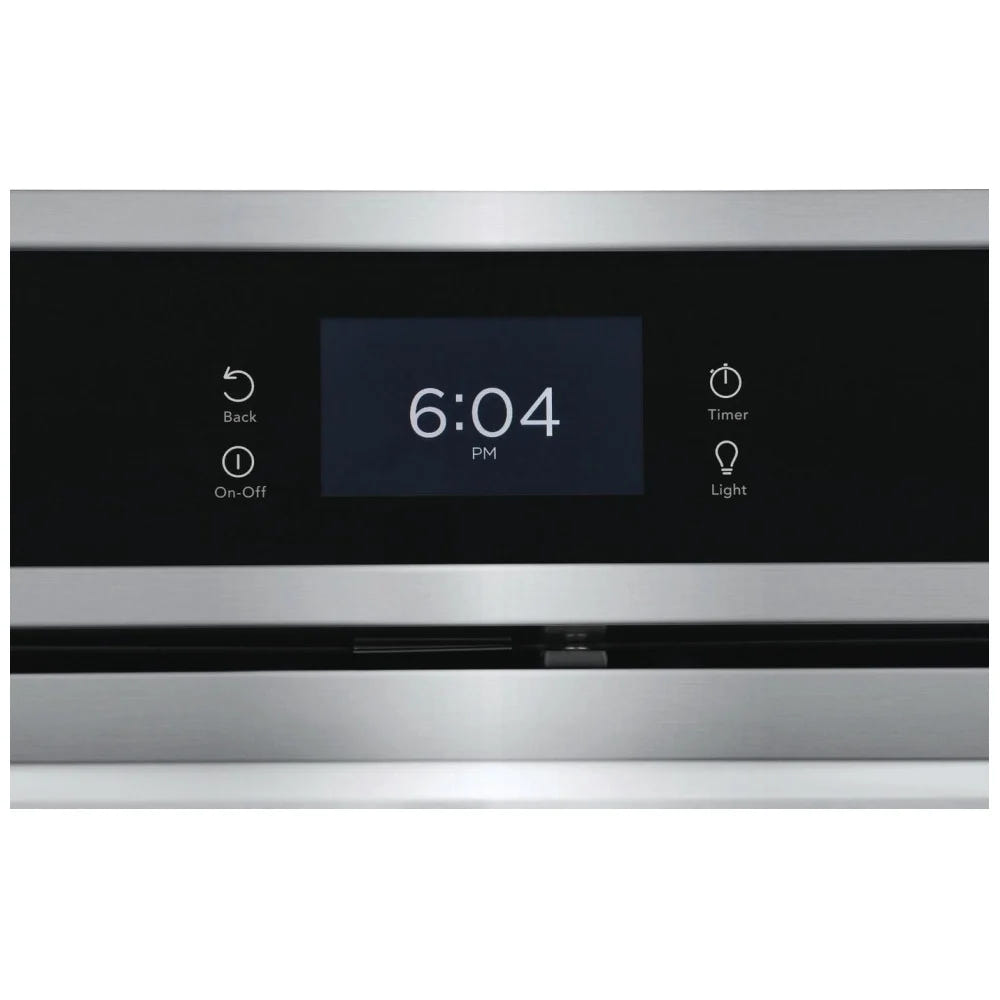

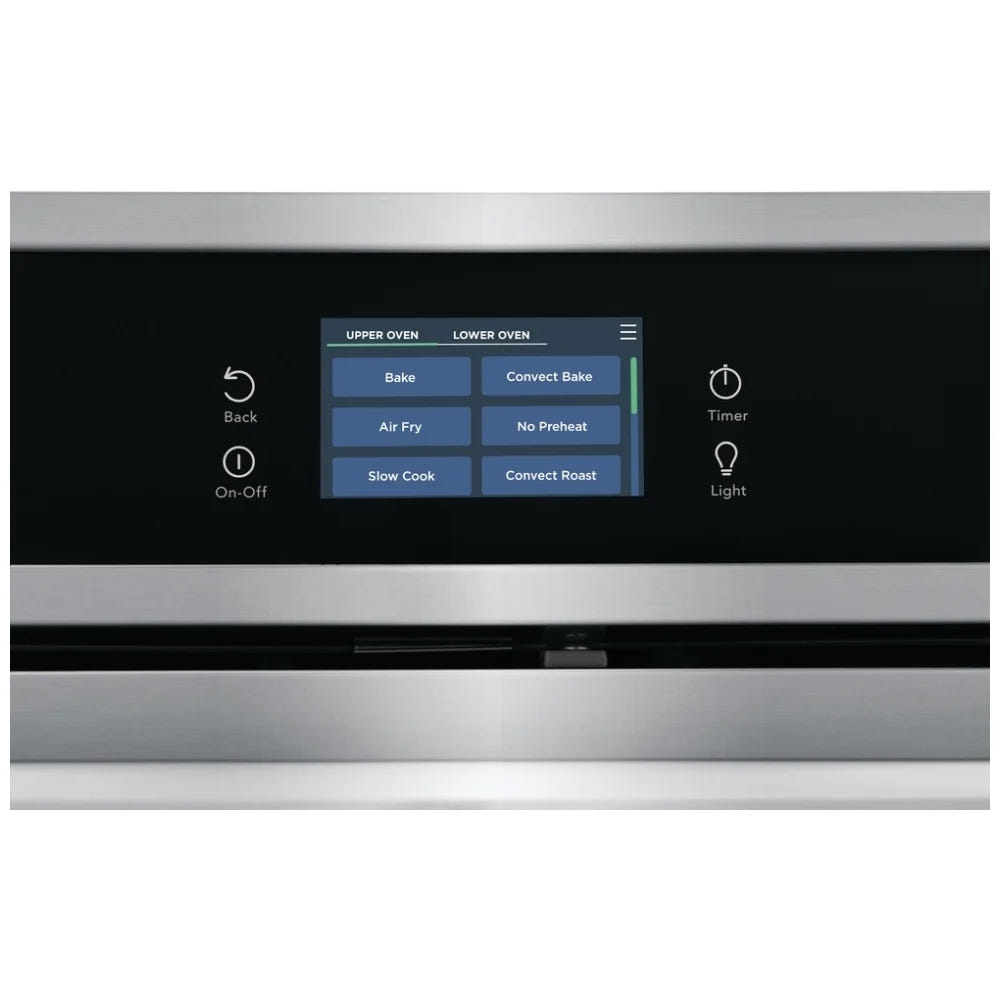

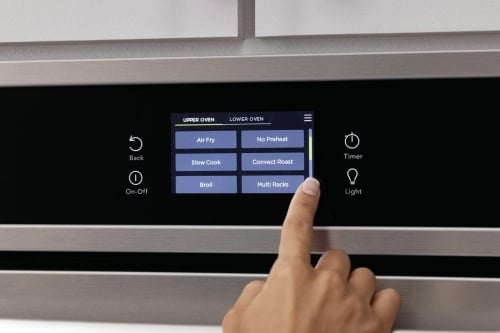

Display TypeCapacitive TouchExterior

Exterior FinishSmudge-Proof® Stainless Steel

Handle ColorStainless SteelDimensions and Volume

Height50 3/4"

Width29 7/8"

Depth25 3/16"

Depth With Door 90° Open48 3/16"

Depth With Handle27 3/5"

Lower Oven Interior Height18 1/8"

Lower Oven Interior Width25 1/5"

Lower Oven Interior Depth19 7/8"

Upper Oven Interior Height18 1/8"

Upper Oven Interior Width25 1/5"

Upper Oven Interior Depth19 7/8"

Minimum Cutout Height48 7/8"

Minimum Cutout Width28 1/2"

Maximum Cutout Height50 1/4"

Maximum Cutout Width29"

Oven Lower Capacity5.3 Cu. Ft.

Oven Upper Capacity5.3 Cu. Ft.

Total Capacity10.6 Cu. Ft.Electrical Specifications

Amps @ 240 Volts40 Amps

Connected Load @ 240V9 kW

Minimum Circuit Required40 Amps

Voltage Rating240 VGeneral Specifications

Frigidaire Fit PromiseYes

Product Weight260 lbs

Prop 65 LabelYes

Warranty - Labor1 Year

Warranty - Parts1 Year

AB-1200Information available at frigidaire.com/en/ab1200Installation

Power Supply Connection LocationTop LeftSafety Certifications and Approvals

CSA ListedYes

RoHSYes

UL ListedYesAccessories

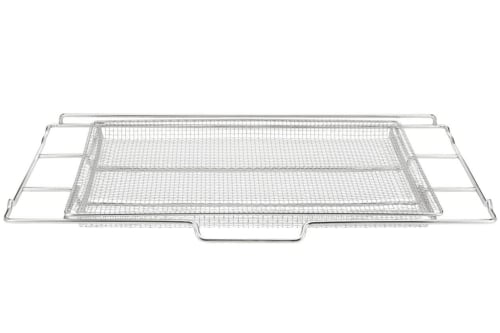

Optional Air Fry Tray Part NumberFRIGPEREAFT

Optional Trim Kit Part NumberWOMC3TRIMSS, WOMC3TRIMDSS
