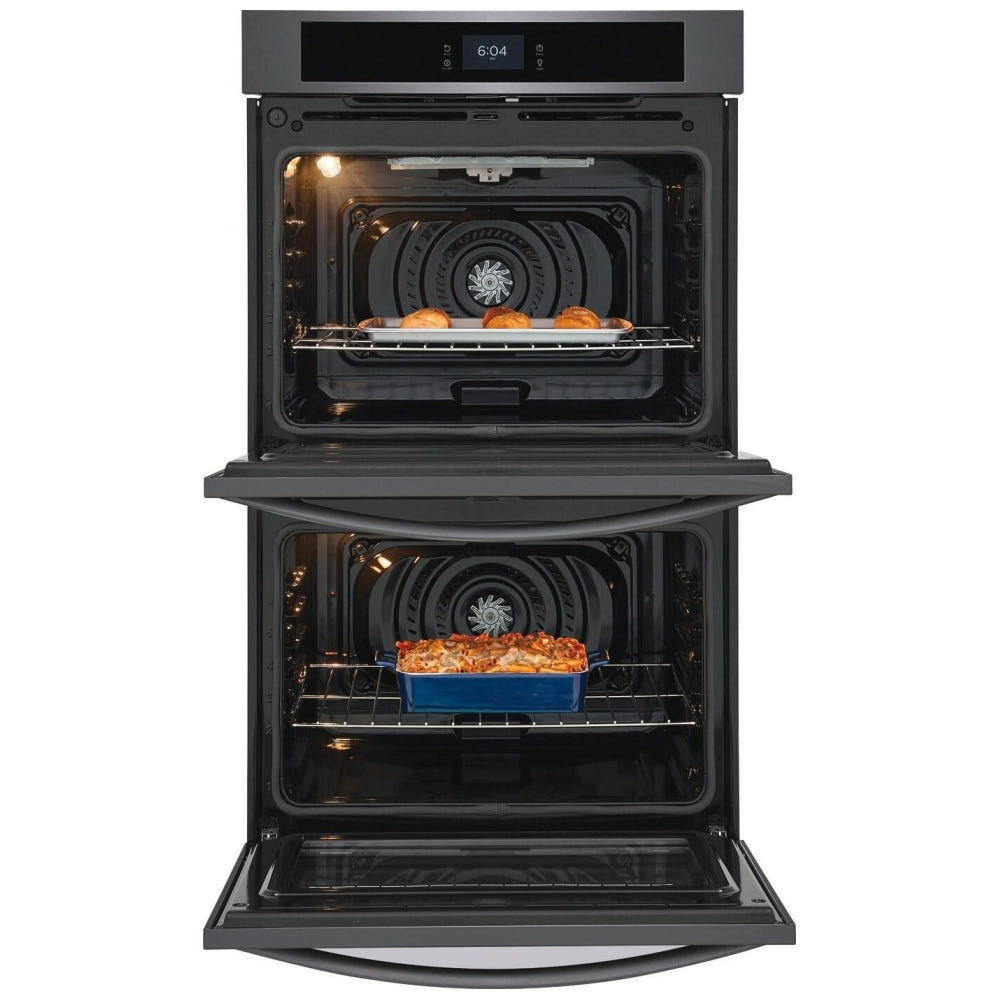

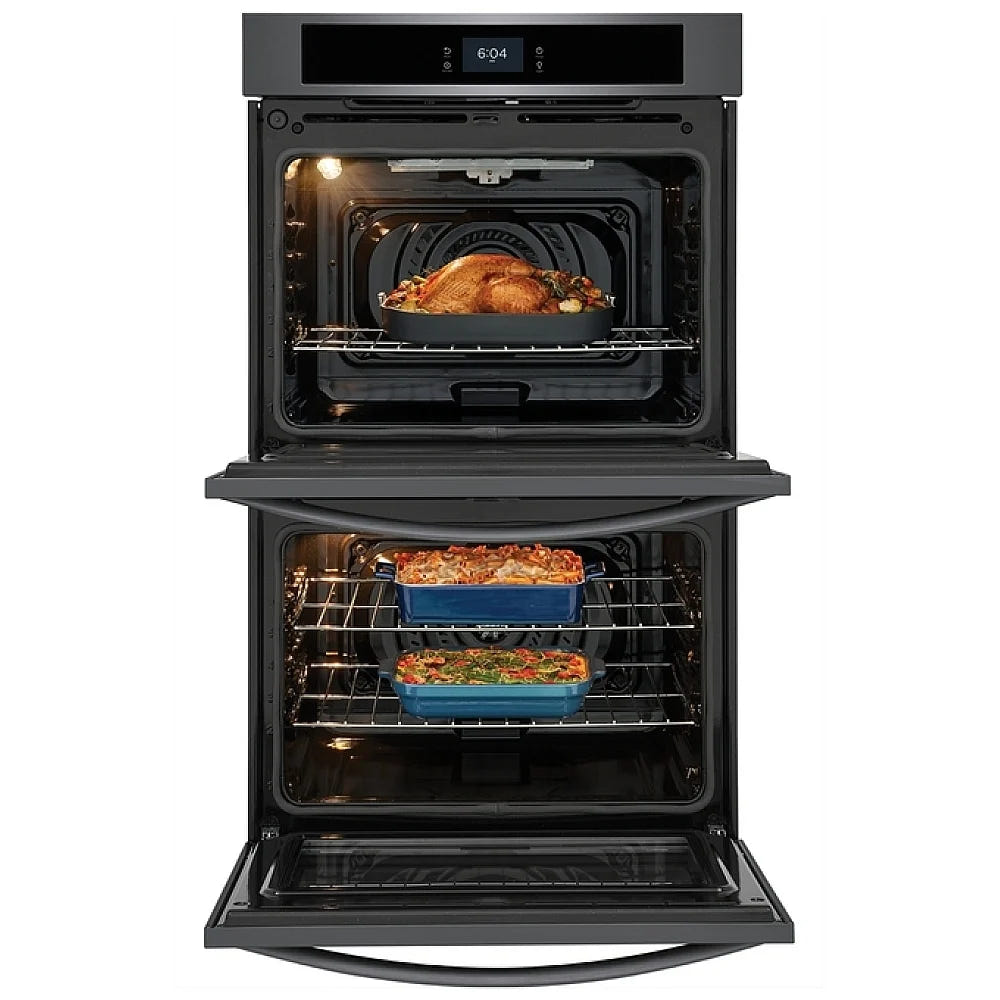

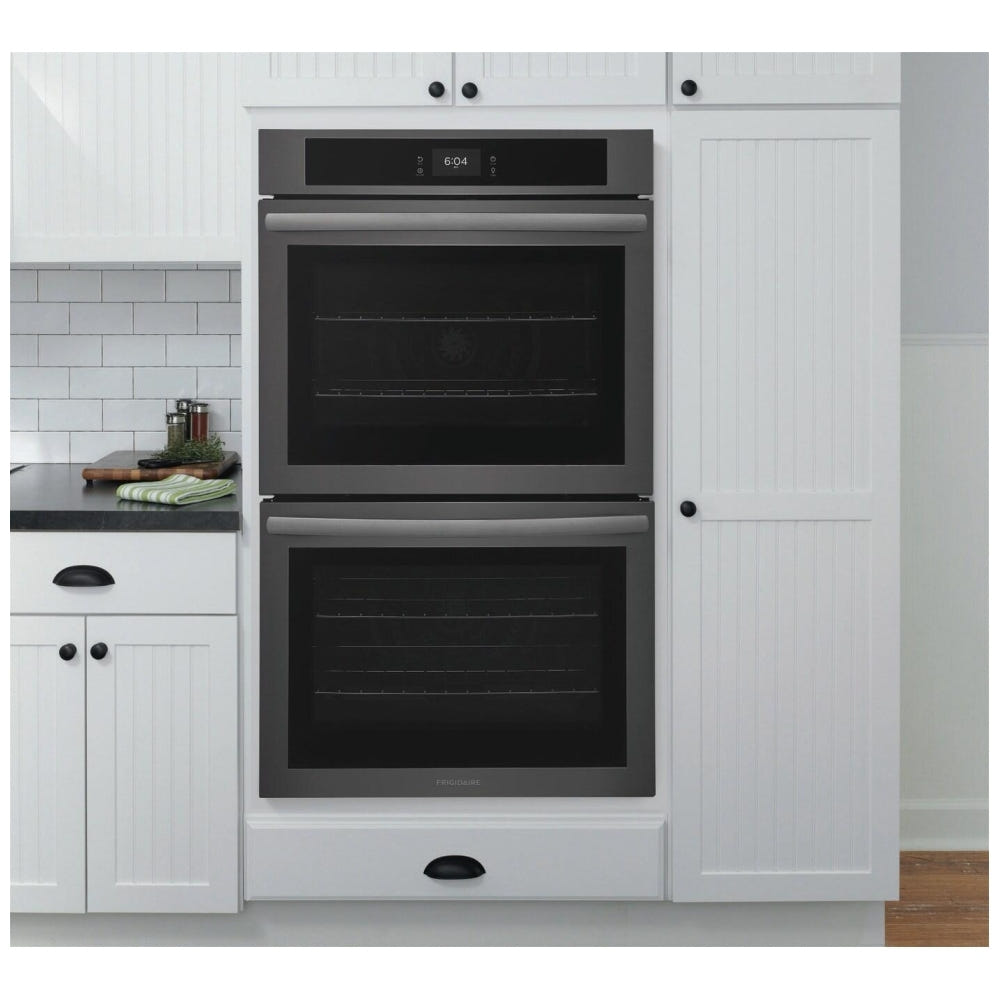

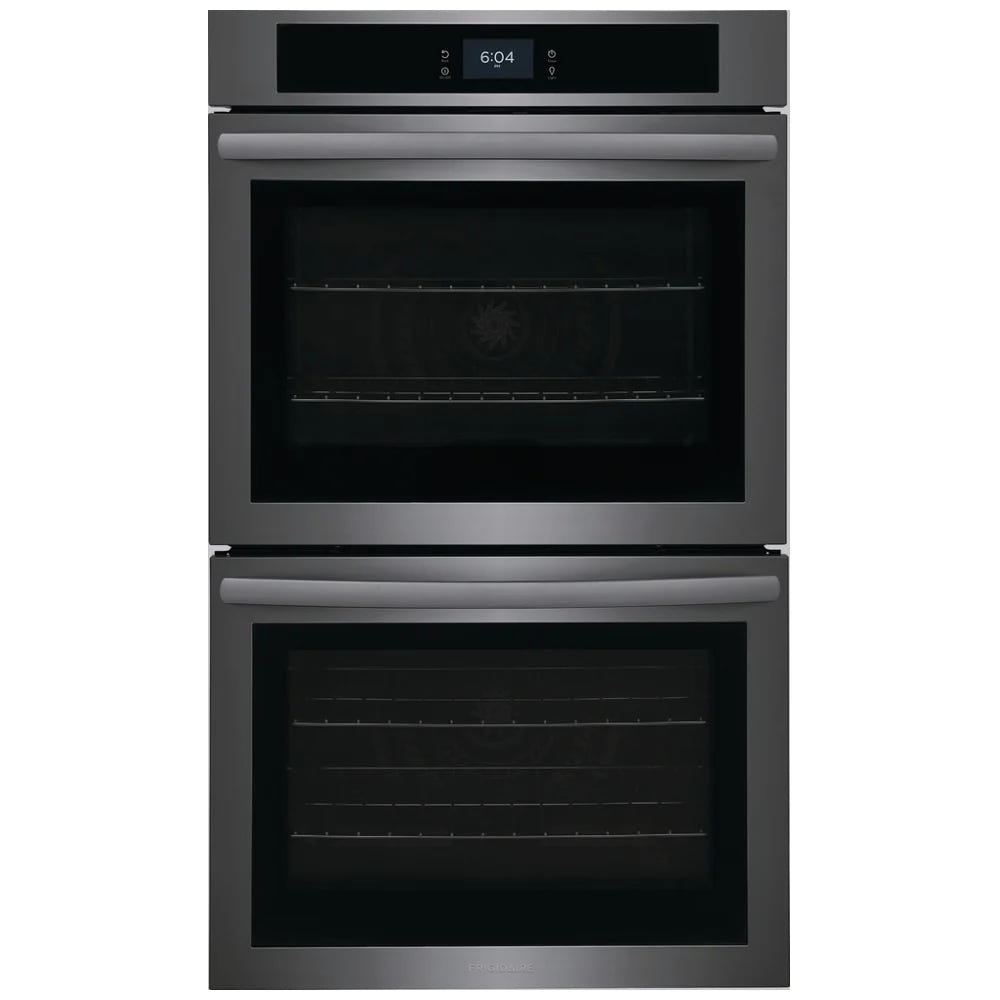

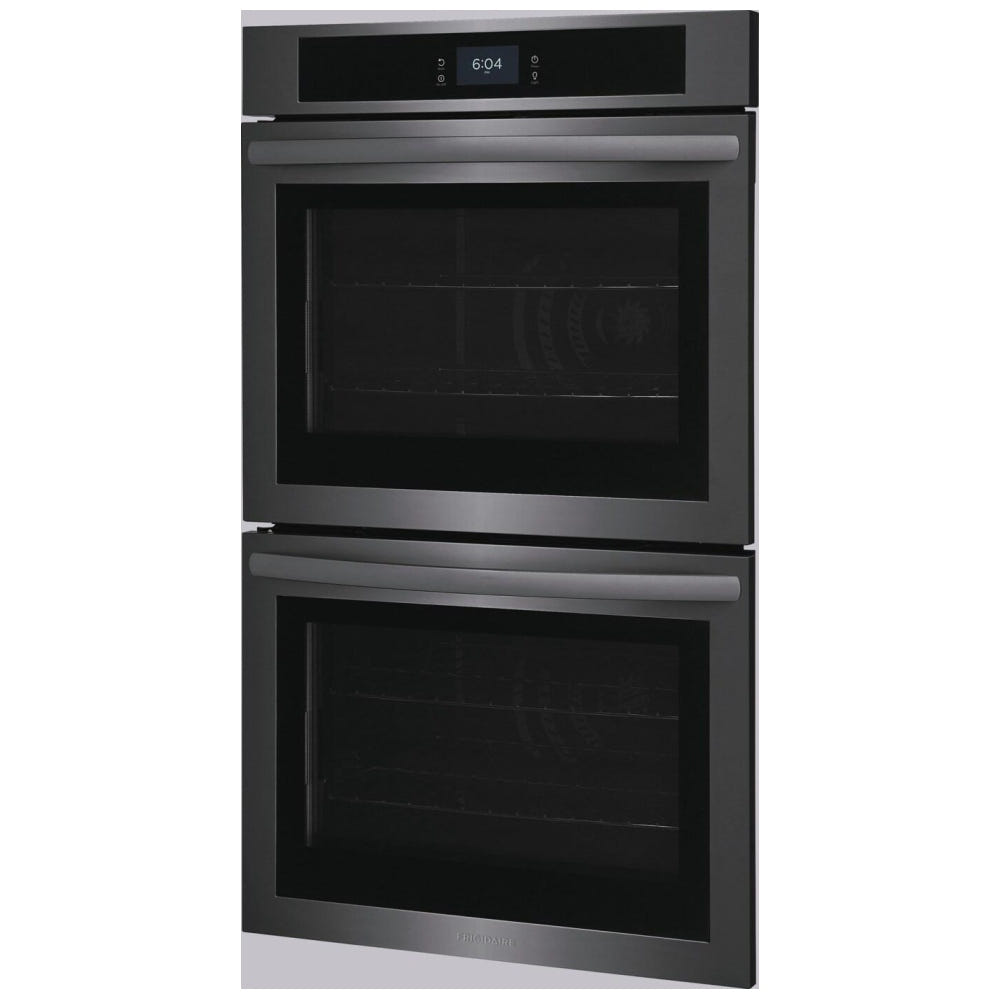

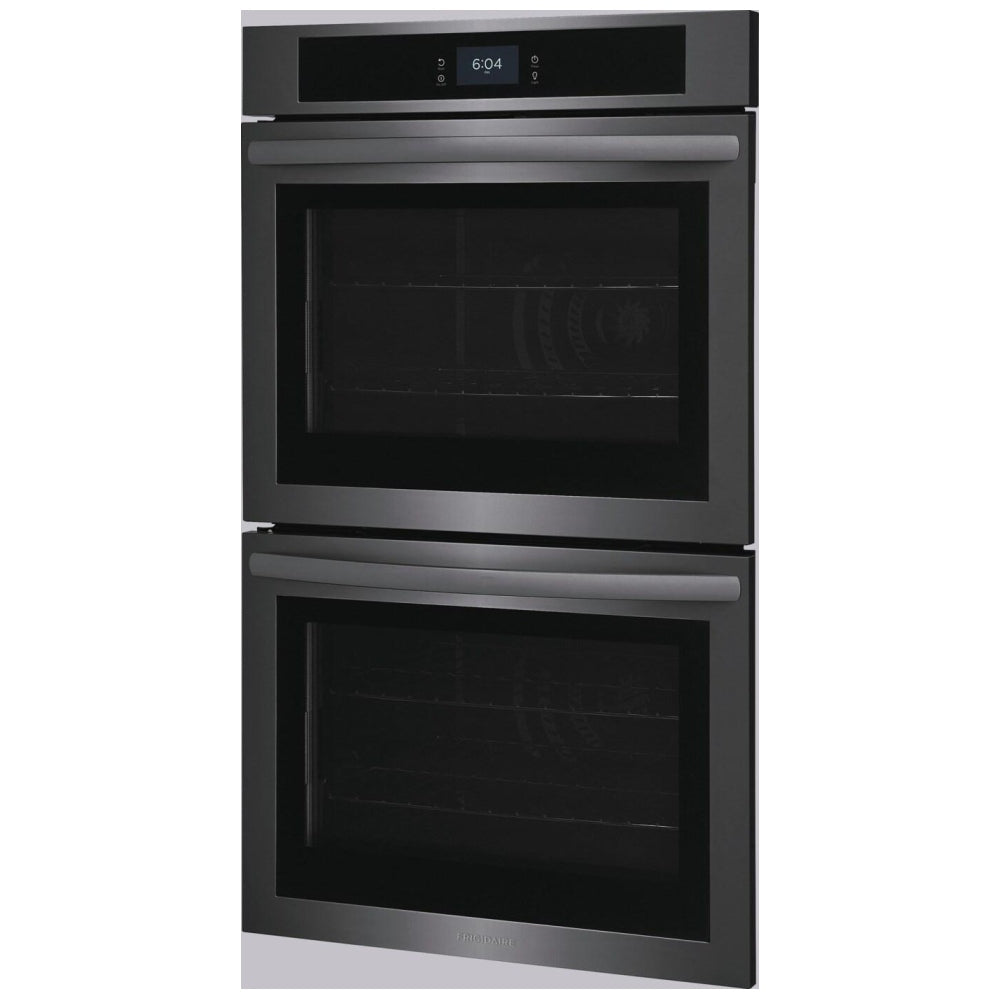

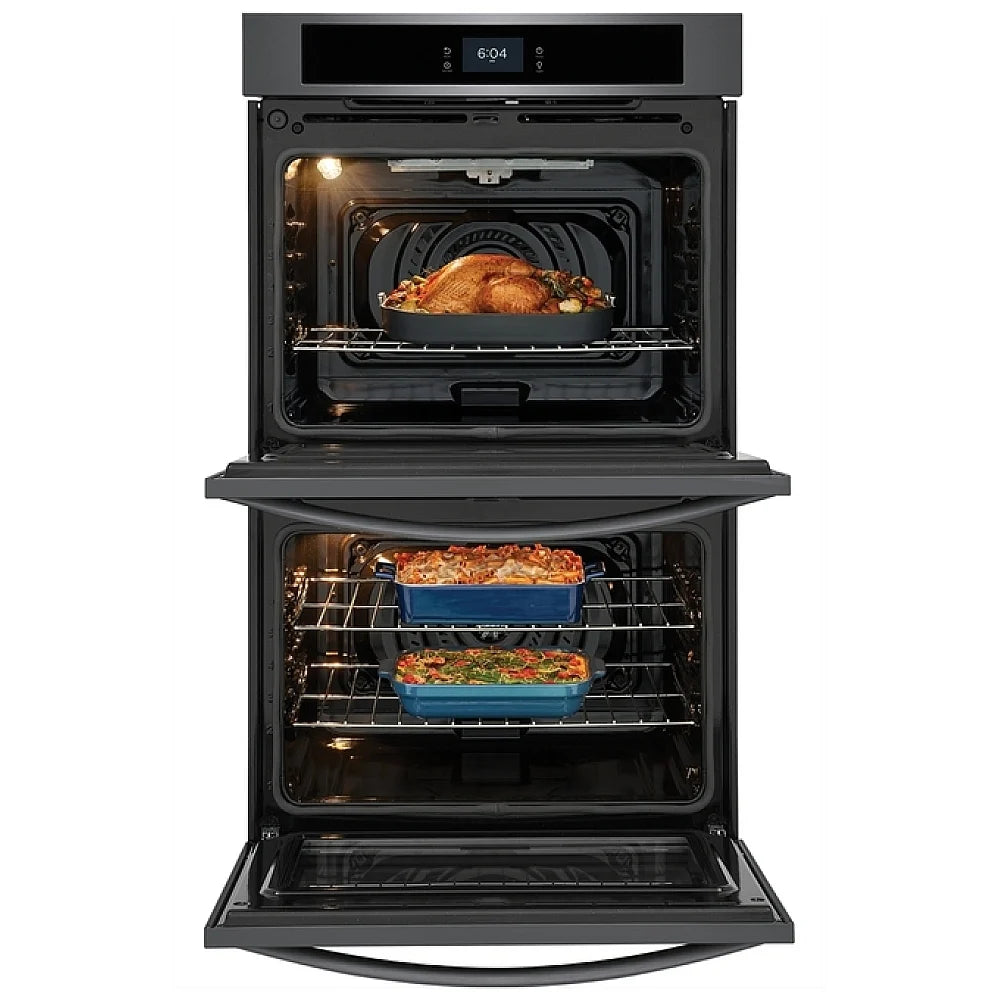

Frigidaire 30" Electric Double Wall Oven with Fan Convection FCWD3027AD

Cooking Controls

Bake Yes

Bake Time Yes

Broil Yes

Cancel Yes

Clock Yes

Convection Bake Yes

Cook Time Yes

Delay Start Yes

Keep Warm Yes

Kitchen Timer Yes

Light Yes

Off Yes

Oven Light Yes

Preheat Yes

Self Clean Yes

Start Yes

Temperature Display Yes

Timer On / Off Yes

Cooking Controls Function

Change between Continuous Bake Setting or 12-Hour Energy Saving Feature Yes

Program Fahrenheit or Celsius Yes

Silent Control Panel Yes

Oven

Bake Element 2500 Watts

Bake Element Pass 8

Bake Element Type Hidden

Broil Element 4000 Watts

Broil Element Pass 6

Broil System Yes

Cleaning System Yes

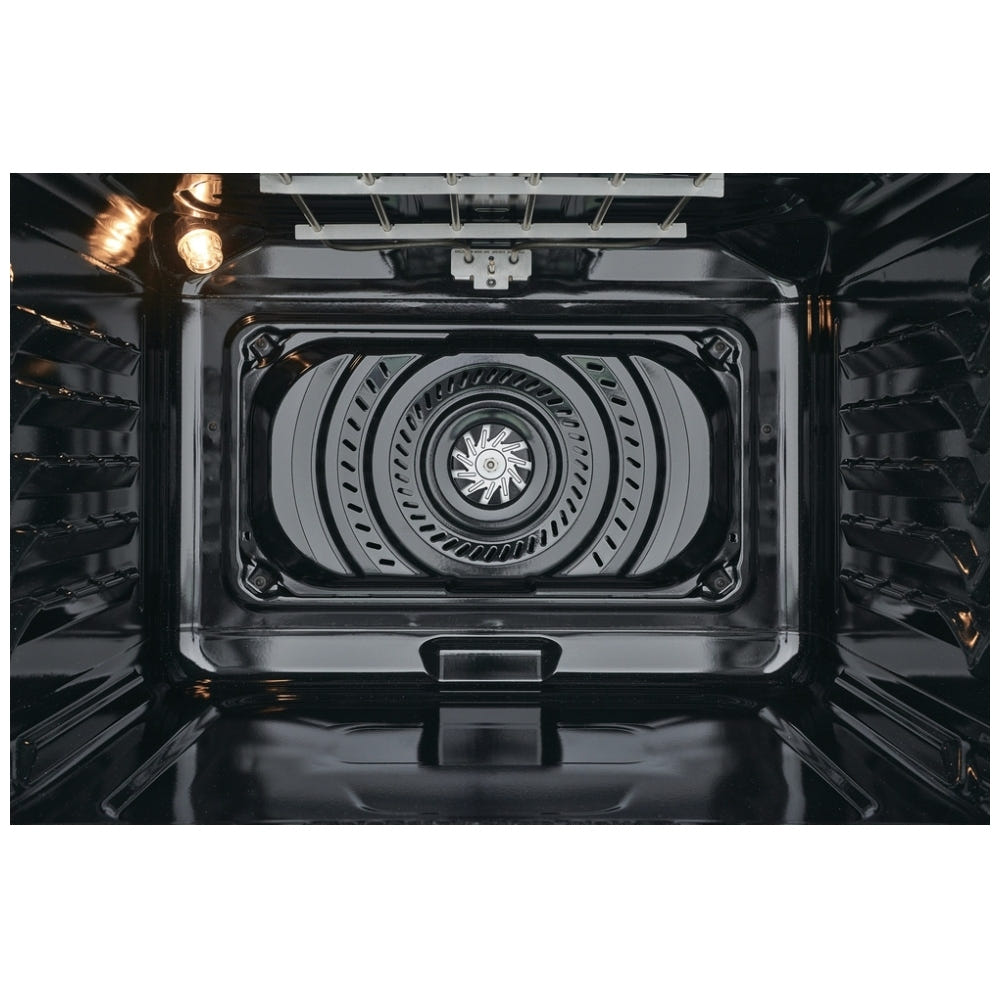

Convection Yes

Convection Type Fan

Number of Convection Fans 1

Number of Rack Positions 6

Oven Interior Color Midnight Black

Oven Light Quantity 1

Oven Light Type Halogen

Oven Light Watts 40 Watts

Rack Position Type Embossed

Rack Type 1 Flat

Rack Type 1 Quantity 4

Controls

Control Lock Yes

Sabbath Mode Yes

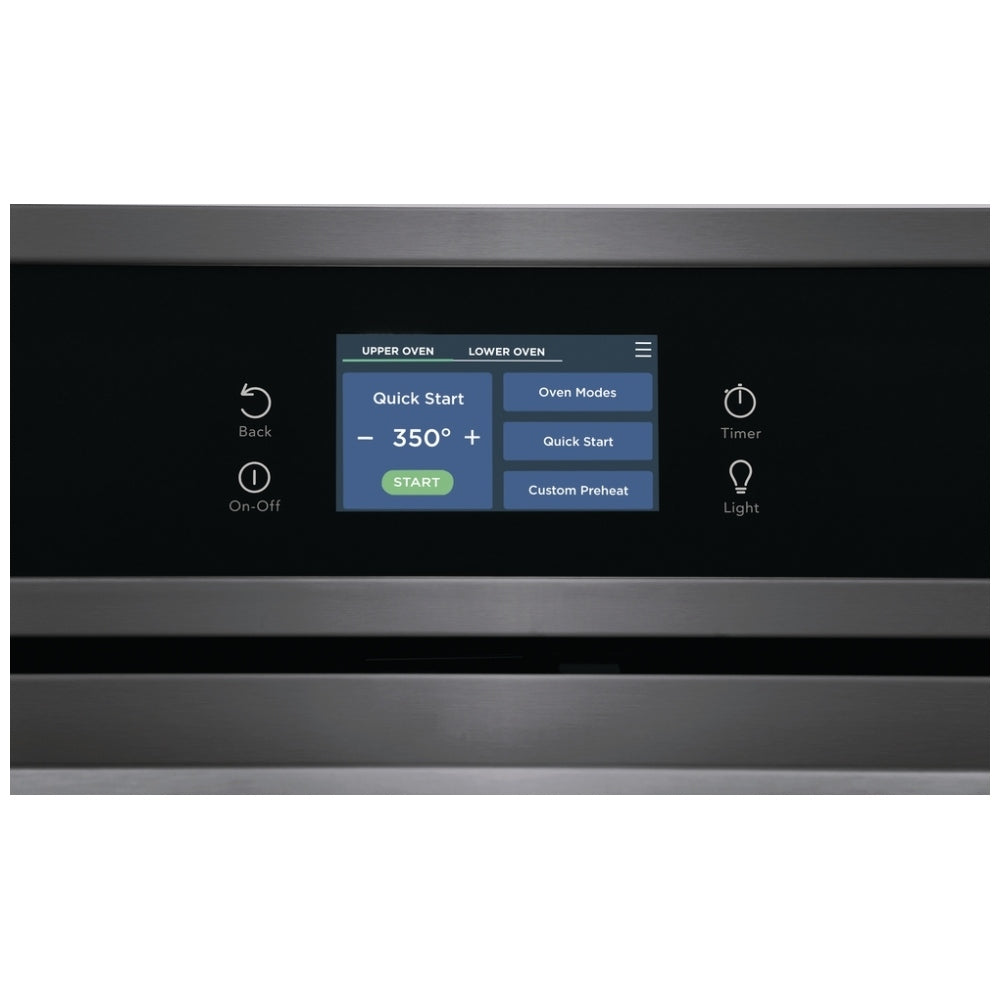

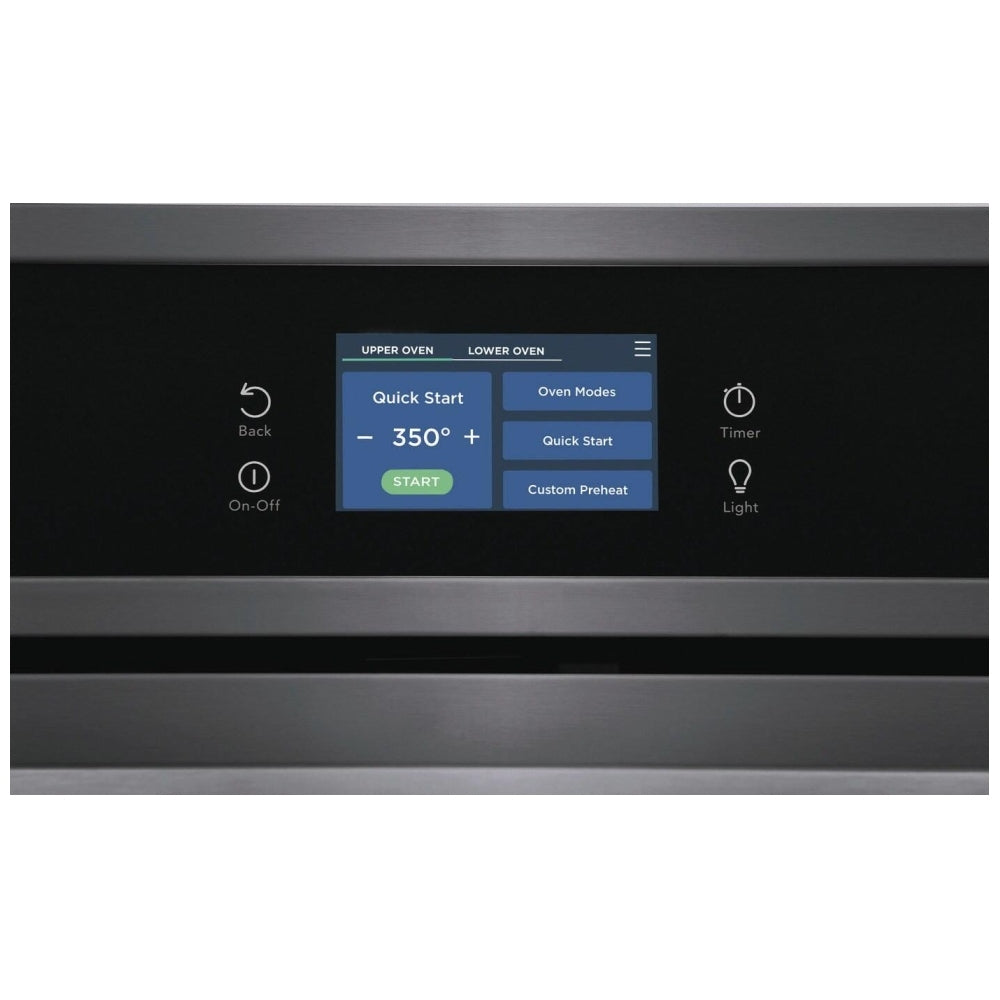

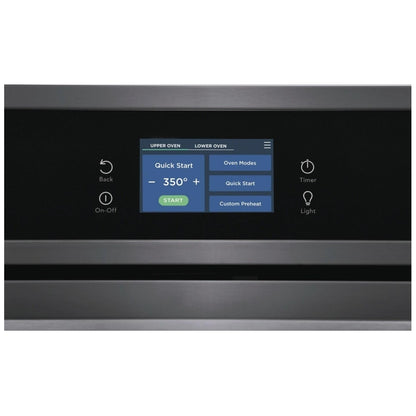

Display

Display Interface Color White

Display Light Color White

Display Type Capacitive Touch

Exterior

Handle Color Black Stainless Steel

Dimensions and Volume

Height 50 3/4"

Width 29 7/8"

Depth 25 3/16"

Depth With Door 90° Open 48 3/16"

Depth With Handle 27 3/5"

Lower Oven Interior Height 18 1/8"

Lower Oven Interior Width 25 1/5"

Lower Oven Interior Depth 19 7/8"

Upper Oven Interior Height 18 1/8"

Upper Oven Interior Width 25 1/5"

Upper Oven Interior Depth 19 7/8"

Minimum Cutout Height 48 7/8"

Minimum Cutout Width 28 1/2"

Maximum Cutout Height 50 1/4"

Maximum Cutout Width 29"

Oven Lower Capacity 5.3 Cu. Ft.

Oven Upper Capacity 5.3 Cu. Ft.

Total Capacity 10.6 Cu. Ft.

Electrical Specifications

Amps @ 240 Volts 40 Amps

Connected Load @ 240V 7.4 kW

Minimum Circuit Required 40 Amps

Voltage Rating 240 V

General Specifications

Frigidaire Fit Promise Yes

Product Weight 215 lbs

Prop 65 Label Yes

Warranty - Labor 1 Year

Warranty - Parts 1 Year

Installation

Power Supply Connection Location Top Left

Safety Certifications and Approvals

CSA Listed Yes

UL Listed Yes

RoHS Yes

Accessories

Optional Trim Kit Part Number WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT
