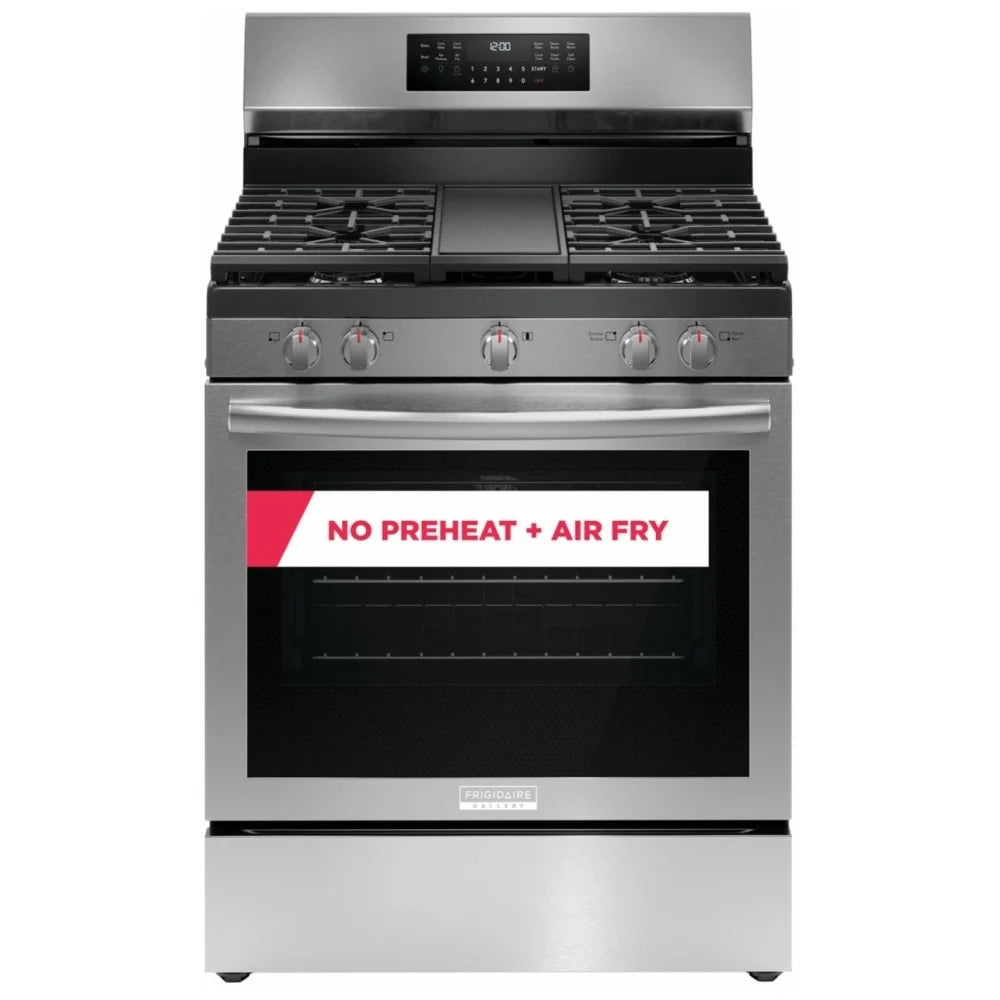

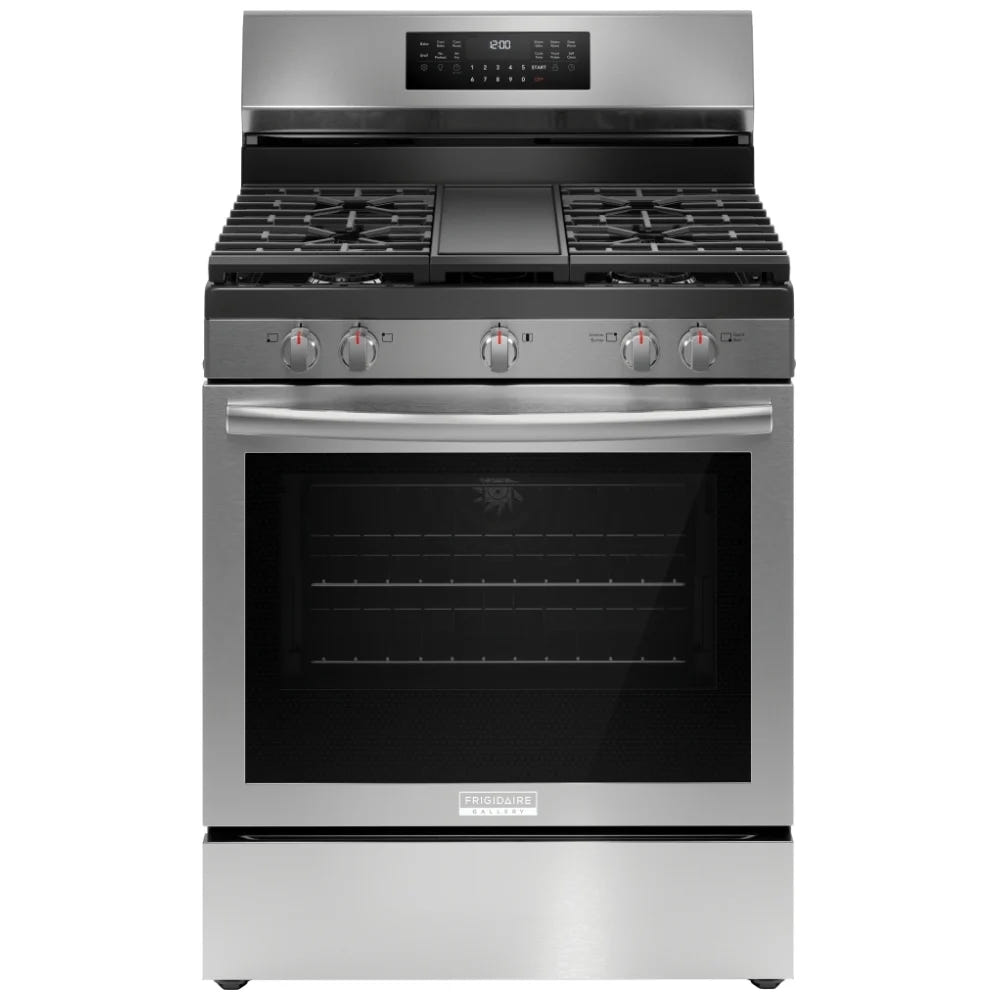

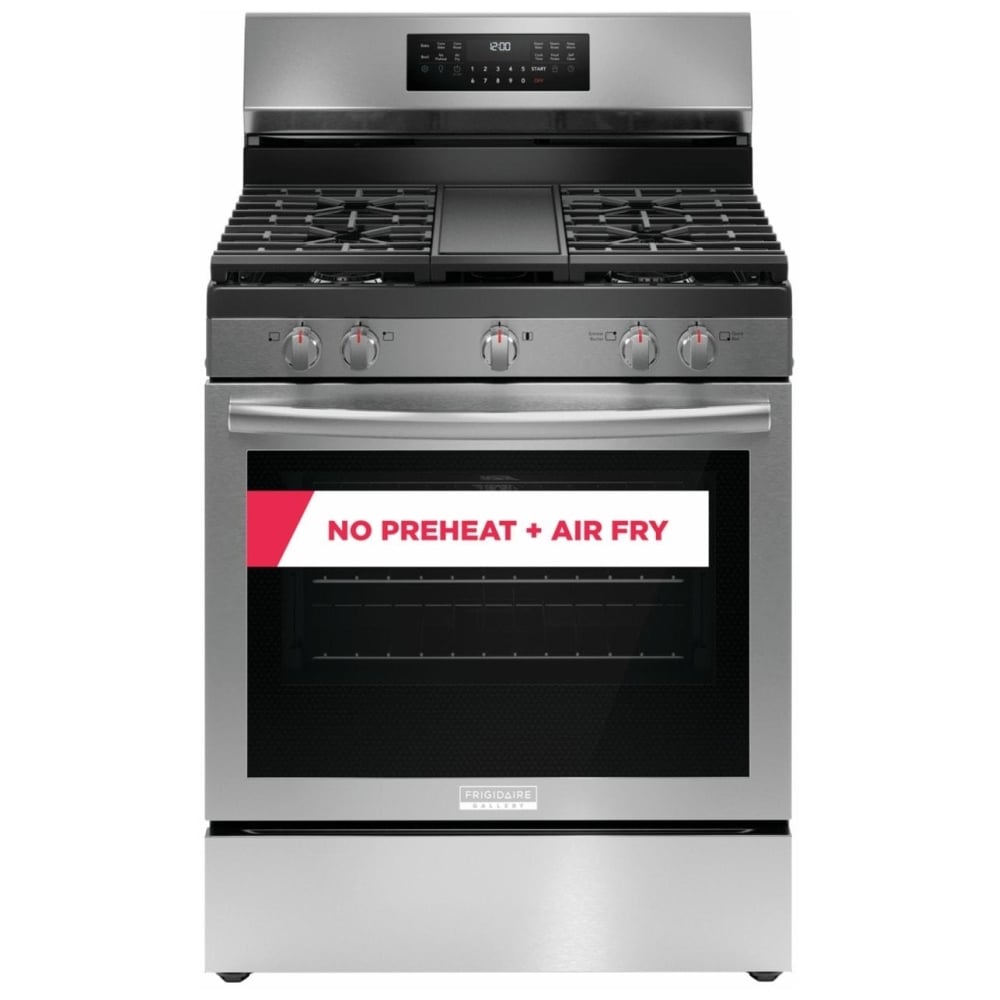

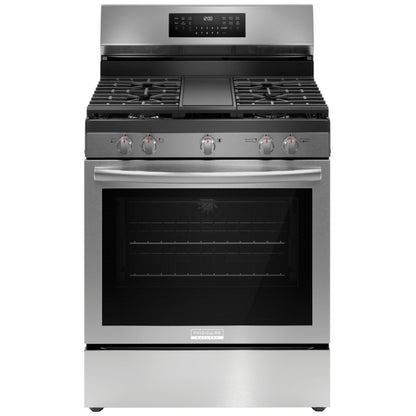

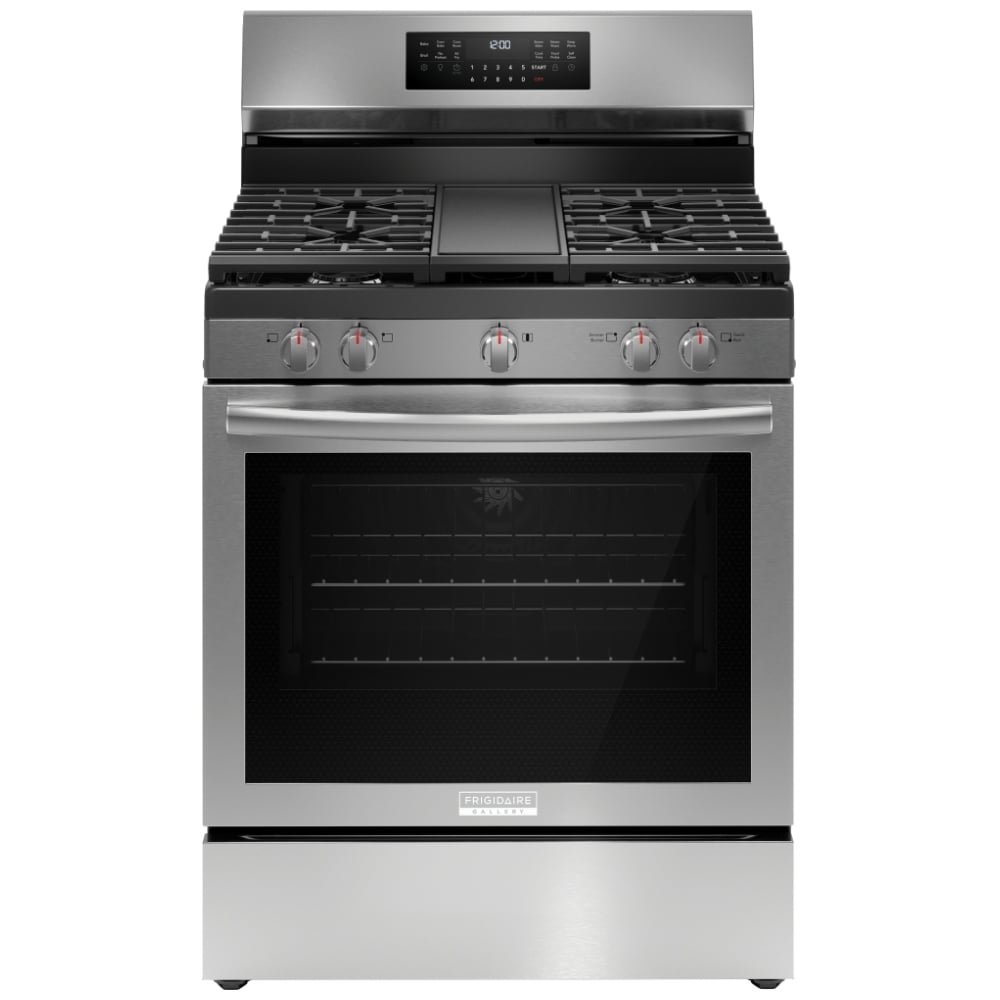

Product LineGas Range
Power TypeNG
Size30"
Installation TypeFree-Standing
FactorySpringfield
ColorStainless SteelCooktop
Cooking Surface TypeGas
Grate MaterialCast Iron
Grate Quantity2
Grate StyleIndividual
Integrated Griddle IncludedYes
Optional Center Grate5304535284

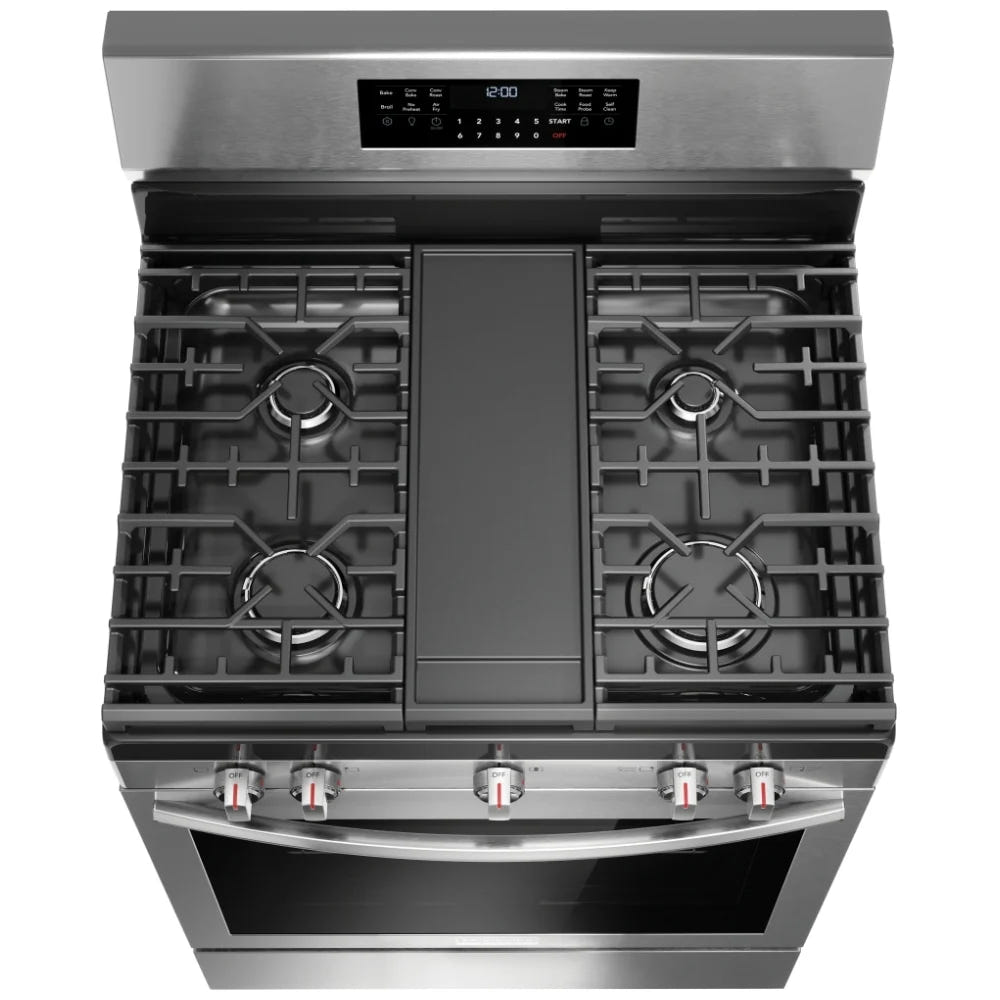

Sealed BurnersYesCooktop Performance
Right Front Element Burner18000 BTU
Right Rear Element Burner5000 BTU
Left Front Element Burner14000 BTU
Left Rear Element Burner10000 BTU
Center Rear Element Burner10000 BTUCooking Controls

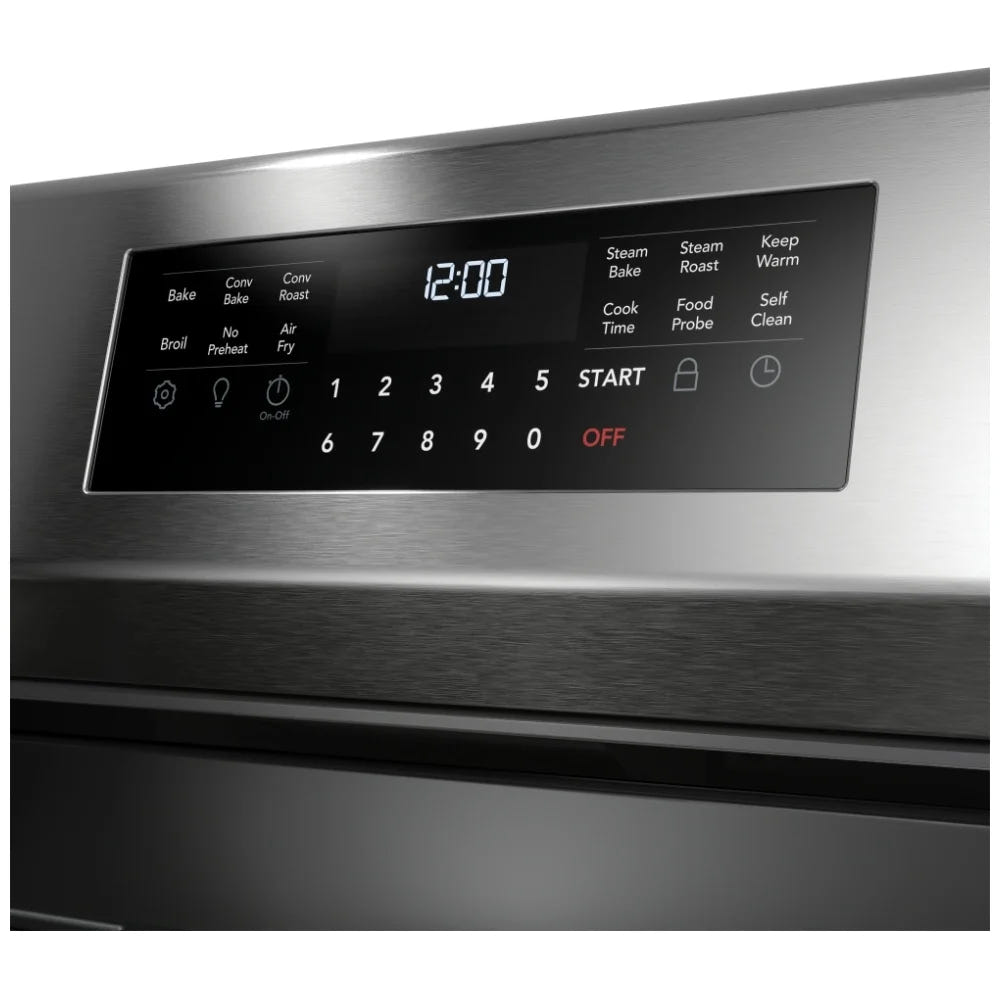

Air FryYes
Air Sous VideYes
BakeYes
Bake TimeYes
BroilYes
ClockYes
Convection BakeYes
Convection RoastYes
Cook TimeYes
Delay CleanYes
Delay StartYes
Door LockYes
Keep WarmYes
Kitchen TimerYes
LightYes
LockoutYes
No PreheatYes
Numerical KeypadYes
OffYes
Oven LightYes
ProbeYes
Self CleanYes
Set ClockYes
Slow CookYes
StartYes
SteamBakeYes
Steam CleanYes
Steam RoastYes
Temperature DisplayYes
Timer On / OffYes
User PreferencesYesCooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving FeatureYes
Delayed BakeYes
Program Fahrenheit or CelsiusYes
Silent Control PanelYesOven
Bake Element18000 BTU
Broil Element1400 Watts
Broil Element Pass6
Broil SystemYes
Cleaning SystemYes

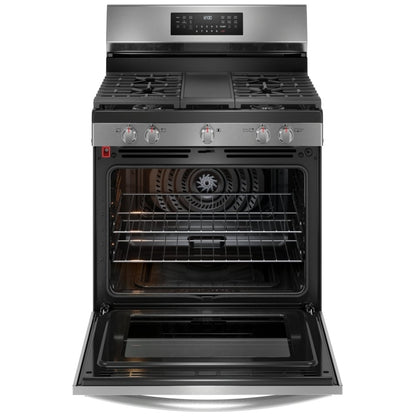

ConvectionYes
Convection Element1000 Watts
Convection TypeTotal
Number of Convection Fans1
Number of Rack Positions6
Oven Interior ColorMidnight Black
Oven Light Quantity1Oven Light TypeHalogen
Oven Light Watts40 Watts
Rack Position TypeEmbossed
Rack Type 1Flat
Rack Type 1 Quantity2Drawer
Drawer Handle StyleIntegrated
Drawer TypeStorageControls
Control LockYes
Sabbath ModeYesDisplay
Control LocationRear
Display Interface ColorWhiteExterior
Exterior FinishSmudge-Proof® Stainless SteelDimensions and Volume
Minimum Height46 3/4"
Maximum Height47 3/4"
Width30"
Depth26"
Depth With Door 90° Open47 5/16"
Depth With Handle28 1/2"
Oven Interior Height17 5/8"
Oven Interior Width25 3/16"
Oven Interior Depth19 7/8"
Oven Capacity5.1 Cu. Ft.Electrical Specifications
Minimum Circuit Required12 Amps
Voltage Rating120 VInstallation
Adjustable Leveling LegsYes
Power Cord IncludedYesGeneral Specifications
Product Weight190 lbs
Prop 65 LabelYes
Warranty - Labor1 Year
Warranty - Parts1 Year
AB-1200Information available at frigidaire.com/en/ab1200Safety Certifications and Approvals
CSA ListedYes
