SUMMARY

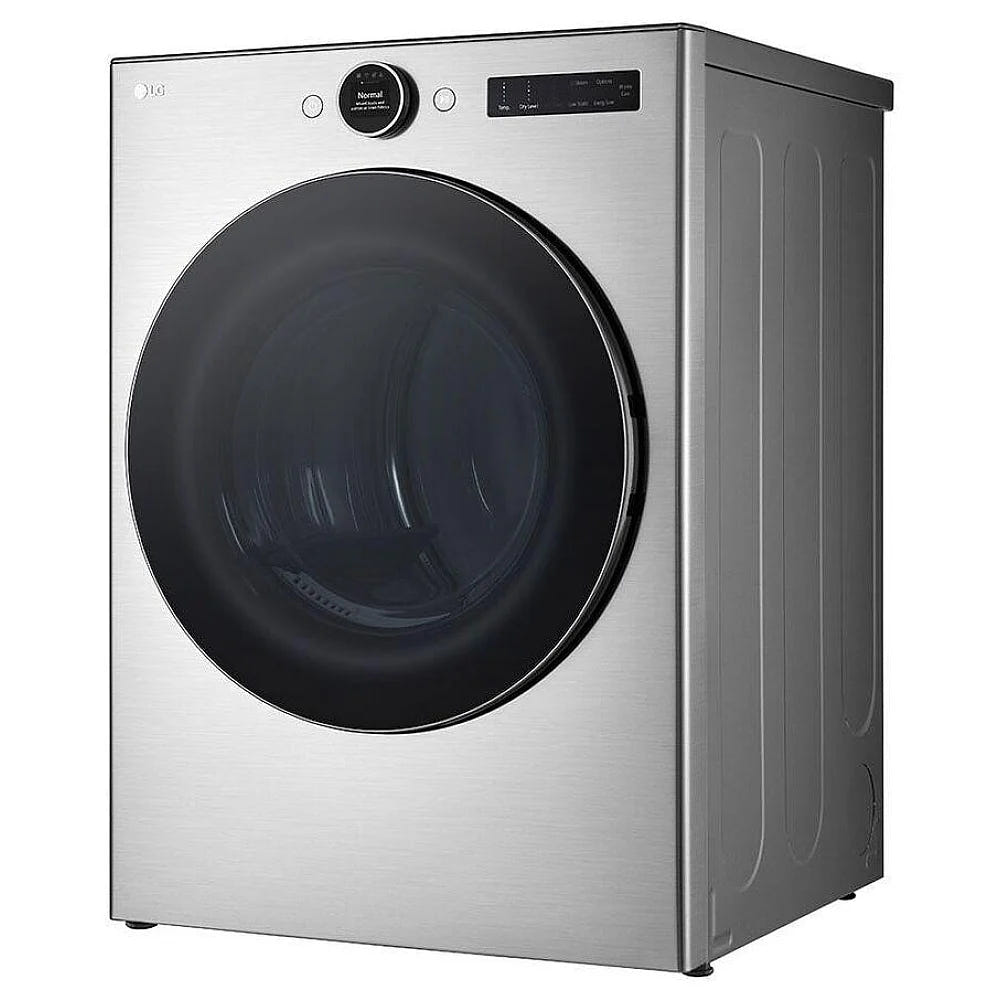

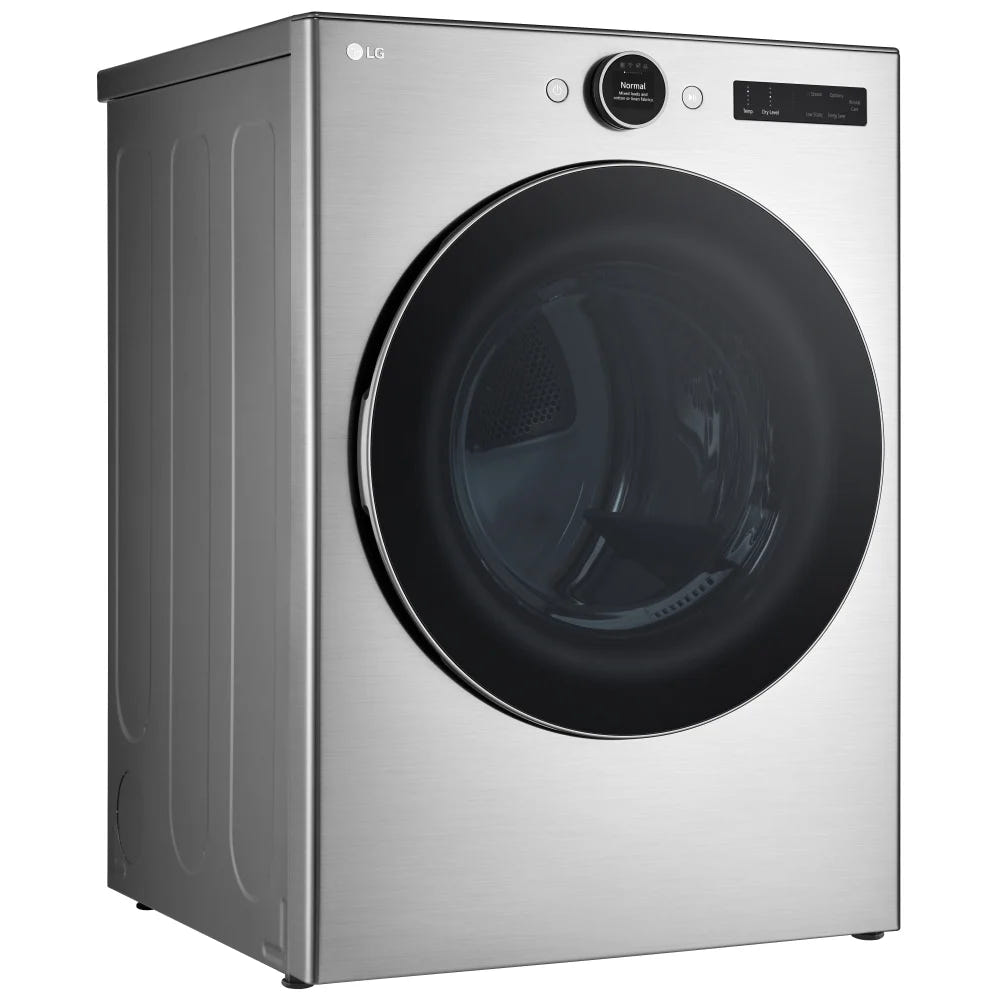

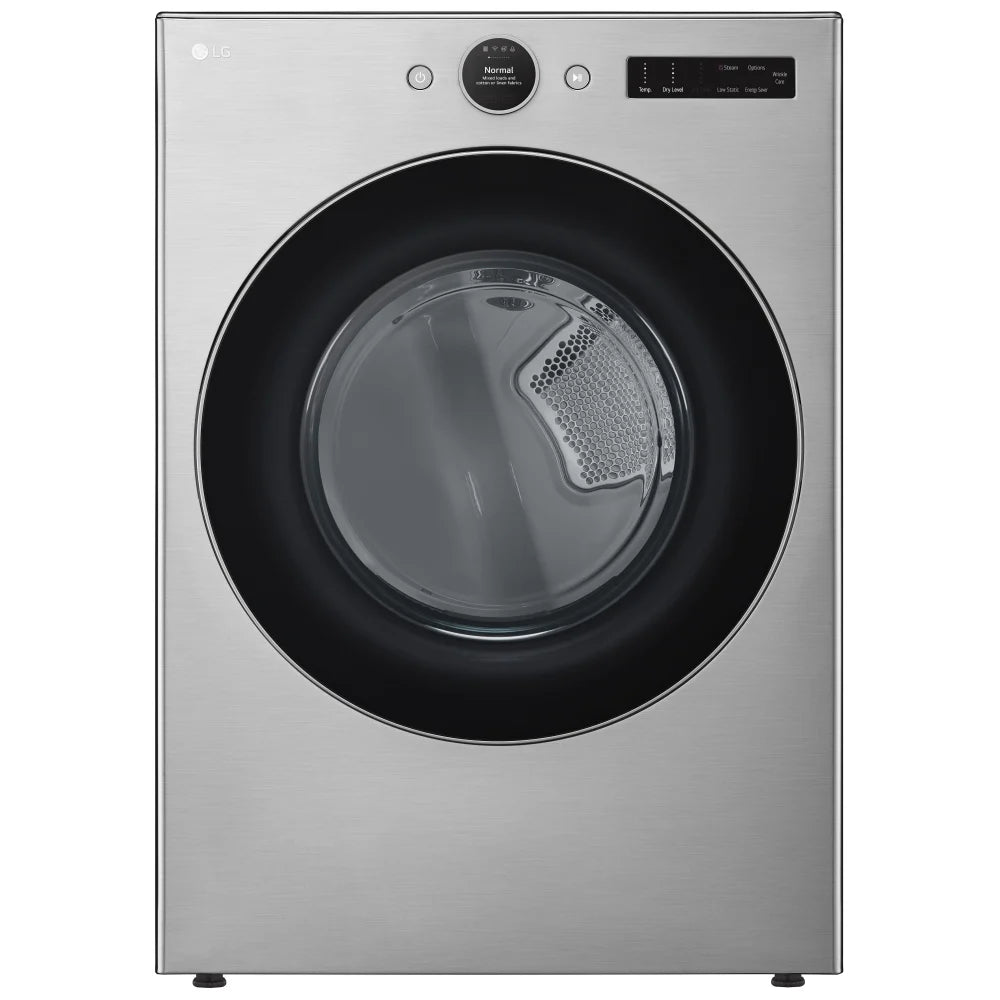

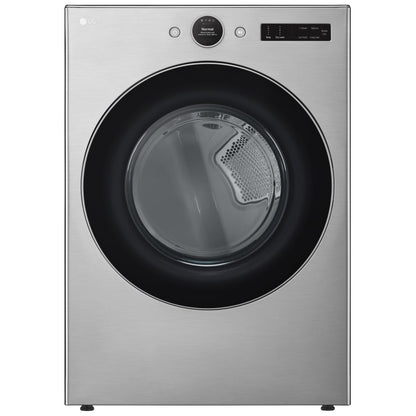

• Type: Front Load Dryer, Electric
• Vent Type: Vented

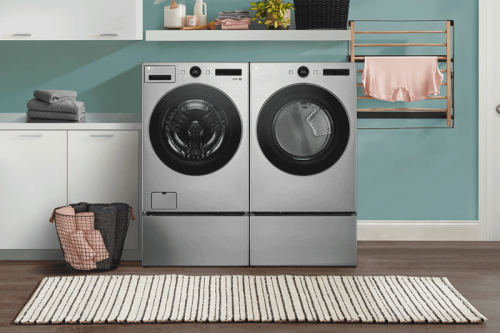

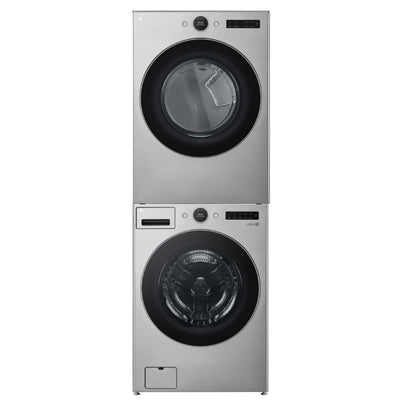

• Matching Washer: WM5500HVA
• Color: Graphite Steel (V)
• On-Door Electronic Control Panel with LED Display No
• LCD Display Yes
• Hard Buttons No

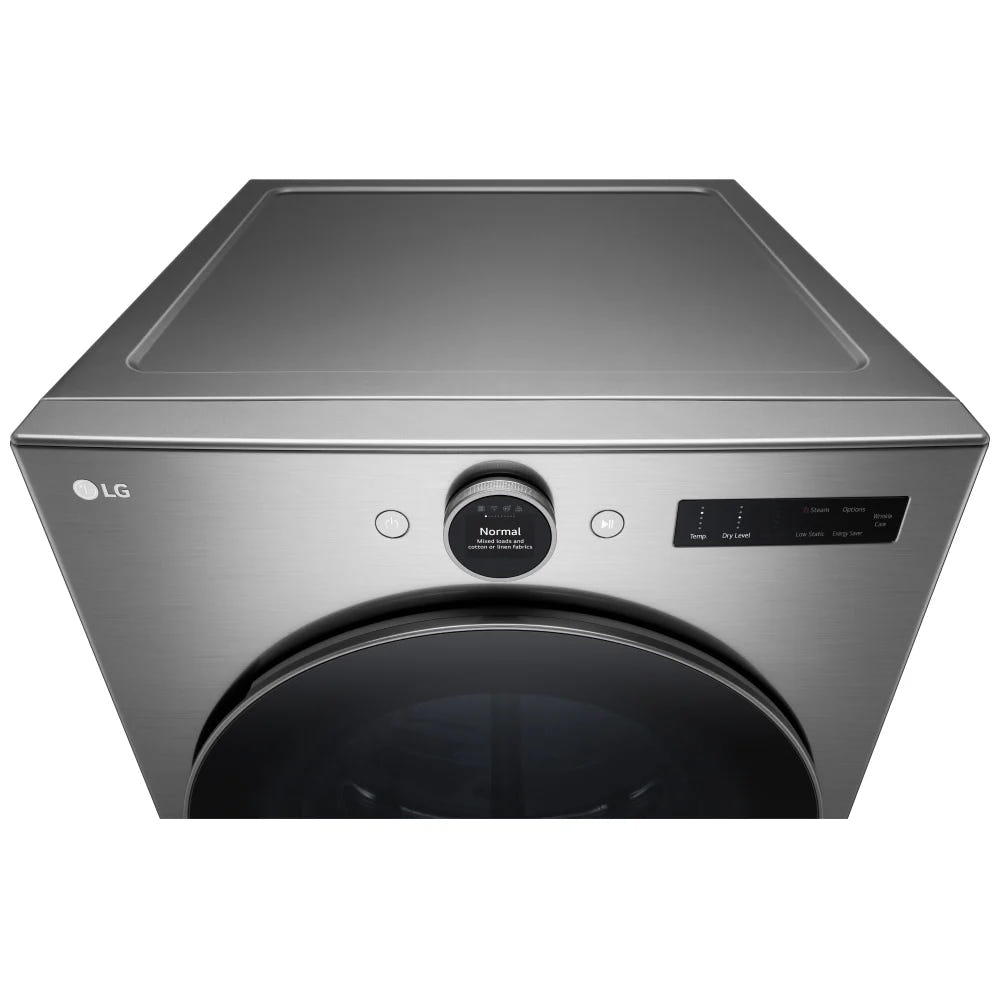

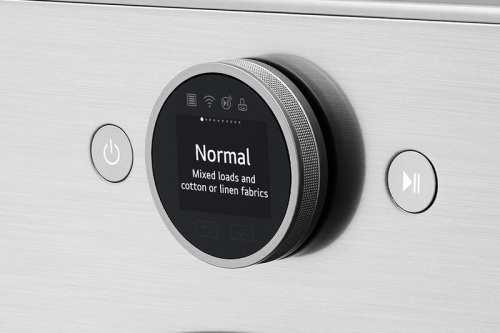

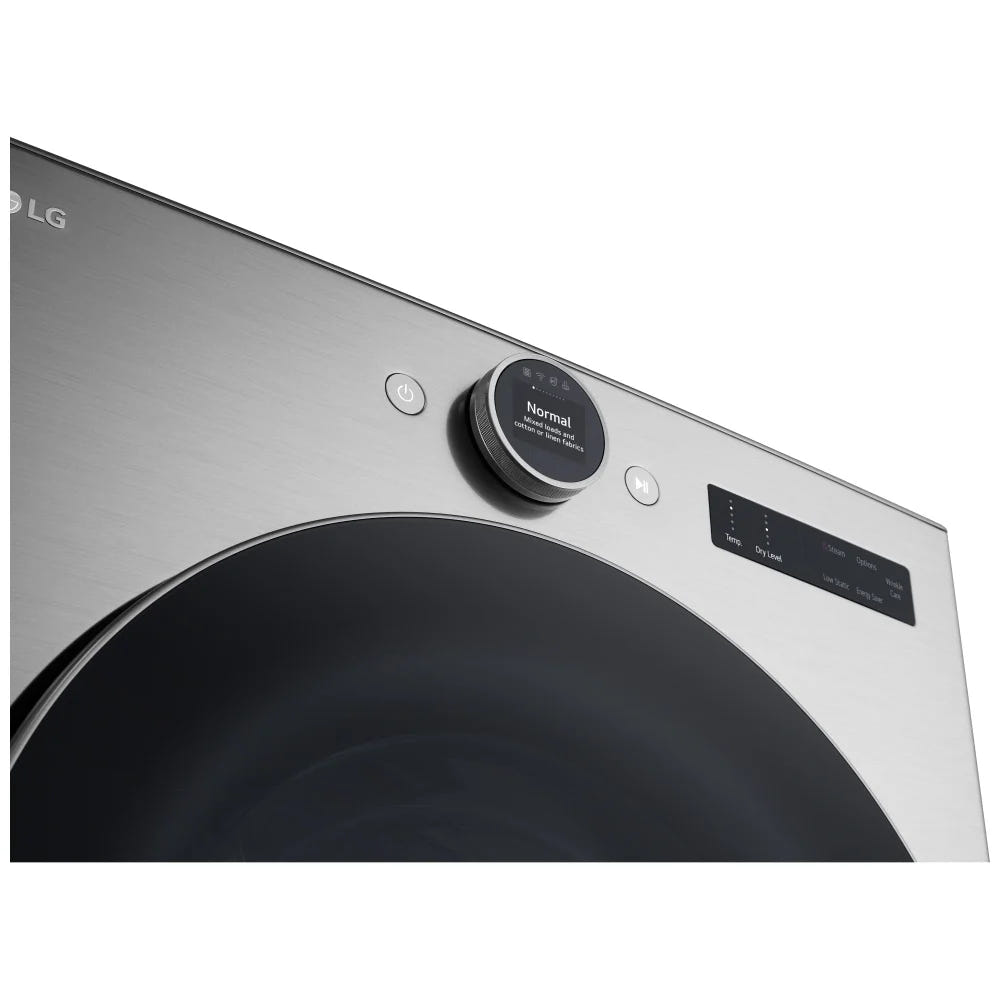

• Dial-A-Cycle® Yes
• Touch Buttons Yes
• Full Touch Electronic Control Panel with LED Display No

CAPACITY

• Capacity: 7.4 cu. ft.

DRYER PROGRAMS

• No. of Programs: 23
• Programs (Sensor Dry): Normal, AI Dry, Bedding, Delicates, Towels, Quick Dry,Timed Dry, Power Dry, Perm.Press, SteamFresh™, Heavy Duty, Air Dry, Steam SanitaryTM, Super Dry, Active Wear, Jeans, Blanket Refresh, Low Temp Dry, Overnight Dry, Easy Ironing, Small Load, Large Load Dry,X Large Load Dry
• No. of Options: 12
• Options: Cycle Optimization, Damp Dry Signal, Wrinkle Care, Control Lock, Wi-Fi, Energy Saver, TurboSteam®, Reduce Static, Remote Start, Drum Light, Signal, Cycle List Edit
• Temperature Settings: Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
• Drying LevelsVery Dry, More Dry, Normal Dry, Less Dry, Damp Dry
• Dry Mode No
• Manual Dry Times: 10 min ~ 100 min (10 min incremental)

FABRIC CARE FEATURES

• AI Sensor Dry™ Yes
• Sensor Dry Yes
• Precise Temperature Control with Variable Heater Yes
• Precise Temperature Control with Variable Compressor No

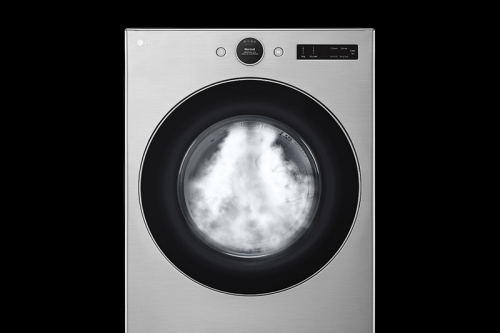

• Steam: TurboSteam™

CONVENIENCE FEATURES

• 3 Minute Installation Check Yes
• End of Cycle Signal Yes
• Drum Light Yes
• Reversible Door Yes
• FlowSense® Duct Clogging Indicator Yes
• Wrinkle Care Option Yes
• Control Lock Yes
• Venting Option: 4 Way Venting
• 4 Adjustable Legs Yes
• Remaining Time Display/Status Indicator(s) Yes

THINQ® TECHNOLOGY

• Smart Diagnosis™ (v3.0) Yes
• WiFi Yes
• NFC Tag On Technology No
• Remote Start and Cycle Monitor Yes
• Energy Monitoring Yes

ENERGY

• ENERGY STAR® Certified Yes
• CEF: 3.94

MATERIALS AND FINISHES

• Aluminized Alloy Steel Drum No

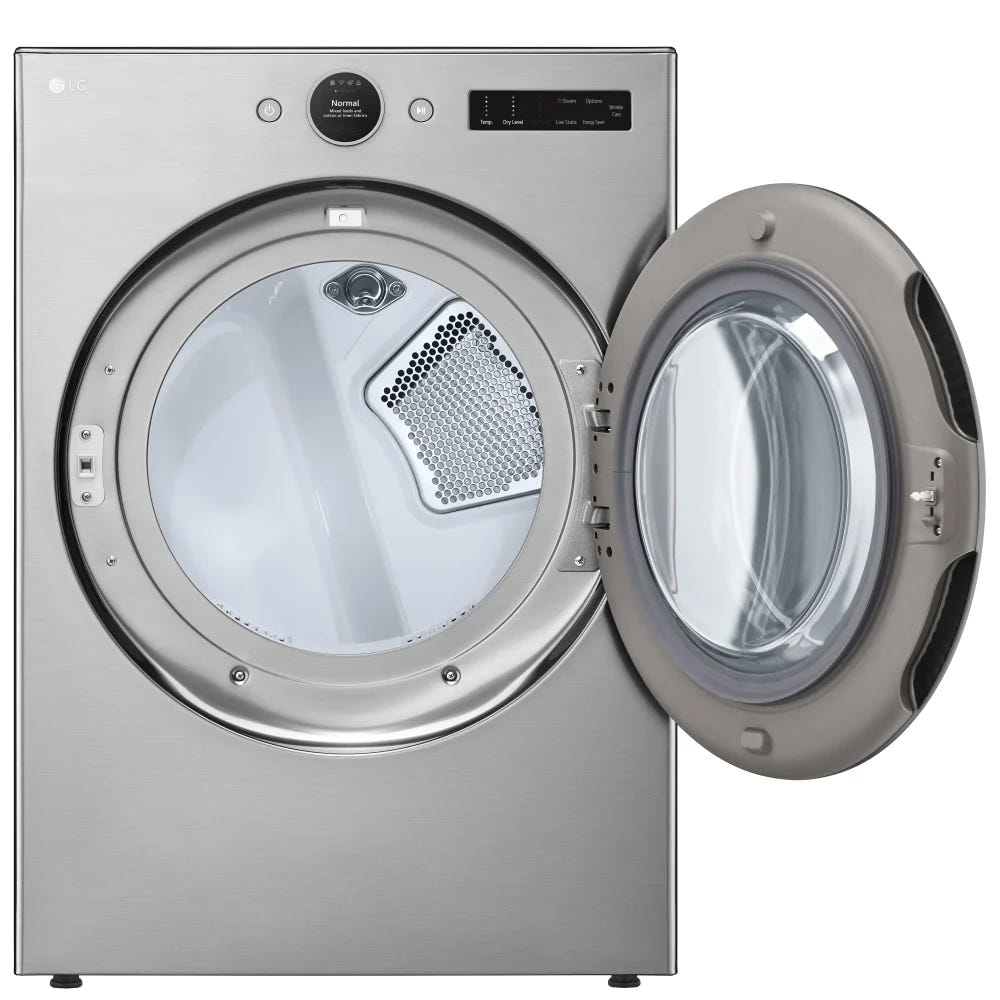

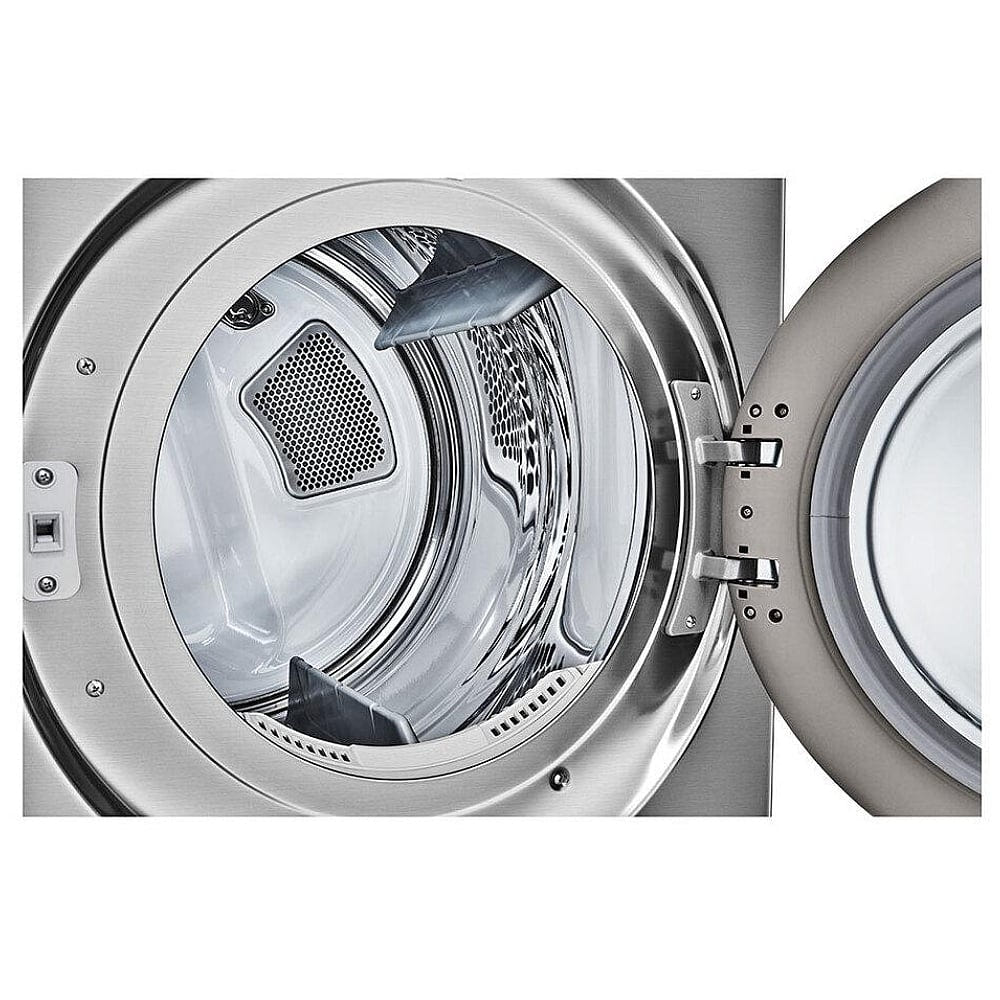

• NeveRust® Stainless Steel Drum Yes
• Cabinet: Painted Steel
• Door: Tempered Glass Door
• All Available Colors: Graphite Steel (V)

POWER SOURCE

• Ratings: CSA Listed
• Electrical Requirements120/240V, 60Hz, 26A (120/208V, 60Hz, 23A)
• Type: Electric

OPTIONS/ACCESSORIES

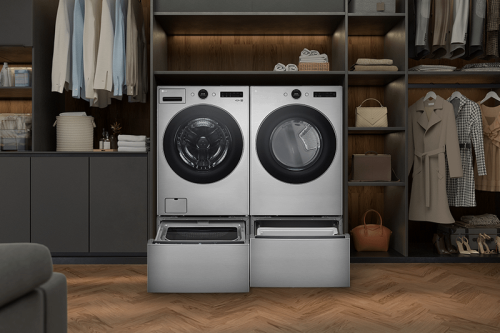

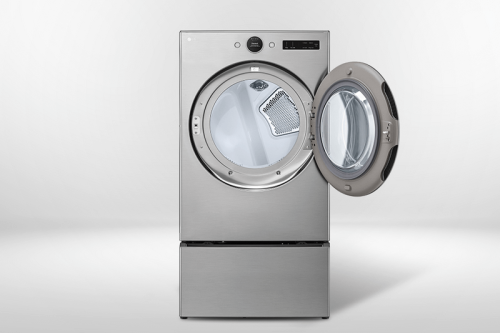

• Pedestal: WDP6V

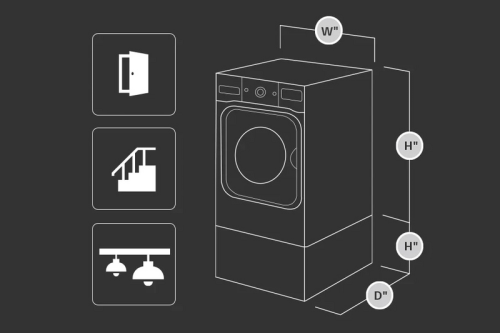

DIMENSIONS

• Product (WxHxD)27" x 39" x 29 3/4"
• Depth with Door Open51 3/8"
• Carton (WxHxD)28 7/8" x 43 1/8" x 31 3/8"
• Weight (Product)124.3 lbs
• Weight (Carton)136.5 lbs
• Pedestal (WxHxD)27" x 13 5/8" x 28" (43 7/8" D with door open)

WARRANTY & UPC

• Parts & Labour: 1 Year
• Drum: 3 Years
• UPC 195174056417
