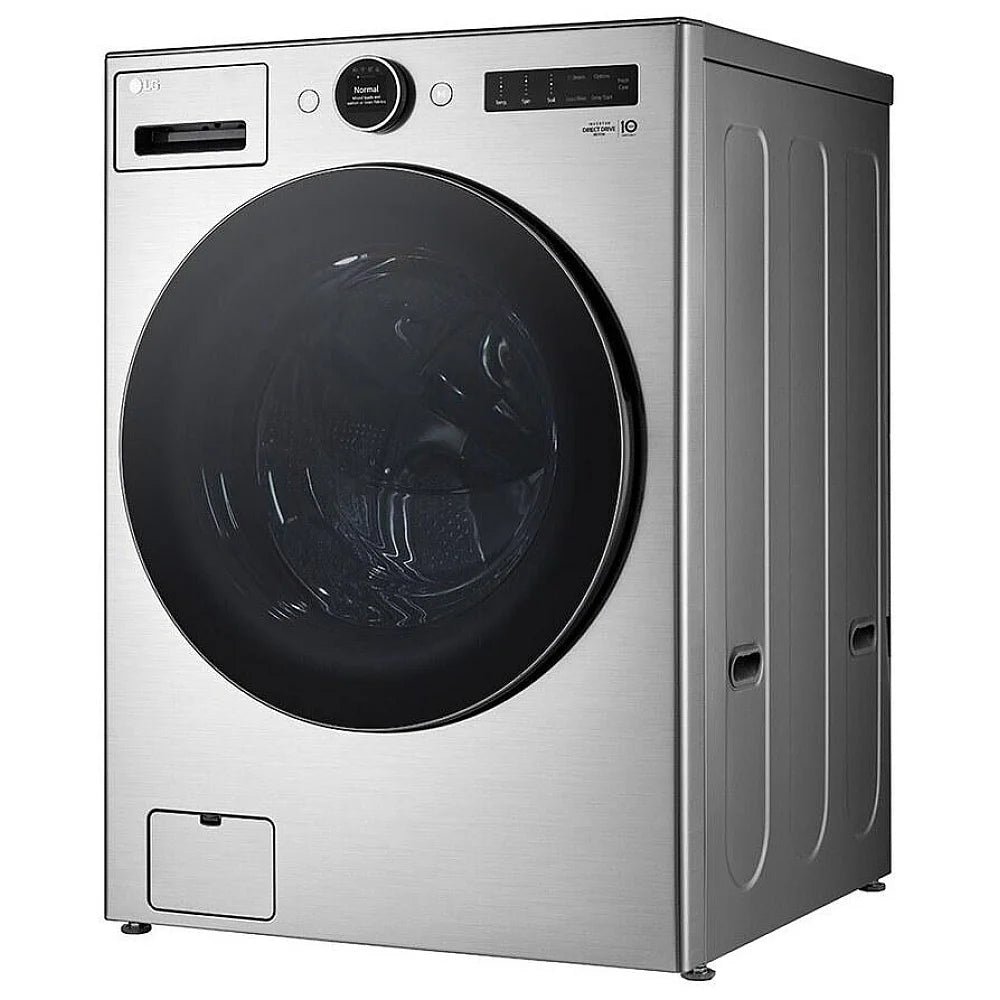

SUMMARY

• Series: LG
• Type: Front Load Washer, Electric

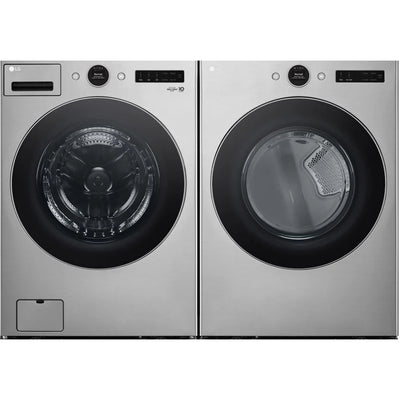

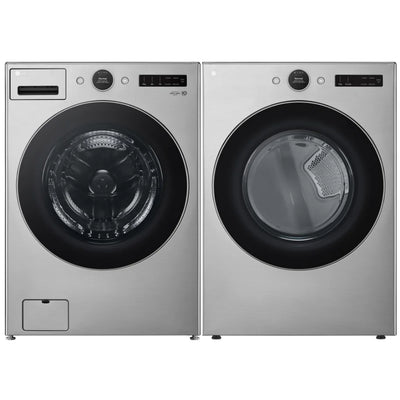

• Matching Electric Dryer: DLEX5500V
• Matching Gas Dryer: DLGX5501V
• Color: Graphite Steel (V)

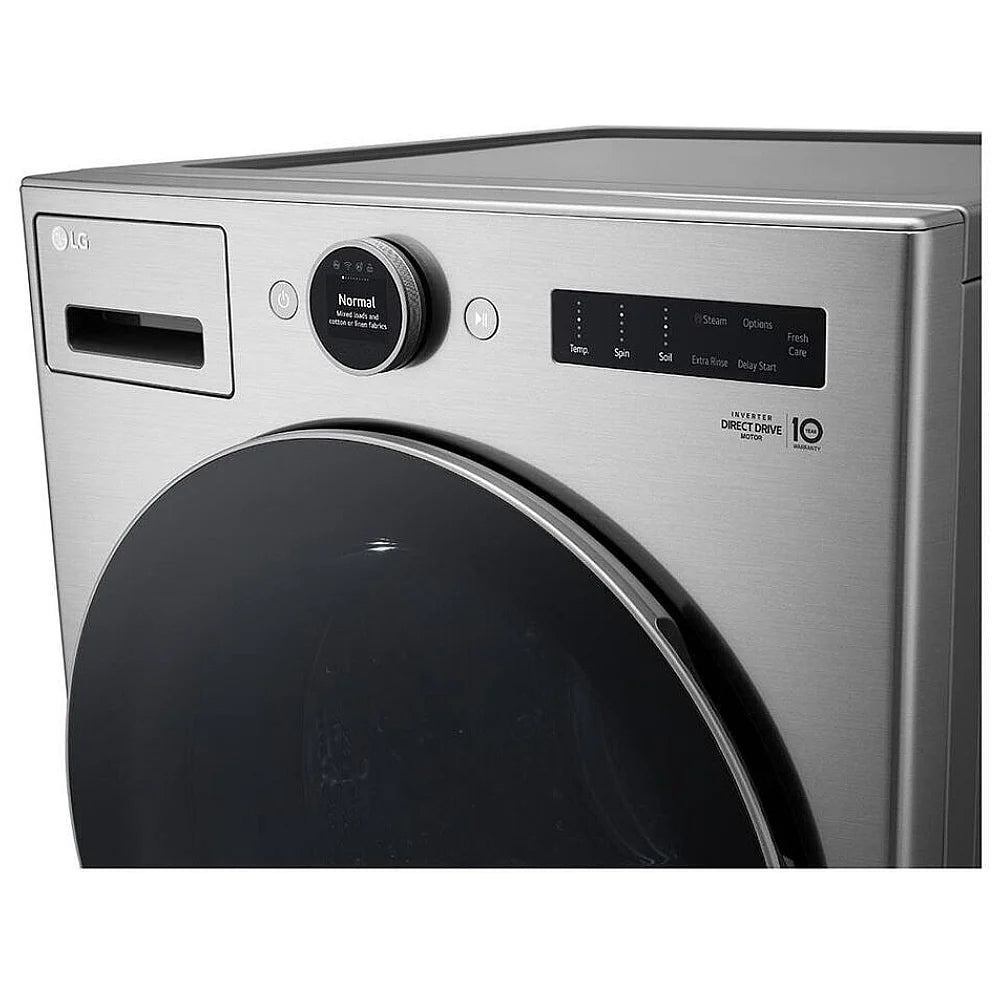

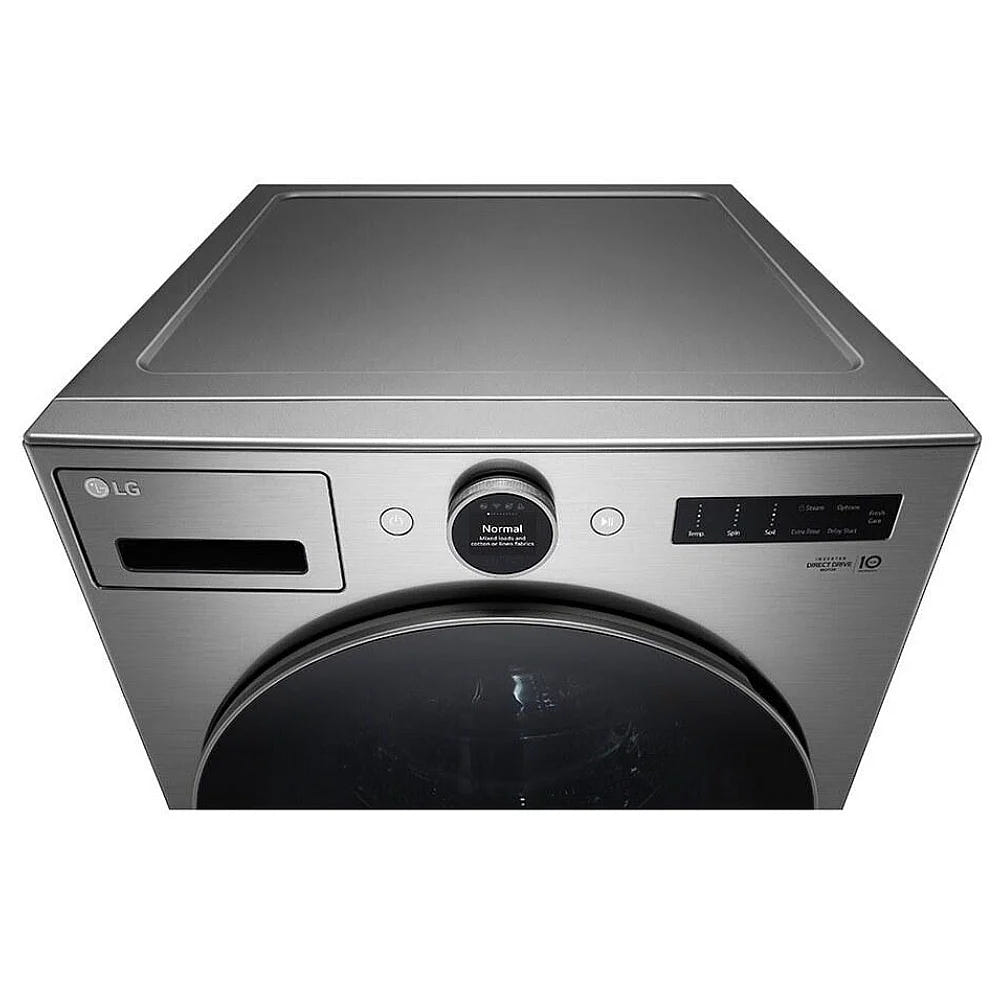

• LCD Display Yes
• Touch Buttons Yes

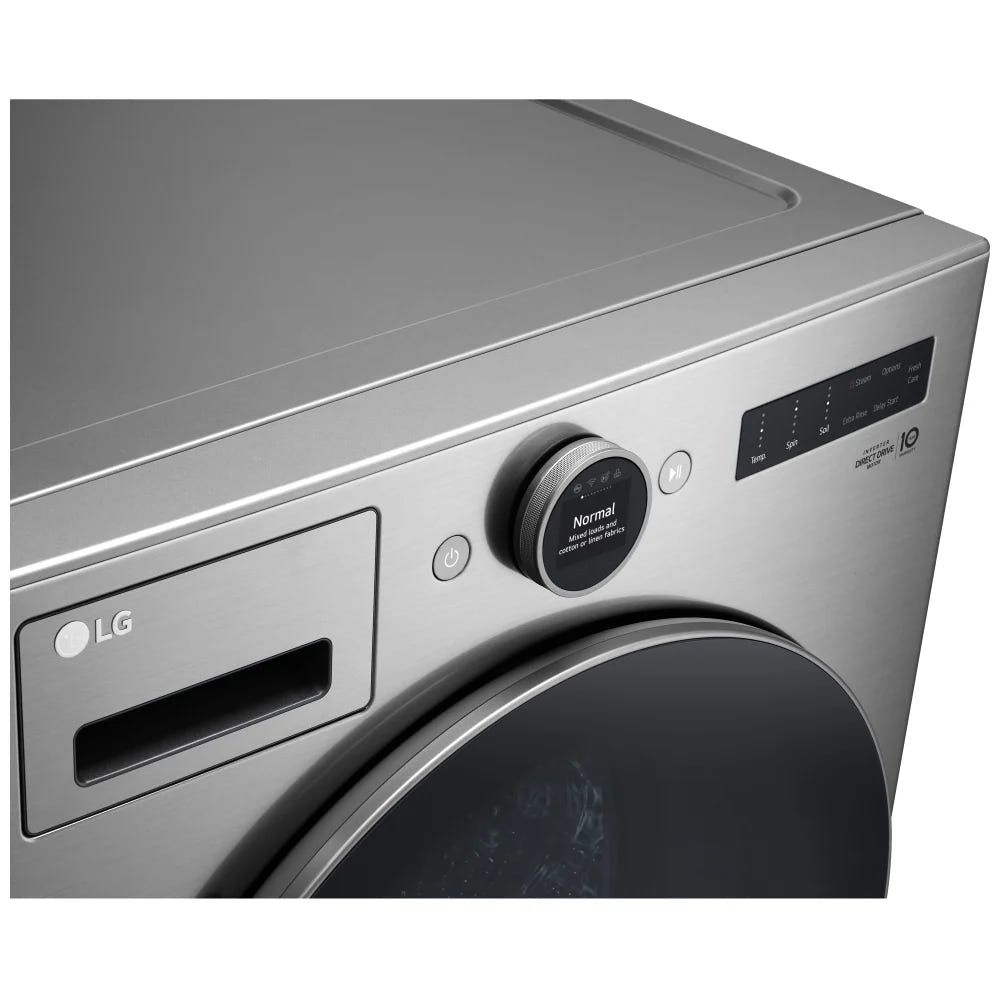

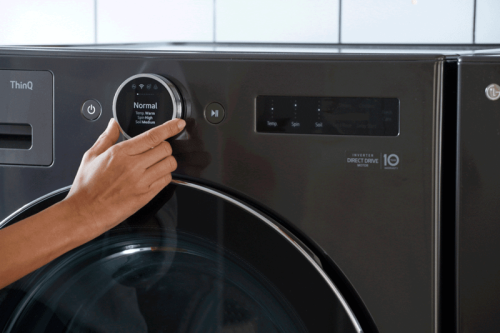

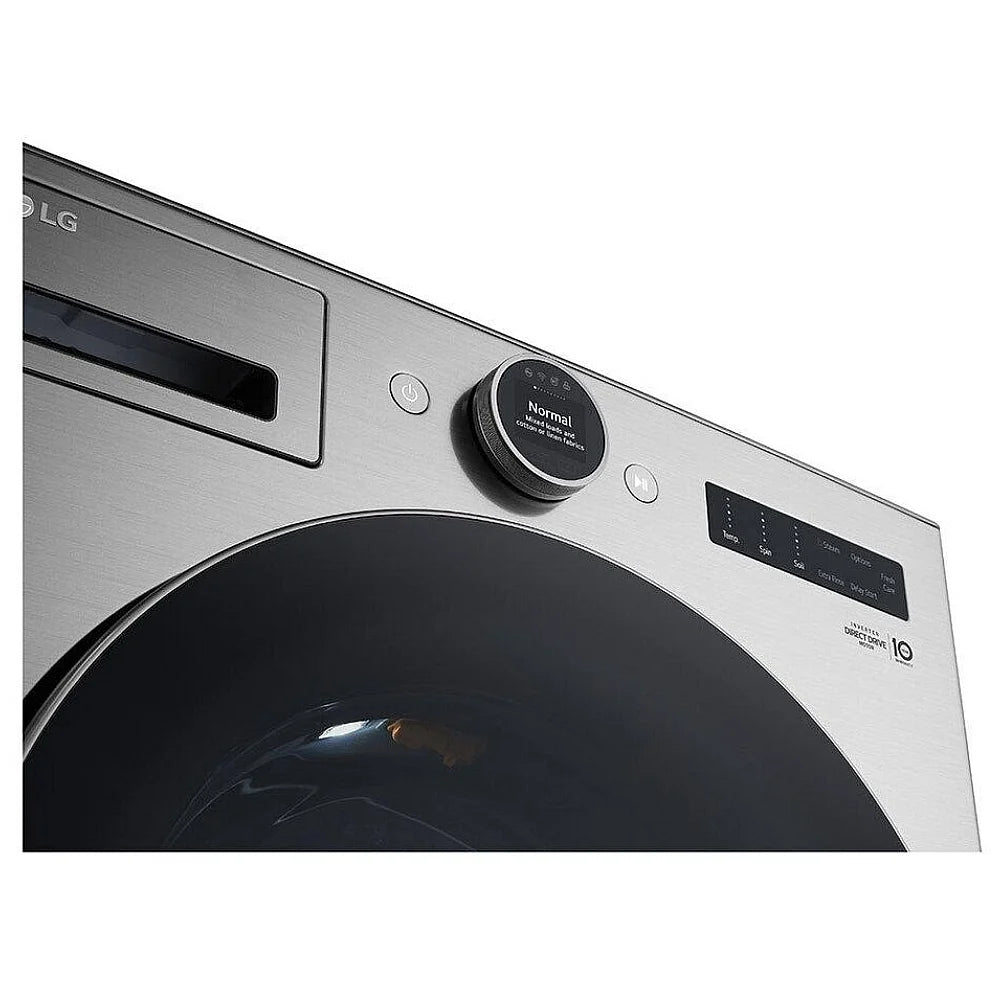

• Dial-A-Cycle® Yes

CAPACITY

• Capacity: 5.2 cu.ft.

ENERGY

• ENERGY STAR® Most Efficient Yes
• ENERGY STAR® Certified Yes
• CEE Tier: Tier2
• IMEF: 2.92
• IWF: 3.0

WASH PROGRAMS

• No. of Programs 25
• Wash Programs: Normal, AI Wash, Bedding, Delicates, Towels, Quick Wash, Heavy Duty, Allergiene™, Perm.Press, Tub Clean, Bright Whites™, Sanitary, Rinse+Spin, Spin Only, Hand/Wool, Active Wear, Swimwear, Kids Wear, Jeans, Dresses, Color Care, Sweat Stains, Small Load, Large Load, X Large Load
• No. of Options 15
• Options: TurboWash®, Steam, Fresh Care, Pre-wash, Remote Start, Delay Wash, Wi-Fi, Add Item, Extra Rinse, Control Lock, Drum Light, Cold Wash, Signal, Cycle List Edit, Cycle Optimization
• No. of Wash/Rinse Temps: 5
• Wash/Rinse TempsEx. Hot / Hot / Warm / Cold / Tap Cold
• No. of Spin Speeds: 5
• Spin SpeedsEx. High / High / Medium / Low / No Spin
• No. of Water Levels: Load Sensing
• No. of Soil Levels: 5

FABRIC CARE FEATURES

• AI DD™ Yes
• TurboWash® 360 Technology: Yes
• Steam Technology: Yes
• Allergiene™ Cycle Yes
• Sanitary Cycle Yes
• ColdWash™ Option Yes

CONVENIENCE FEATURES

• Vibration sensing(Cabinet Vibration sensor) Yes
• TrueBalance® Anti-Vibration System Yes

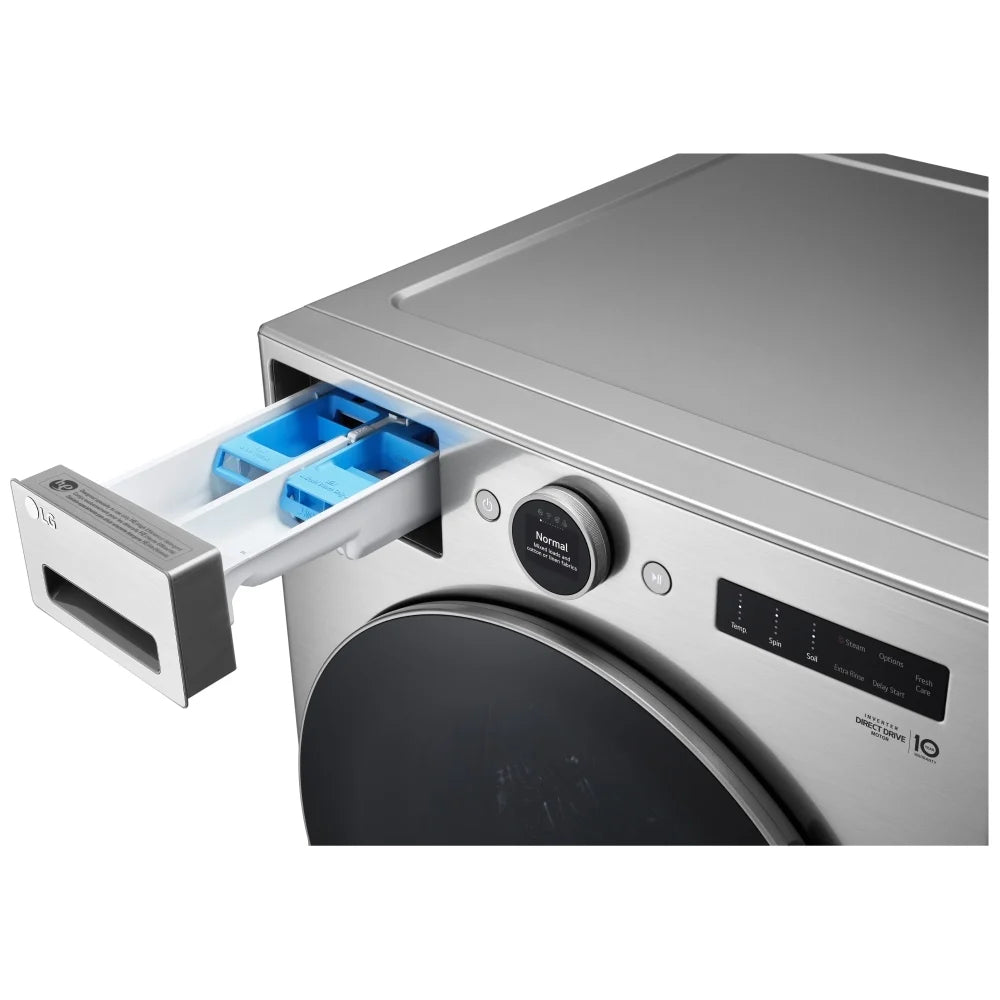

• 4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
• End of Cycle Signal Yes
• LoadSense Yes
• Control Lock Yes
• Auto Suds Removal Yes
• Leveling Legs: 4 Adjustable Legs

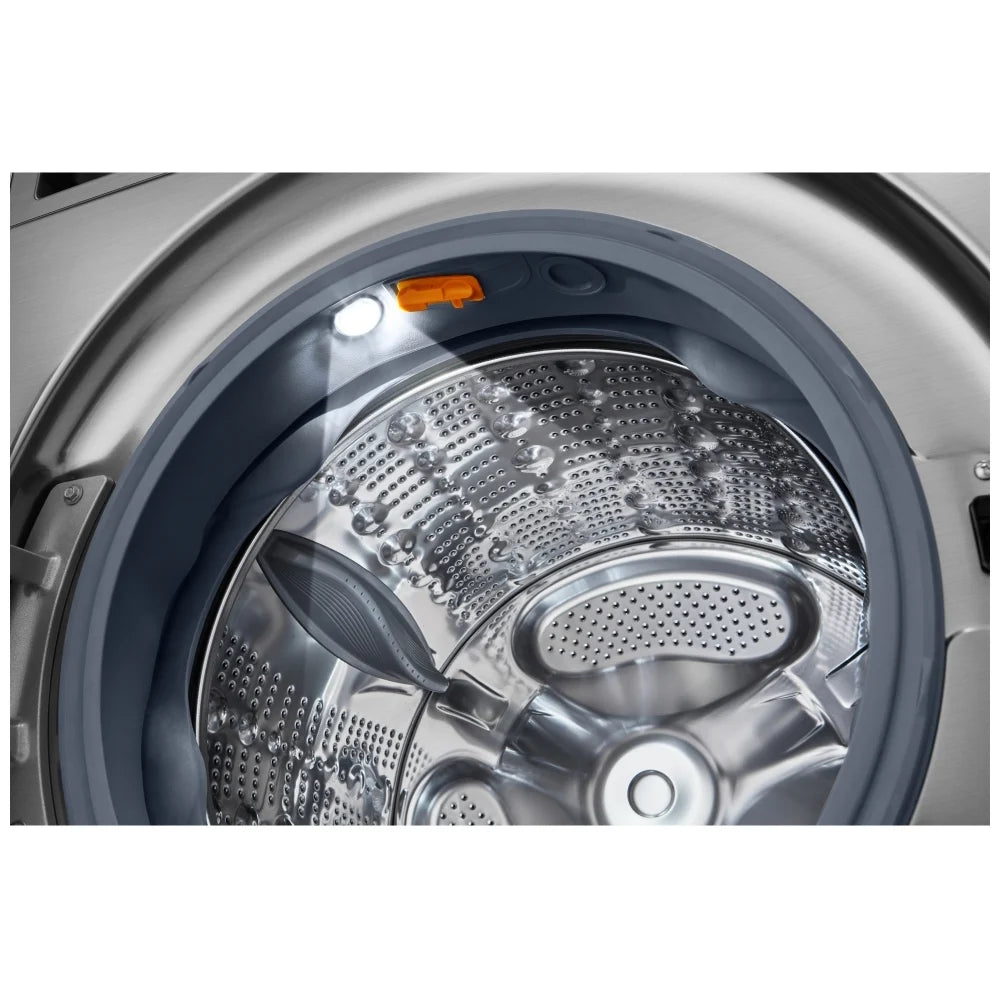

• Drum Light Yes

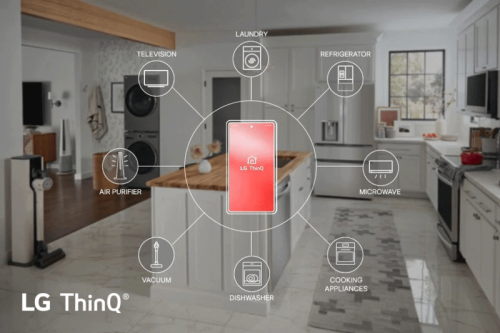

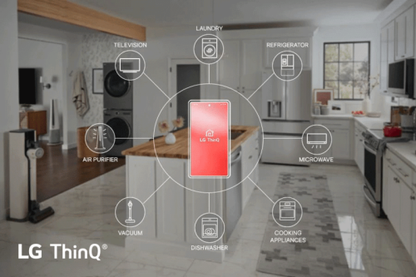

THINQ® TECHNOLOGY

• SmartDiagnosis™ Yes

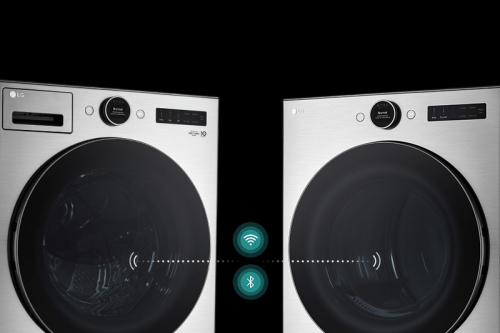

• WiFi Yes
• Energy Monitoring Yes
• Tub Clean Coach Yes

MOTOR & AGITATOR

• Motor TypeInverter Direct Drive Motor
• Axis Horizontal
• Max RPM 1300

MATERIALS AND FINISHES

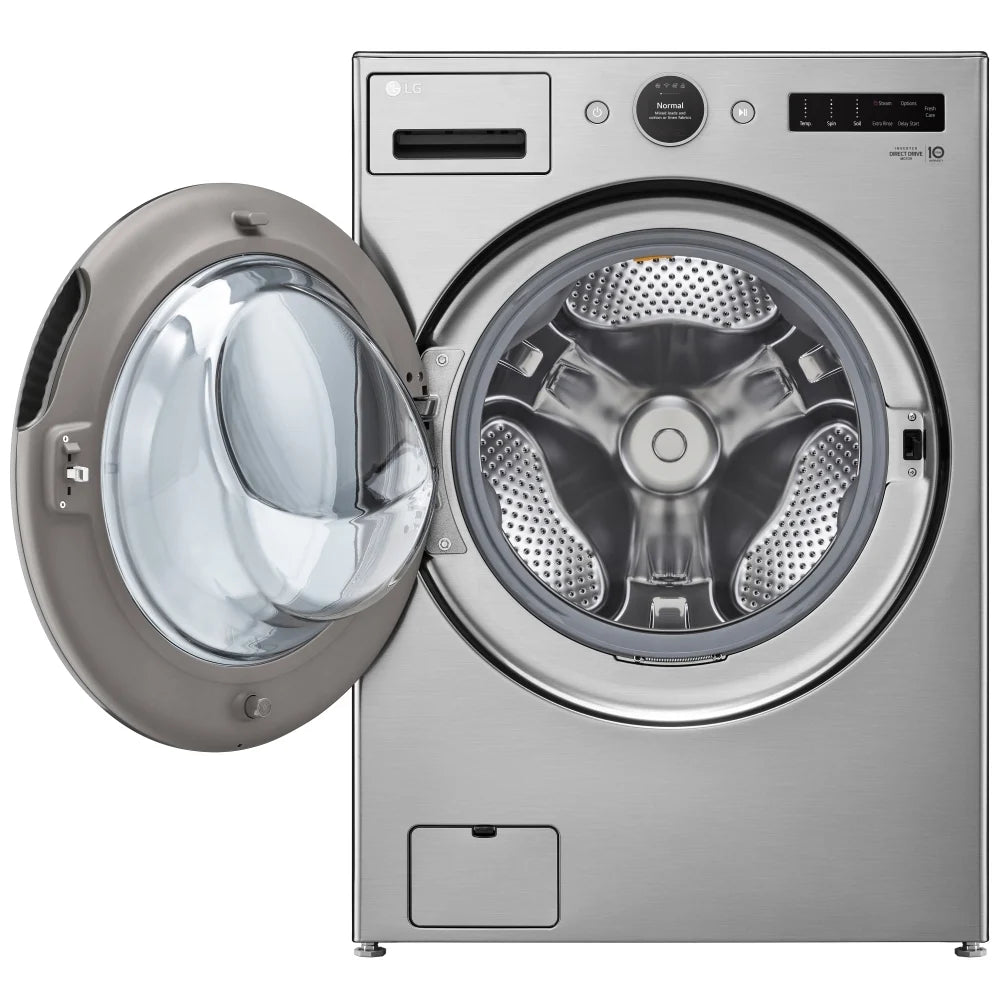

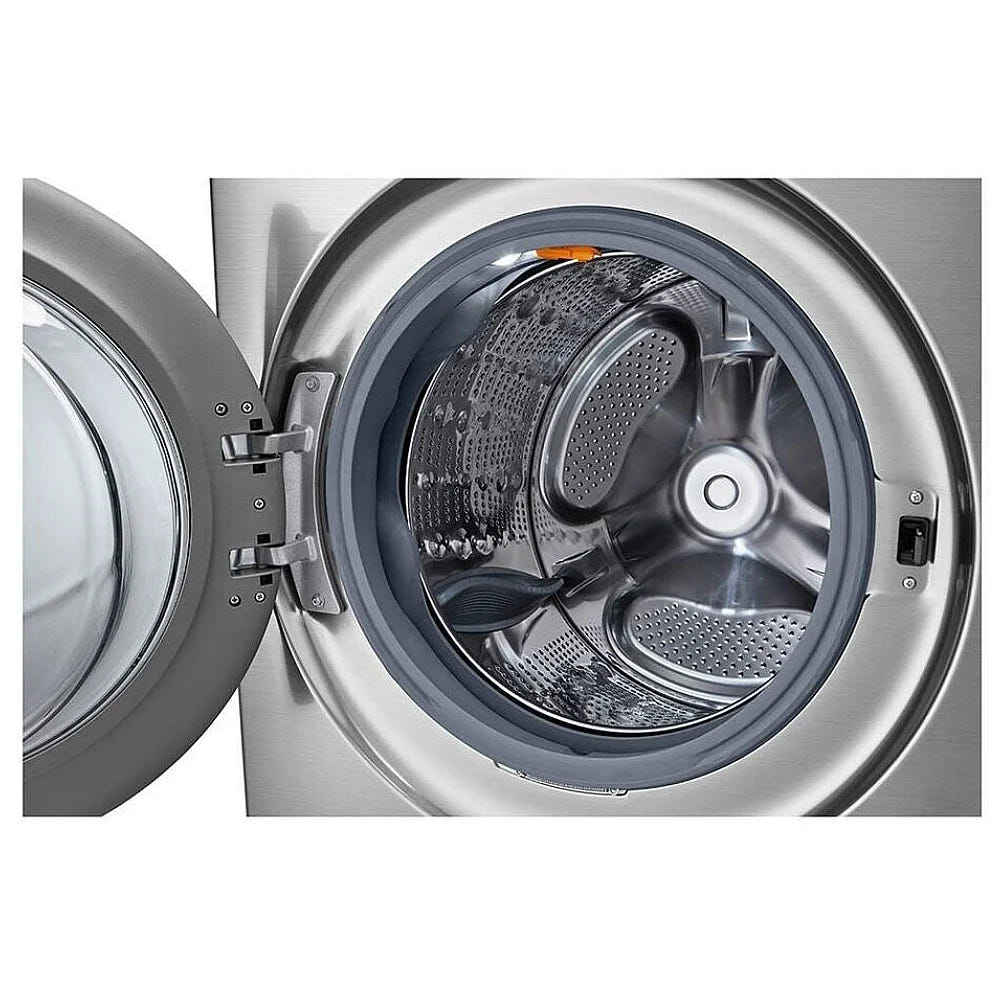

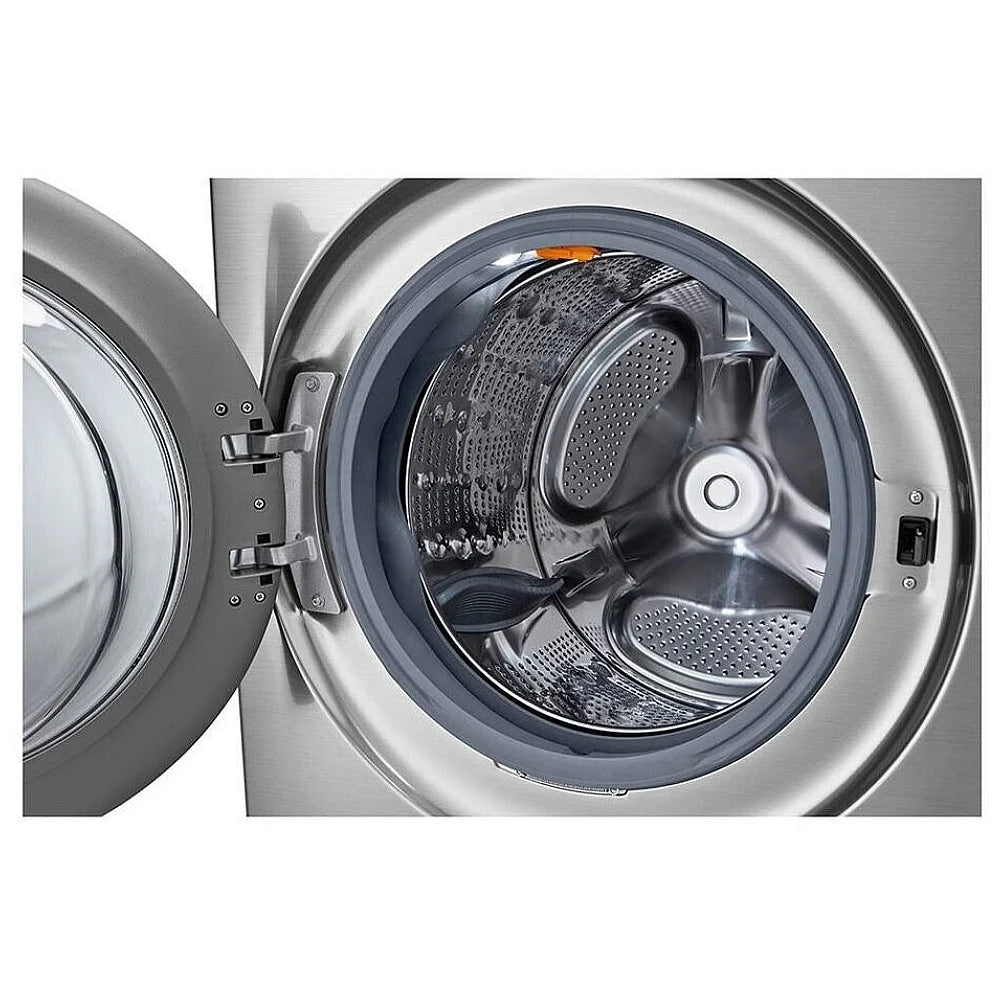

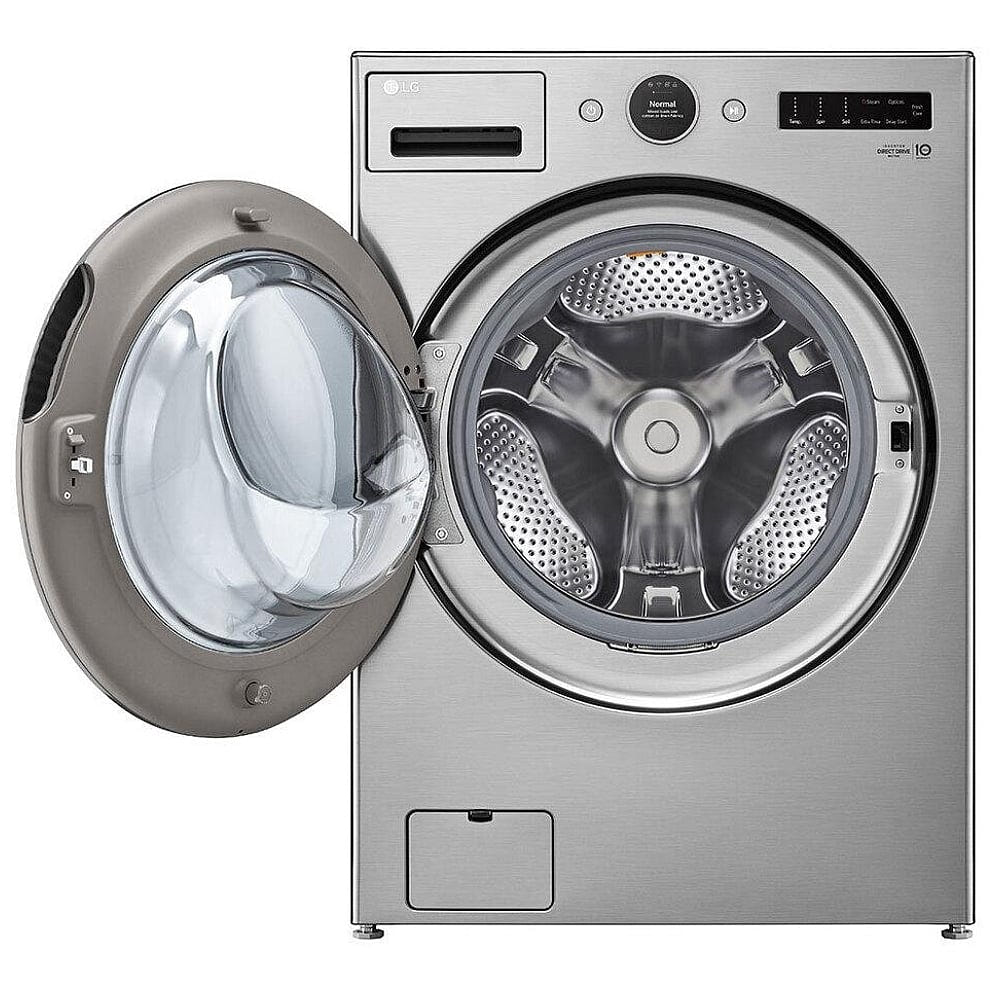

• NeveRust® Stainless Steel Drum Yes
• Cabinet: Painted Steel (One unit)
• Top Plate: Painted Steel
• Door / Rim: Glass/STS Silver
• Door Cover: Tempered Glass Door
• All Available Colors: White (W), Graphite Steel (V)

CERTIFICATION

• Asthma Canada Yes

POWER SOURCE

• Ratings: UL Listed
• Electrical Requirements 120V, 10 Amps
• Type: Electric

OPTIONS/ACCESSORIES

• Pedestal: WDP6V
• LG Sidekick™ Pedestal Washer: WD300CV

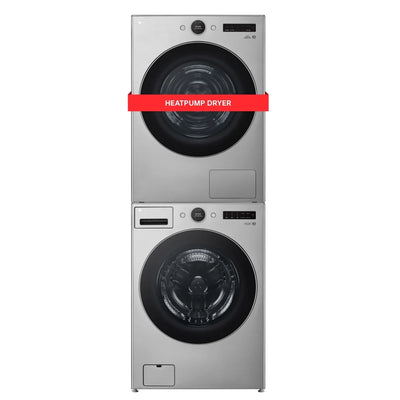

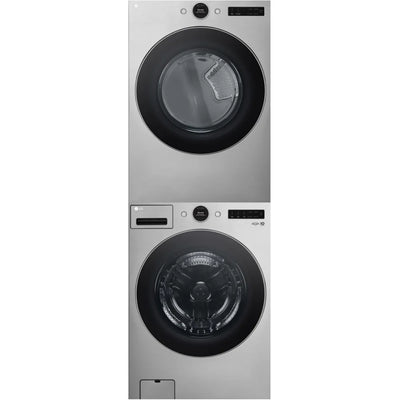

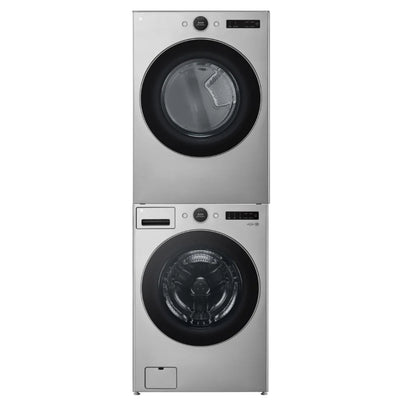

• Stacking Kit: KSTK4

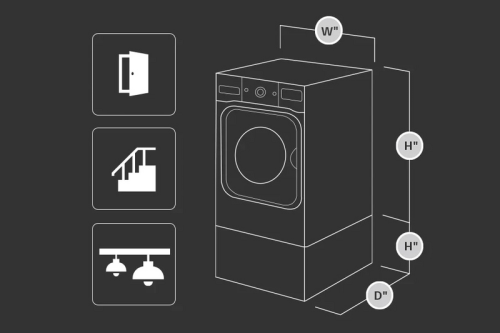

DIMENSIONS

• Product (WxHxD)27" x 39" x 30 1/4"

• Depth with Door Open 55"
• Carton (WxHxD)29 1/2" x 42 1/8" x 31 1/2"
• Weight (Product/Carton)200.8 / 214.4 lbs.
• Pedestal (WxHxD)27" x 13 5/8" x 28" (43 7/8" D with door open)
• LG Sidekick™ Pedestal Washer (WxHxD)27" x 14 1/8" x 30 3/4" (50 1/2 with drawer open)

WARRANTY & UPC

• Parts & Labour: 1 Year
• Direct Drive Motor: 10 Years
• Drum: 3 Years
• UPC 195174052976
