Capacity
Freezer (cu.ft.)
7.9 cu.ft.
Refrigerator (cu.ft.)
17.2 cu.ft.
Total Capacity (cu.ft.)
25.1 cu.ft.
Convenience
ADA Compliant
Yes
Auto Closing Door Hinge
Yes
Child Lock
Yes
Door Alarm
Yes
Sabbath Mode
Yes
Temperature Controls
Electronic / Digital
Cooling
Refrigerant
Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 78g / 2.75oz)
Compressor Type
Smart Inverter
Evaporator
1

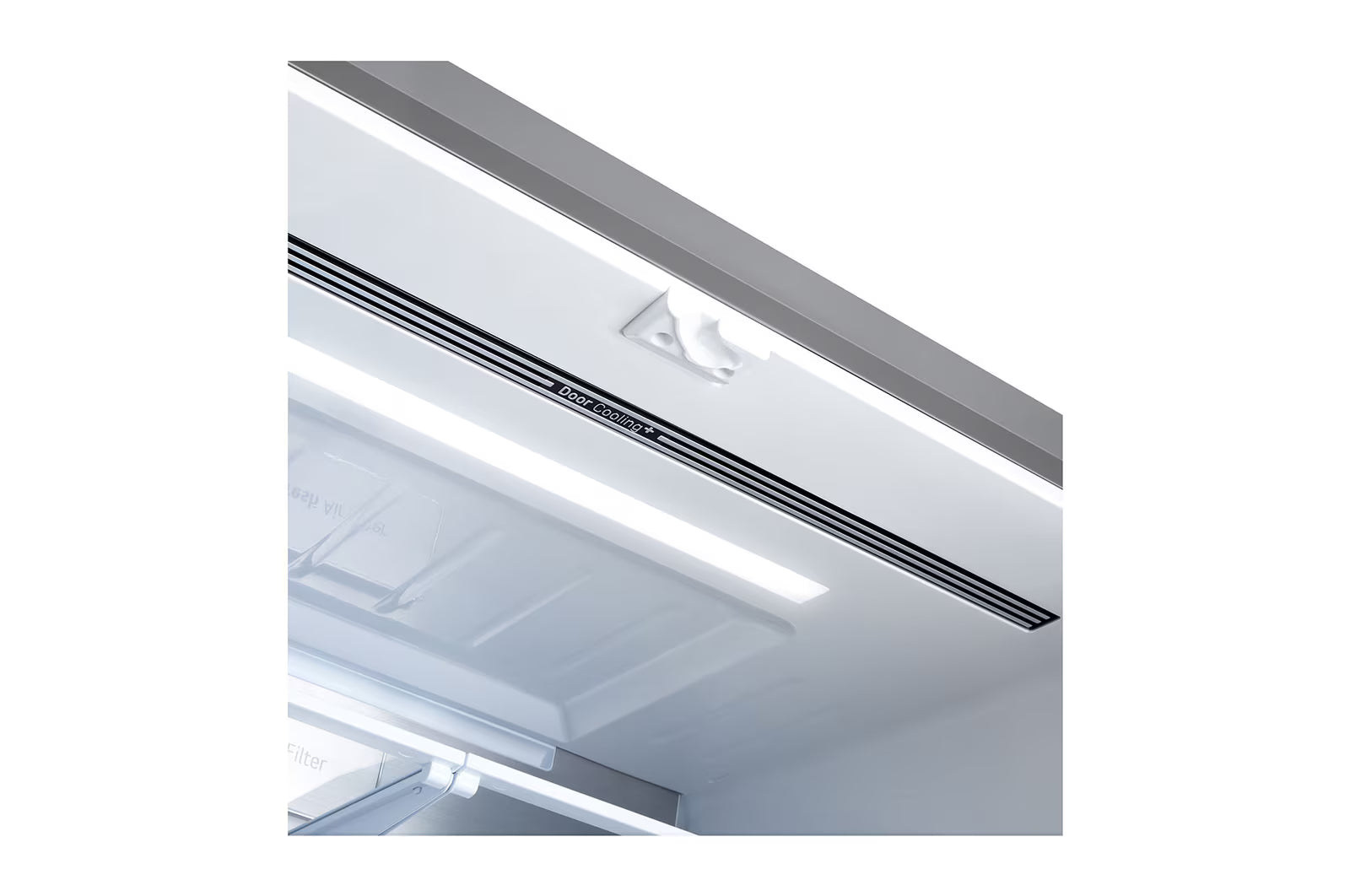

Multi-Air Flow™ System
Yes
Temperature Sensors
2
Dimensions/Clearances/Weights
Carton Dimensions (WxHxD)
38" x 73" x 30"
Depth (Draw Open Fully without Handle)
43.875"
Depth (to Hinge Cover)
18.25"
Depth (Total with Door Open)
43.75"
Depth without Door
24.75"
Depth without Handles
27.5"
Dimensions (W case x H top of hinge x D with handles)
35 3/4" x 70 1/4" x 27 1/2''
Door Edge Clearance with Handle
2.125"
Height (Floor to Top of Drawer)
27.875"
Height to Top of Case
68.875"
Height to Top of Door Hinge
70.25"
Installation Clearance
Sides 5/32
Weight (Unit/Carton)
235 lbs/ 255 lbs.
Width
35.75"
Width (Door Fully Open without Handle)
45.5"
Width (Door Open 90 with Handle)
40"
Width (Door Open 90 without Handle)
35.125"
Energy
ENERGY STAR® Qualified
Yes

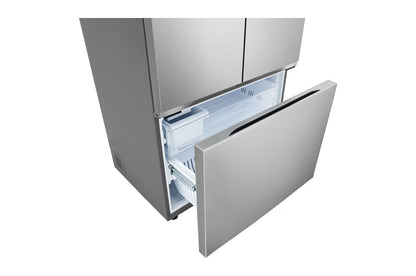

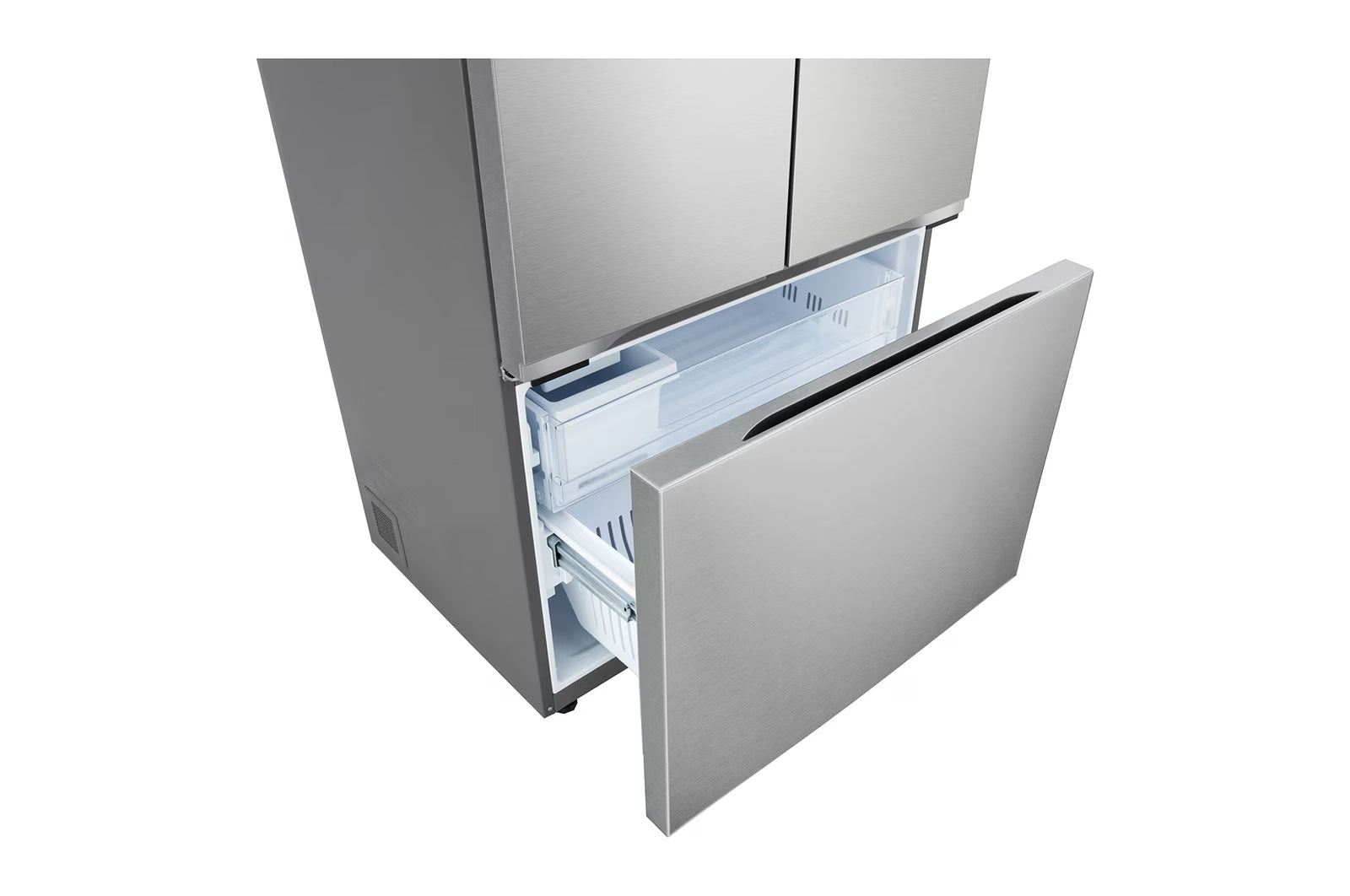

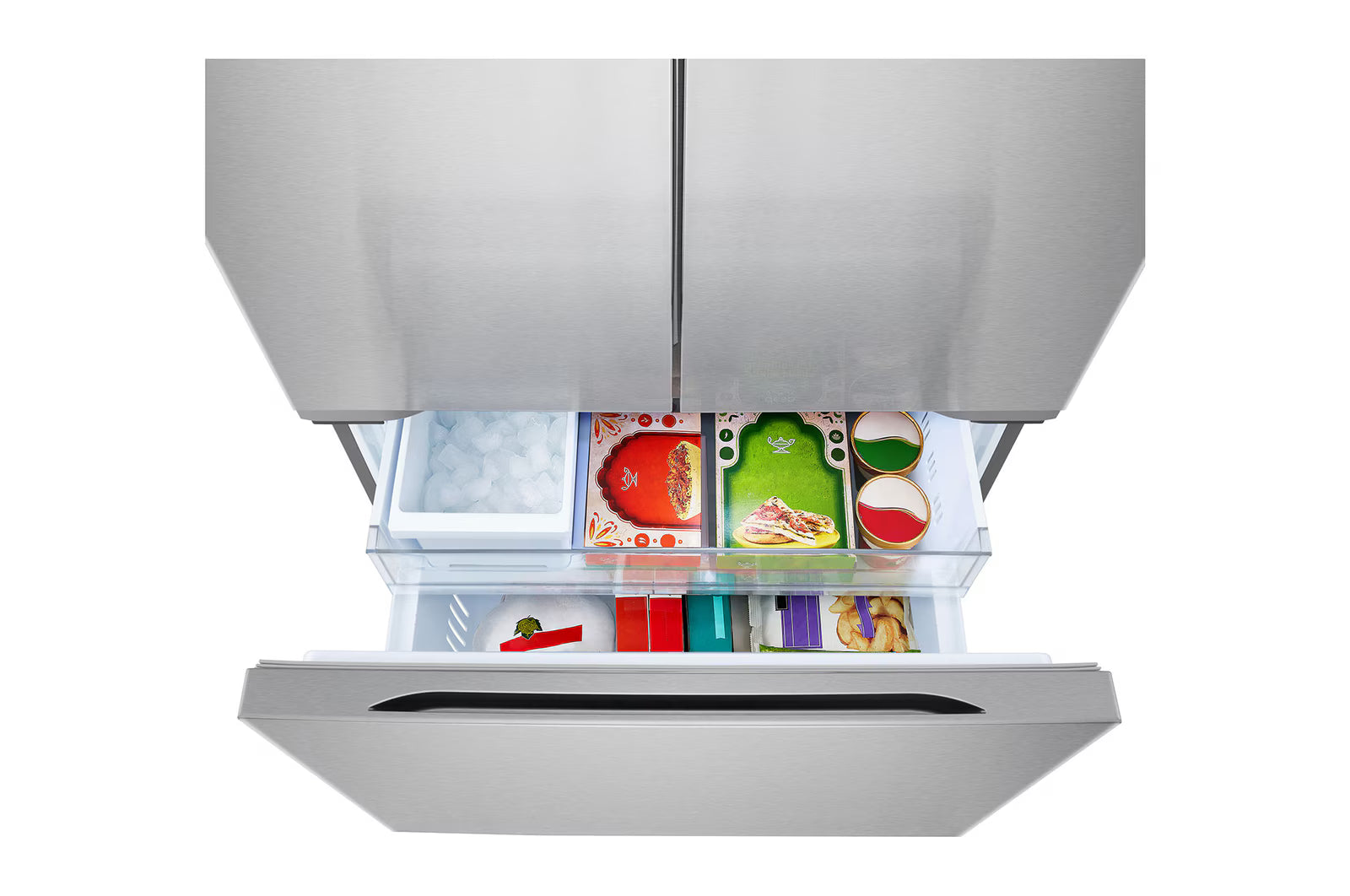

Freezer
Door Type
Pull Drawer
Drawer Divider
No
Drawers/Shelves
2-Tier Organization
Freezer Light
Upper (LED Lighting) / Lower (No)
Limited Warranty & UPC
Compressor (Parts & Labor)
5 Years
Parts & Labor
1 Year
Sealed System (Parts & Labor)
5 Years
UPC
195174113745
Materials and Finishes
Insulation
Low GWP and Zero ODP Blowing Agent
All Available Colors
PrintProof™ Stainless Steel
Handles
Matching Commercial Handles

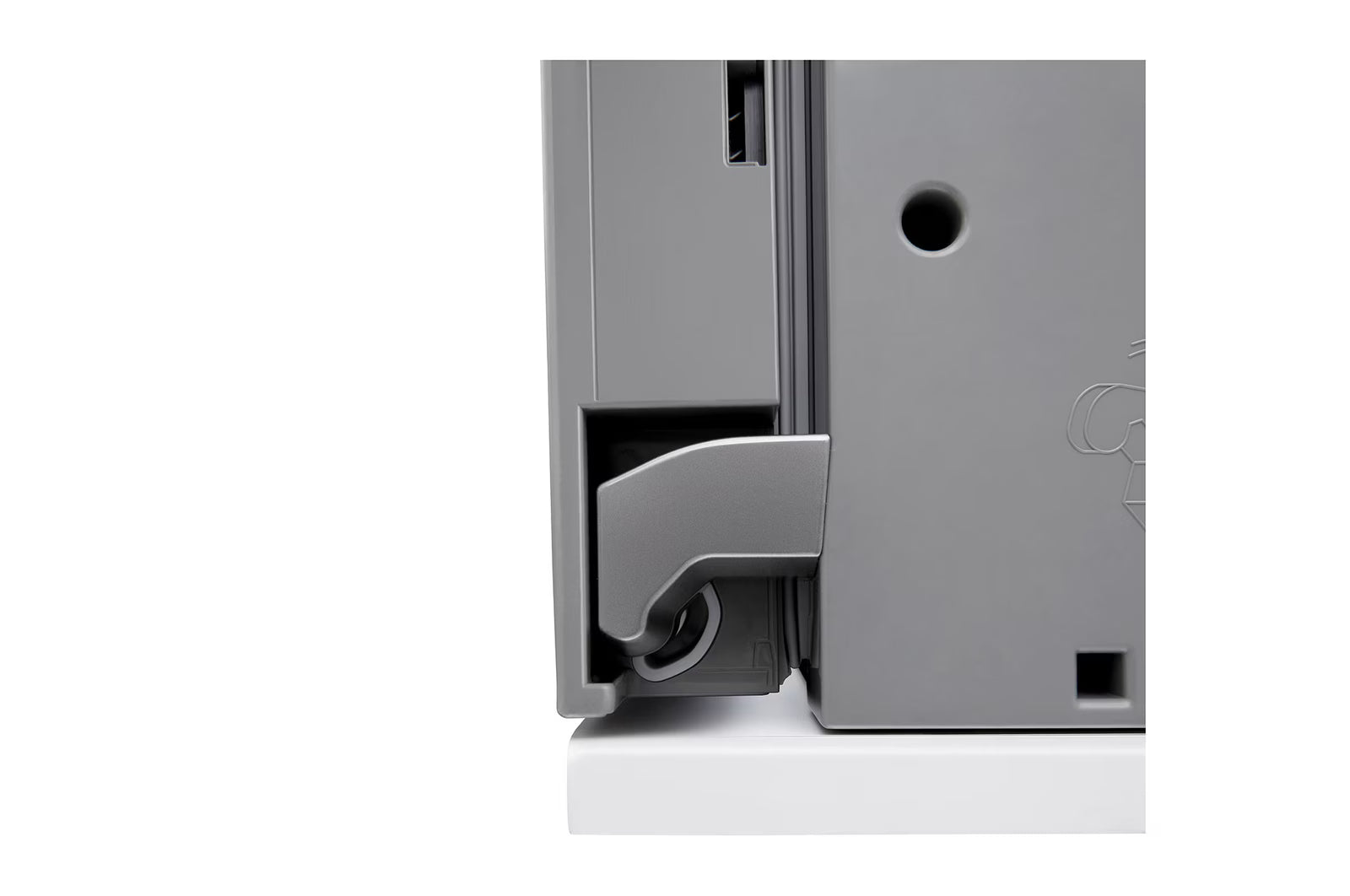

Hidden Hinges
Yes

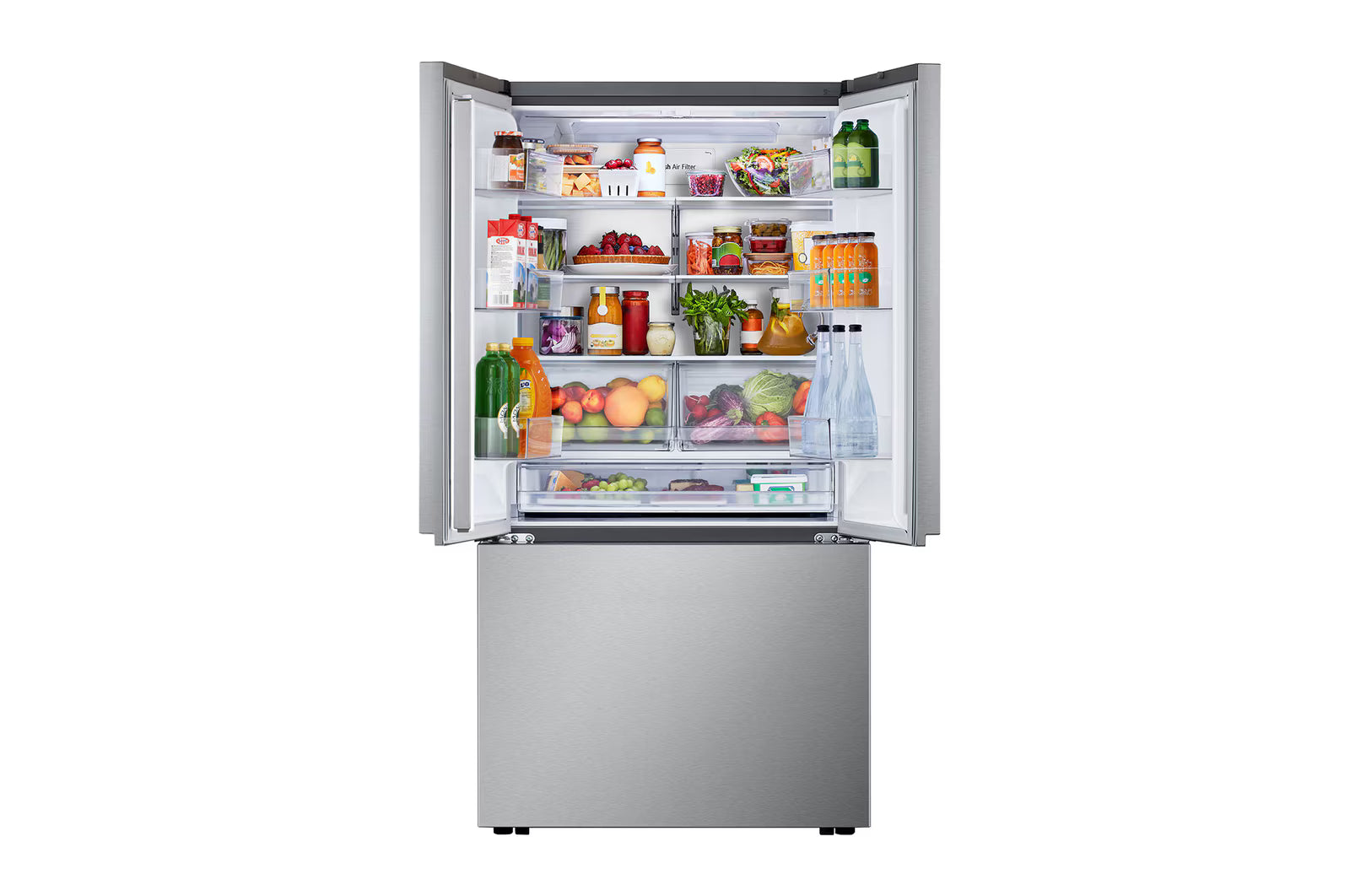

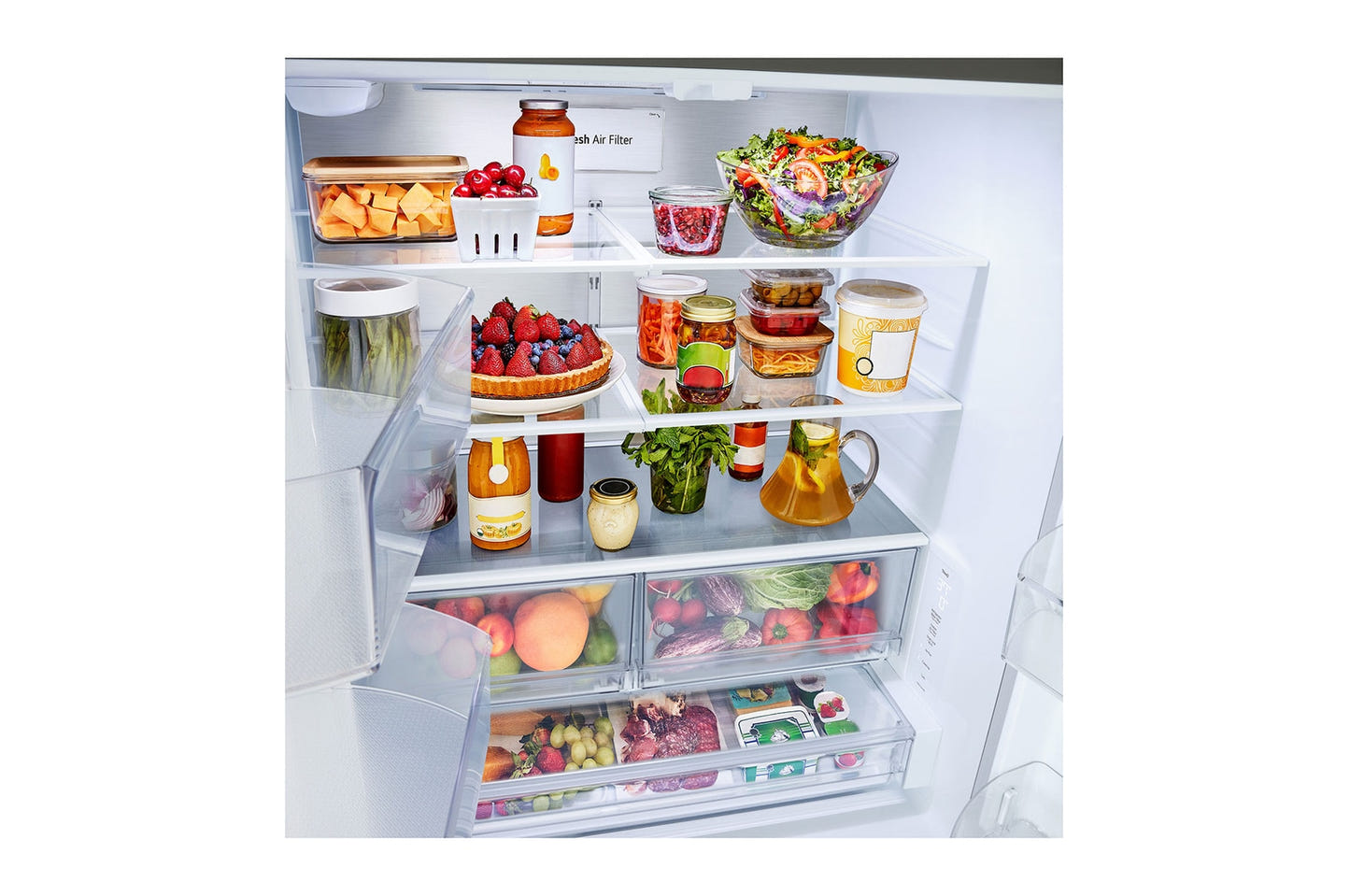

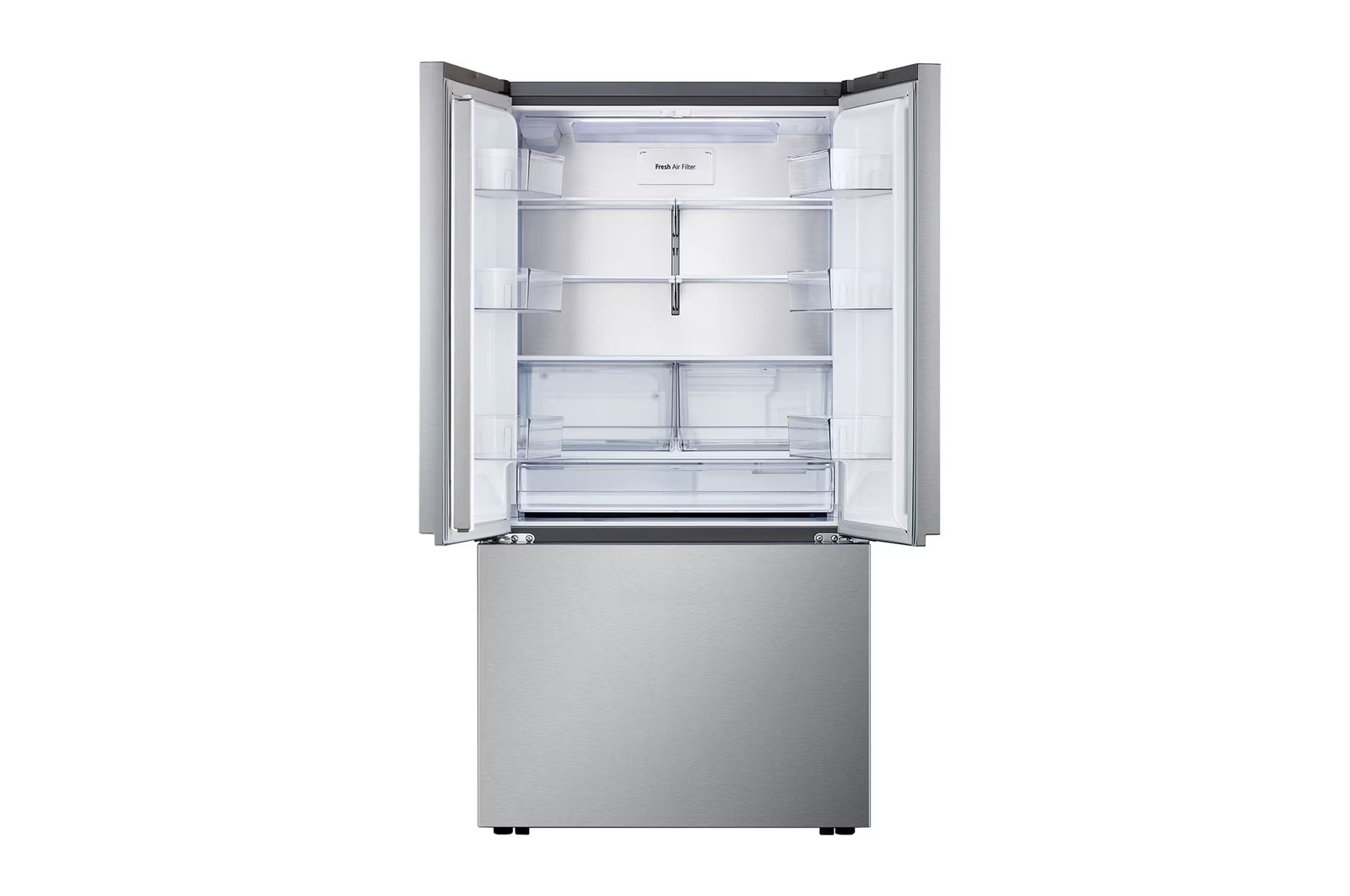

Refrigerator
Handle Type
Bar
No. of Shelves
4 Split (4 Fixed)
Refrigerator Light
Yes
Shelf Construction
Spill Protector™ Tempered Glass
Summary

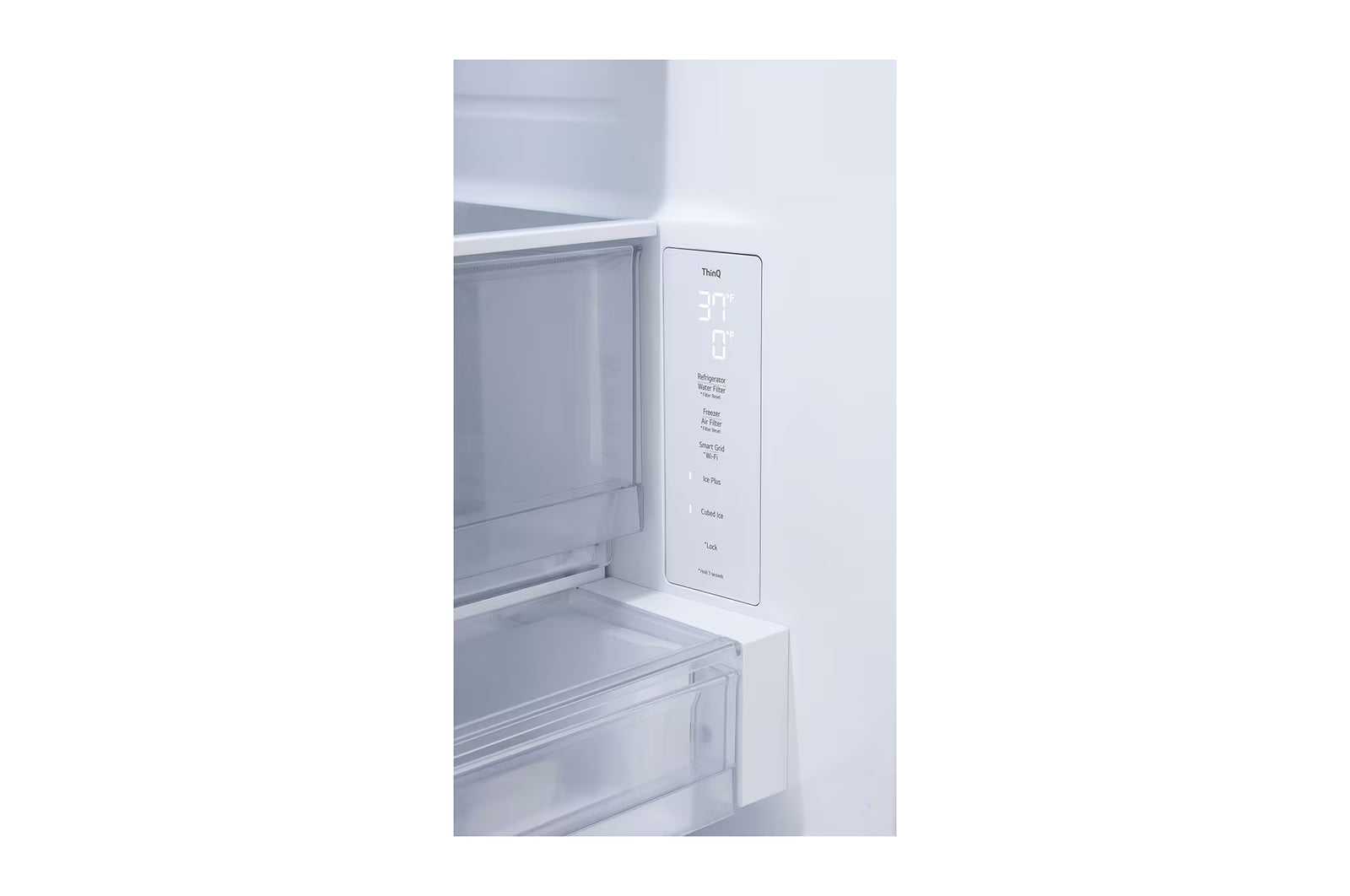

Display Type
Smooth Touch Control / White LED
Refrigerator ThinQ® Smart Features
SmartDiagnosis™
Yes
ThinQ® Smart Technology
Yes
ThinQ Care™
Yes
wi-fi Enabled
Yes
Water & Ice System
Freezer Ice Maker Ice Type
Cubed
Freezer Ice Maker Daily Production
0.9259 lbs
Ice & Water Dispenser
Yes
Ice Storage Capacity (lbs)
4.0 lbs.

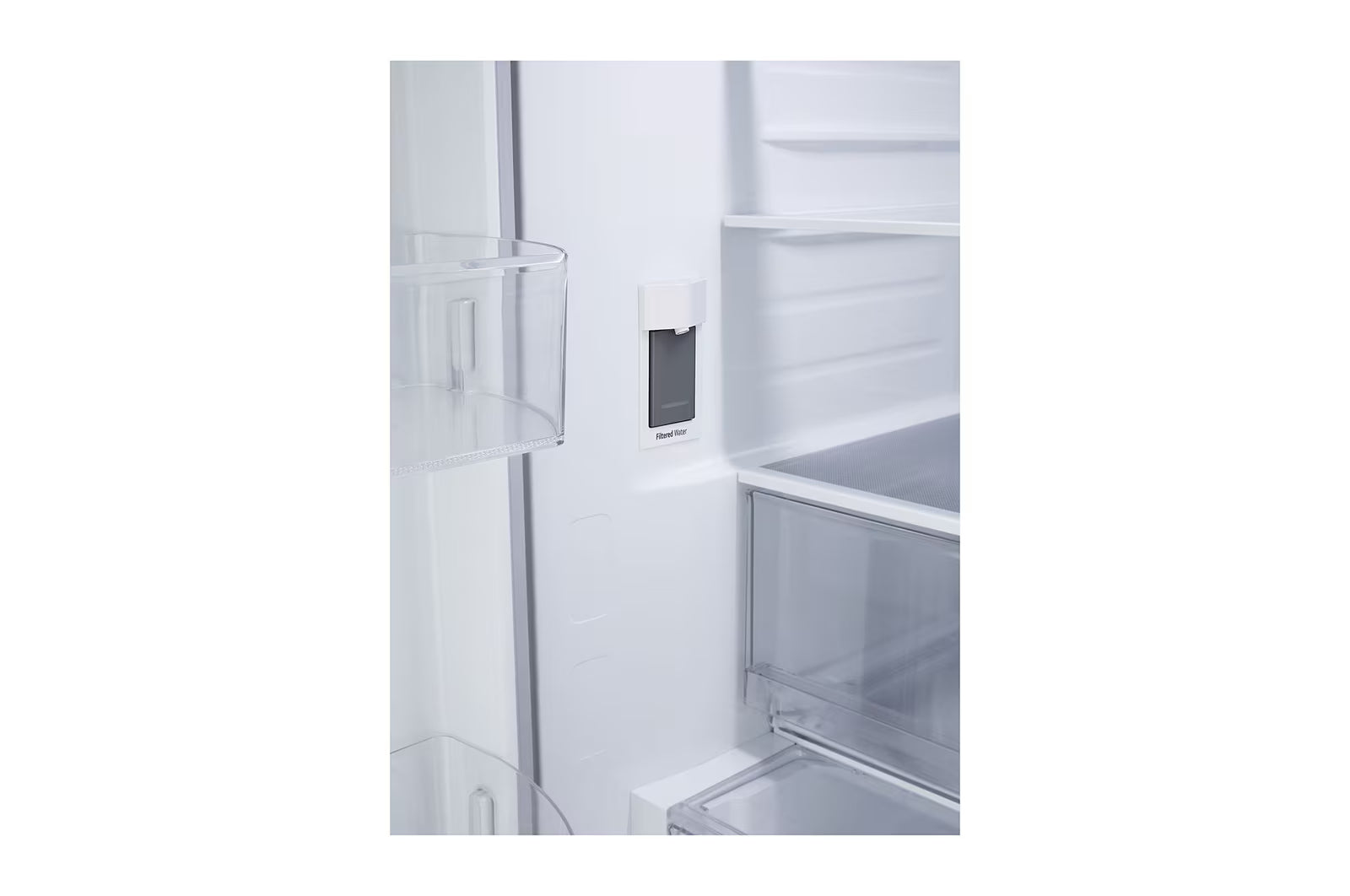

Water Filter
LT1000P
Water Filtration System
1 Stage
