• KitchenAid KTTS505EPA Trash Compactor
  • KitchenAid KTTS505EPA Trash Compactor (5 cu. ft.)
  • KitchenAid KTTS505EPA Trash Compactor (Panel Ready)
1 3

KitchenAid

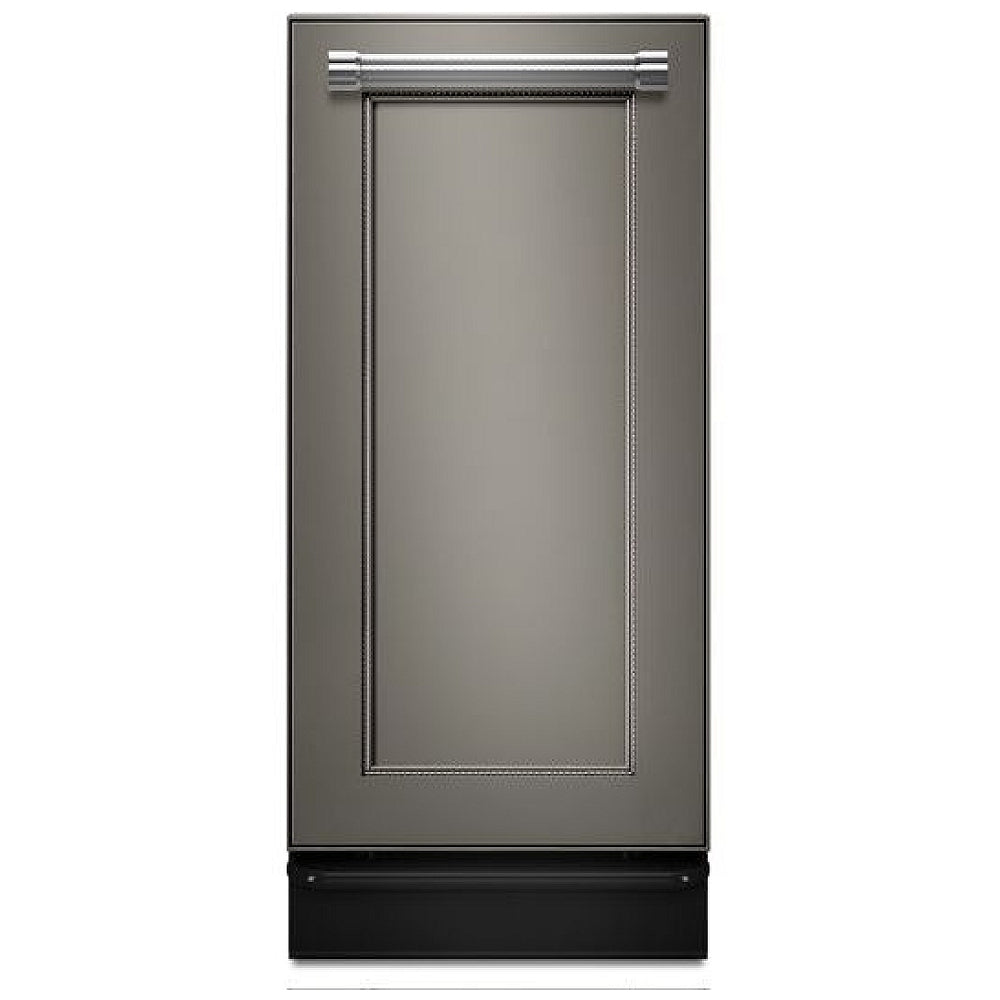

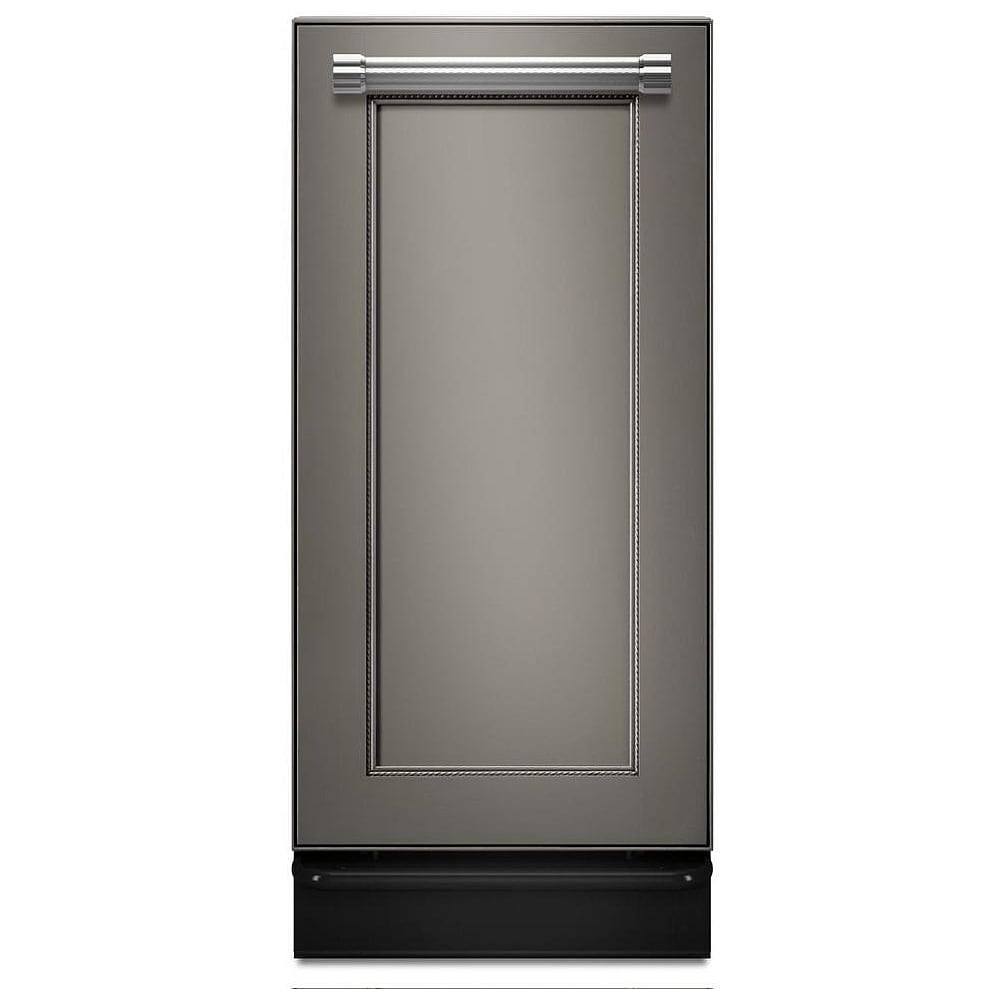

KitchenAid KTTS505EPA Trash Compactor

KitchenAid KTTS505EPA Trash Compactor

Just 3-5 Days*
$1,499.99 CAD
$1,699.99 CAD $1,499.99 CAD
View full details
  • brand:
    KitchenAid
  • category:
    Disposals
  • colour:
    Panel Ready
  • depth:
    24
  • doors:
    1
  • height inch :
    35
  • prices:
    $999 - $1499
  • sub categories:
    Panel Ready Trash Compactor
  • width:
    15

Key Features

  • 1/3 HP Motor
  • Odor Management System
  • Panel-Ready Design
  • Solid Pack Control with 5:1 Compaction Ratio
  • Whisper Quiet Plus

Specifications

Dimension Capacity
24.5" W x 18.5" D x 36" H 5 cu. ft.

Delivery & Installation

Delivery and installation available in Canada. Please contact us for a quote.

FAQ

What are the dimensions of the KitchenAid KTTS505EPA Trash Compactor?

The dimensions of the KitchenAid KTTS505EPA Trash Compactor are 24.5" W x 18.5" D x 36" H.

What is the capacity of the KitchenAid KTTS505EPA Trash Compactor?

The capacity of the KitchenAid KTTS505EPA Trash Compactor is 5 cu. ft.

Is delivery and installation available for the KitchenAid KTTS505EPA Trash Compactor?

Yes, delivery and installation are available for the KitchenAid KTTS505EPA Trash Compactor in Canada. Please contact us for a quote.

Dimension_Guide_1.pdf
Warranty.pdf
Owners_Manual.pdf

Specifications

Dimensions|Capacity(FT3,cubic feet) 1.40

Dimensions|Cutout Depth(IN,inches) 24

Dimensions|Cutout Height(IN,inches) 34 1/4

Dimensions|Cutout Width(IN,inches) 15 1/4

Dimensions|Depth With Door Open 90 Degree(IN,inches) 47

Dimensions|Depth(IN,inches) 24

Dimensions|Height(IN,inches) 34 1/8

Dimensions|Maximum Height(IN,inches) 34 1/2

Dimensions|Width(IN,inches) 15

Description|Compactor Type Built-In

Controls|Control Type Touch Pad

Controls|Air Filter Fan On/Off Yes

Controls|Solid Pack On/Off Yes

Controls|Tilt Switch Yes

Exterior|Door Color Panel Ready

Exterior|Door Style Flat

Exterior|Removable Key Lock Hidden Removable - Knob

Exterior|Toe Bar Drawer Opener Yes

Features|Automatic Anti-Jam Yes

Features|Bag Retainer Buttons Yes

Features|Odor Management System Fan with Charcoal Filter

Features|Sound Package Yes

Details|Compaction Ratio 5 to 1

Details|Construction All Welded

Details|Front Levelers Rear Rollers Yes

Details|Motor Horsepower 1/3 HP

Details|Side Release Bin Yes

Details|Solid Pack Yes

Details|Tilt-Away Trash Basket Yes

Certifications|UL Yes

Certifications|Prop 65 Standard

Dimensions|Gross Weight(LB,pounds) 132

Solid Pack™ Control Solid Pack™ Control

Refinements|KAD Disposers and Compactors Solid Pack™ Control,Whisper Quiet

Accessory Relationships Yes

EndecaProps|ProductOutletCategories Dishwashers

Status Badge Espot New

Home Delivery Yes

Will Call Yes

Dimension

Capacity (Cu Ft) 1.40

Carton Depth 27 1/4

Carton Height 36 1/4

Carton Width 16 3/4

Cutout Depth (in) 24

Cutout Height (in) 34 1/4

Cutout Width (in) 15 1/4

Depth 24

Height 34 1/8

Width 15

Depth With Door Open 90 Degree 47

Gross Weight 132

Maximum Height 34 1/2

Net Weight 0.0

KitchenAid Manufacturer Warranty: 📞 (800) 688-2002

Parts Warranty: 1 Year

Labour Warranty: 1 Year

View in-store for purchase of extended warranties up to 4 years.

📄
Insurance Brochure
Learn about our 4-Year Extended Protection Plans
