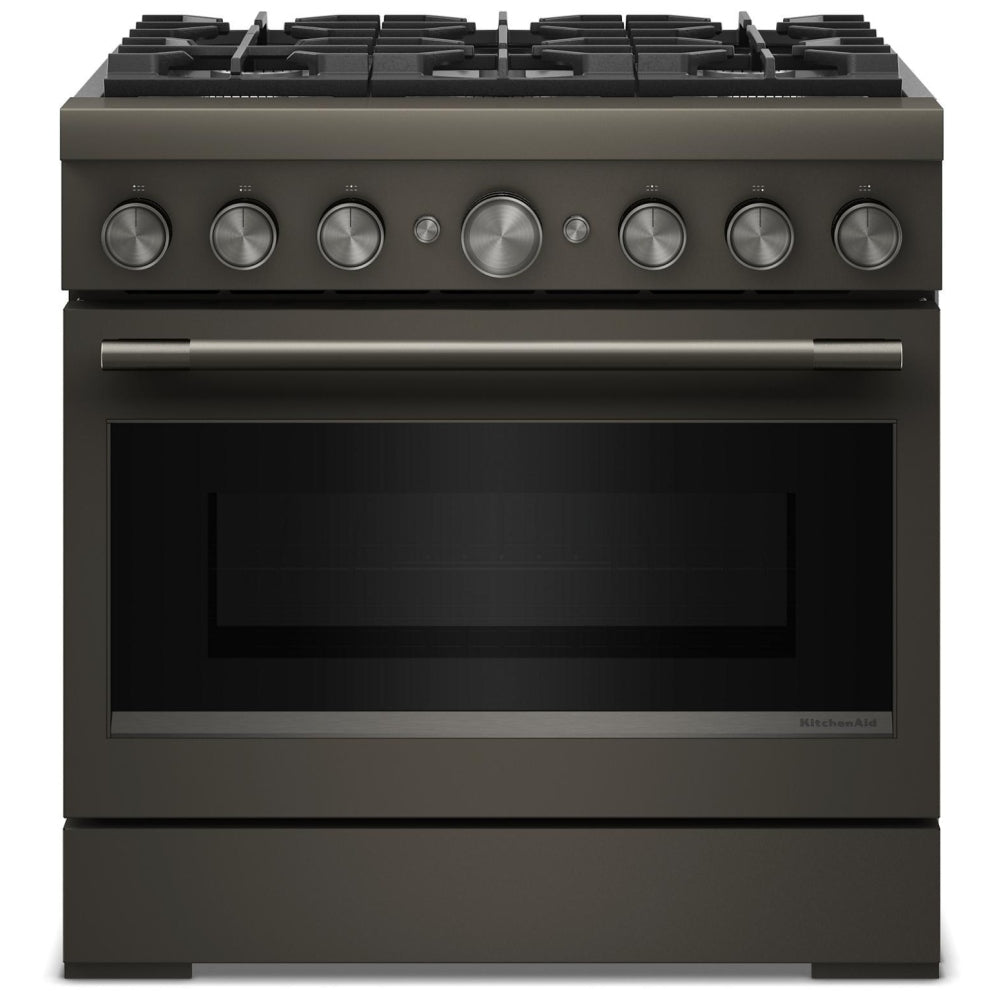

KitchenAid KFDS936SBE Dual Fuel Range, 5.1 cu. ft. Capacity, 36 inch Exterior Width, True Convection, 6 Burners, Air Fry, Self Clean, Black Ore colour
KitchenAid
KFDS936SBE
KitchenAid KFDS936SBE Dual Fuel Range, 5.1 cu. ft. Capacity, 36 inch Exterior Width, True Convection, 6 Burners, Air Fry, Self Clean, Black Ore colour
MSRP: $9,199.99
MAP Price MAP Price $8,199.99
Quick Specs
  • Capacity: 5.0 cu ft
  • WiFi Enabled: No
  • Power Type: 20000 BTU
  • Burners: 6 burners
Dimensions
W 36in
H 36in
D 31in
Bring professional power and modern versatility into your kitchen with the KitchenAid KFDS936SBE 36" Commercial-Style Dual Fuel Range. Designed for passionate home cooks who want restaurant-inspired performance, this striking Black Ore range combines the responsive control of a gas cooktop with the even, reliable baking of an electric oven. At approximately 36" wide, it offers a substantial presence and a generous 5.1 cu. ft. oven capacity, giving you room to roast a large turkey with multiple side dishes or to bake several trays of cookies at once, all with consistent results from corner to corner.

What truly sets the KitchenAid KFDS936SBE apart is its powerful and precise burner configuration, led by two 20,000 BTU Ultra Power™ Dual-Flame Burners that let you sear steaks at intense heat, then instantly dial down to a gentle simmer on the same burner for delicate sauces. Complementing this is a 5,000 BTU Simmer & Melt burner, carefully sized for smaller pans so you can hold chocolate, butter, or cream at low, stable temperatures without scorching. Inside the oven, Even-Heat™ True Convection uses a specialized bow-tie design with a dedicated heating element and fan to circulate air evenly, helping pastries rise beautifully, roasts brown uniformly, and vegetables caramelize with rich flavor.

Another standout advantage is the integrated No Preheat Air Fry mode, which brings crispy, golden results to favorites like wings, fries, and vegetables without the wait of traditional preheating and with less oil than deep frying. This built-in air fry capability means you can enjoy healthier, faster weeknight meals without adding a separate countertop appliance. The cooktop’s edge-to-edge cast-iron grates create a continuous, durable surface so you can slide heavy pots smoothly from one burner to another, while the integrated wok grate lets you nestle a round-bottom wok directly into the flame for authentic, high-heat stir-fry cooking. Thoughtful touches such as backlit knobs that glow when burners are on and a Backlit Dual-Dial Oven Knob that controls both mode and temperature add both safety and style, making the KitchenAid KFDS936SBE a centerpiece range that elevates everyday cooking and special occasions alike.

 KitchenAid® Commercial-Style design – professional-inspired 36" range styling with bold knobs and towel-bar handle to complement premium kitchen layouts.

 Dual Fuel Range – combines the precise control of a gas cooktop with the even, consistent baking and broiling performance of an electric oven.

 Ultra Power™ 20,000 BTU Dual-Flame Burners (2) – deliver powerful high heat and ultra-low simmer on the same burner for searing, stir-frying, simmering and sautéing with precise control.

 Even-Heat™ True Convection – uses a bow‑tie design heating element and fan to circulate hot air evenly for consistent baking, roasting and browning on every rack.

 No Preheat Air Fry Mode – air-fries foods like wings, fries and vegetables without waiting for preheat, using less oil than traditional deep frying.

 SatinGlide™ Roll-Out Extension Rack – full-extension oven rack glides smoothly to make loading and unloading heavy dishes or large roasters easier and safer.

 36-inch 6-burner commercial-style cooktop – spacious surface with six sealed gas burners to handle multiple pots and pans at once for large meals or entertaining.

 Two 20,000 BTU Dual-Flame Burners – provide a wide temperature range from intense sear to gentle simmer on front power burners.

 Three 15,000 BTU burners – deliver strong, even heat for fast boiling, sautéing and everyday cooking tasks.

 5,000 BTU Simmer & Melt burner – low-output burner sized for small saucepans to gently melt chocolate, butter or hold delicate sauces without scorching.

 Integrated wok grate – recessed center grate allows a round-bottom wok to sit close to the flame for authentic high-heat stir-fry cooking.

 Edge-to-edge cast-iron grates – continuous, heavy-duty grates let you slide cookware across the surface and are dishwasher-safe for easier cleaning.

 Cooktop backlit knobs – LED-lit knobs create a soft halo when burners or oven are on, providing a clear visual “on” indicator from across the room.

 Backlit Dual-Dial oven knob – single control selects oven mode (Air Fry, Bake, Broil, Convection, etc.) and temperature, with pulsing backlight while preheating and full illumination when ready.

 5.1 cu. ft. oven capacity – large single cavity fits a full-size turkey or roast with multiple side dishes, ideal for family meals and holiday cooking.

 Three convection cooking modes – Convect Bake, Convect Roast and Convect Broil optimize airflow and temperature for vegetables, roasts and baked goods.

 Self-cleaning oven – high-heat self-clean cycle reduces baked-on spills and splatters to ash, minimizing scrubbing.

 Smooth-Close door – soft-close hinge design helps prevent slamming and provides a premium, solid feel when closing the oven.

 Keep Warm setting – maintains low, steady heat to keep cooked dishes warm until serving without overcooking.

 Proofing mode – gently warms the oven cavity to create an ideal environment for proofing bread dough.

 Sabbath Mode / Star-K certified – allows the oven to be used in accordance with Sabbath and holiday observances.

 Halogen interior lighting – bright oven lights make it easy to monitor cooking progress through the glass door without opening it.

 Two adjustable oven racks with multiple positions – flexible rack placement to accommodate tall stock pots, large roasters or multiple baking sheets.

 Electronic ignition with re-ignition – lights burners quickly and helps maintain flame, improving safety and efficiency compared to standing pilots.

 Sealed gas burners – help contain spills on the cooktop surface, making cleanup faster and protecting burner components.

 Black Ore finish option – rich, modern finish coordinates with other KitchenAid appliances and mixed-metal hardware trends.

 Designed to be personalized – compatible with optional handle and knob accessory kits (Brass, Bronze, Black Ore, Stainless Steel) to customize the look.

 Commercial-style towel-bar handle – sturdy, full-width handle provides a professional appearance and convenient grip.

 Front control panel – all knobs located at the front for easy access without reaching over hot pots and pans.

 Freestanding / slide-in style – commercial-style freestanding design fits standard 36" cutouts with finished sides for flexible placement.

 LP convertible – can be converted from natural gas to liquid propane with an appropriate conversion kit for homes without natural gas service.

 Seamless leveling system – built-in leveling features help achieve a flush, stable installation with surrounding countertops.

 Hot surface / power-on indicators – visual indicators confirm when the cooktop or oven is in use to enhance safety.

 Star-K and Prop 65 compliant – meets applicable certification and safety standards for residential use.

 Proudly assembled in Cleveland, TN, USA – U.S. assembly location may appeal to buyers prioritizing domestic manufacturing.

 240V, 40A electrical requirement – supports the electric oven and features like True Convection and self-cleaning.

 Dishwasher-safe grates – heavy cast-iron grates can be cleaned in a dishwasher to reduce manual scrubbing.

 36" width, 30.25" depth, 36" height – standard commercial-style 36" footprint designed to fit many remodel and new-build kitchen layouts.


Manufacturer's Warranty: 1 year

UPC: 883049919782

EAN: 0883049919782

Specification Value
Capacity 5.1 Cu Ft
Range Type Professional Commercial-Style Dual Fuel Range
Fuel Type Dual Fuel (Gas Cooktop / Electric Oven)
Cooking Surface Gas, Sealed Burners
Number of Burners 6
Left Front Burner Power / Type 20,000 BTU, Dual-Stacked Dual-Flame Burner
Right Front Burner Power / Type 20,000 BTU, Dual-Stacked Dual-Flame Burner
Center Front Burner Power / Type 15,000 BTU, Sealed Burner
Left Rear Burner Power / Type 15,000 BTU, Sealed Burner
Right Rear Burner Power / Type 15,000 BTU, Sealed Burner
Center Rear Burner Power / Type 5,000 BTU Simmer & Melt Burner, Sealed Burner
Cooktop Element Style Sealed Burners
Cooktop Configuration All Burners
Cooktop Surface Material Porcelain Coated Steel
Cooktop Surface Color Black
Grates Edge-to-Edge Cast-Iron Grates
Grate Details Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Number of Grates 3
Griddle Included No
Auto Re-ignition Yes
Ignition Type Flame-Sensing Re-ignition
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Width 35.875 inches
Nominal Width 36 inches
Height 36 inches
Depth 30.25 inches
Depth Closed Excluding Handles 27.75 inches
Depth Closed Including Handles 30.25 inches
Depth with Door Open 90° 46.5 inches
Cutout Width 36 inches
Cutout Height 36 inches
Cutout Depth 24 inches
Oven Interior Width 29.9 inches
Oven Interior Height 14.3 inches
Oven Interior Depth 16.3 inches
Carton Width 41.8 inches
Carton Height 47.2 inches
Carton Depth 35.5 inches
Net Weight 350.9 lbs
Gross Weight 416.9 lbs
Color / Finish Black Ore
Series Commercial-Style
Range Configuration Slide-In
Installation Configuration Freestanding
Range Drawer Type None
Oven Configuration Single Oven
Oven Cooking System True Convection (Even-Heat True Convection)
Convection Element Type True Bow Tie
Convection Element Power 1,600 W
Bake Element Power 3,000 W
Broiler Element Power 5,500 W
Broiler Location Top of Oven
Oven Cleaning Type Self-Cleaning
Hidden Bake Element Yes
Number of Oven Racks 2
Oven Rack Type Gliding Roll-Out; Standard
Number of Rack Guides 5
Oven Rack Guide Type Molded
Number of Oven Lights 3
Oven Light Type Halogen
Oven Light Switch Location Top of Oven
Door Type Metal & Glass
Door Removable Yes
Soft-Close / Smooth-Close Door Yes (Smooth-Close Door)
Handle Type Towel Bar
Handle Material Metal
Handle Color Black Ore / Black Stainless (finish-coordinated)
Interior Color Black
Cooktop Control Location Front
Cooktop Control Type Knobs
Cooktop Control Knob Color Black Ore or Stainless Steel (finish-coordinated)
Cooktop Control Knob Type Metal
Oven Control Location Front
Oven Control Type Knobs (Backlit Dual-Dial Oven Knob)
Oven Control Knob Color Black Ore or Stainless Steel (finish-coordinated)
Oven Control Knob Type Metal
Knob Color LED Lighted Knobs
Knob Type Metal
Backlit Knobs Yes, Cooktop Backlit Knobs glow when burners or oven is on
Backlit Dual-Dial Oven Knob Yes, sets oven mode and temperature
Oven Selections / Modes Air Fry; Bake; Broil; Clean; Convect Bake; Convect Broil; Convect Roast; Keep Warm Setting; Proofing; Sabbath Mode
Air Fry Yes, No Preheat Air Fry Mode
Air Fry Basket Included No (basket sold separately)
Automatic Convection Conversion Temperature Adjust Yes
Temperature Probe No
LP Convertible Yes
Natural Gas Convertible Yes
Power Outage Compatible Yes - Cooktop Only
Power On Indicator Light Yes
Electrical Connection Power Cord Not Included
Connectivity No
Smart Appliance No
Certifications - ADA Compliant No
Certifications - UL Yes
Certifications - cUL Yes
Certifications - Star K Certified Yes (Sabbath Mode)
Certifications - Prop 65 Standard
Console Language English
Literature Languages English; French; Spanish
Country of Origin / Assembly Proudly assembled in Cleveland, TN, USA

Standard manufacturer warranty applies. Contact support for details.
