KitchenAid

KitchenAid KBFN542SPS Bottom Freezer French Door Built In Refrigerator, 42 inch Width, 24.2 cu. ft. Capacity, Ice Dispenser (Freezer Located), ENERGY STAR Certified, PrintShield Stainless colour

KitchenAid KBFN542SPS Bottom Freezer French Door Built In Refrigerator, 42 inch Width, 24.2 cu. ft. Capacity, Ice Dispenser (Freezer Located), ENERGY STAR Certified, PrintShield Stainless colour

Just 3-5 Days*
Regular price $9,499.99 CAD
Regular price $10,499.99 CAD Sale price $9,499.99 CAD
View full details
  • brand:
    KitchenAid
  • capacity cu ft :
    24.2
  • category:
    Refrigerator
  • colour:
    Stainless Steel
  • counter depth:
    Yes
  • depth:
    24
  • depth type:
    Built-In
  • doors:
    3
  • height inch :
    84
  • ice maker:
    Ice Dispenser (Freezer Located)
  • power type:
    Built-In
  • prices:
    $4000+
  • reversible doors:
    No
  • sabbath mode functions:
    Yes
  • sub categories:
    Built-In French Door Refrigerator
  • water dispenser:
    No
  • width:
    42
  • wifi enabled:
    No

 Preserva®+ Cooling System – uses two independent cooling systems to maintain optimal humidity and help keep produce and other foods fresher for longer.

 FreshFlow™ Air Filter – carbon-based filter deodorizes up to 15x better than baking soda, helping neutralize common food odors for up to 6 months.

 Produce Preserver – special filter in the crisper drawers absorbs ethylene gas to help delay over‑ripening and extend the freshness of fruits and vegetables.

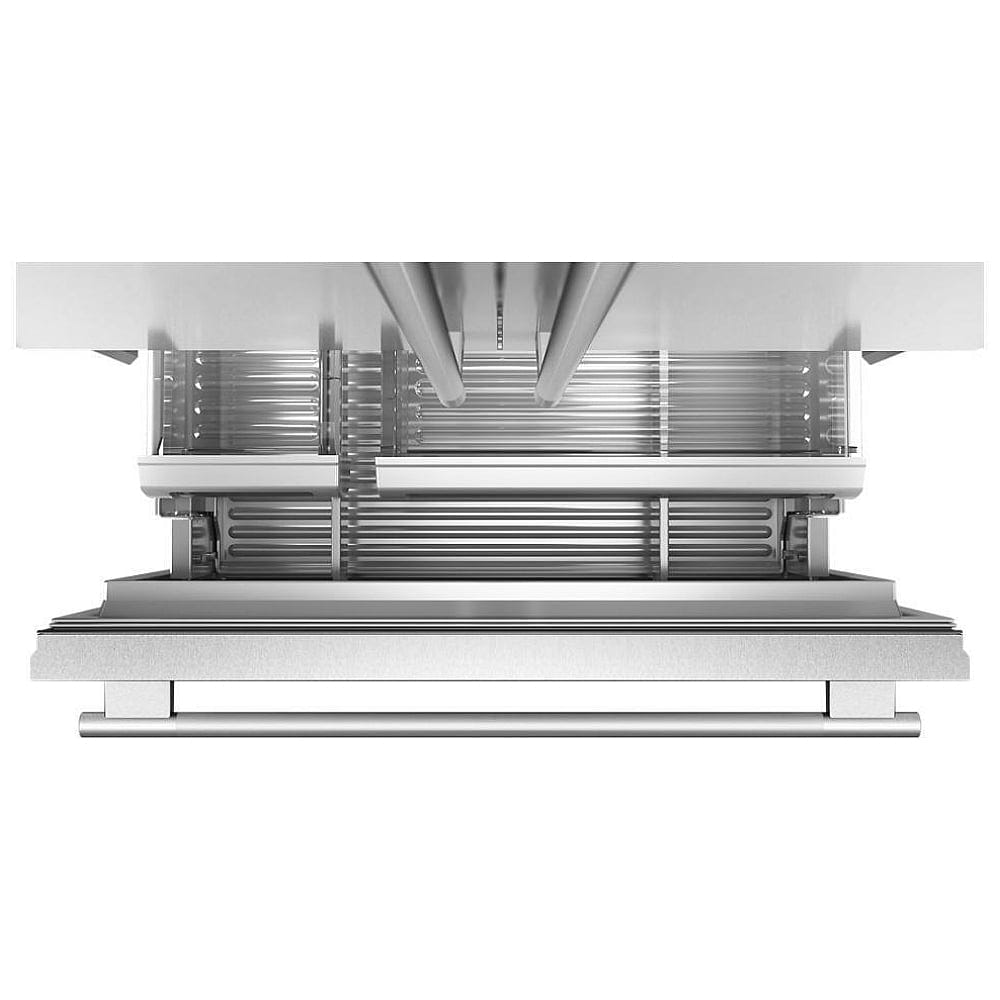

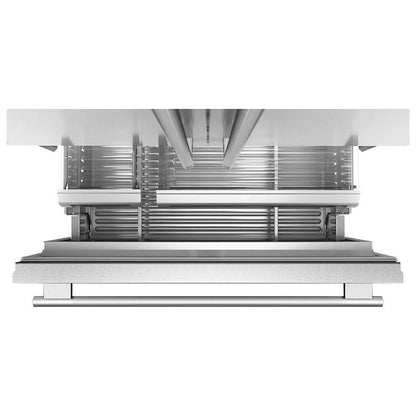

 SatinGlide® Drawer System – ball‑bearing rollers provide smooth, effortless opening and closing of crisper and freezer drawers, even when fully loaded.

 Signature Platinum Interior – premium silver‑colored interior with metallic touchpoints, smoked crisper bins and ultra‑bright LED lighting for a high‑end, built‑in look.

 Fit System Limited Guarantee – offers a credit toward professional cabinet modifications if this 42" built‑in refrigerator does not fit your existing cutout (terms and conditions apply).

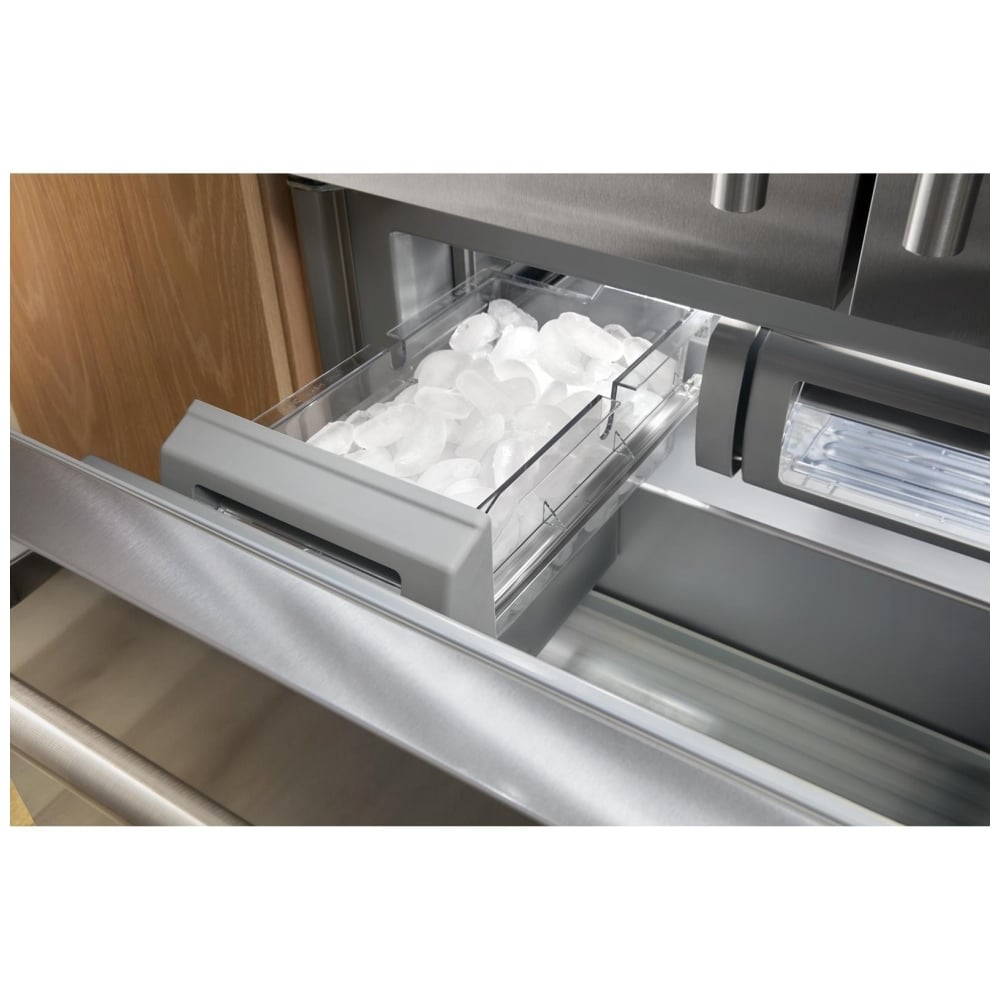

 Automatic Ice Maker – factory‑installed ice maker supplies a continuous stream of fresh, filtered ice for everyday use and entertaining.

 Max Cool function – temporarily drops refrigerator temperature to the coldest setting at the touch of a button to quickly chill groceries, beverages or ingredients, then automatically returns to normal after 24 hours.

 Max Freeze function – rapidly lowers freezer temperature to the coldest level (down to about ‑8°F) to quickly freeze items, then automatically returns to the previous setting after 48 hours.

 Intuitive electronic controls – up‑front touch‑pad controls make it easy to set temperatures, activate Max Cool/Max Freeze, manage the ice maker and monitor filter status.

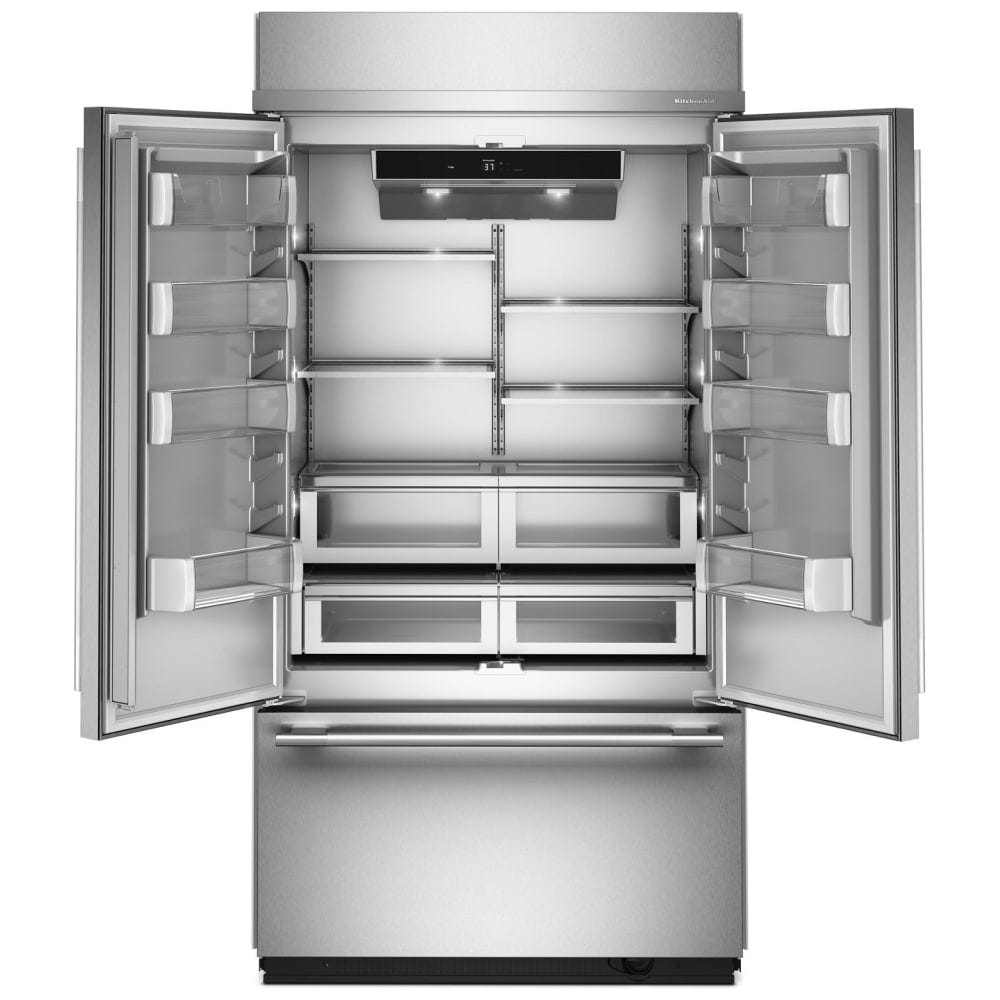

 Adjustable spill‑resistant glass shelves – premium edge‑to‑edge glass shelves with nano‑etched edges help contain spills and can be rearranged or removed to fit tall or bulky items.

 Gall(on) door bins – large, adjustable door bins are sized to hold gallon jugs, beverage cartons and other bulky containers to free up shelf space.

 Ultra‑bright LED lighting – gradually brightens to fully illuminate both refrigerator and freezer compartments so items are easy to see, even in the back.

 Personalized Door Stop – lets you set the door opening angle (90°, 110° or 130°) to prevent doors from hitting adjacent cabinets, walls or appliances.

 Multiple installation options – supports flush, overlay or proud installation so you can match surrounding cabinetry or create a more prominent built‑in statement.

 Designed to be personalized – Juniper exterior finish can be paired with optional mixed‑metal handle kits (Brass, Bronze, Black Ore, Stainless Steel) to coordinate with your kitchen hardware.

 24.2 cu. ft. total capacity – offers generous storage space (about 17.8 cu. ft. fresh food and 6.4 cu. ft. freezer) to accommodate large grocery loads and entertaining needs.

 42" built‑in French door configuration – wide, side‑by‑side refrigerator doors and a pull‑out bottom freezer drawer provide easy access and a premium built‑in appearance.

 Adjustable interior storage – combination of fixed and adjustable shelves, bins and drawers allows flexible organization for platters, tall bottles and everyday items.

 Factory‑installed water filtration – integrated filter helps reduce impurities from the water used for ice, improving taste and quality.

 Automatic defrost system – reduces frost buildup in the freezer, helping maintain efficiency and minimizing manual defrosting.

 LED‑lit freezer drawers – dedicated LED lighting in the freezer makes it easier to find frozen foods without digging.

 Soft‑close drawers and doors – engineered hinges and slides help doors and drawers close gently and quietly, reducing slamming and improving durability.

 Sabbath Mode / Star‑K certified – special operating mode meets Sabbath observance requirements by disabling certain lights and functions when activated.

 Built‑in design – cabinet‑depth construction sits nearly flush with surrounding cabinetry for a seamless, integrated look in high‑end kitchens.

 Hidden hinges and clean front – concealed hinge design and uninterrupted door surfaces contribute to a sleek, modern aesthetic.

 Bottom‑mount freezer layout – frequently used fresh foods are kept at eye level while frozen items are organized in lower pull‑out drawers.

 Energy‑efficient LED lighting – uses less energy and generates less heat than traditional bulbs while providing bright, even illumination.

 Durable metal handles – robust, reach‑through handles provide a solid grip and complement the premium built‑in styling.

 Door and temperature alarms (where equipped) – alert you if a door is left open or if temperatures rise, helping protect stored food.

Manufacturer's Warranty: 1 year

Specification Value
Total Capacity 24.2 Cu Ft
Refrigerator Capacity 17.8 Cu Ft
Freezer Capacity 6.4 Cu Ft
Width 41 5/16 inches
Exterior Width (nominal) 42 inches
Product Width (rounded) 42 3/8 inches
Cabinet Width 41 1/2 inches
Cutout Width 41 1/2 inches
Height 83 3/8 inches
Product Height (alt. rounding) 83 3/16 inches
Height to Top of Cabinet 83 3/8 inches
Height to Top of Door Trim 73 5/16 inches
Cutout Height 83 1/2 inches
Depth 27 3/4 inches
Depth Excluding Doors 23 3/8 inches
Depth Closed Excluding Handles 25 3/4 inches
Depth Closed Including Handles 27 13/16 inches
Depth with Door Open 90° 44 1/4 inches
Cutout Depth 24 inches
Carton Width 45.74 inches
Carton Height 86.57 inches
Carton Depth 32.04 inches
Net Weight 551.56 lbs
Gross Weight 612.85 lbs
Door Style Configuration French Door
Refrigerator Type Built-In French Door Bottom Mount
Installation Type Built-In
Installation Options Flush, Overlay, or Proud
Door Swing Option Double Doors
Number of Doors 3 (2 refrigerator doors, 1 freezer drawer)
Freezer Door Type Pull-Out Drawer
Cabinet Color Grey
Door Color Juniper (Green)
Handle Color Juniper Green / Customizable
Handle Type Reach-Through Handle
Handle Material Metal
Cabinet Finish Smooth
Door Finish Smooth
Hidden Hinge Yes
Interior Finish Signature Platinum Interior
Refrigerator Lighting LED
Freezer Lighting LED
Number of Interior Shelves 4–5 glass shelves (4 adjustable, 1 fixed; spill-resistant)
Type of Shelves Adjustable Spill-Resistant Glass with metallic trim
Non-Climate-Control Drawers 4 half-width drawers
Refrigerator Door Bins 2 half-width gallon bins; 4–6 adjustable half-width bins
Gallon Door Storage Yes
Freezer Drawer/Basket Configuration 1 full-width lower metal basket; 1 half-width upper plastic basket
Defrost Type Automatic Defrost
Cooling System Preserva®+ Cooling System with dual evaporators
Odor Control FreshFlow™ Air Filter
FreshFlow™ Air Filter Included Yes
Water Filtration Yes
Water Filter Location Exterior
Water Filter Part Number EDR3RXD1
Water Dispenser No
Ice Maker Factory-installed automatic ice maker
Ice Dispenser No
Ice Maker Type Single ice maker
Control Location Interior, up-front
Control Type Electronic touch controls
Automatic Defrost (Control Feature) Yes
Max Cool / Fast Cool Yes (Max Cool)
Max Freeze Yes
Sabbath Mode Yes (Star-K Certified)
Door Alarm Yes
Personalized Door Stop Adjustable to 90°, 110°, or 130°
SatinGlide® Drawer System Yes (ball-bearing rollers on drawers)
Wi-Fi / Smart Connectivity No
Smart Compatible No
Energy Star Certified Yes (Tier I)
CEE Tier Rating Tier I
Star-K Certification Yes
ADA Compliant No
Approved for Outdoor Use No
Approved for Commercial Use No
Garage Ready No
Voltage 120 V
Amps 15 A
Frequency 60 Hz
Country of Origin USA (not made in Canada)
Manufacturer Warranty (U.S. examples) 1–2 years parts and labor (varies by retailer; check local terms)

KitchenAid Manufacturer Warranty: 📞 (800) 688-2002


Parts Warranty: 1 Year

Labour Warranty: 1 Year


View in-store for purchase of extended warranties up to 4 years.

📄
